Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#44301) — 219 parça

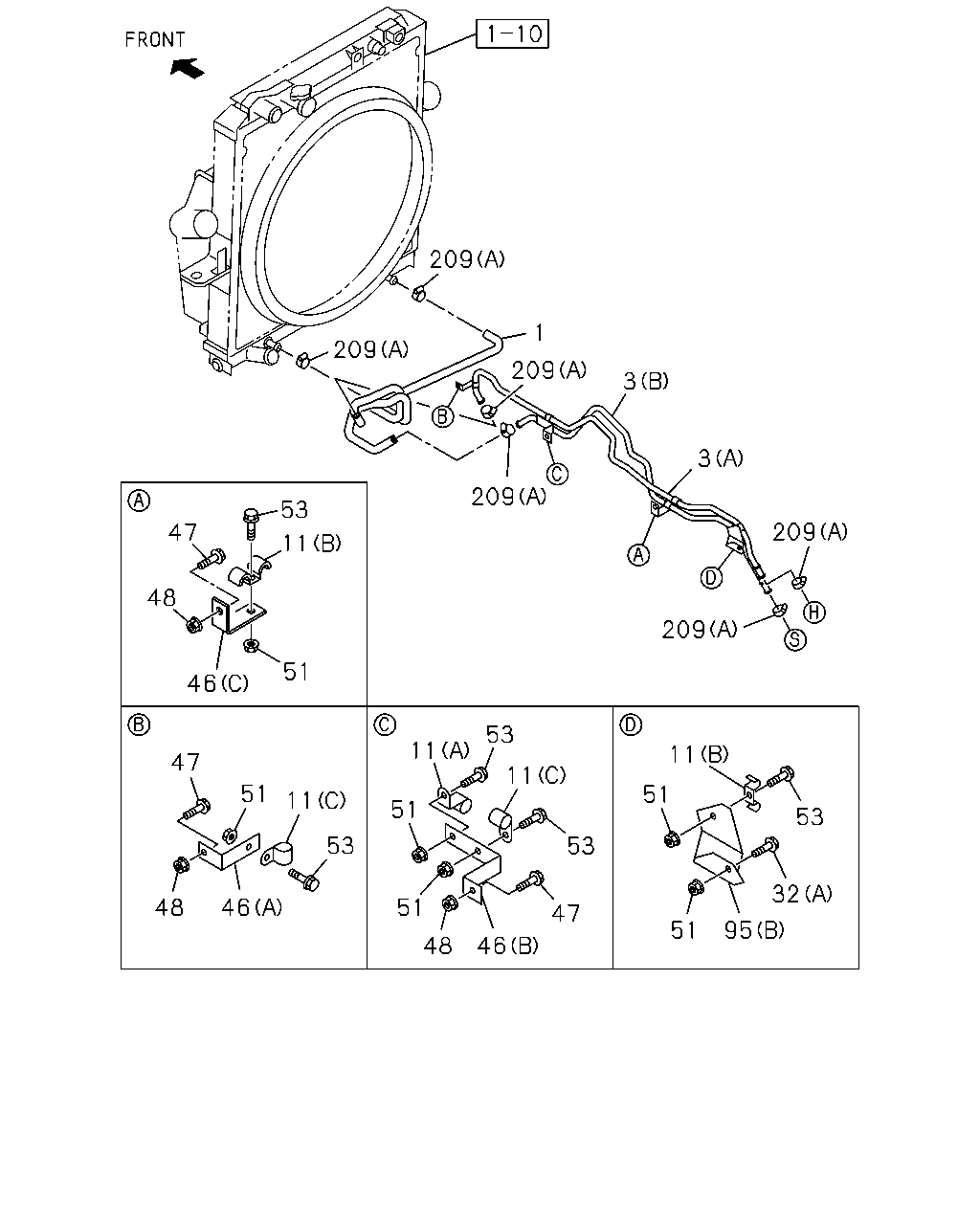

209 1 209 209 3 3 209 53 209 47 11 48 209 51 46 53 11 11 47 11 51 51 11 51 53 53 53 32 48 46 51 47 51 95 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0710-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-	●	●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	05	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	02	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0711-		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (E) ID=17 L=28	8-94427-862-0	01	1	0710-0710		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-0710	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (D) L=50	1-47475-299-2	01	1	0710-0710		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (E) L=76	1-47475-588-0	02	1	0710-0710		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	0710-	●	●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	05	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0711-		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0711-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	0711-		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-0710		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0710-0710		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●	●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	05	1	0710-0710		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-	●	●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0710-0710		●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-0710	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	05	1	0710-		●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	03	1	0710-0710		●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	06	1	0710-0710		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-	●	●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0710-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●

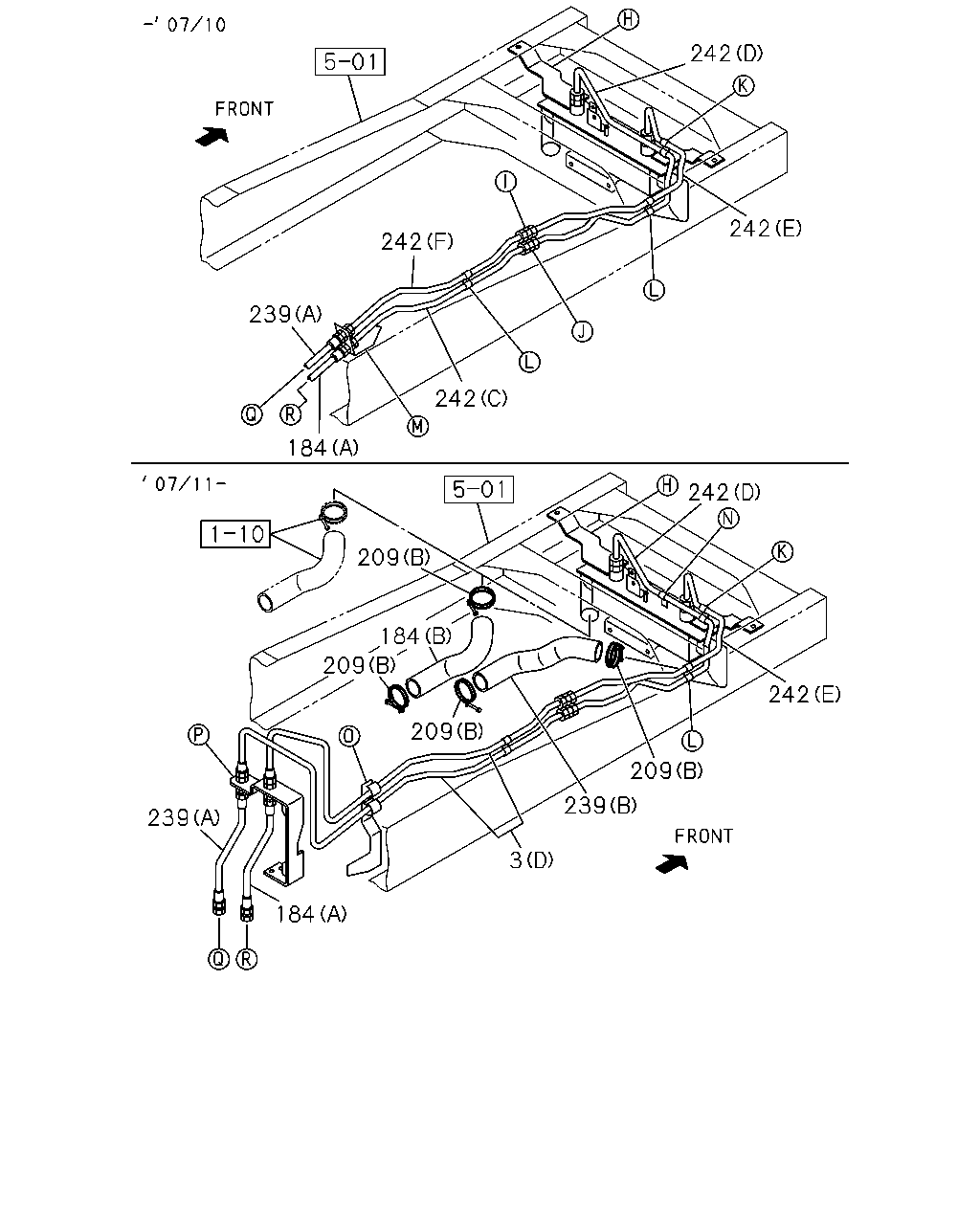

242 242 242 239 242 184 242 209 184 209 242 209 209 239 239 3 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	0802-		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-865-0	01	1	0710-0710		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0710-		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	8-98093-057-0	01	1	0710-0710		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0710-		●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0907-	●	●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0907-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0710-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0710-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●

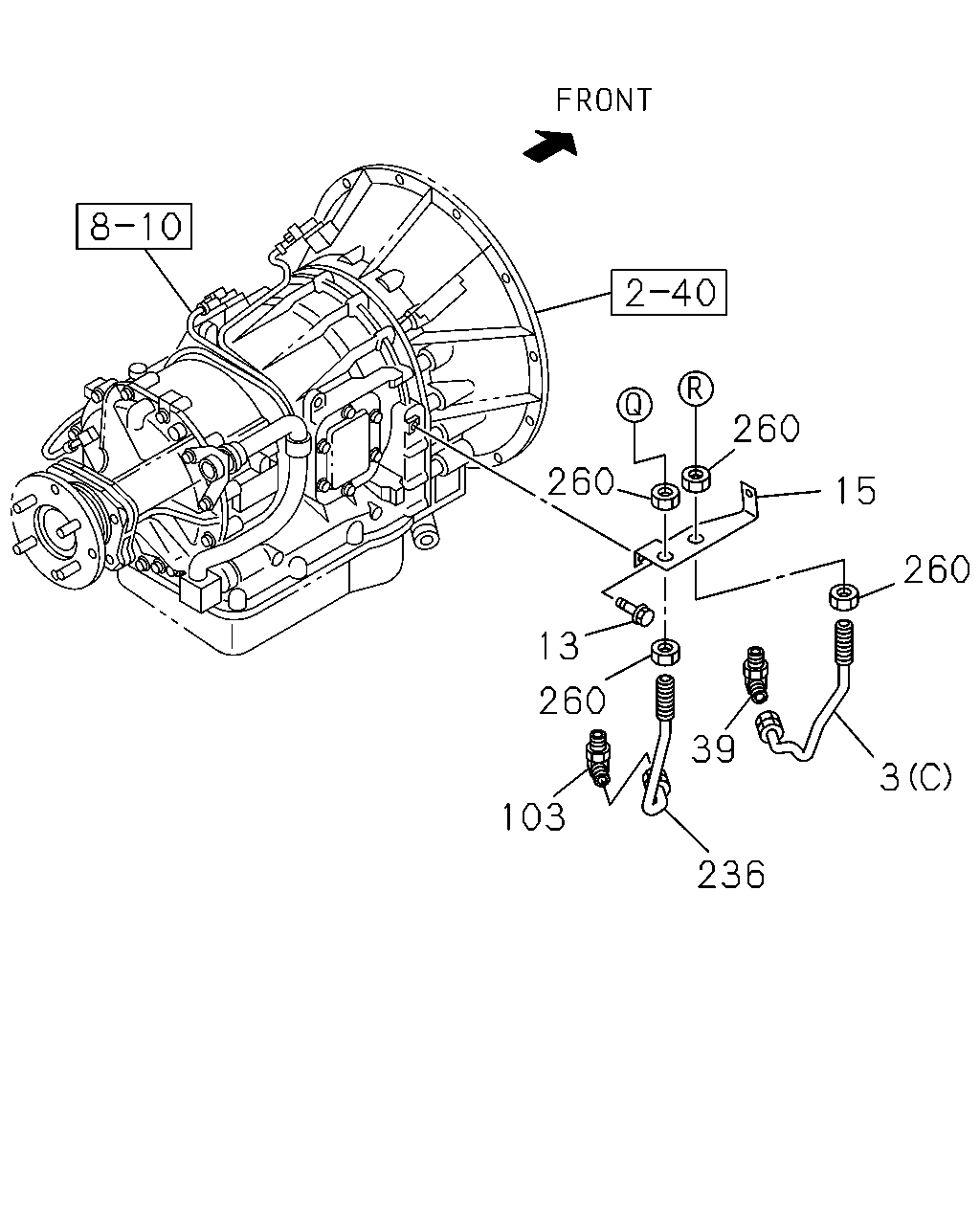

260 260 15 260 13 260 39 3 103 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
13	BOLT; BRKT LCT2000 A/T ALLISON(Y4F)	8-98090-453-0	01	1	0710-0711		●
13	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	8-98105-048-0	01	1	0712-		●
15	BRACKET; ATF PIPE LCT2000 A/T ALLISON(Y4F)	8-98075-836-0	01	1	0710-		●
39	CONNECTOR; FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	0710-		●
103	CONNECTOR; OIL PIPE LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	0710-		●
236	PIPE; OIL,OIL COOLER TO A/T LCT2000 A/T ALLISON(Y4F)	8-98075-835-1	01	1	0710-1106		●
236	PIPE; OIL,OIL COOLER TO A/T LCT2000 A/T ALLISON(Y4F)	8-98158-384-1	01	1	1107-		●
260	NUT LCT2000 A/T ALLISON(Y4F) M30	1-09400-166-0	04	1	0710-		●

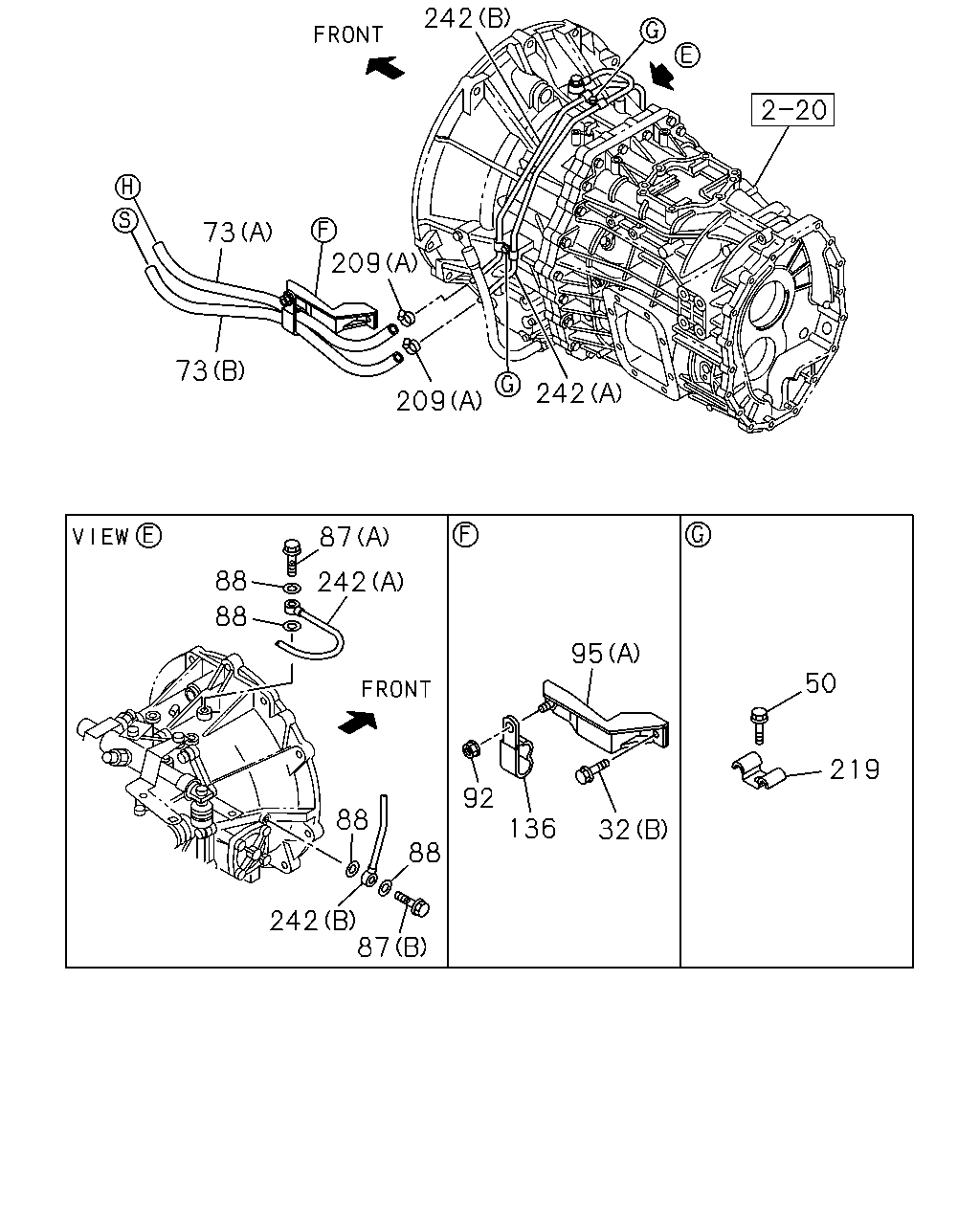

242 73 209 73 242 209 87 88 242 88 95 50 219 92 88 136 32 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
50	BOLT; CLIP MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0710-0906	●	●
50	BOLT; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	0907-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	0710-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	0710-	●	●
87	BOLT; EYE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●
87	BOLT; EYE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-0906	●	●
87	BOLT; EYE MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0907-	●	●
87	BOLT; EYE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0710-0906	●	●
87	BOLT; EYE MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	0907-	●	●
88	GASKET; EYE BOLT MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0710-0906	●	●
88	GASKET; EYE BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	0907-	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-	●	●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0710-		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-148-0	01	1	0710-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-19.5	8-94426-597-0	08	1	0710-1005	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11-17	8-98173-762-0	08	1	1006-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1107-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	0802-		●
219	CLIP; ATF PIPE MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0710-0906	●	●
219	CLIP; ATF PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0907-	●	●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0907-	●	●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0907-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0710-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0710-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●

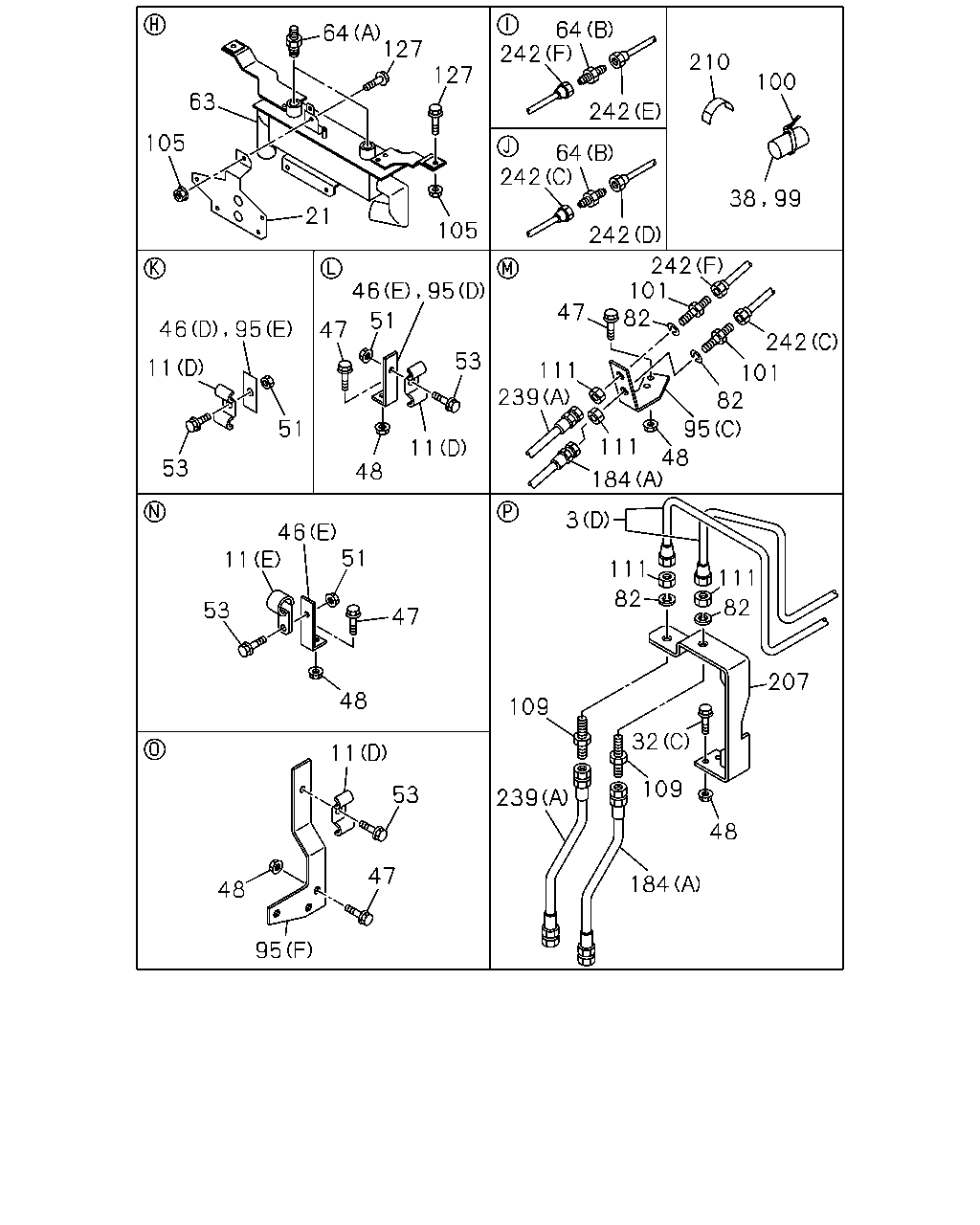

64 242 64 127 210 127 100 63 242 105 64 242 21 105 242 242 101 82 47 51 47 242 53 11 111 239 101 82 51 95 11 11 48 53 48 184 3 46 11 51 111 111 82 82 53 47 207 48 109 32 11 109 53 239 48 47 184 48 95 46 95 46 95 38 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	0710-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98075-834-1	01	1	0710-1106		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98158-383-1	01	1	1107-		●
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F) (D) L=1468 L=1567	8-98100-852-0	01	1	0710-		●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	0710-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0710-	●	●
11	CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-	●	●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	05	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	02	1	0710-0710		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (D) ID=19 & 19	1-09701-324-0	03	1	0711-		●
11	CLIP; PIPE LCT2000 A/T ALLISON(Y4F) (E) ID=17 L=28	8-94427-862-0	01	1	0710-0710		●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	0710-		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
32	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-		●
38	SLEEVE; RUBBER,FLEX HOSE LCT2000 A/T ALLISON(Y4F) ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-		●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-0710	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	0710-	●	●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (D) L=50	1-47475-299-2	01	1	0710-0710		●
46	BRACKET; OIL PIPE LCT2000 A/T ALLISON(Y4F) (E) L=76	1-47475-588-0	02	1	0710-0710		●
47	BOLT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	0710-	●	●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	05	1	0710-0710		●
47	BOLT; BRKT TO FRAME LCT2000 A/T ALLISON(Y4F) M8X25 FLANGE	0-28650-825-0	04	1	0711-		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0711-	●	●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	02	1	0711-		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-0710		●
48	NUT; BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0710-0710		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●	●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-0710	●	●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	05	1	0710-0710		●
51	NUT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	0710-	●	●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	0710-0710		●
51	NUT; CLIP TO BRKT LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	04	1	0710-		●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-0710	●	●
53	BOLT; CLIP,FLEX HOSE,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	0710-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	05	1	0710-		●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	03	1	0710-0710		●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	0-28650-820-0	06	1	0710-0710		●
63	COOLER; OIL A/T<X9D>	8-98025-665-2	01	1	0710-		●
64	CONNECTOR; OIL COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09660-210-0	02	1	0710-		●
64	CONNECTOR; OIL COOLER LCT2000 A/T ALLISON(Y4F) (B)	1-09664-263-0	02	1	0710-0710		●
82	WASHER; LK,UNION LCT2000 A/T ALLISON(Y4F) ID=30.5	9-09150-530-0	02	1	0710-		●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	0710-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	0710-	●	●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	03	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (D) L=68.5	1-47475-591-0	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (C)	8-98093-055-0	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	01	1	0710-0710		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (E) L=50	1-47475-299-2	02	1	0711-		●
95	BRACKET; CLIP LCT2000 A/T ALLISON(Y4F) (F)	8-98099-124-0	01	1	0710-		●
99	SLEEVE; RUBBER,FLEX HOSE LCT2000 A/T ALLISON(Y4F) ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-0906		●
100	CLIP; BAND,RUBBER SLEEVE LCT2000 A/T ALLISON(Y4F) L=250	5-09707-030-1	01	1	0710-0906		●
101	UNION; FLEX HOSE LCT2000 A/T ALLISON(Y4F) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-0710		●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	0710-		●
109	UNION LCT2000 A/T ALLISON(Y4F) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-		●
111	NUT; UNION LCT2000 A/T ALLISON(Y4F) M30	9-09840-252-1	02	1	0710-		●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	0710-		●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	0802-		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-865-0	01	1	0710-0710		●
184	HOSE; FLEX,PIPE TO COOLER LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0710-		●
207	BRACKET; UNION LCT2000 A/T ALLISON(Y4F)	8-98098-725-1	01	1	0710-		●
210	BAND; FLEX HOSE LCT2000 A/T ALLISON(Y4F) L=175	1-09707-178-0	01	1	0907-		●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	0802-		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	8-98093-057-0	01	1	0710-0710		●
239	HOSE; FLEX,COOLER TO PIPE LCT2000 A/T ALLISON(Y4F) (A)	1-09364-791-1	01	1	0710-		●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0710-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	0907-	●	●
242	PIPE; COOLER MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0710-0906	●	●
242	PIPE; COOLER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	0907-	●	●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (C)	8-98093-051-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98099-106-0	01	1	0710-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (D)	8-98093-052-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98093-053-0	01	1	0710-0710		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (E)	8-98099-108-0	01	1	0710-		●
242	PIPE; COOLER LCT2000 A/T ALLISON(Y4F) (F)	8-98093-054-0	01	1	0710-0710		●

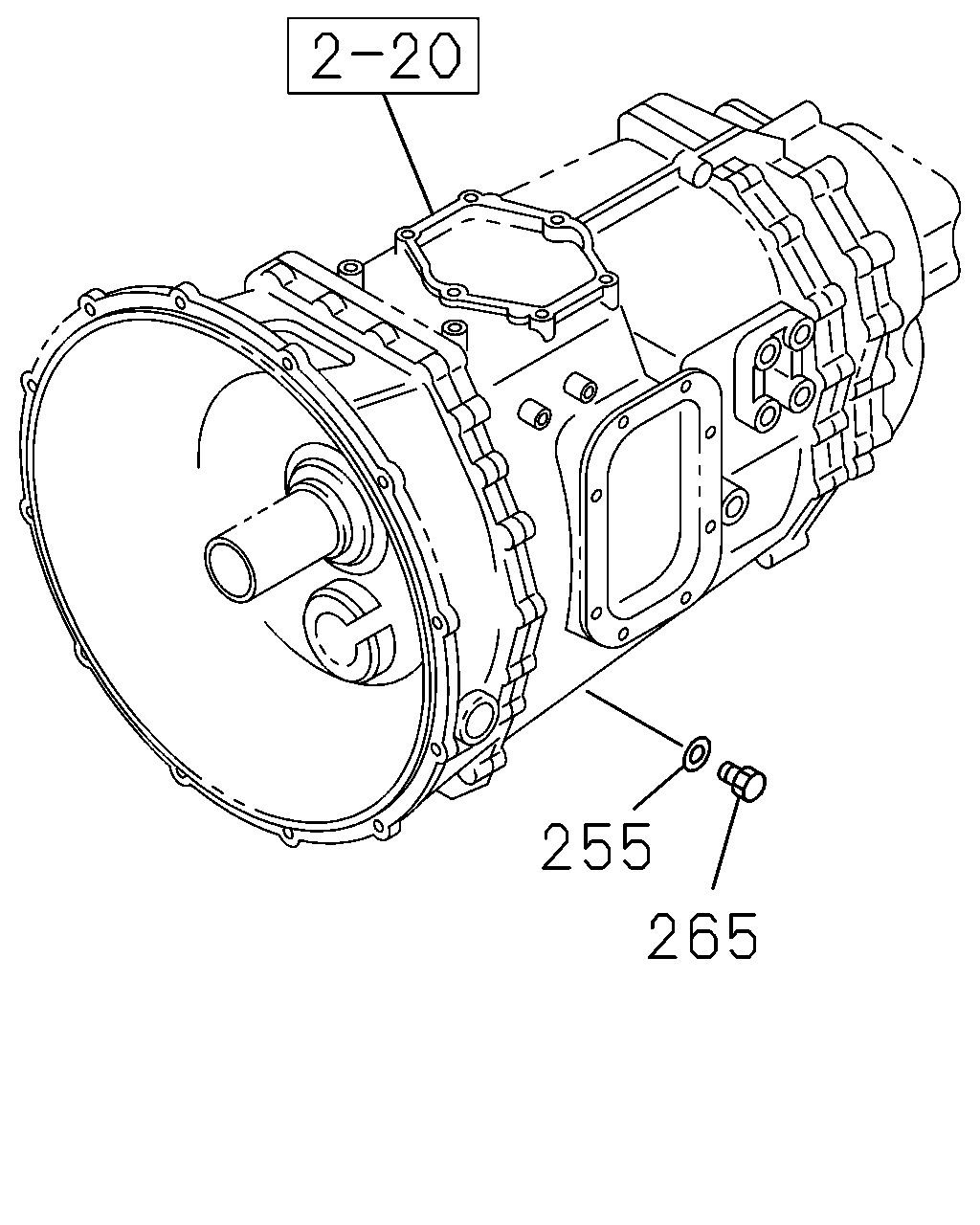

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
