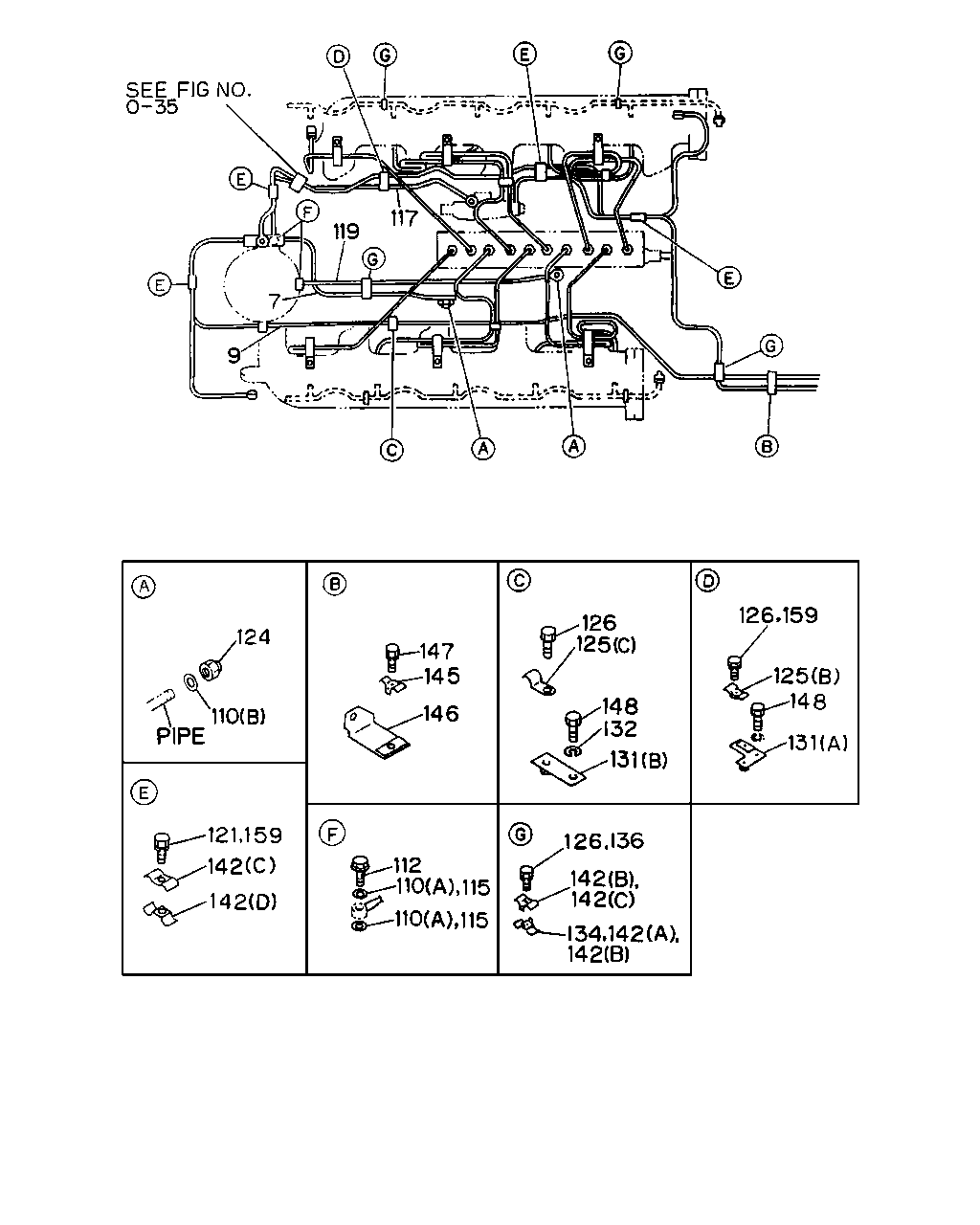

7 |
PIPE ASM; FUEL OVERFLOW
|
1-15413-614-0 |
01 |
1 |
8712- |
● |
● |
| |
8 |
PIPE ASM; FUEL OVERFLOW
|
1-15413-615-1 |
01 |
1 |
8712-9001 |
● |
|
| |
8 |
PIPE ASM; FUEL OVERFLOW
|
1-15414-550-1 |
01 |
1 |
9002- |
|
● |
| |
107 |
PIPE; FUEL,FEED PUMP TO FUEL FILTER
|
1-15413-612-0 |
01 |
1 |
8712- |
● |
● |
| |
110 |
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=14.2 OD=19.2
|
1-09630-085-0 |
01 |
1 |
8712- |
● |
● |
| |
110 |
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
8712- |
● |
● |
| |
112 |
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
8712-9001 |
● |
|
| |
112 |
BOLT; JOINT,FUEL FILTER
M14X27 M10-HOLE ON HEAD
|
1-09675-087-0 |
02 |
1 |
9002-9306 |
|
● |
| |
112 |
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
9307- |
|
● |
| |
115 |
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
8712- |
● |
● |
| |
119 |
PIPE; FUEL,FUEL FILTER TO INJ PUMP
|
1-15413-613-0 |
01 |
1 |
8712- |
● |
● |
| |
121 |
BOLT; CLIP
M6X25
|
9-01910-625-0 |
01 |
1 |
8712-9001 |
● |
|
| |
121 |
BOLT; CLIP
M6X22
|
0-28020-622-0 |
01 |
1 |
9002-9005 |
|
● |
| |
121 |
BOLT; CLIP
M6X22 FLANGE
|
0-28080-622-0 |
01 |
1 |
9006- |
|
● |
| |
124 |
NUT; CAP,FUEL PIPE
M14
|
1-09468-002-1 |
01 |
1 |
8712-9306 |
● |
● |
| |
124 |
NUT; CAP,FUEL PIPE
M14
|
1-09468-002-1 |
01 |
1 |
9307- |
|
● |
| |
125 |
CLIP; FUEL PIPE
(C)
ID=11.7
|
1-09700-917-0 |
01 |
1 |
8712-9001 |
● |
|
| |
125 |
CLIP; FUEL PIPE
(B)
ID=10 & 6 L=20
|
1-09700-404-0 |
01 |
1 |
9002- |
|
● |
| |
125 |
CLIP; FUEL PIPE
(C)
ID=9.7 L=20
|
1-09700-878-1 |
01 |
1 |
9002- |
|
● |
| |
126 |
BOLT; CLIP,FUEL PIPE
M6X25
|
9-01910-625-0 |
03 |
1 |
8712-9001 |
● |
|
| |
126 |
BOLT; CLIP,FUEL PIPE
M6X22
|
0-28020-622-0 |
04 |
1 |
9002-9005 |
|
● |
| |
126 |
BOLT; CLIP,FUEL PIPE
M6X22 FLANGE
|
0-28080-622-0 |
04 |
1 |
9006-9410 |
|
● |
| |
126 |
BOLT; CLIP,FUEL PIPE
M6X22 FLANGE
|
0-28080-622-0 |
02 |
1 |
9411- |
|
● |
| |
126 |
BOLT; CLIP,FUEL PIPE
M6X30 FLANGE
|
0-28080-630-0 |
02 |
1 |
9411- |
|
● |
| |
131 |
BRACKET; FUEL PIPE CLIP
(A)
|
1-15419-185-0 |
01 |
1 |
8712- |
● |
● |
| |
131 |
BRACKET; FUEL PIPE CLIP
(B)
|
1-15419-200-1 |
01 |
1 |
8712- |
● |
● |
| |
132 |
WASHER; LK,BRKT
ID=10.2
|
9-09150-510-0 |
02 |
1 |
8712-8808 |
● |
|
| |
134 |
CLIP; FUEL FEED NOZZLE
ID=10 & 6 L=20
|
1-09700-404-0 |
01 |
1 |
8712-9001 |
● |
|
| |
136 |
BOLT; HARNESS CLIP
M6X25
|
9-01910-625-0 |
01 |
1 |
8712-9001 |
● |
|
| |
142 |
CLIP; FUEL PIPE
(C)
ID=10 & 6 L=20
|
1-09700-404-0 |
05 |
1 |
8712- |
● |
● |
| |
142 |
CLIP; FUEL PIPE
(D)
ID=10 & 6 L=20 W/NUT
|
1-09700-405-0 |
05 |
1 |
8712- |
● |
● |
| |
142 |
CLIP; FUEL PIPE
(B)
ID=10 & 10 L=25
|
9-09716-114-0 |
02 |
1 |
8712-9410 |
● |
● |
| |
142 |
CLIP; FUEL PIPE
(B)
ID=10 & 10 L=25
|
8-94393-039-1 |
02 |
1 |
9411- |
|
● |
| |
142 |
CLIP; FUEL PIPE
(A)
ID=10 & 10 L=25 W/NUT
|
9-09716-124-0 |
02 |
1 |
8712-9410 |
● |
● |
| |
142 |
CLIP; FUEL PIPE
(A)
ID=10 & 10 L=25
|
8-94393-280-1 |
02 |
1 |
9411- |
|
● |
| |
145 |
CLIP; FUEL PIPE
ID=10 & 10 L=25
|
9-09716-114-0 |
01 |
1 |
8712- |
● |
● |
| |
146 |
BRACKET; FUEL END
|
1-22518-037-3 |
01 |
1 |
8712- |
● |
● |
| |
147 |
BOLT; CLIP,FUEL PIPE
M6X22
|
9-01910-622-0 |
01 |
1 |
8712-9001 |
● |
|
| |
147 |
BOLT; CLIP,FUEL PIPE
M6X20
|
0-28020-620-0 |
01 |
1 |
9002-9005 |
|
● |
| |
147 |
BOLT; CLIP,FUEL PIPE
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9006- |
|
● |
| |
148 |
BOLT; BRKT
M10X16
|
9-02351-016-0 |
02 |
1 |
8712-8808 |
● |
|
| |
148 |
BOLT; BRKT
M10X16 W/LK WASHER
|
9-01931-016-0 |
02 |
1 |
8809-9001 |
● |
● |
| |
148 |
BOLT; BRKT
M10X16 W/LK WASHER
|
9-01931-016-0 |
03 |
1 |
9002-9004 |
|
● |
| |
148 |
BOLT; BRKT
M10X16 W/LK WASHER
|
1-09033-012-0 |
03 |
1 |
9005- |
|
● |
| |
159 |
BOLT; CLIP
M6X25
|
9-01910-625-0 |
05 |
1 |
8712-9001 |
● |
|
| |
159 |
BOLT; CLIP
M6X22
|
0-28020-622-0 |
05 |
1 |
9002-9005 |
|
● |
| |
159 |
BOLT; CLIP
M6X22 FLANGE
|
0-28080-622-0 |
05 |
1 |
9006- |
|
● |
