Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-41B - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶

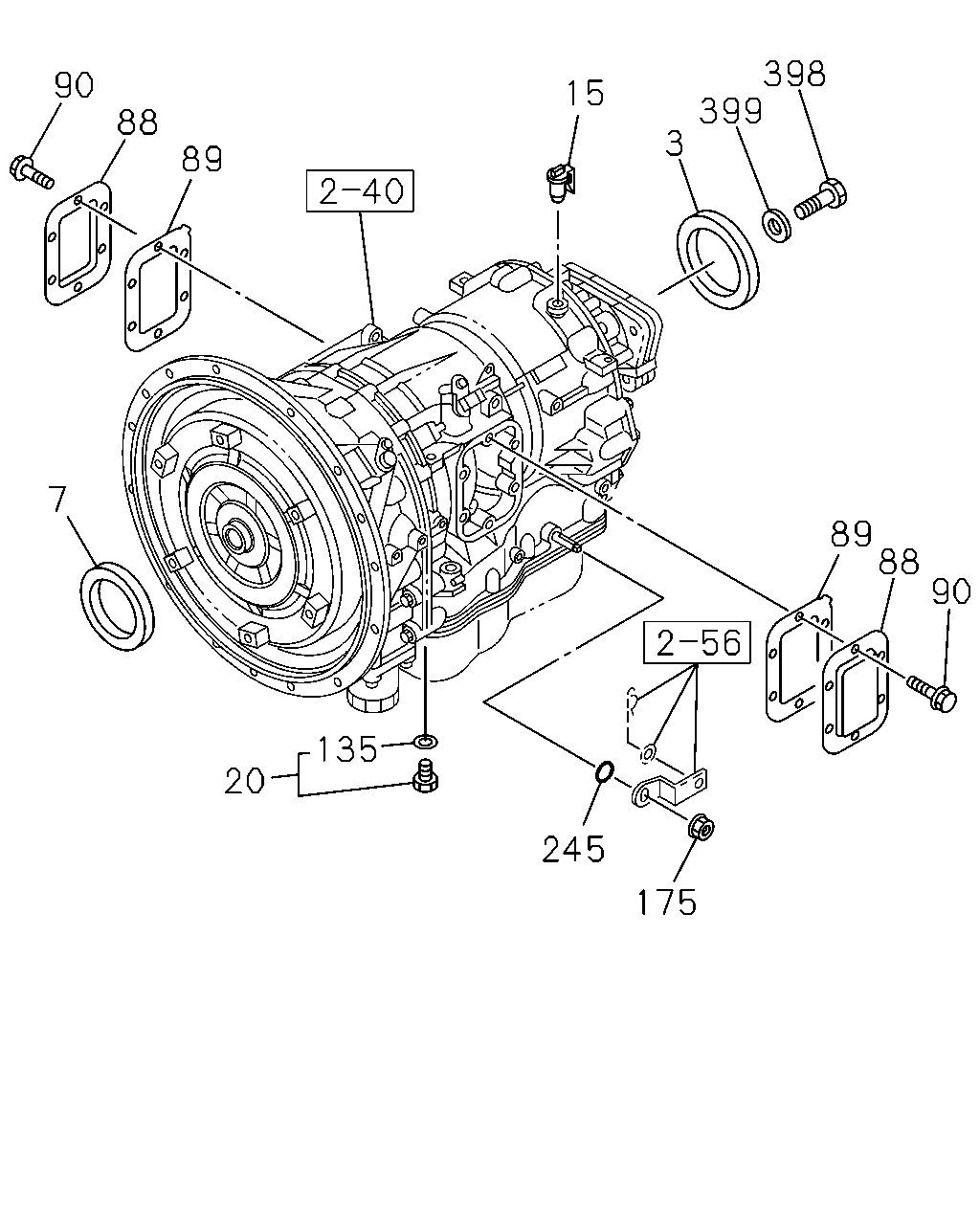

2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#44299) — 14 parça
398
399
3
90
15
88
89
7
89
88
90
135
20
245
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
SEAL; OIL,RR COVER,A/T
1-34119-106-0
01
1
0710-
7
SEAL; OIL,LIP,A/T
8-29545-376-0
01
1
0710-1001
7
SEAL; OIL,LIP,A/T
8-29546-682-0
01
1
1002-
15
BREATHER; A/T CASE
1-34119-109-0
01
1
0710-
20
PLUG; TAPER,A/T CASE
1-34119-104-0
01
1
0710-
88
COVER; SIDE,A/T
1-38131-007-0
02
1
0710-
89
GASKET; SIDE COVER
8-29531-325-0
02
1
0710-
90
BOLT; SIDE COVER
8-29537-510-0
12
1
0710-
135
GASKET; PLUG,A/T CASE
1-34119-105-0
01
1
0710-
175
NUT; SELECT SHAFT
1-09464-034-0
01
1
0710-
245
SEAL; OIL
1-34119-131-0
01
1
0710-1001
245
SEAL; OIL
1-34119-137-0
01
1
1002-
398
BOLT; OUTPUT SHAFT
1-09087-048-0
01
1
0710-
399
WASHER; OUTPUT SHAFT
1-37249-200-0
01
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
