Sayfa 2-39A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39A - POWER ASSISTOR ▶

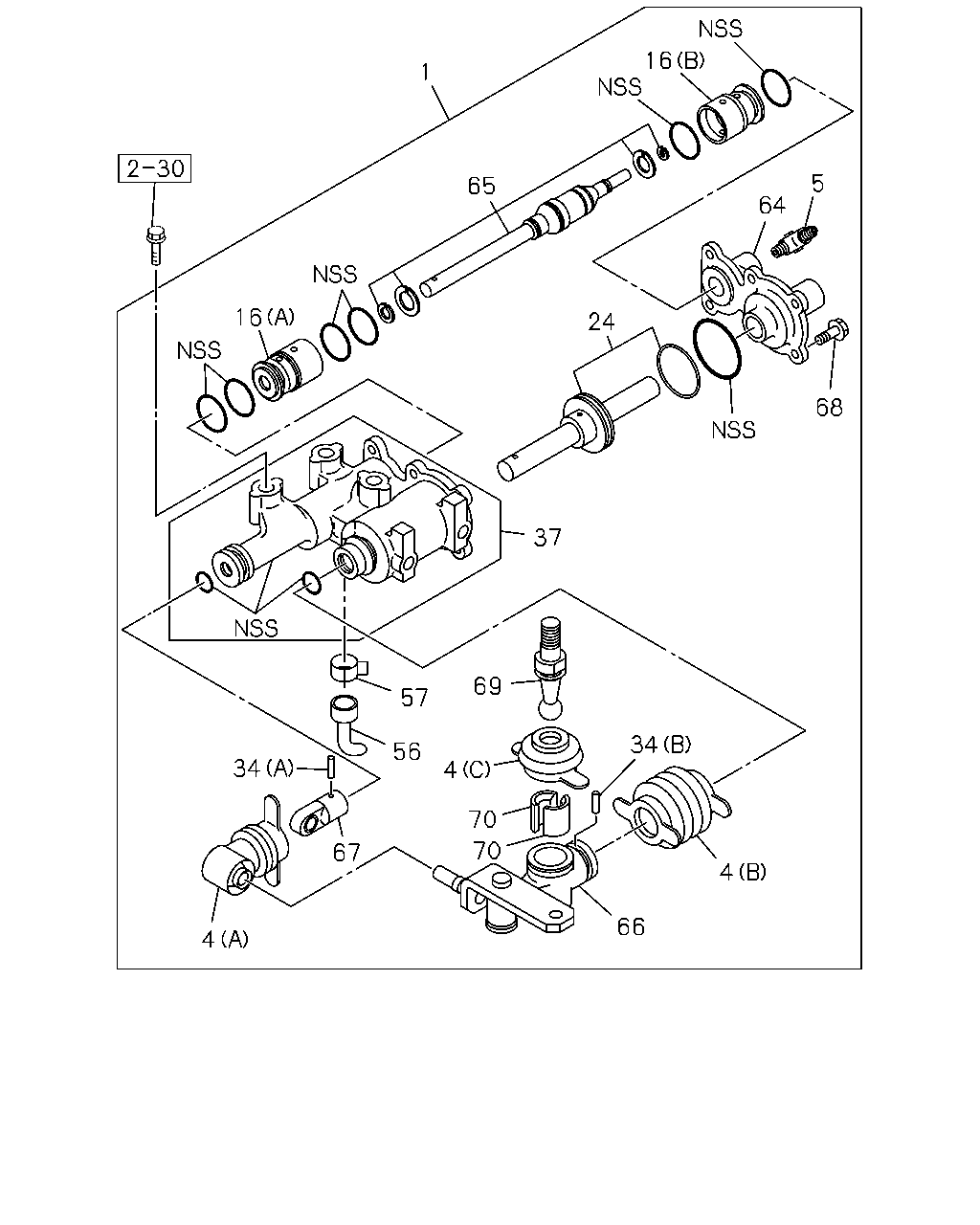

2-39A — POWER ASSISTOR (#44296) — 81 parça

16 1 5 65 64 16 24 68 37 69 57 34 56 34 4 70 70 67 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0710-0805	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0806-0906	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0710-0805	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0806-0906	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0710-0805	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0806-0906	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0710-0805	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0806-0906	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0907-	●	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0710-0805	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0806-0906	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0907-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0710-0805	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0806-0906	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0907-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0710-0805	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0806-0906	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0907-	●	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0710-0805	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0806-0906	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0710-0805	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0806-0906	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0710-0805	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0806-0906	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0907-	●	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0710-0805	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0806-0906	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0907-	●	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0710-0805	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0806-0906	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0907-	●	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0710-0805	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0806-0906	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0907-	●	●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0710-0805	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0806-0906	●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0907-	●	●	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0710-0805	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0806-0906	●	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0907-	●	●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0710-0805	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0806-0906	●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0907-	●	●	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0710-0805	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0806-0906	●	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0907-	●	●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0710-0805	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0806-0906	●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0907-	●	●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0710-0805	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0806-0906	●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0907-	●	●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0710-0805	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0806-0906	●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0907-	●	●	●

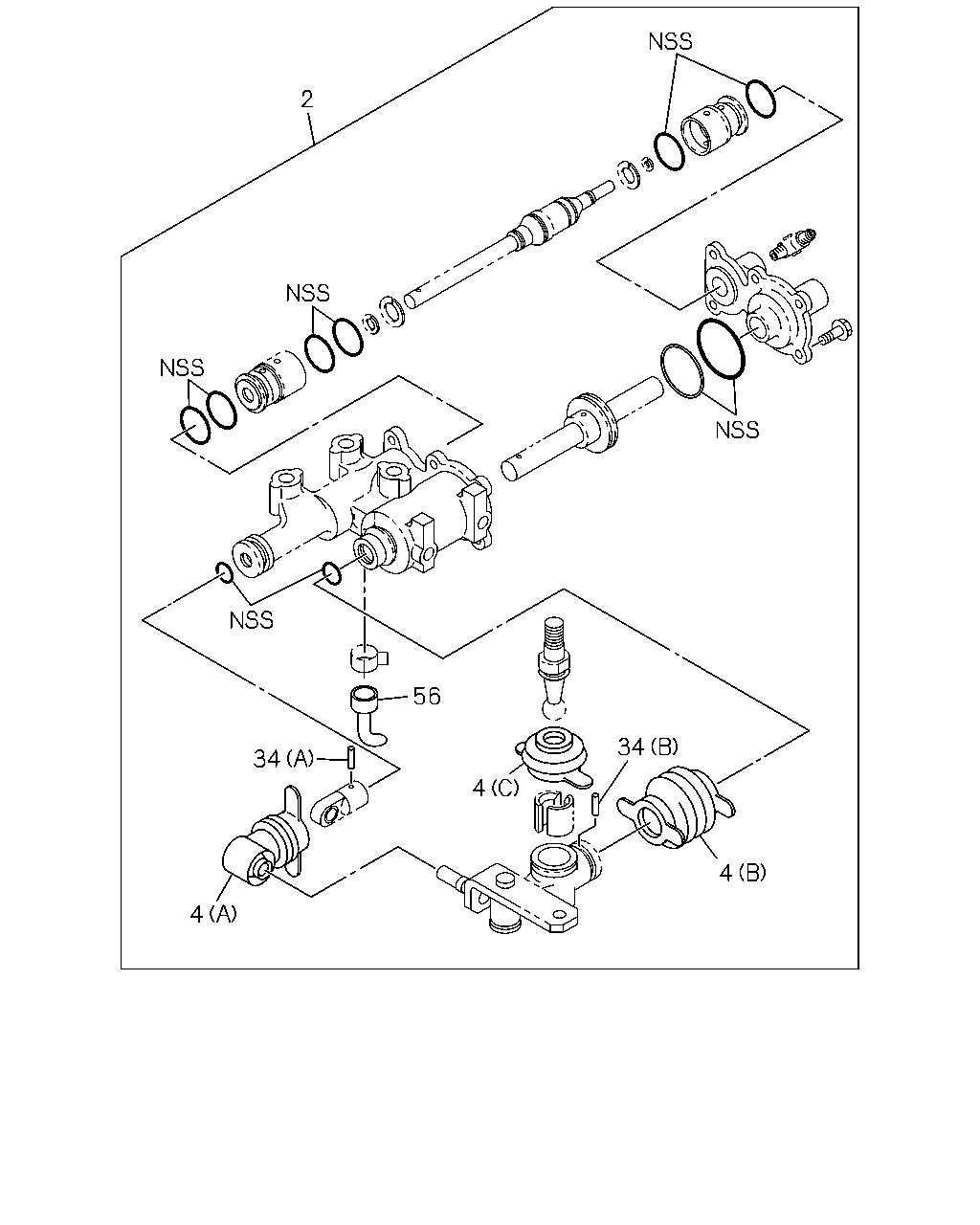

2 56 34 34 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0710-0805	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0806-0906	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0710-0805	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0806-0906	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0710-0805	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0806-0906	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0710-0805	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0806-0906	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0710-0805	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0806-0906	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0710-0805	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0806-0906	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0907-	●	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0710-0805	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0806-0906	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0907-	●	●	●
