2-30A — GEAR SHIFTER AND QUADRANT BOX (#44292) — 900 parça

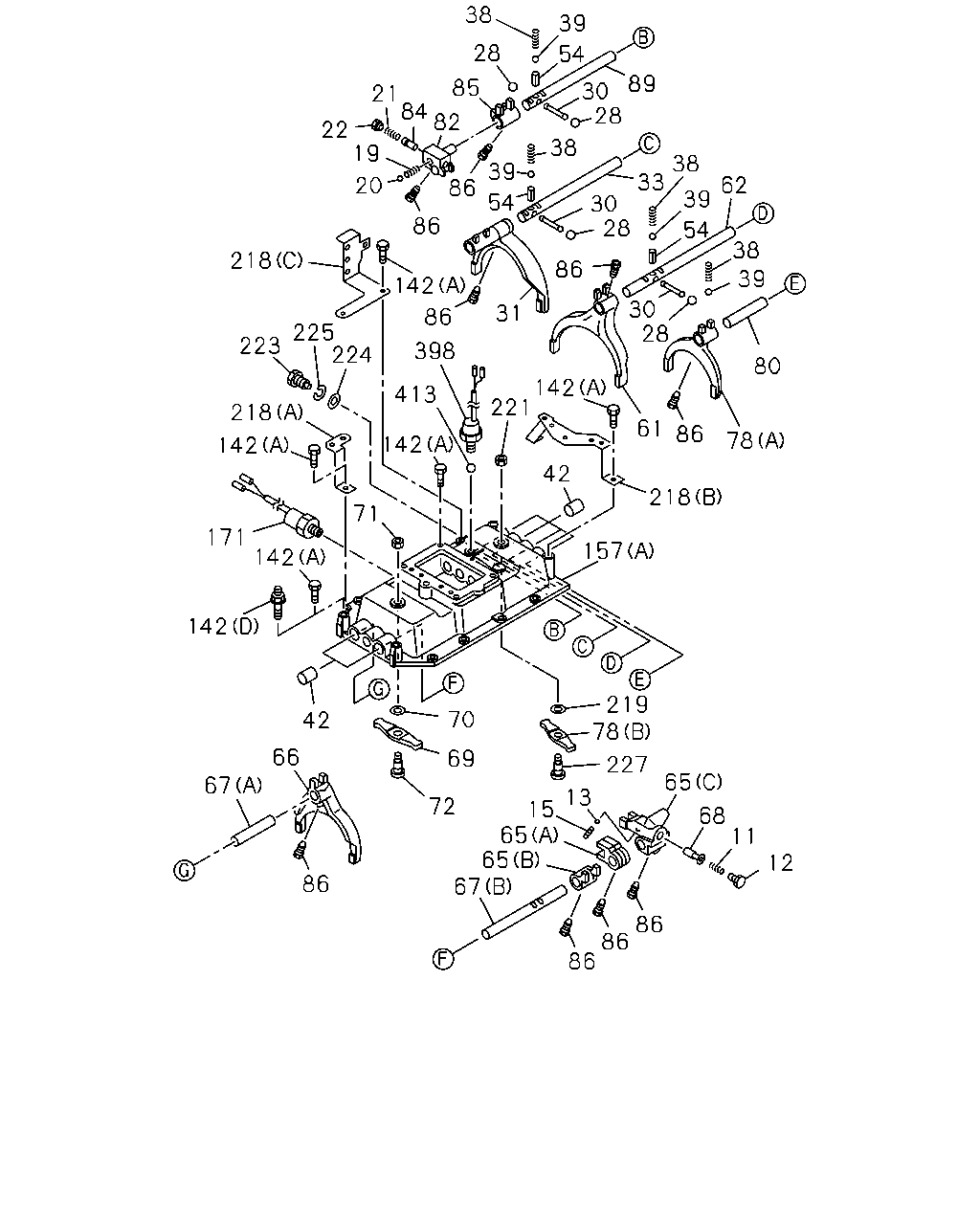

çizim 109414
38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 218 86 39 142 30 28 31 86 225 224 223 398 80 142 221 413 218 61 86 78 142 142 42 218 71 171 157 142 142 219 78 70 42 66 69 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86
BalonParca AdiParca NoAdetTipApplied Date A B C
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0806- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0806- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0806- ●
15 SPRING; LK,SHIFT SLEEVE 1-09580-442-0 01 1 0806- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 0806- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0806- ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 0806- ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0806- ●
28 BALL; INTER LK 9-00097-501-0 04 1 0806- ●
30 PIN; INTER LK 9-33534-003-0 03 1 0806- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 0806- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 0806-1202 ●
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203- ●
38 SPRING; DETENT
ASSISTOR SHIFT CONTROL<WX8> 		1-09580-379-0 04 1 0806- ●
38 SPRING; DETENT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09580-419-0 04 1 0806- ●
39 BALL; DETENT 1-09843-012-0 04 1 0806- ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 0806- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0806- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 0806- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 0806-1202 ●
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		8-97388-980-1 01 1 0710-0906 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		8-97388-980-1 01 1 0907- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0806- ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0710-0906 ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0907- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0806- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		1-33531-235-1 01 1 0806-1202 ●
67 ROD; SHIFT,5TH & 6TH
(A) L=122 		8-98207-587-0 01 1 1203- ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		1-33531-255-1 01 1 0806-1202 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=278 		8-98207-589-0 01 1 1203- ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 0806- ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 0806- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0806- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0806- ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 0806- ●
78 ARM; SHIFT,REV
(C) 		8-97388-975-1 01 1 0710-0906 ●
78 ARM; SHIFT,REV
(C) 		8-97388-975-1 01 1 0907- ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0806- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0806- ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 0806-1202 ●
80 ROD; SHIFT,REV ARM 8-98207-584-0 01 1 1203- ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0710-0906 ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0907- ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0806- ●
84 SLEEVE; REV 1-33516-025-0 01 1 0806- ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 0806- ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 0806- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0710-0906 ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0907- ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0806-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0806- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 0806- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 0806- ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0710-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-050-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-663-1 01 1 0806- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-733-0 01 1 0806- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0806- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0806- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0806- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0806- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0806- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0806- ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0710-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
413 BALL; BACK SW 9-00097-013-0 01 1 0806- ●

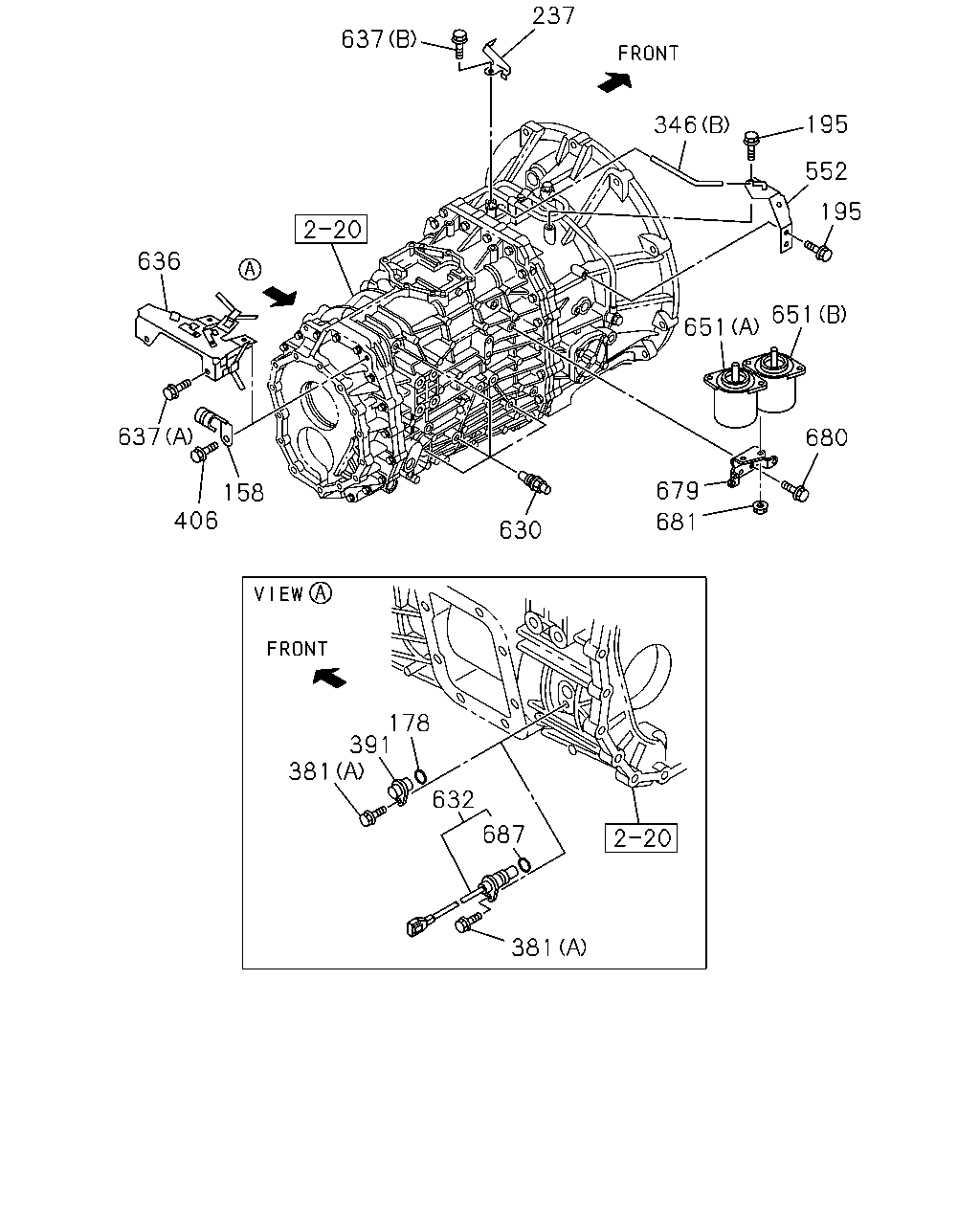

çizim 109417
237 637 195 346 552 195 636 651 651 637 680 679 158 406 681 630 178 391 381 632 687 381
BalonParca AdiParca NoAdetTipApplied Date A B C
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0710-0801 ●
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0802-0906 ●
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0907- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 0710-0906 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 0907- ● ●
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0906 ●
195 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 0907- ● ●
237 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-307-1 01 1 0710-0906 ●
237 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-307-1 01 1 0907- ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0710-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0710-0906 ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0907- ● ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0906 ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0710-0906 ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0907-0907 ● ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ●
391 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 0710-0906 ●
391 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 0907- ● ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0906 ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98005-329-1 01 1 0710-0906 ●
552 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98005-329-1 01 1 0907- ● ●
630 DETENT ASM 8-98019-536-0 04 1 0710-0906 ●
630 DETENT ASM 8-98019-536-0 04 1 0907- ● ●
632 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 0710-0906 ●
632 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 0907- ● ●
636 BRACKET; CLIP 8-97610-096-2 01 1 0710-0906 ●
636 BRACKET; CLIP 8-97610-096-2 01 1 0907- ● ●
637 BOLT; BRACKET
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0906 ●
637 BOLT; BRACKET
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0907- ● ●
637 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0906 ●
637 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-497-1 01 1 0710-0906 ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-497-1 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98048-498-1 01 1 0710-0906 ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98048-498-1 01 1 0907- ● ●
679 BRACKET; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98005-332-0 01 1 0710-0906 ●
679 BRACKET; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98005-332-0 01 1 0907- ● ●
680 BOLT; FLANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE 		0-28761-020-0 02 1 0710-0906 ●
680 BOLT; FLANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE 		0-28761-020-0 02 1 0907- ● ●
681 NUT; FLANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0710-0906 ●
681 NUT; FLANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 0907- ● ●
687 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09567-113-0 01 1 0710-0906 ●
687 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09567-113-0 01 1 0907- ● ●

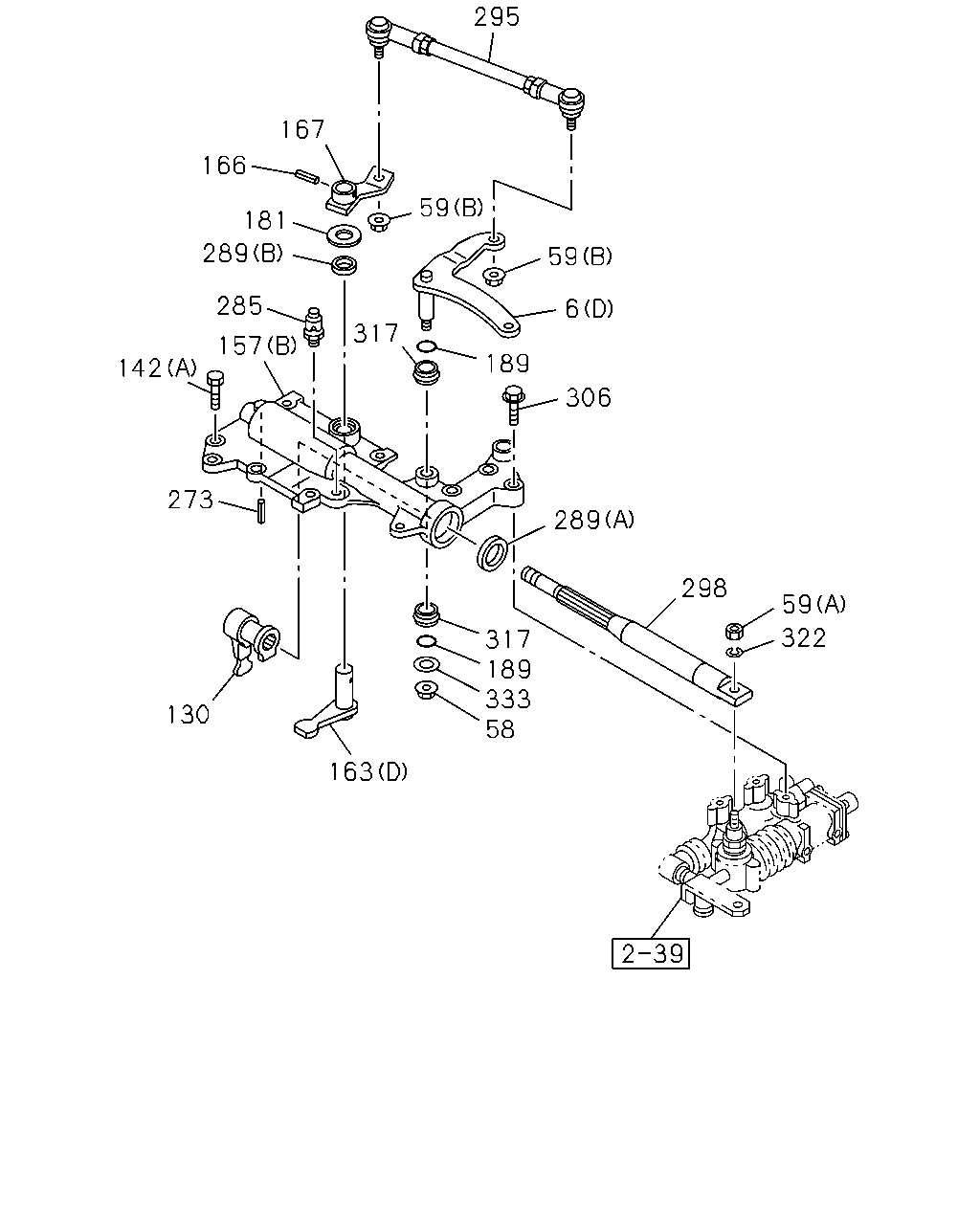

çizim 109419
295 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0710-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0907- ● ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0710-0805 ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0907- ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0710-0805 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ● ● ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0710-0805 ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0710-0906 ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 0806- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0806- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 0806- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-041-4 01 1 0806- ●
166 PIN; SPR,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5 		1-09748-032-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0710-0906 ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0907- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0710-0805 ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0907- ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0710-0906 ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0907- ● ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 0806- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0806-1204 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1205-1207 ● ● ●
285 BREATHER; AIR,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33149-003-0 01 1 1208-1404 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1208-1404 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1405- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30 		1-09625-386-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41 		1-09625-647-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-98023-095-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-187-0 01 1 0806- ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0710-0805 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0806-0906 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0907- ● ● ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0710-0805 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0907- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0710-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0907- ● ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0710-0805 ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0806-0906 ● ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0907- ● ● ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0710-0805 ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0907- ● ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0907- ●

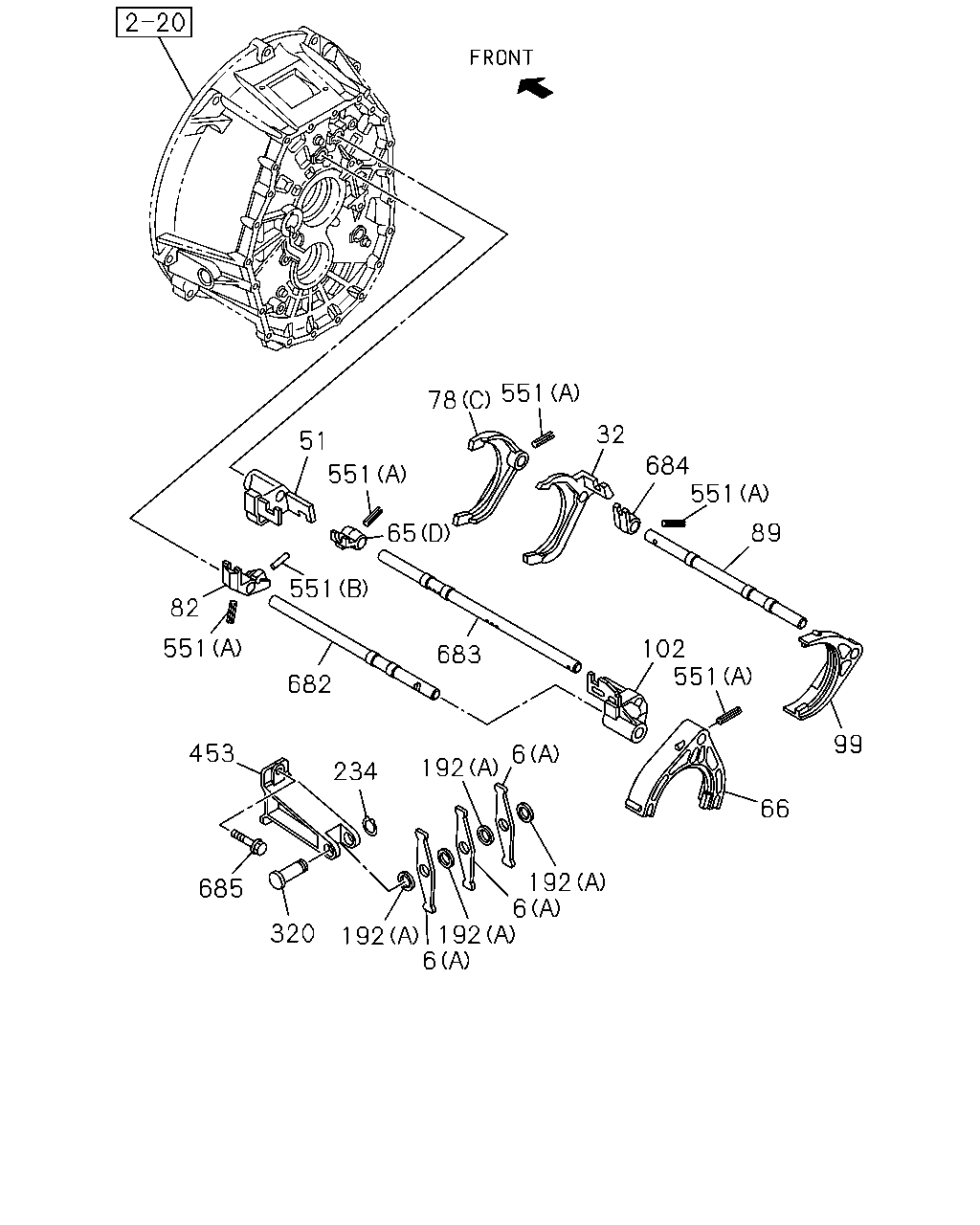

çizim 109429
551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0710-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0907- ● ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
32 ARM; SHIFT,1ST & 2ND 8-98062-167-0 01 1 0710-0906 ●
32 ARM; SHIFT,1ST & 2ND 8-98062-167-0 01 1 0907-1307 ● ●
32 ARM; SHIFT,1ST & 2ND 8-98236-424-1 01 1 1308- ● ●
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 0710-0906 ●
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 0907- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		8-97388-980-1 01 1 0710-0906 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		8-97388-980-1 01 1 0907- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 0806- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 0806- ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0710-0906 ●
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 0907- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 0806- ●
78 ARM; SHIFT,REV
(C) 		8-97388-975-1 01 1 0710-0906 ●
78 ARM; SHIFT,REV
(C) 		8-97388-975-1 01 1 0907- ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0806- ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 0806- ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0710-0906 ●
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 0907- ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 0806- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0710-0906 ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0907- ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0806-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 0710-0906 ●
99 ARM; SHIFT,4TH & 3RD 8-98062-170-0 01 1 0907- ● ●
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 0710-0906 ●
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 0907- ● ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0710-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0907- ● ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0710-0906 ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0907- ● ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0710-0906 ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0907- ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 0806- ●
453 BLOCK; RELAY LEVER 8-97377-927-0 01 1 0710-0906 ●
453 BLOCK; RELAY LEVER 8-97377-927-1 01 1 0907- ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0710-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0710-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0710-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0907- ● ●
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 0710-0906 ●
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 0907- ● ●
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 0710-0906 ●
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 0907- ● ●
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 0710-0906 ●
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 0907- ● ●
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 0710-0906 ●
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 0907- ● ●

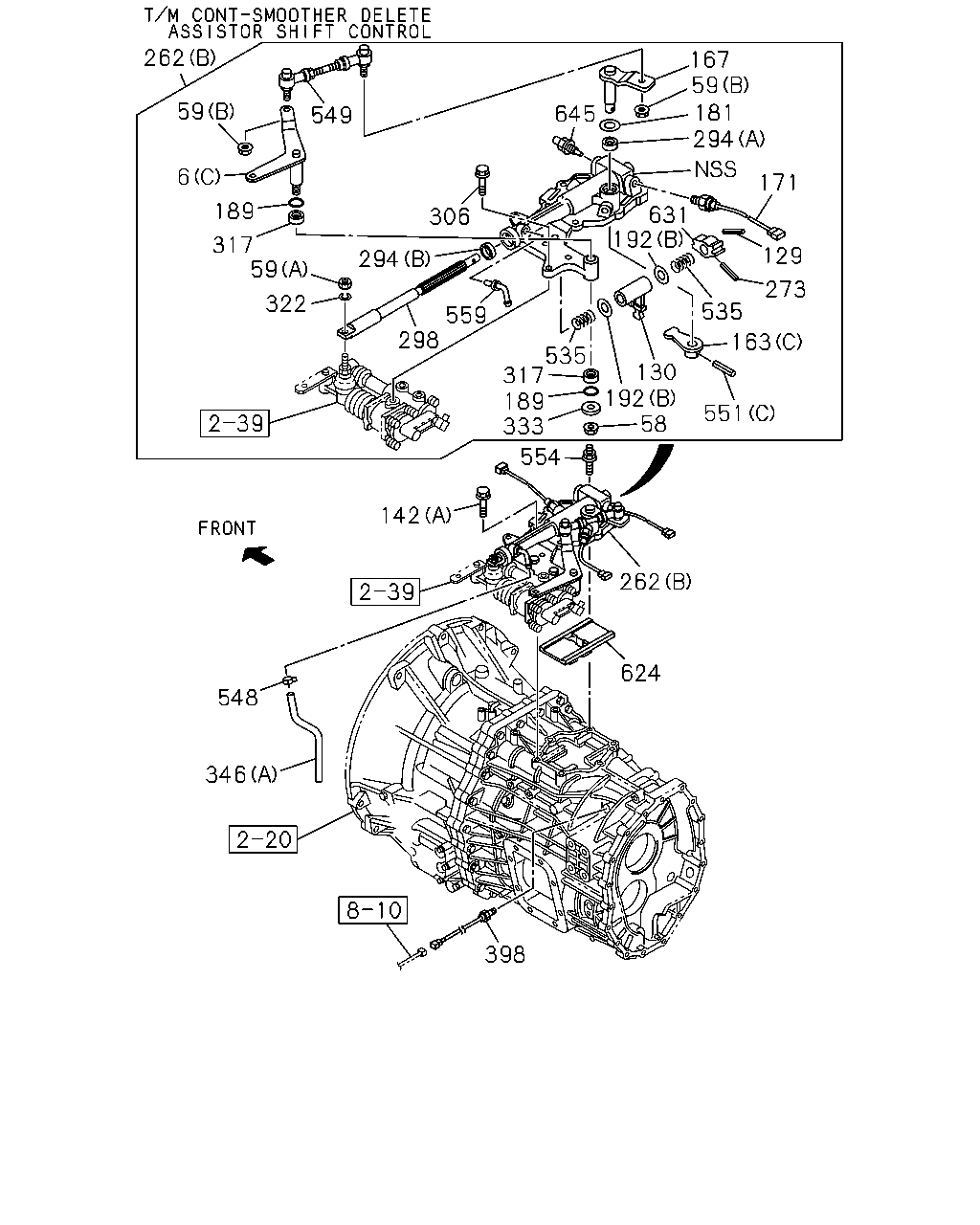

çizim 109446
262 167 59 181 294 59 645 549 6 171 89 631 192 306 317 59 129 294 273 535 317 189 333 322 535 559 298 163 130 192 58 551 554 142 262 624 548 346 398
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0710-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0907- ● ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0710-0805 ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0907- ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0710-0805 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ● ● ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0710-0805 ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0710-0906 ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0907- ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0806-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 0710-0906 ●
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0710-0906 ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 0806- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-041-4 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0710-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-050-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0710-0906 ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0907- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0710-0805 ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0907- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0710-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0907- ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-476-0 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-476-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98207-565-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98249-040-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98241-009-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98276-160-1 01 1 1405- ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-477-0 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-477-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98207-566-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98249-041-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98241-010-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98276-161-1 01 1 1405- ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-495-3 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-495-4 01 1 0907-1010 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-814-1 01 1 1011-1306 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98241-122-1 01 1 1307- ● ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0710-0906 ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0907- ● ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 0806- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-187-0 01 1 0806- ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0710-0805 ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0806-0906 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE 		0-28051-050-0 03 1 0907- ● ● ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0710-0805 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0907- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0710-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0907- ● ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0710-0805 ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0806-0906 ● ●
322 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> 		8-98031-750-0 01 1 0907- ● ● ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0710-0805 ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0907- ● ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0907- ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0710-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0710-0906 ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0907- ● ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0710-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97385-713-0 02 1 0710-0906 ●
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97385-713-0 02 1 0907- ● ●
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97031-674-0 01 1 1208-1404 ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 0710-0906 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0907-1204 ● ●
549 ROD; LINK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-841-0 01 1 0710-0906 ●
549 ROD; LINK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-841-0 01 1 0907- ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0710-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0710-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0710-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0907- ● ●
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0710-0906 ●
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0907- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1405- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0710-0906 ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0907-1204 ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0710-0906 ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0907- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0710-0906 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0907- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0710-0906 ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0907- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0710-0906 ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0907- ● ●
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 0710-0906 ●
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 0907- ● ●

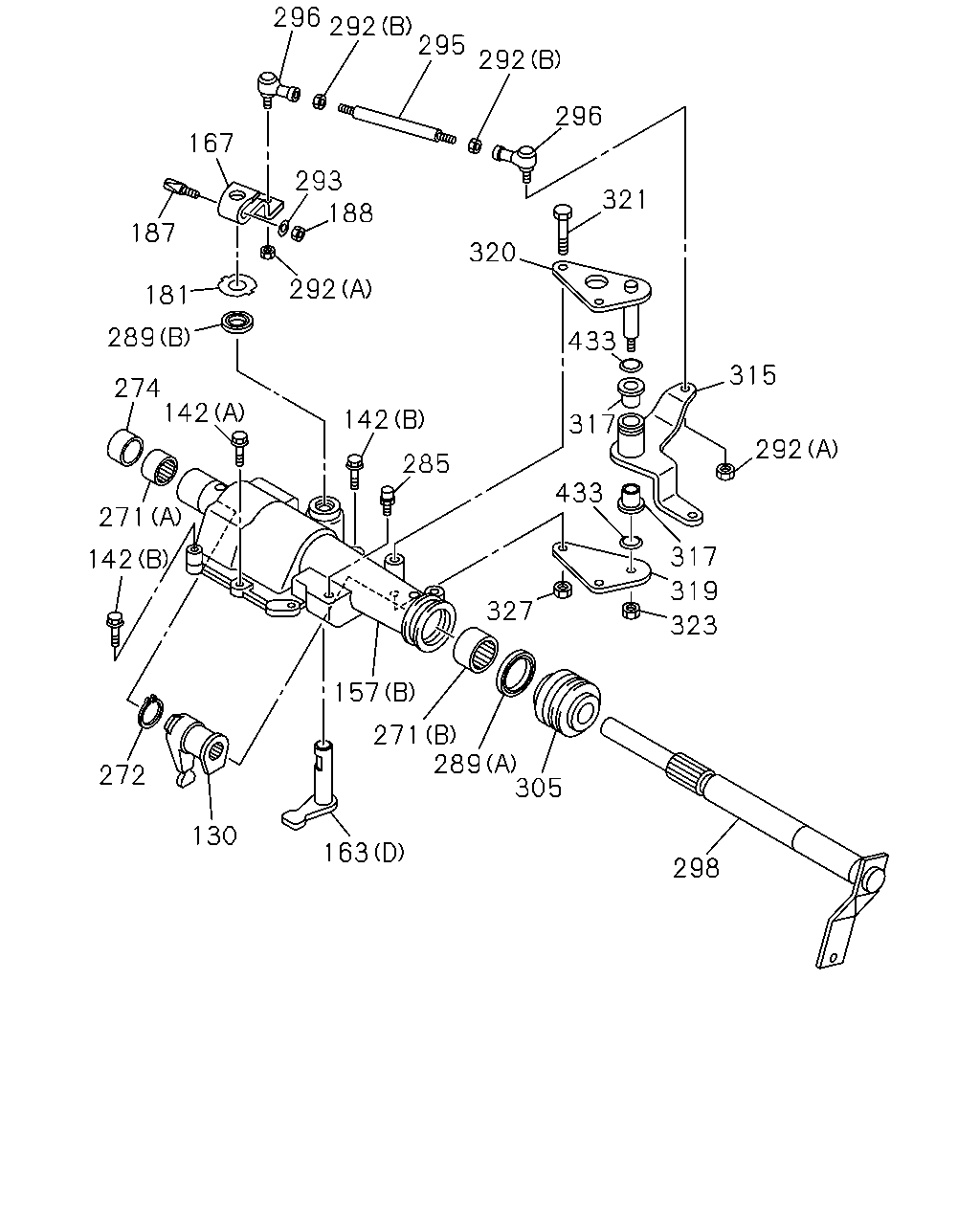

çizim 109450
296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 323 157 271 289 305 272 130 163 298
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0710-0906 ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 0806- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-481-0 01 1 0806- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-479-0 01 1 0806- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-478-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-041-4 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0710-0906 ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0907- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
187 BOLT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42 		1-33659-045-0 01 1 0806- ●
188 NUT; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 0806- ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23 		1-33549-016-0 01 1 0806- ●
271 BUSHING; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32 		1-33549-104-0 01 1 0806- ●
272 RING; SNAP,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0806- ●
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0710-0906 ●
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0907- ● ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		9-33545-017-1 01 1 0806- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0806-1204 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1205-1207 ● ● ●
285 BREATHER; AIR,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33149-003-0 01 1 1208-1404 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1208-1404 ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1405- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A) 		1-09625-599-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B) 		1-09625-600-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30 		1-09625-386-0 01 1 0806- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41 		1-09625-647-0 01 1 0806- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 		0-91111-508-0 02 1 0806- ●
292 NUT; LINK ROD
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		1-09440-062-1 02 1 0806- ●
293 WASHER; PL,TAPER BOLT
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22 		0-91610-708-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-98023-095-0 01 1 0806- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0806- ●
296 ROD END
EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5 		1-09760-118-1 02 1 0806- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-187-0 01 1 0806- ●
305 BOOT; LEVER SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-028-0 01 1 0806- ●
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0710-0906 ●
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0907- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-702-0 01 1 0806- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0710-0805 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0907- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0710-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0907- ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-515-0 01 1 0806- ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0710-0906 ●
320 SHAFT; LEVER 8-97377-928-0 01 1 0907- ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-474-0 01 1 0806- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0806- ●
323 NUT; LK,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-110-0 01 1 0806- ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 0806- ●
433 GASKET; BUSHING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806- ●
çizim 109451
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 142 142 262 346 624 548 398
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0710-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0907- ● ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-988-0 01 1 0710-0906 ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-988-0 01 1 0907- ● ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-989-0 01 1 0710-0906 ●
133 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-989-0 01 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-041-4 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0710-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-050-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0710-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0907- ● ●
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		0-28050-612-0 11 1 0710-0906 ●
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		0-28050-612-0 11 1 0907-0907 ● ●
243 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 11 1 0907- ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-476-0 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-476-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98207-565-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98249-040-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98241-009-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98276-160-1 01 1 1405- ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-477-0 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-477-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98207-566-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98249-041-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98241-010-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98276-161-1 01 1 1405- ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-495-3 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-495-4 01 1 0907-1010 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-814-1 01 1 1011-1306 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98241-122-1 01 1 1307- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0710-0906 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 0907- ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 0710-0906 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 0907- ● ●
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0710-0906 ●
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 0907- ● ●
274 COVER; SHAFT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		9-33545-017-1 01 1 0806- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97305-685-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0710-0906 ●
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 0907- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-163-0 01 1 0806- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-187-0 01 1 0806- ●
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0710-0906 ●
315 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-998-0 01 1 0907- ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-702-0 01 1 0806- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0710-0805 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0907- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0710-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0907- ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0710-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0710-0906 ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0907- ● ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 0710-0906 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 0907- ● ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 0710-0906 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 0907- ● ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0906 ●
381 BOLT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0907- ● ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0710-0906 ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		0-28050-612-0 04 1 0907-0907 ● ●
381 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907- ● ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0710-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 0710-0906 ●
530 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 0907- ● ●
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97031-674-0 01 1 1208-1404 ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 0710-0906 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0907-1204 ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0710-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0710-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0710-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0907- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1405- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0710-0906 ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0907-1204 ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0710-0906 ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0907- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0710-0906 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0907- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0710-0906 ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0907- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0710-0906 ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-497-1 01 1 0710-0906 ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-497-1 01 1 0907- ● ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98048-498-1 01 1 0710-0906 ●
651 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98048-498-1 01 1 0907- ● ●
652 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE 		0-28151-025-0 06 1 0710-0906 ●
652 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE 		0-28151-025-0 06 1 0907- ● ●
653 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 0710-0906 ●
653 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 0907- ● ●
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 0710-0906 ●
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 0907- ● ●
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 0710-0906 ●
654 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 0907- ● ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-826-0 01 1 0710-0906 ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97324-826-0 01 1 0907-1010 ● ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-823-0 01 1 1011- ● ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97324-827-0 01 1 0710-0906 ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97324-827-0 01 1 0907-1010 ● ●
655 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-824-0 01 1 1011- ● ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 0710-0906 ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 0907- ● ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 0710-0906 ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 0907- ● ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 0710-0906 ●
656 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 0907- ● ●
657 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 0710-0906 ●
657 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 0907- ● ●
çizim 109452
262 167 59 181 294 59 645 549 6 171 89 631 192 317 294 273 128 535 317 189 333 535 559 163 129 130 192 58 551 554 142 262 624 548 346 398
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0710-0906 ●
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98022-855-0 01 1 0907- ● ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0710-0906 ●
6 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-995-0 01 1 0907- ● ●
6 LEVER; RELAY
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33651-686-2 01 1 0806- ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0710-0805 ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0806-0906 ●
58 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ●
58 NUT
ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-110-0 01 1 0907- ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0710-0805 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0806-0906 ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		0-91110-512-0 01 1 0907- ● ● ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0710-0805 ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0806-0906 ●
59 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
59 NUT
ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE 		0-91180-108-0 02 1 0907- ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0710-0906 ●
89 ROD; SHIFT,REV 8-98062-172-0 01 1 0907- ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 0806-1202 ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ●
128 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97306-927-0 01 1 0710-0906 ●
128 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97306-927-0 01 1 0907- ● ●
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 0710-0906 ●
129 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0710-0906 ●
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 0907- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-165-0 01 1 0806- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-111-1 01 1 0806- ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE 		8-97365-376-0 04 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE 		8-98020-384-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0710-0906 ●
142 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE 		8-98020-385-0 03 1 0907- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
142 BOLT; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 04 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE 		0-28151-060-0 03 1 0806- ●
142 BOLT; QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X20,M10X60 L=90 		1-09049-020-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-97305-663-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-979-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0710-0906 ●
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-990-0 01 1 0907- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-153-0 01 1 0806- ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		1-33522-041-4 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-857-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0710-0906 ●
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 0907- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-159-0 01 1 0806- ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-064-1 01 1 0806- ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-172-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0710-0906 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 0907-1306 ● ●
171 SWITCH; NEUTRAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-050-0 01 1 1307-1312 ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0806-1104 ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0710-0906 ●
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 0907- ● ●
181 WASHER; PL,SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-09503-280-0 01 1 0806- ●
181 WASHER; PL,SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40 		1-09532-008-0 01 1 0806- ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0710-0805 ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0806-0906 ●
189 GASKET; SELECT LEVER,CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-594-0 02 1 0907- ● ●
189 GASKET; SELECT LEVER,CONT BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09623-594-0 02 1 0907- ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0710-0906 ●
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-661-0 02 1 0907- ● ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0710-0906 ●
192 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09503-280-0 01 1 0907- ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-476-0 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98004-476-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98207-565-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98249-040-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98241-009-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98276-160-1 01 1 1405- ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-477-0 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98004-477-0 01 1 0907-1204 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98207-566-0 01 1 1205-1306 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98249-041-0 01 1 1307-1312 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98241-010-0 01 1 1401-1404 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) 		8-98276-161-1 01 1 1405- ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-495-3 01 1 0710-0906 ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98048-495-4 01 1 0907-1010 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-814-1 01 1 1011-1306 ● ●
262 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98241-122-1 01 1 1307- ● ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0710-0906 ●
273 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25 		8-97103-142-0 01 1 0907- ● ●
273 PIN; SPR,STOPPER
ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4 		1-09748-031-0 01 1 0806- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-662-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97363-225-0 01 1 0907- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0710-0906 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 0907- ● ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0710-0805 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0806-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09330-119-0 02 1 0907- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0907- ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0710-0906 ●
317 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 0907- ● ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0710-0805 ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0806-0906 ●
333 WASHER; PL,LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5 		0-91610-710-0 01 1 0907- ● ●
333 WASHER; PL,LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=10.5 		0-91610-710-0 01 1 0907- ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97309-855-0 01 1 1208-1404 ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 1405- ● ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0710-0906 ●
346 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-1204 ● ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0710-0906 ●
346 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 0907- ● ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0710-0906 ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312 ● ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0806-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97385-713-0 02 1 0710-0906 ●
535 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97385-713-0 02 1 0907- ● ●
548 CLIP; HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97031-674-0 01 1 1208-1404 ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 1405- ● ●
548 CLIP; HOSE 8-97031-674-0 01 1 0710-0906 ●
548 CLIP; HOSE 8-97031-674-0 01 1 0907-1204 ● ●
549 ROD; LINK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-841-0 01 1 0710-0906 ●
549 ROD; LINK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-841-0 01 1 0907- ● ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0710-0906 ●
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 0907- ● ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0710-0906 ●
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 0907- ● ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0710-0906 ●
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4 		1-09748-031-0 02 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5 		8-97184-905-0 03 1 0907- ● ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0710-0906 ●
551 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97379-991-0 01 1 0907- ● ●
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0710-0906 ●
554 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0907- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 1405- ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0710-0906 ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-318-0 01 1 0907-1204 ● ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0710-0906 ●
559 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 0907- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0710-0906 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 0907- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0710-0906 ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 0907- ● ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0710-0906 ●
631 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 0907- ● ●
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 0710-0906 ●
645 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98019-536-0 01 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
