◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36B - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#4429) — 556 parça

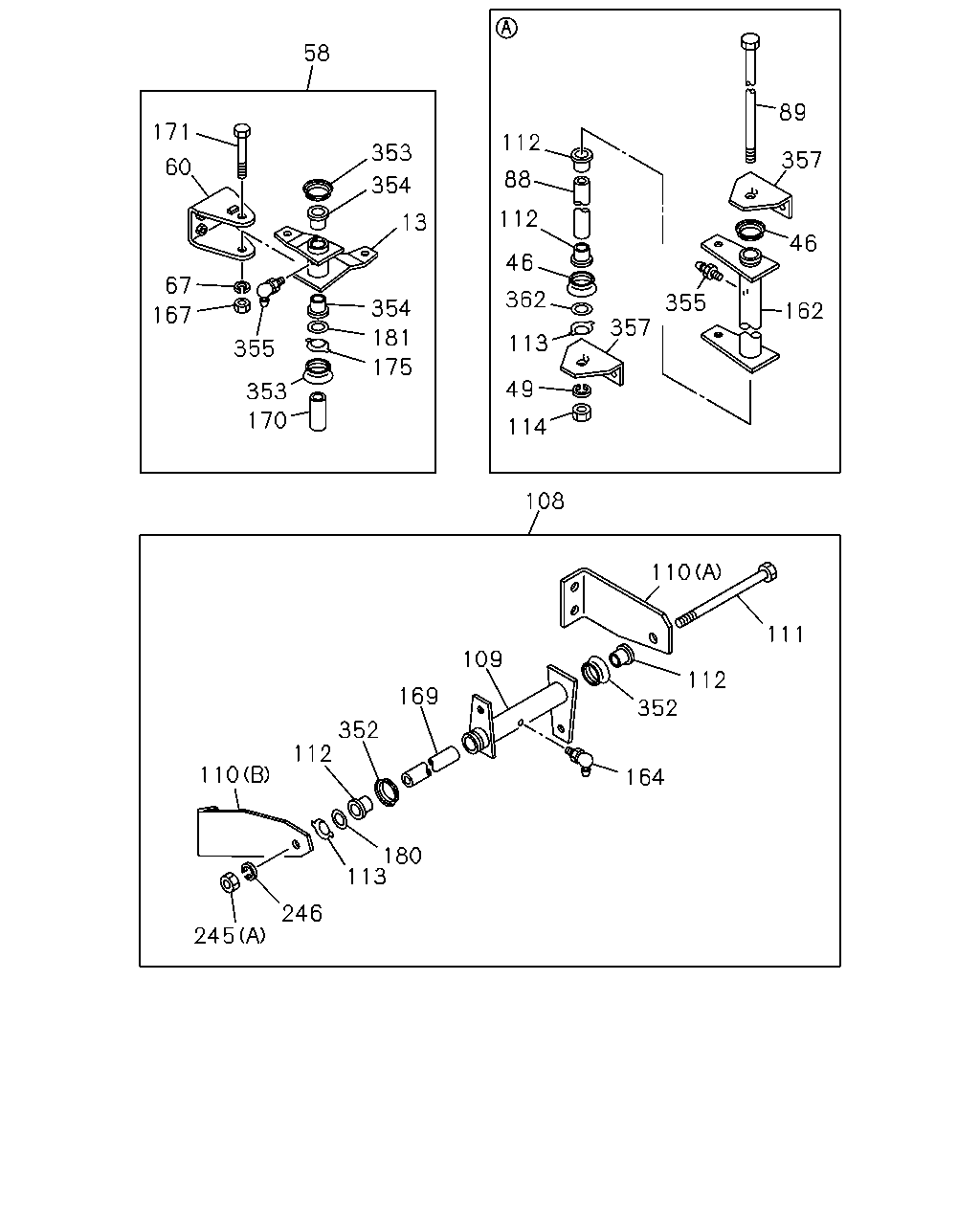

çizim 3043
58 89 171 112 353 354 357 60 88 112 13 46 46 67 167 362 355 357 354 181 175 162 113 355 49 353 170 114 108 110 111 109 112 352 169 352 112 110 164 180 113 246 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9505-9805 ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9806- ● ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-694-0 01 1 9702- ●
46 SEAL; DUST,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-113-0 04 1 9706-9805 ● ● ● ●
46 SEAL; DUST,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-113-0 04 1 9806- ● ● ● ● ●
49 WASHER; LK
CENTER SPLIT TYPE FRAME<TLW> ID=14.2 		9-09150-514-0 02 1 9706-9805 ● ● ● ●
49 WASHER; LK
CENTER SPLIT TYPE FRAME<TLW> ID=14.2 		9-09150-514-0 02 1 9806-0603 ● ● ● ● ●
49 WASHER; LK
CENTER SPLIT TYPE FRAME<TLW> ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9505-9805 ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806- ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9702- ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9505-9805 ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9806- ● ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-669-0 01 1 9702- ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9505-9701 ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9702-9805 ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9806-0603 ● ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ● ●
88 COLLAR; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-210-0 02 1 9706-9805 ● ● ● ●
88 COLLAR; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-210-0 02 1 9806- ● ● ● ● ●
89 SHAFT; RELAY LEVER,2ND SHIFT
CENTER SPLIT TYPE FRAME<TLW> 		1-33619-601-0 02 1 9706-9805 ● ● ● ●
89 SHAFT; RELAY LEVER,2ND SHIFT
CENTER SPLIT TYPE FRAME<TLW> 		1-33619-601-0 02 1 9806- ● ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9505-9706 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9702-9705 ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33671-015-0 01 1 9706- ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-141-0 01 1 9706- ●
109 LEVER; SHIFT,1ST CONT 1-33651-667-1 01 1 9505-9706 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33651-667-1 01 1 9707-9805 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33651-667-1 01 1 9806- ● ● ● ●
109 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-707-0 01 1 9707-9805 ● ● ●
109 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-707-0 01 1 9806- ● ● ● ●
109 LEVER; SHIFT,1ST CONT 1-33651-693-0 01 1 9702-9705 ●
109 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33651-693-0 01 1 9706- ●
109 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-706-0 01 1 9706- ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9505-9805 ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9806- ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9505-9805 ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9806- ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-667-0 01 1 9702- ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-668-0 01 1 9702- ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9505-9701 ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9702-9805 ● ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9806- ● ● ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9505-9701 ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9702-9705 ● ● ● ●
112 BUSHING; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> L=24 		5-33659-054-0 04 1 9706-9805 ● ● ● ●
112 BUSHING; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> L=24 		5-33659-054-0 04 1 9806- ● ● ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9706-9805 ● ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9806- ● ● ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9505-9701 ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9702-9705 ● ● ● ●
113 WASHER; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-093-0 02 1 9706-9805 ● ● ● ●
113 WASHER; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-093-0 02 1 9806- ● ● ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9706-9805 ● ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9806- ● ● ● ● ●
114 NUT; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> M14 		9-99111-514-0 02 1 9706-9805 ● ● ● ●
114 NUT; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> M14 		9-99111-514-0 02 1 9806-0512 ● ● ● ● ●
114 NUT; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> M14 		0-91111-514-0 02 1 0601- ● ● ● ● ●
162 LEVER; RELAY
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-705-2 02 1 9706-9805 ● ● ● ●
162 LEVER; RELAY
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-705-2 02 1 9806- ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9505-9701 ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9702-9805 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-0512 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9505-9701 ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9702-9805 ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9806-0512 ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9505-9701 ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9702-9805 ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9806- ● ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9505-9701 ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9702-9805 ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9806- ● ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9505-9701 ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9702-9805 ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9806- ● ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9505-9701 ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9702-9805 ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9806- ● ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9505-9701 ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9702-9805 ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9806- ● ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9505-9701 ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9702-9805 ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9806- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 		9-09110-408-0 04 1 9505-9606 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9706 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9707-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9505-9701 ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9702-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-0512 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9505-9701 ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9702-9805 ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9806-0603 ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9505-9701 ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9702-9805 ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9806- ● ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9505-9701 ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9702-9805 ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9806- ● ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9505-9701 ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9702-9805 ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9806- ● ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9505-9701 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9702-9705 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9706-9805 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-0512 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 ELBOW 		9-09031-210-0 02 1 9706-9707 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9708-9805 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-0512 ● ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9706-0512 ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
357 BRACKET; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33657-678-0 04 1 9706-9805 ● ● ● ●
357 BRACKET; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33657-678-0 04 1 9806- ● ● ● ● ●
362 SHIM
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-092-0 02 1 9706-9805 ● ● ● ●
362 SHIM
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-092-0 02 1 9806- ● ● ● ● ●

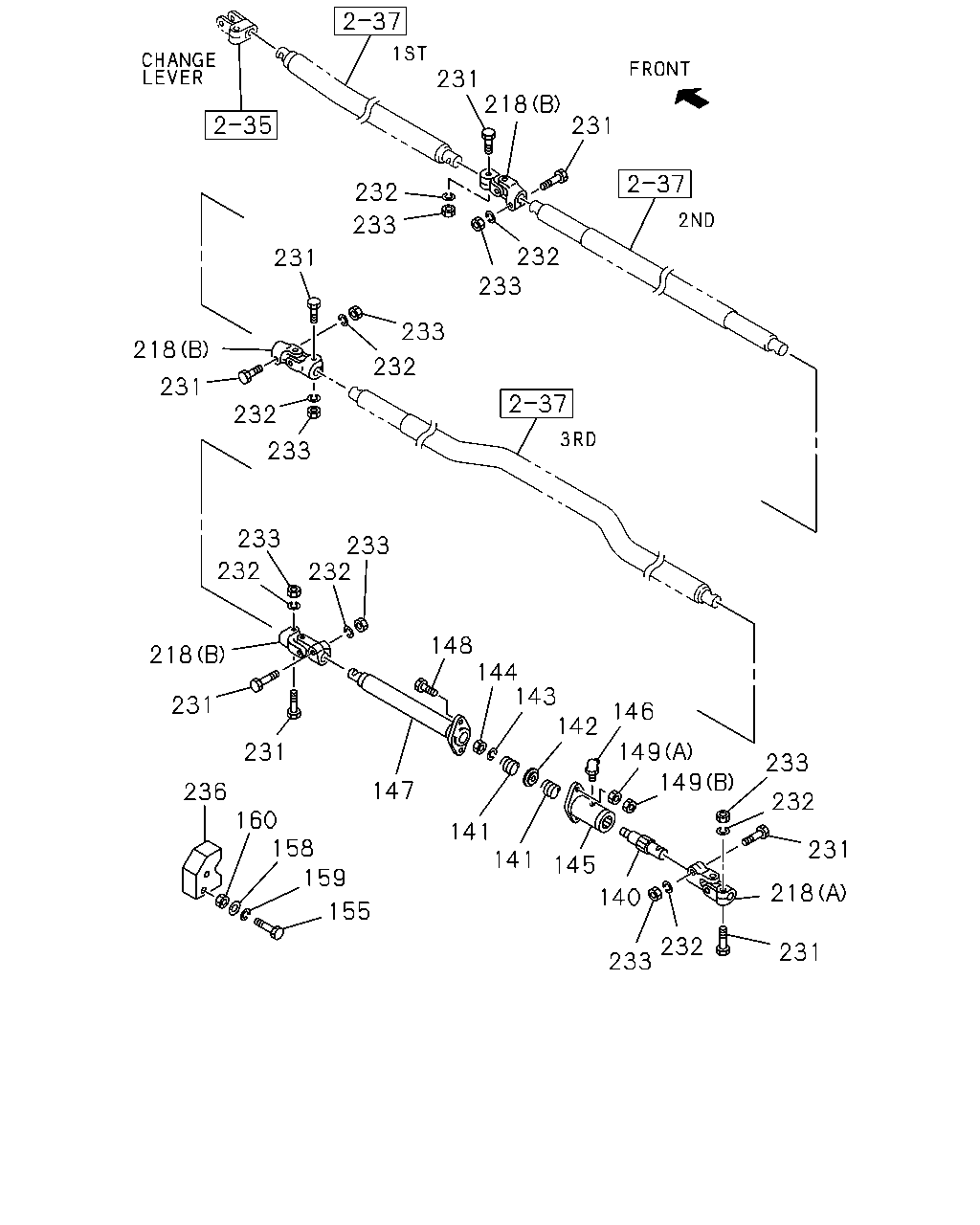

çizim 3814
231 218 231 232 233 232 233 231 233 218 232 231 232 233 233 233 232 232 148 144 143 218 231 146 142 231 149 233 149 147 236 232 160 158 141 141 231 145 159 218 140 155 232 233 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E
140 END; ROD,CONT ROD 1-33652-156-0 01 1 9101-9504 ● ● ●
141 SPRING; CONT ROD 9-09940-831-0 02 1 9101-9504 ● ● ●
142 GUIDE; CONT ROD 9-33659-384-0 01 1 9101-9504 ● ● ●
143 WASHER; LK,CONT ROD
ID=14.2 		9-09150-514-0 01 1 9101-9504 ● ● ●
144 NUT; CONT ROD
M14 		9-99110-414-0 01 1 9101-9504 ● ● ●
145 SLEEVE; CONT ROD 9-33659-399-0 01 1 9101-9504 ● ● ●
146 NIPPLE; GREASE,SLEEVE
PT1/8 ELBOW 		9-09031-210-0 01 1 9101-9504 ● ● ●
147 ROD; LINK 1-33652-428-0 01 1 9202-9504 ● ● ●
148 BOLT; SLEEVE TO CONT ROD
M10X28 		0-20801-028-0 02 1 9101-9504 ● ● ●
149 NUT; SLEEVE TO CONT ROD
(A) 		9-09110-510-0 02 1 9101-9504 ● ● ●
149 NUT; SLEEVE TO CONT ROD
(B) 		9-09111-510-0 02 1 9101-9504 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X20 FLANGE 		0-28080-620-0 12 1 9505-9507 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X25 FLANGE 		0-28080-625-0 12 1 9508-9606 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28680-630-0 12 1 9607-9705 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9706-9805 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9806-0512 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28650-630-0 04 1 0601- ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 08 1 9101-9204 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 08 1 9205-9504 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 12 1 9101-9204 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 12 1 9205-9504 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9706-9805 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9806-0512 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28650-630-0 12 1 0601- ● ● ● ● ●
158 WASHER; PL,SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.4 OD=26 		9-09164-808-0 08 1 9101-9504 ●
158 WASHER; PL,SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.4 OD=26 		9-09164-808-0 12 1 9101-9504 ●
159 WASHER; LK,SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2 		9-09150-508-0 08 1 9101-9504 ●
159 WASHER; LK,SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2 		9-09150-508-0 12 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
M6 		9-09110-406-0 12 1 9505-9606 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91150-106-0 12 1 9607-9705 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9706-9805 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9806-0602 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 08 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 12 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9706-9805 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9806-0602 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91180-106-0 12 1 0603- ● ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(A) 		1-33655-006-0 01 1 9101-9504 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 03 1 9101-9504 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9505-9706 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9707-9805 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 08 1 9101-9504 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9505-9706 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9707-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9706-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-0709 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-786-0 04 1 0710- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 08 1 9101-9504 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 05 1 9505-9606 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9607-9706 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9707-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9706-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		0-91510-510-0 04 1 0604- ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9505-9606 ● ● ●
233 NUT; UJT,CONT ROD
M10 FLANGE 		0-91150-210-0 05 1 9607-9701 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9702-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9706-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91110-510-0 04 1 0601- ● ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD 1-53380-004-1 03 1 9505-9705 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 01 1 9706-9805 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 01 1 9806- ● ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 04 1 9101-9504 ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 06 1 9101-9504 ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 03 1 9706-9805 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 03 1 9806- ● ● ● ● ●

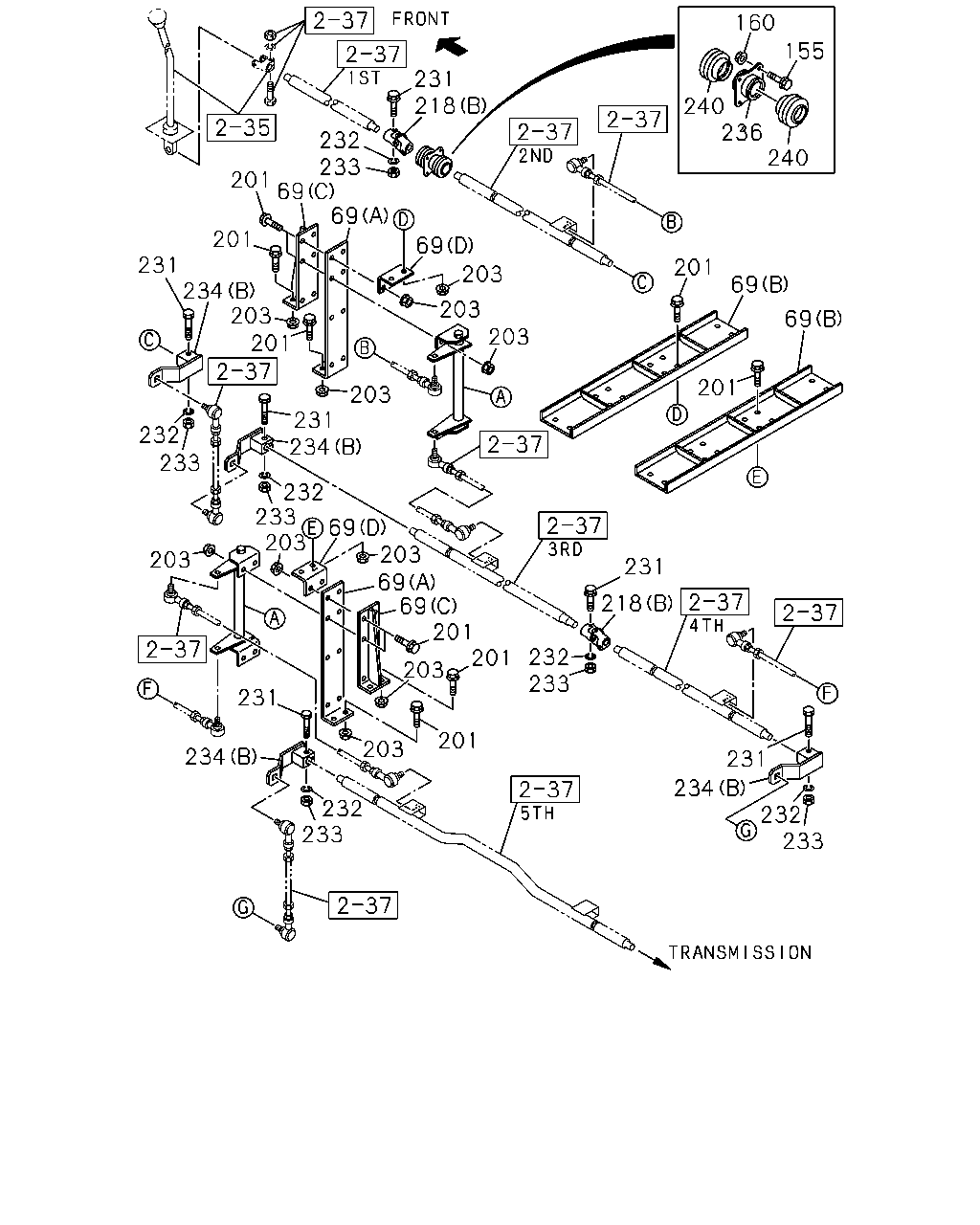

çizim 4409
160 155 231 218 240 236 240 232 233 69 69 201 69 201 231 234 203 201 201 203 69 203 203 69 201 203 231 234 232 233 232 233 203 69 203 69 69 201 201 203 231 218 232 233 203 231 201 231 203 234 234 232 233 232 233
BalonParca AdiParca NoAdetTipApplied Date A B C D E
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (A) 		1-33657-679-0 02 1 9706-9805 ● ● ● ●
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (A) 		1-33657-679-0 02 1 9806- ● ● ● ● ●
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33657-680-0 02 1 9706-9708 ● ● ● ●
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (C) 		1-33657-681-1 02 1 9706-9805 ● ● ● ●
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (C) 		1-33657-681-1 02 1 9806- ● ● ● ● ●
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (D) 		1-33657-682-0 02 1 9706-9805 ● ● ● ●
69 BRACKET; LEVER SHAFT
CENTER SPLIT TYPE FRAME<TLW> (D) 		1-33657-682-0 02 1 9806- ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X20 FLANGE 		0-28080-620-0 12 1 9505-9507 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X25 FLANGE 		0-28080-625-0 12 1 9508-9606 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28680-630-0 12 1 9607-9705 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9706-9805 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9806-0512 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28650-630-0 04 1 0601- ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 08 1 9101-9204 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 08 1 9205-9504 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 12 1 9101-9204 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 12 1 9205-9504 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9706-9805 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9806-0512 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28650-630-0 12 1 0601- ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 		9-09110-406-0 12 1 9505-9606 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91150-106-0 12 1 9607-9705 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9706-9805 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9806-0602 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 08 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 12 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9706-9805 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9806-0602 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91180-106-0 12 1 0603- ● ● ● ● ●
201 BOLT; BRKT
CENTER SPLIT TYPE FRAME<TLW> M10X35 FLANGE 		0-28681-035-0 28 1 9706-9708 ● ● ● ●
201 BOLT; BRKT
CENTER SPLIT TYPE FRAME<TLW> M10X35 FLANGE 		0-28681-035-0 20 1 9709-9805 ● ● ● ●
201 BOLT; BRKT
CENTER SPLIT TYPE FRAME<TLW> M10X35 FLANGE 		0-28681-035-0 20 1 9806-0512 ● ● ● ● ●
201 BOLT; BRKT
CENTER SPLIT TYPE FRAME<TLW> M10X35 FLANGE 		0-28651-035-0 20 1 0601- ● ● ● ● ●
203 NUT; BRKT FIX
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		0-91150-110-0 28 1 9706-9708 ● ● ● ●
203 NUT; BRKT FIX
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		0-91150-210-0 20 1 9709-9805 ● ● ● ●
203 NUT; BRKT FIX
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		0-91150-210-0 20 1 9806-0602 ● ● ● ● ●
203 NUT; BRKT FIX
CENTER SPLIT TYPE FRAME<TLW> M10 FLANGE 		0-91180-210-0 20 1 0603- ● ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(A) 		1-33655-006-0 01 1 9101-9504 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 03 1 9101-9504 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9505-9706 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9707-9805 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 08 1 9101-9504 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9505-9706 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9707-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9706-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-0709 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-786-0 04 1 0710- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 08 1 9101-9504 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 05 1 9505-9606 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9607-9706 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9707-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9706-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		0-91510-510-0 04 1 0604- ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9505-9606 ● ● ●
233 NUT; UJT,CONT ROD
M10 FLANGE 		0-91150-210-0 05 1 9607-9701 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9702-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9706-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91110-510-0 04 1 0601- ● ● ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-126-0 01 1 9505-9805 ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-126-0 01 1 9806- ● ● ● ●
234 END; ROD,TRANS CONT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33653-133-0 04 1 9706-9805 ● ● ● ●
234 END; ROD,TRANS CONT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33653-133-0 04 1 9806- ● ● ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-132-0 01 1 9702- ●
236 SUPPORT ASM; TRANS CONT ROD 1-53380-004-1 03 1 9505-9705 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 01 1 9706-9805 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 01 1 9806- ● ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 04 1 9101-9504 ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 06 1 9101-9504 ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 03 1 9706-9805 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 03 1 9806- ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD 1-33659-141-0 06 1 9505-9705 ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 02 1 9706-9805 ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 02 1 9806- ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 06 1 9706-9805 ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 06 1 9806- ● ● ● ● ●

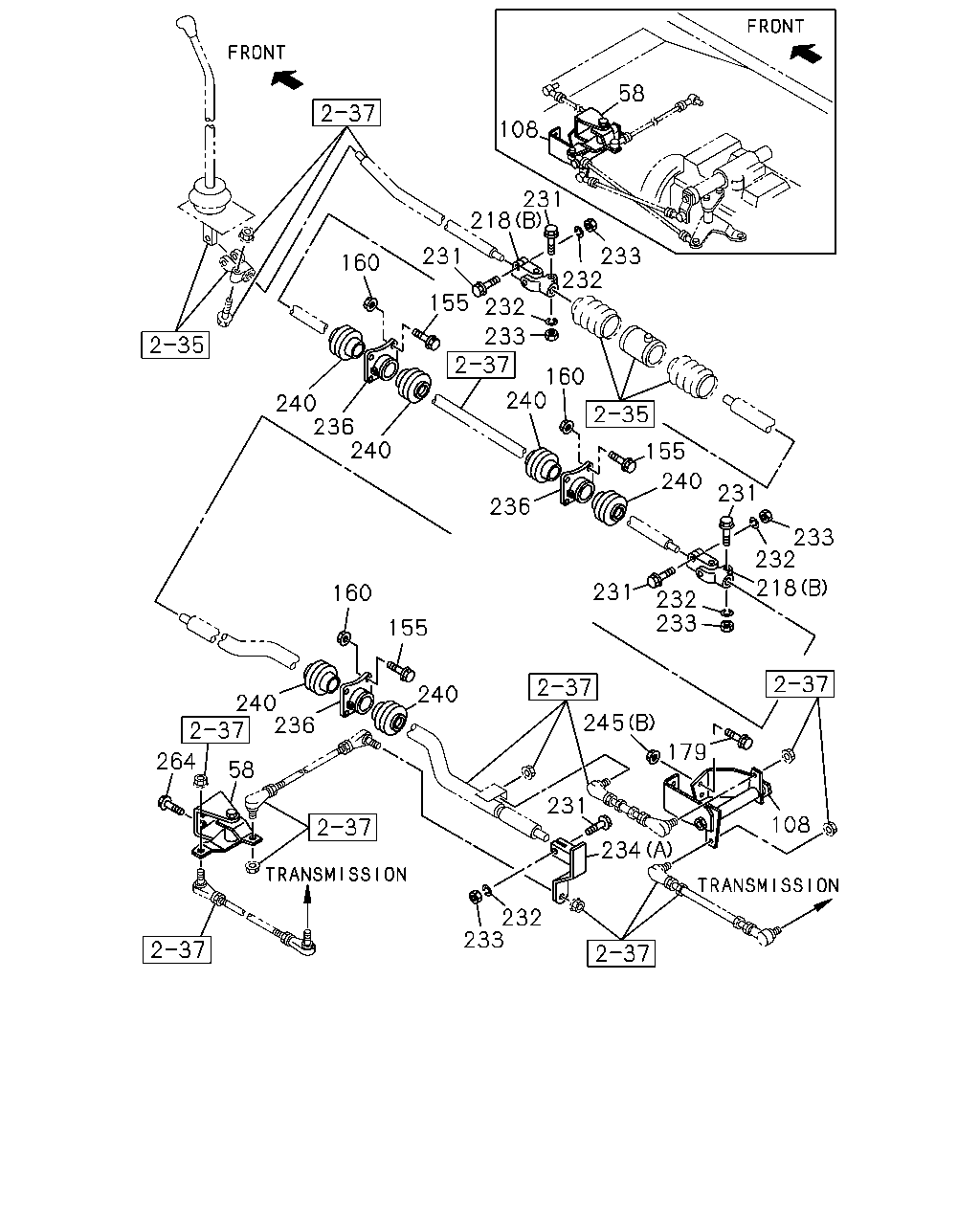

çizim 5078
58 108 231 218 231 233 232 232 233 160 155 160 240 240 236 240 155 240 231 233 232 218 232 233 236 231 160 155 240 240 236 264 245 179 58 231 108 234 232 233
BalonParca AdiParca NoAdetTipApplied Date A B C D E
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9505-9805 ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806- ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9702- ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9505-9706 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9702-9705 ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33671-015-0 01 1 9706- ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-141-0 01 1 9706- ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X20 FLANGE 		0-28080-620-0 12 1 9505-9507 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X25 FLANGE 		0-28080-625-0 12 1 9508-9606 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M6X30 FLANGE 		0-28680-630-0 12 1 9607-9705 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9706-9805 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 04 1 9806-0512 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28650-630-0 04 1 0601- ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 08 1 9101-9204 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 08 1 9205-9504 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 12 1 9101-9204 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 12 1 9205-9504 ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9706-9805 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28680-630-0 12 1 9806-0512 ● ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> M6X30 FLANGE 		0-28650-630-0 12 1 0601- ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 		9-09110-406-0 12 1 9505-9606 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M6 FLANGE 		0-91150-106-0 12 1 9607-9705 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9706-9805 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 04 1 9806-0602 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 08 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 12 1 9101-9504 ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9706-9805 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91150-106-0 12 1 9806-0602 ● ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. CENTER SPLIT TYPE FRAME<TLW> M6 FLANGE 		0-91180-106-0 12 1 0603- ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28080-825-0 04 1 9505-9606 ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9607-9701 ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-0512 ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9702-9805 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(A) 		1-33655-006-0 01 1 9101-9504 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 03 1 9101-9504 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9505-9706 ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9707-9805 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 02 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 08 1 9101-9504 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9505-9706 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9707-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9706-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-0709 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-786-0 04 1 0710- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 08 1 9101-9504 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 05 1 9505-9606 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9607-9706 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9707-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9706-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		0-91510-510-0 04 1 0604- ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9505-9606 ● ● ●
233 NUT; UJT,CONT ROD
M10 FLANGE 		0-91150-210-0 05 1 9607-9701 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9702-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9706-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91110-510-0 04 1 0601- ● ● ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-126-0 01 1 9505-9805 ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-126-0 01 1 9806- ● ● ● ●
234 END; ROD,TRANS CONT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33653-133-0 04 1 9706-9805 ● ● ● ●
234 END; ROD,TRANS CONT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33653-133-0 04 1 9806- ● ● ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-132-0 01 1 9702- ●
236 SUPPORT ASM; TRANS CONT ROD 1-53380-004-1 03 1 9505-9705 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 01 1 9706-9805 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 01 1 9806- ● ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 04 1 9101-9504 ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 06 1 9101-9504 ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 03 1 9706-9805 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-53380-004-1 03 1 9806- ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD 1-33659-141-0 06 1 9505-9705 ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 02 1 9706-9805 ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 02 1 9806- ● ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 06 1 9706-9805 ● ● ● ●
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33659-141-0 06 1 9806- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 		9-09110-408-0 04 1 9505-9606 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9706 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9707-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9505-9701 ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9702-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-0512 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28080-825-0 04 1 9505-9606 ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9607-9701 ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9702-9805 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-0512 ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ● ● ● ●

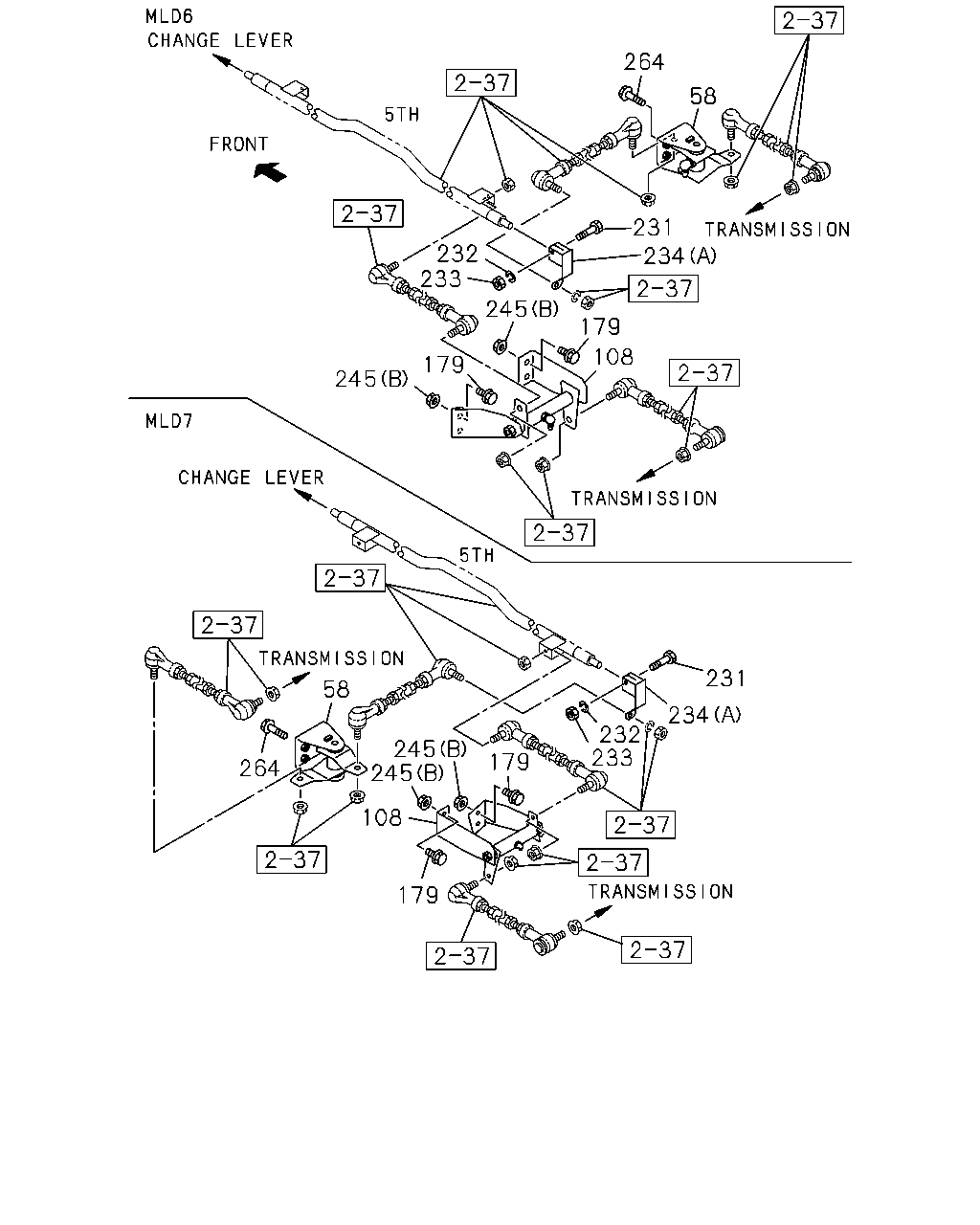

çizim 36591
264 58 231 234 232 233 245 179 108 179 245 231 58 234 232 233 245 245 108 179 264 179
BalonParca AdiParca NoAdetTipApplied Date A B C D E
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9505-9805 ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806- ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9702- ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9505-9706 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9702-9705 ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33671-015-0 01 1 9706- ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-141-0 01 1 9706- ●
179 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28080-825-0 04 1 9505-9606 ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9607-9701 ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-0512 ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ● ● ● ●
179 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9702-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 08 1 9101-9504 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9505-9706 ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9707-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 05 1 9806- ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9706-9805 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-489-0 04 1 9806-0709 ● ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10X50 		1-09000-786-0 04 1 0710- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 08 1 9101-9504 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 05 1 9505-9606 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9607-9706 ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9707-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-510-0 05 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		0-91510-510-0 05 1 0604- ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9706-9805 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		9-09150-510-0 04 1 9806-0603 ● ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> ID=10.2 		0-91510-510-0 04 1 0604- ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9505-9606 ● ● ●
233 NUT; UJT,CONT ROD
M10 FLANGE 		0-91150-210-0 05 1 9607-9701 ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9702-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 05 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		0-91110-510-0 05 1 0601- ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9706-9805 ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		9-09110-510-0 04 1 9806-0512 ● ● ● ● ●
233 NUT; UJT,CONT ROD
CENTER SPLIT TYPE FRAME<TLW> M10 		0-91110-510-0 04 1 0601- ● ● ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-126-0 01 1 9505-9805 ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-126-0 01 1 9806- ● ● ● ●
234 END; ROD,TRANS CONT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33653-133-0 04 1 9706-9805 ● ● ● ●
234 END; ROD,TRANS CONT
CENTER SPLIT TYPE FRAME<TLW> (B) 		1-33653-133-0 04 1 9806- ● ● ● ● ●
234 END; ROD,TRANS CONT
(A) 		1-33653-132-0 01 1 9702- ●
245 NUT; BRKT,RELAY LEVER
(B) M8 		9-09110-408-0 04 1 9505-9606 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9706 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9707-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9505-9701 ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9702-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-0512 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28080-825-0 04 1 9505-9606 ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9607-9701 ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9702-9805 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28680-830-0 04 1 9806-0512 ● ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ● ● ● ●
çizim 36786
58 171 353 354 60 355 13 67 167 354 181 175 353 170 108 110 111 109 112 352 169 352 112 110 164 180 113 246 245
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9505-9805 ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-668-1 01 1 9806- ● ● ● ●
13 LEVER; RELAY,1ST SELECT INNER 1-33651-694-0 01 1 9702- ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9505-9805 ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33670-814-2 01 1 9806- ● ● ● ●
58 LEVER; RELAY,SELECT,1ST 1-33671-016-1 01 1 9702- ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9505-9805 ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-564-1 01 1 9806- ● ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-669-0 01 1 9702- ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9505-9701 ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9702-9805 ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 9806-0603 ● ● ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33670-813-1 01 1 9505-9706 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33670-813-1 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9707-9805 ● ● ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-142-0 01 1 9806- ● ● ● ●
108 LEVER; SHIFT,1ST CONT 1-33671-015-0 01 1 9702-9705 ●
108 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33671-015-0 01 1 9706- ●
108 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33671-141-0 01 1 9706- ●
109 LEVER; SHIFT,1ST CONT 1-33651-667-1 01 1 9505-9706 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33651-667-1 01 1 9707-9805 ● ● ●
109 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33651-667-1 01 1 9806- ● ● ● ●
109 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-707-0 01 1 9707-9805 ● ● ●
109 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-707-0 01 1 9806- ● ● ● ●
109 LEVER; SHIFT,1ST CONT 1-33651-693-0 01 1 9702-9705 ●
109 LEVER; SHIFT,1ST CONT
EXC. CENTER SPLIT TYPE FRAME<TLW> 		1-33651-693-0 01 1 9706- ●
109 LEVER; SHIFT,1ST CONT
CENTER SPLIT TYPE FRAME<TLW> 		1-33651-706-0 01 1 9706- ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9505-9805 ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-625-0 01 1 9806- ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9505-9805 ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-626-1 01 1 9806- ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-667-0 01 1 9702- ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-668-0 01 1 9702- ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9505-9701 ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9702-9805 ● ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-508-0 01 1 9806- ● ● ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9505-9701 ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9702-9705 ● ● ● ●
112 BUSHING; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> L=24 		5-33659-054-0 04 1 9706-9805 ● ● ● ●
112 BUSHING; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> L=24 		5-33659-054-0 04 1 9806- ● ● ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9706-9805 ● ● ● ●
112 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9806- ● ● ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9505-9701 ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9702-9705 ● ● ● ●
113 WASHER; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-093-0 02 1 9706-9805 ● ● ● ●
113 WASHER; RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> 		1-33659-093-0 02 1 9806- ● ● ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9706-9805 ● ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 9806- ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9505-9701 ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9702-9805 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-0512 ● ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9505-9701 ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9702-9805 ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 9806-0512 ● ● ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9505-9701 ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9702-9805 ● ● ● ●
169 COLLAR; RELAY LEVER,TRANS SHIFT ROD 1-33659-154-0 01 1 9806- ● ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9505-9701 ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9702-9805 ● ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 9806- ● ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9505-9701 ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9702-9805 ● ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 9806- ● ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9505-9701 ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9702-9805 ● ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 9806- ● ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9505-9701 ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9702-9805 ● ● ● ●
180 SHIM; LEVER,TRANS CONT 1-33659-092-0 01 1 9806- ● ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9505-9701 ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9702-9805 ● ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 9806- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 		9-09110-408-0 04 1 9505-9606 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9706 ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9707-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9505-9701 ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9702-9805 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		9-99111-514-0 01 1 9806-0512 ● ● ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M14 		0-91111-514-0 01 1 0601- ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9505-9701 ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9702-9805 ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9806-0603 ● ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9505-9701 ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9702-9805 ● ● ● ●
352 SEAL; DUST,RELAY LEVER,SHIFT ROD 1-33659-113-0 02 1 9806- ● ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9505-9701 ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9702-9805 ● ● ● ●
353 SEAL; DUST,RELAY LEVER,SELECT ROD 1-33659-113-0 02 1 9806- ● ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9505-9701 ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9702-9805 ● ● ● ●
354 BUSHING; RELAY LEVER,SELECT CONT ROD
L=24 		5-33659-054-0 02 1 9806- ● ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9505-9701 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9702-9705 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9706-9805 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 01 1 9806-0512 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 ELBOW 		9-09031-210-0 02 1 9706-9707 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9708-9805 ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9806-0512 ● ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
CENTER SPLIT TYPE FRAME<TLW> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9706-0512 ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
