2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#4428) — 36 parça

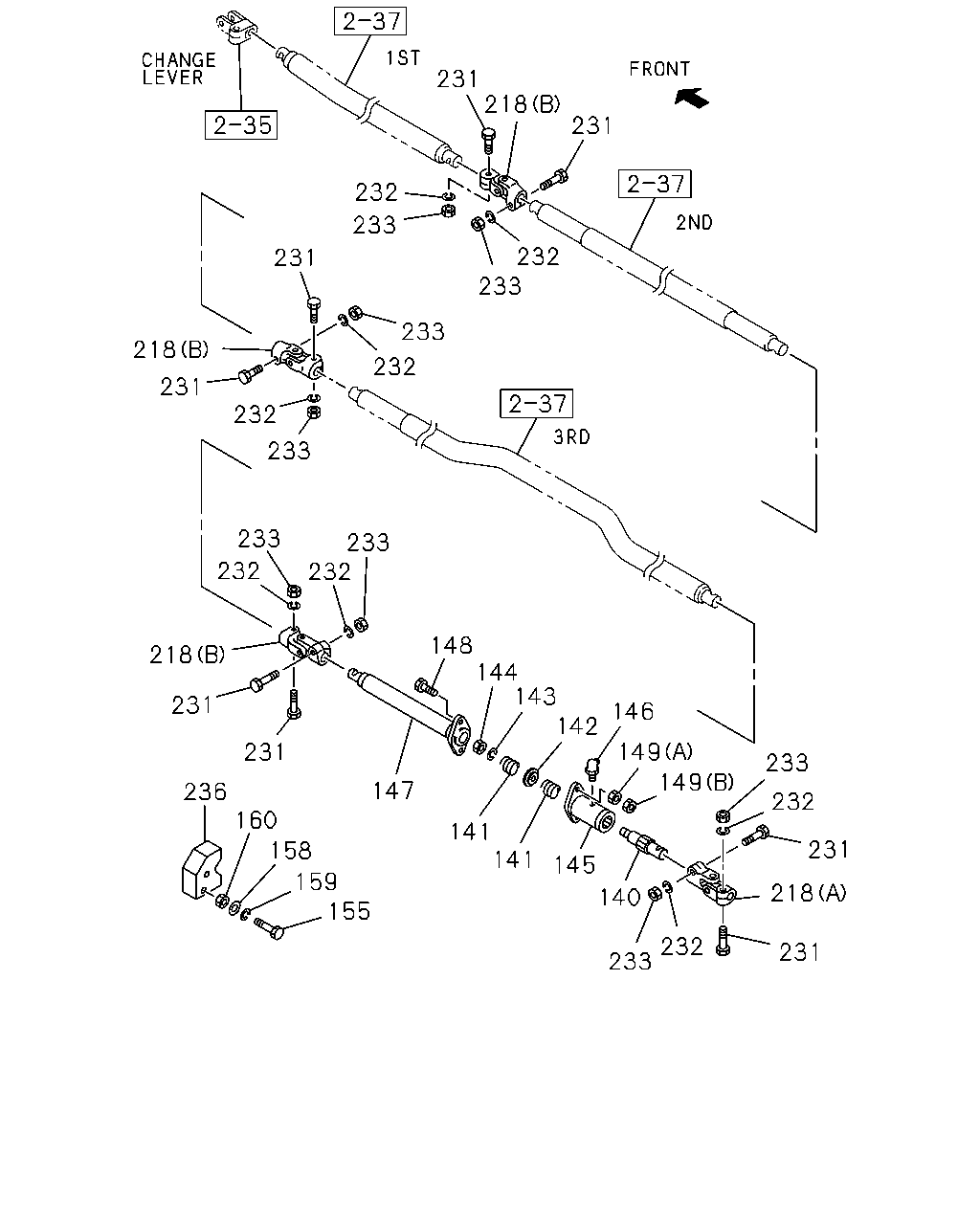

çizim 3817
231 218 231 232 233 232 233 231 233 218 232 231 232 233 233 233 232 232 148 144 143 218 231 146 142 231 149 233 149 147 236 232 160 141 141 231 158 145 159 155 218 140 232 233 231
BalonParca AdiParca NoAdetTipApplied Date A B C D
140 END; ROD,CONT ROD 1-33652-156-0 01 1 9101-9504 ● ● ● ●
141 SPRING; CONT ROD 9-09940-831-0 02 1 9101-9504 ● ● ● ●
142 GUIDE; CONT ROD 9-33659-384-0 01 1 9101-9504 ● ● ● ●
143 WASHER; LK,CONT ROD
ID=14.2 		9-09150-514-0 01 1 9101-9504 ● ● ● ●
144 NUT; CONT ROD
M14 		9-99110-414-0 01 1 9101-9504 ● ● ● ●
145 SLEEVE; CONT ROD 9-33659-399-0 01 1 9101-9504 ● ● ● ●
146 NIPPLE; GREASE,SLEEVE
PT1/8 ELBOW 		9-09031-210-0 01 1 9101-9504 ● ● ● ●
147 ROD; LINK
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-33652-246-0 01 1 9101-9504 ● ● ●
147 ROD; LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-33652-512-0 01 1 9101-9504 ● ● ● ●
147 ROD; LINK
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> NEW ZEALAND EQUIPMENT<PK5>,AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 		1-33652-413-1 01 1 9101-9504 ● ● ● ●
148 BOLT; SLEEVE TO CONT ROD
M10X28 		0-20801-028-0 02 1 9101-9504 ● ● ● ●
149 NUT; SLEEVE TO CONT ROD
(A) 		9-09110-510-0 02 1 9101-9504 ● ● ● ●
149 NUT; SLEEVE TO CONT ROD
(B) 		9-09111-510-0 02 1 9101-9504 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 04 1 9101-9204 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 04 1 9205-9504 ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 08 1 9101-9204 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 08 1 9205-9504 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		9-01045-860-0 12 1 9101-9204 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X60 		0-10805-860-0 12 1 9205-9504 ● ● ● ●
158 WASHER; PL,SUPPORT BRKT TO COVER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.4 OD=26 		9-09164-808-0 04 1 9101-9504 ● ● ●
158 WASHER; PL,SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.4 OD=26 		9-09164-808-0 08 1 9101-9504 ● ● ● ●
158 WASHER; PL,SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.4 OD=26 		9-09164-808-0 12 1 9101-9504 ● ● ● ●
159 WASHER; LK,SUPPORT BRKT TO COVER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2 		9-09150-508-0 04 1 9101-9504 ● ● ●
159 WASHER; LK,SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2 		9-09150-508-0 08 1 9101-9504 ● ● ● ●
159 WASHER; LK,SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=8.2 		9-09150-508-0 12 1 9101-9504 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 04 1 9101-9504 ● ● ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 08 1 9101-9504 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 LOCK NUT 		9-09131-408-0 12 1 9101-9504 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(A) 		1-33655-006-0 01 1 9101-9504 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 03 1 9101-9504 ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 08 1 9101-9504 ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 08 1 9101-9504 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 08 1 9101-9504 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 02 1 9101-9504 ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5000MM(50W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 04 1 9101-9504 ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD
WHEEL BASE 5700MM(57W) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-23335-085-0 06 1 9101-9504 ● ● ● ●
