1-50 — EXHAUST PIPE AND SILENCER (#44279) — 262 parça

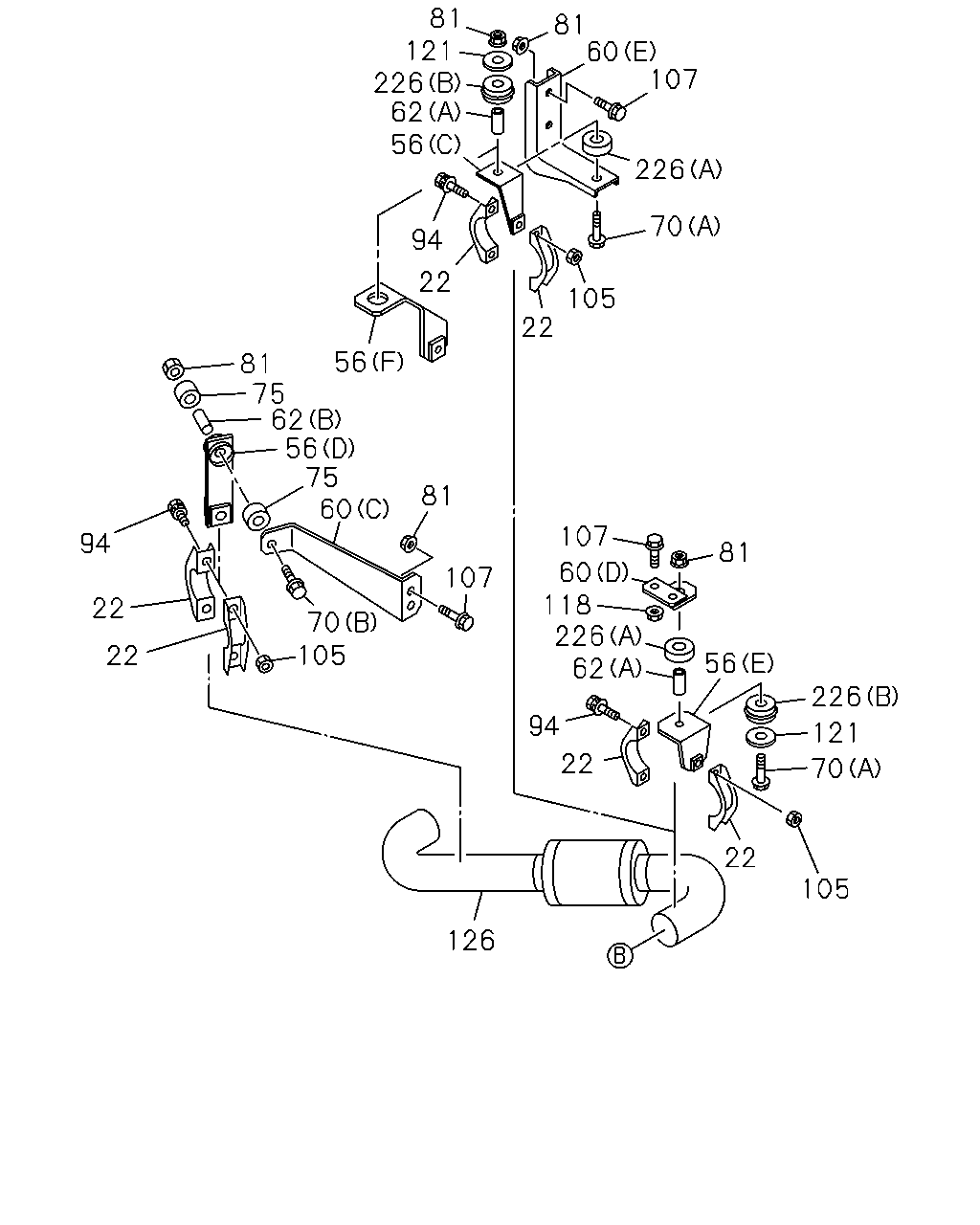

çizim 109375
105 22 70 121 226 56 81 107 60 118 226 62 94 22 126 105 70 107 81 60 75 56 62 75 81 56 22 22 105 70 226 107 60 81 81 121 226 62 56 94 22 22 94
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W) ID=80-84 		1-22133-233-0 04 1 0710-1301 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1302- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-1301 ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) ID=80-84 		1-22133-233-0 02 1 0710-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W) (C) 		8-98059-756-0 02 1 0710-1301 ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W) (F) 		8-98233-506-0 01 1 1302- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0710-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 0710- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W) (E) 		8-98059-753-1 02 1 0710-1301 ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W) (E) 		8-98233-509-0 01 1 1302- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0710-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98059-763-0 01 1 0710-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98233-467-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0710-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0710-1301 ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 0710-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-1301 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ● ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
94 BOLT; CLAMP
WHEEL BASE 5500MM(55W) M10X40 FLANGE 		0-28651-040-0 04 1 0710-1301 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1302- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-1301 ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X40 FLANGE 		0-28651-040-0 02 1 0710-1301 ●
105 NUT; CLAMP
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 04 1 0710-1301 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-1301 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 02 1 0710-1301 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0710- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0710- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0710- ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0710- ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) ID=11 OD=54 		1-09503-154-2 01 1 0710- ●
126 PIPE; EXH,RR
WHEEL BASE 5500MM(55W) 		8-98043-365-2 01 1 0710-1301 ● ●
126 PIPE; EXH,RR
WHEEL BASE 5500MM(55W) 		8-98233-516-0 01 1 1302- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-629-2 01 1 0710-1301 ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		8-98234-295-0 01 1 1302- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 0710-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 0710-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●

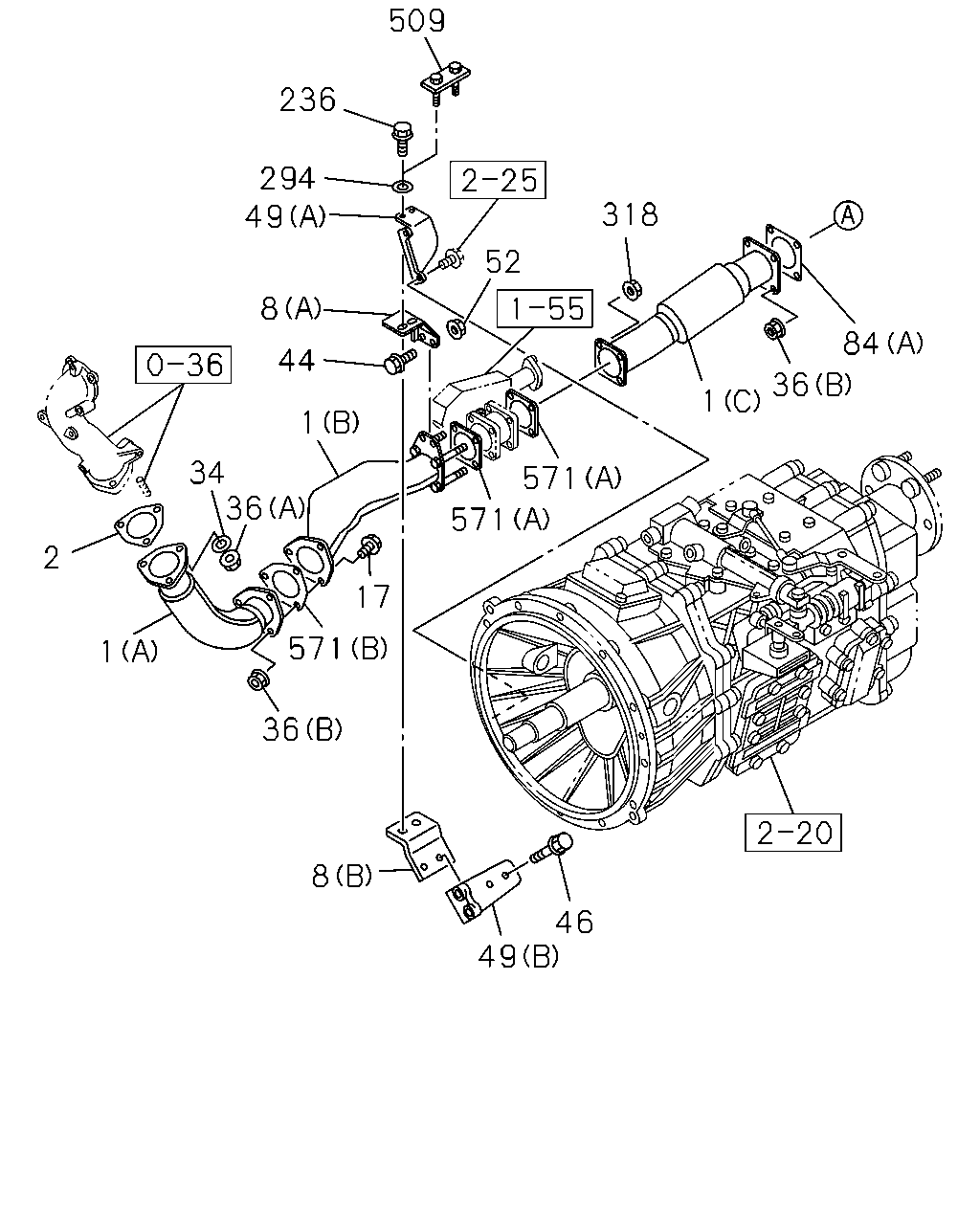

çizim 109385
84 36 1 571 571 17 571 36 8 49 46 1 2 34 1 36 44 8 49 294 236 509 318 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-885-1 01 1 0710- ● ●
1 PIPE; EXH
(B) 		8-98056-496-1 01 1 0710-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0710-0902 ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0903-1209 ● ●
1 PIPE; EXH
(B) 		8-98215-407-1 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0710- ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 1210-1301 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1302-1310 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311- ● ●
8 BRACKET; EXH PIPE
LCT2000 A/T ALLISON(Y4F) (B) 		8-98234-526-0 01 1 1302-1310 ●
8 BRACKET; EXH PIPE
LCT2000 A/T ALLISON(Y4F) (B) 		8-98259-876-0 01 1 1311- ●
8 BRACKET; EXH PIPE
(A) 		8-98089-802-0 01 1 0710-0805 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) (A) 		8-98089-802-0 01 1 0806-0906 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98089-802-0 01 1 0907-1006 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98122-679-1 01 1 1007-1301 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98233-627-0 01 1 1302-1404 ● ●
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98275-817-0 01 1 1405- ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98113-013-0 01 1 0806-1301 ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98233-345-0 01 1 1302-1310 ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98259-873-0 01 1 1311- ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98114-390-0 01 1 0806-1301 ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98233-348-0 01 1 1302- ● ●
17 BOLT; EXH PIPE
6HK1-TCN ENG(82L) KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1204- ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0710- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
46 BOLT; BRKT,EXH PIPE
MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0806-1209 ● ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1210-1301 ●
46 BOLT; BRKT,EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 1210-1301 ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 1302- ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98122-673-0 01 1 1210- ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98122-671-0 01 1 1210- ● ●
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98085-317-2 01 1 0710-0805 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) (A) 		8-98085-317-2 01 1 0806-0906 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98085-317-2 01 1 0907-1209 ● ●
49 BRACKET; EXH PIPE TO TRANS
LCT2000 A/T ALLISON(Y4F) (A) 		8-98085-317-2 01 1 1210-1301 ●
49 BRACKET; EXH PIPE TO TRANS
LCT2000 A/T ALLISON(Y4F) (B) 		8-98234-528-0 01 1 1302- ●
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 0806- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-0710 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0710-1301 ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0710- ● ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0710-0712 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ●
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311 ● ●
509 STUD; BRKT 8-98259-983-0 01 1 1312- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0710- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0710- ● ●

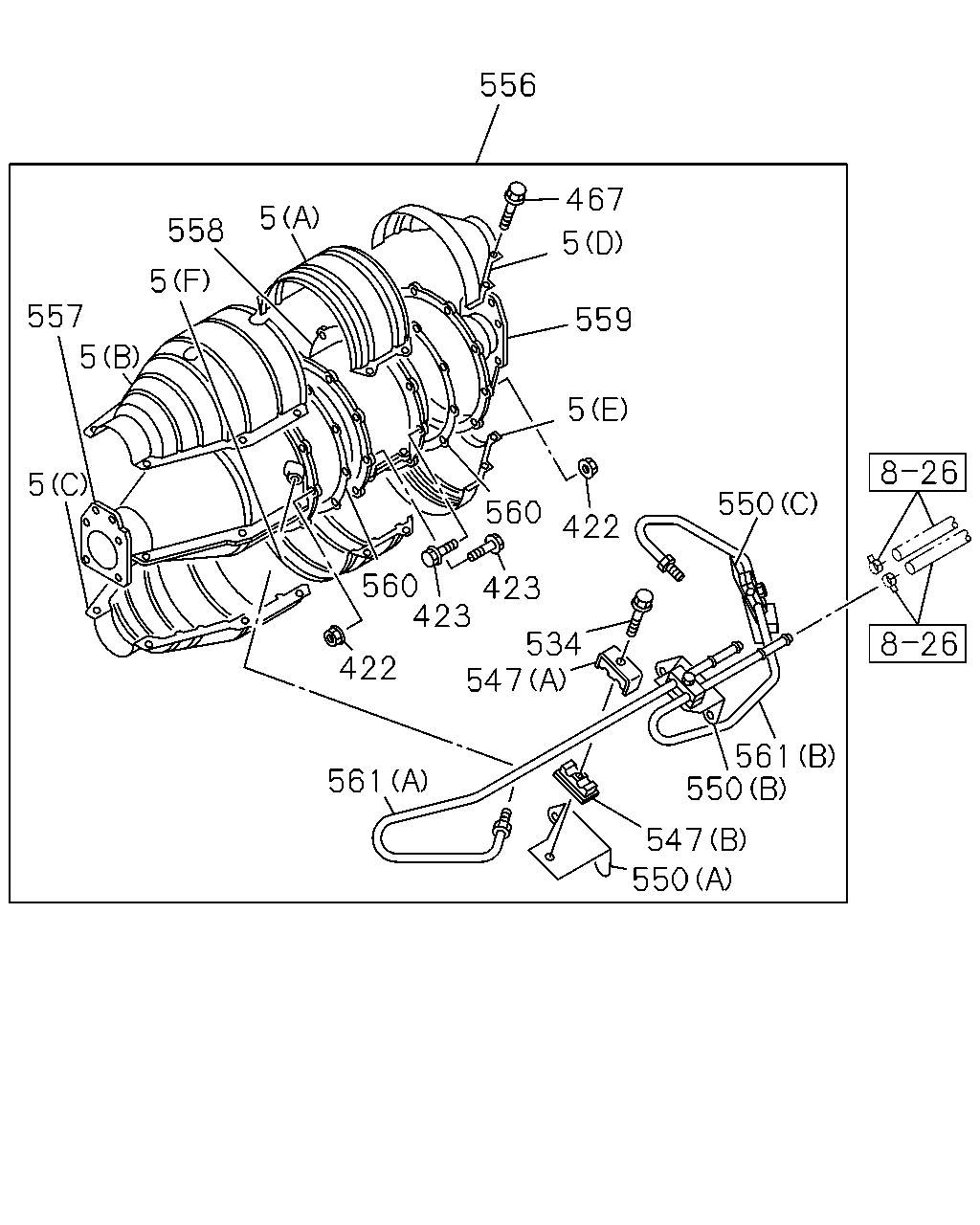

çizim 109398
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0710- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0710- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0710- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710- ● ●
556 DPD ASM 8-97613-331-6 01 1 0710-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-7 01 1 0710- ● ●
558 FILTER ASM 8-97608-057-3 01 1 0710- ● ●
559 COVER; RR 8-97611-078-0 01 1 0710-1010 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0710- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0710-1010 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0710-1010 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●

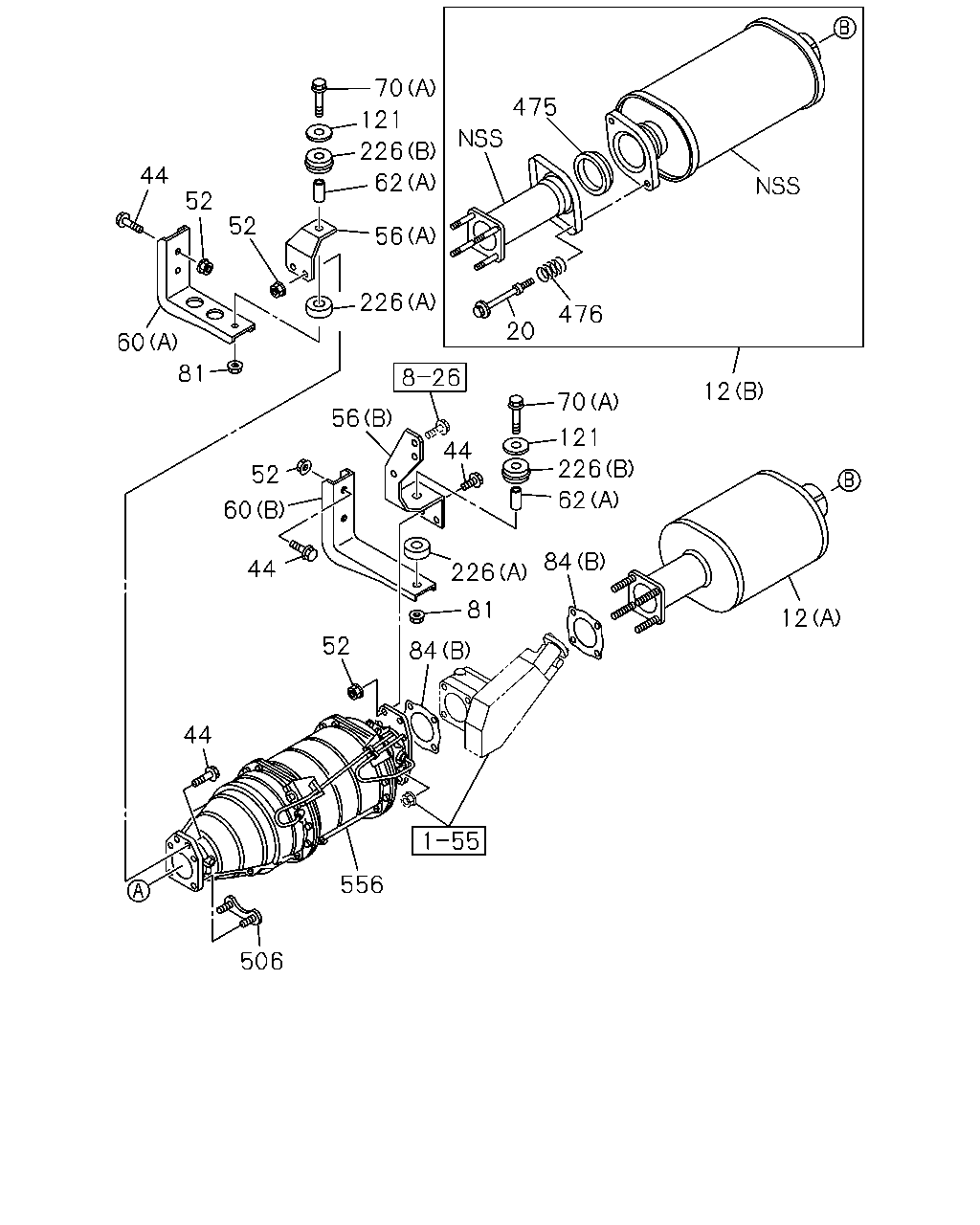

çizim 109411
556 506 44 52 84 81 84 226 62 226 121 70 12 12 476 20 475 70 121 226 62 56 226 56 52 60 44 81 60 52 52 44 44
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-1301 ● ●
12 SILENCER ASM; EXH
(B) 		8-98234-507-0 01 1 1302- ● ●
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-0710 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W) (C) 		8-98059-756-0 02 1 0710-1301 ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W) (F) 		8-98233-506-0 01 1 1302- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-584-0 01 1 0710-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98074-830-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (E) 		8-98059-762-0 01 1 0710- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W) (E) 		8-98059-753-1 02 1 0710-1301 ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5500MM(55W) (E) 		8-98233-509-0 01 1 1302- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0710- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0710-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98059-763-0 01 1 0710-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (D) 		8-98233-467-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0710-1301 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5500MM(55W) (A) L=39 		8-98060-852-0 02 1 0710-1301 ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1302- ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 1302- ●
62 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) (A) L=39 		8-98060-852-0 01 1 0710-1301 ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1302- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-1301 ● ●
70 BOLT; BRKT
WHEEL BASE 5500MM(55W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0710-1301 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ● ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1302- ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-1301 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1302- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 0911-1007 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1302-1304 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 0911-1007 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1008-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1302-1302 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 0710-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0911-1007 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1008-1301 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-1304 ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0710- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0710- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0710- ●
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) ID=11 OD=54 		1-09503-154-2 01 1 0710- ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) ID=11 OD=54 		1-09503-154-2 01 1 0710- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (A) 		8-94457-277-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 1302- ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5500MM(55W) (B) 		8-94457-278-1 02 1 0710-1301 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 1302- ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (A) 		8-94457-277-1 01 1 0710-1301 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1302- ● ●
226 RUBBER; CUSHION
WHEEL BASE 3700MM(37W) (B) 		8-94457-278-1 01 1 0710-1301 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1302- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302- ● ●
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0710-1203 ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1204- ●
506 BRACKET; STUD
6HK1-TCN ENG(82L) EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204- ●
556 DPD ASM 8-97613-331-6 01 1 0710-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
