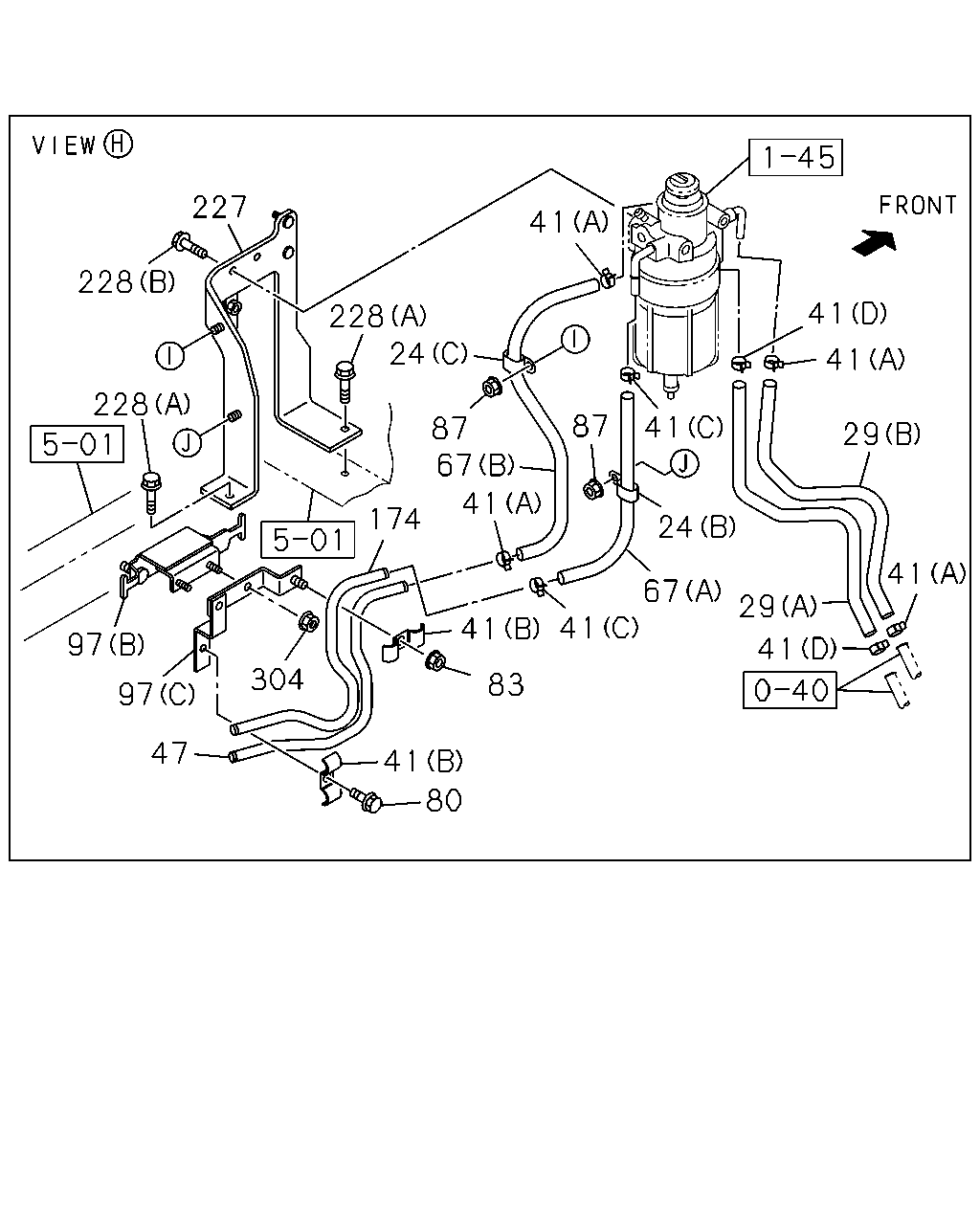

1-41 — FUEL PIPING; CHASSIS (#44277) — 95 parça

228 227 228 97 97 47 304 41 80 83 41 41 41 67 87 24 228 174 67 24 41 87 41 41 41 29 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-		●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804		●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0710-1005	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-0810	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806		●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-0810	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0811-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	0801-0803		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	0804-0804		●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-1005	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1007-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●

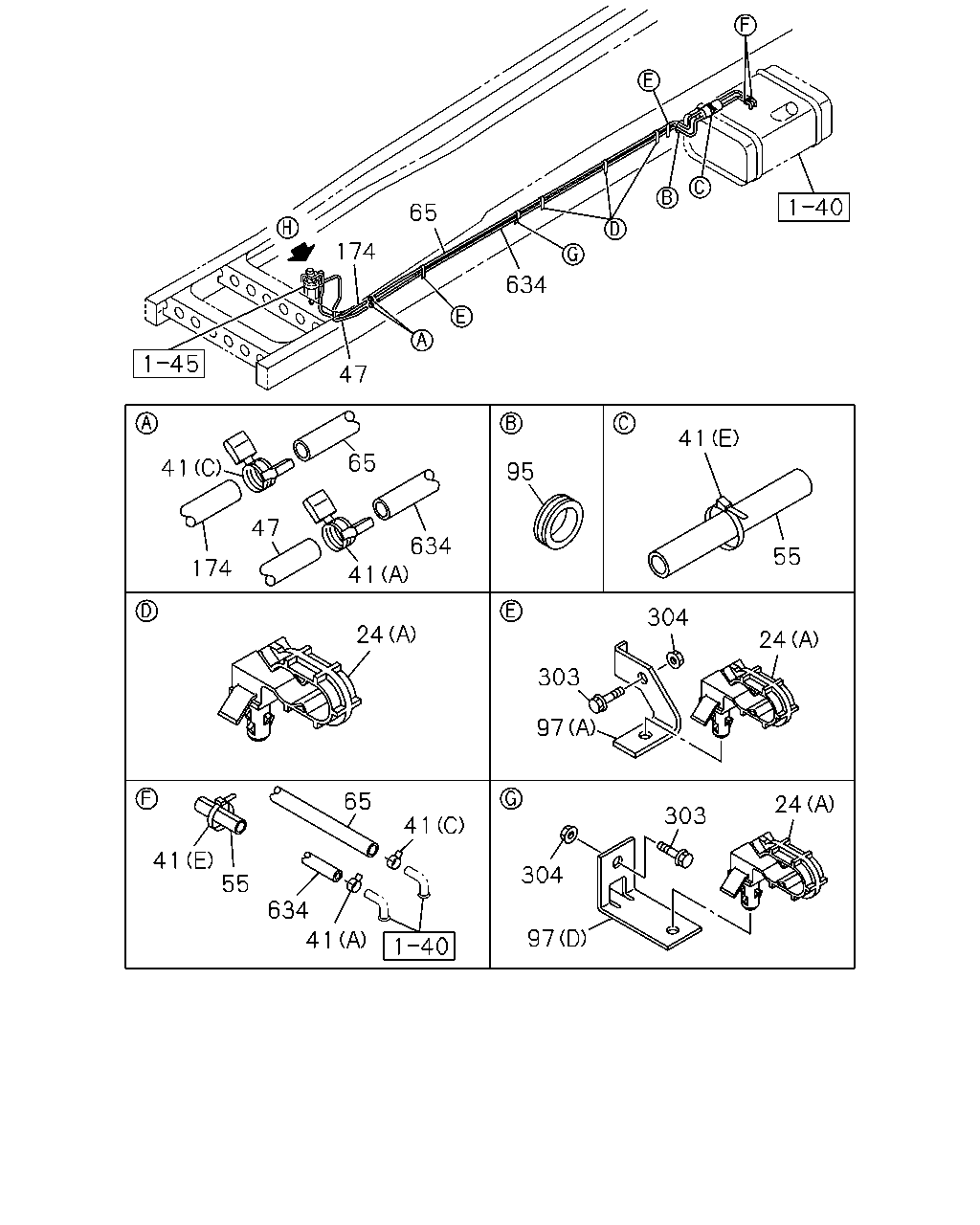

65 174 634 47 41 65 41 95 47 634 55 174 41 304 24 24 303 97 65 24 303 41 41 55 304 634 97 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0710-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0710-0710		●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0710-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0710-0712	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5500MM(55W) (E) L=140	5-09707-031-1	03	1	0801-0804	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	01	1	0805-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=140	5-09707-031-1	01	1	0801-0804		●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0710-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0710-0712	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 5500MM(55W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-0804	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0805-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0801-0804		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0710		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	0710-0810	●	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0710-	●	●
97	BRACKET; CLIP (D)	8-98098-427-1	01	1	0710-0712	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98098-427-1	01	1	0801-0804		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98109-768-0	01	1	0805-0806		●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0807-1005	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-	●	●
97	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	8-98083-349-0	01	1	0710-	●	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0710-	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0710-0712	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-0803	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0801-0803		●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	0804-0804		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0805-1005	●	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1007-	●	●
303	BOLT; BRKT WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-0810	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0811-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0712	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0801-0803	●	●
304	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	0801-0803		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	0804-0804		●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-1005	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1007-	●	●
304	NUT; BRKT WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 5500MM(55W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1700 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0710		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0710-		●
