Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

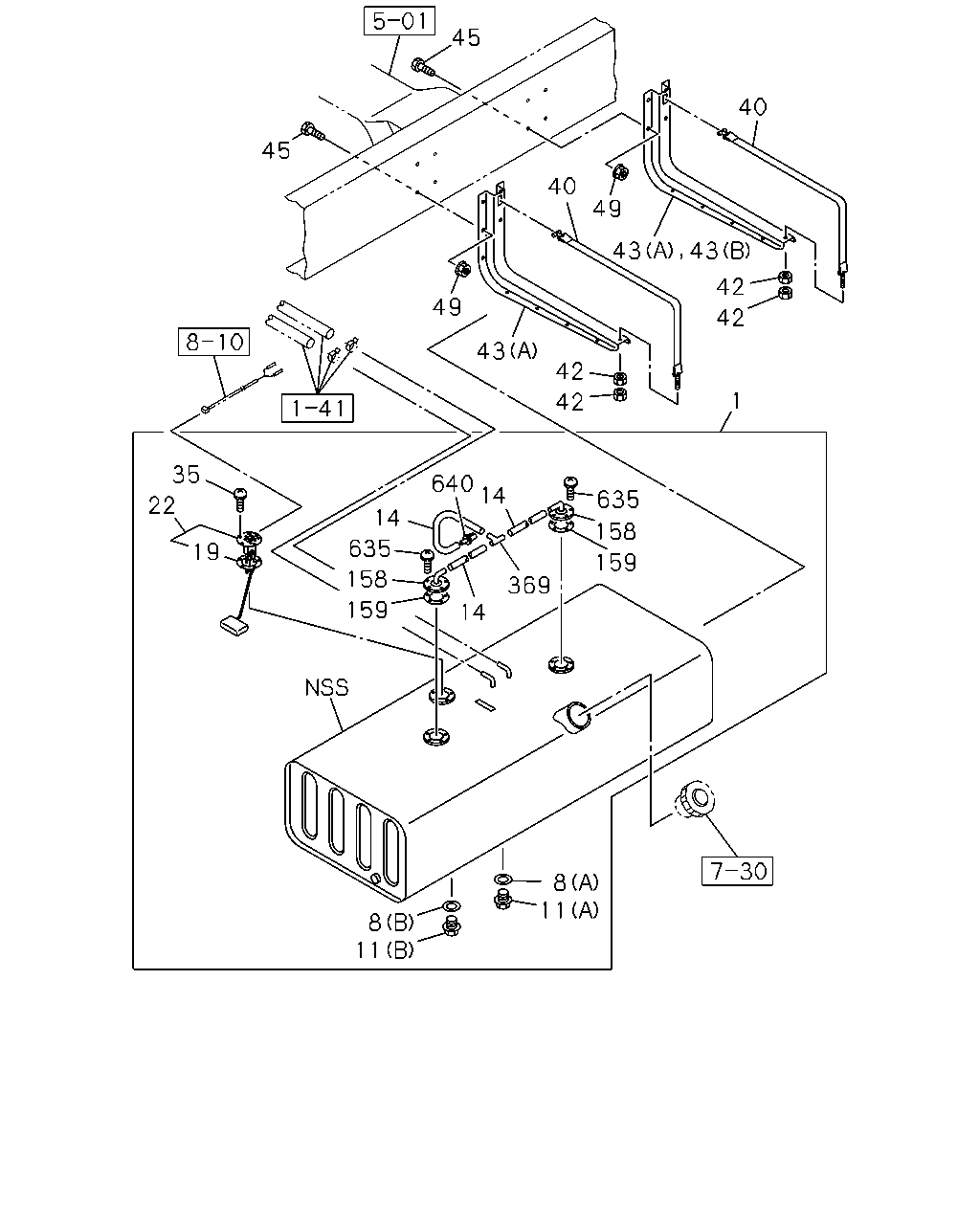

1-40 — FUEL TANK
(#44276) — 31 parça
Tümü
A - FCD5MS
B - FCR5MS
45
40
45
40
49
43
43
42
49
42
43
42
1
42
35
640
14
635
22
14
158
635
19
159
158
369
159
14
8
11
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1345X532X322 200L
8-98042-714-0
01
1
0710-0710
●
●
1
TANK; FUEL
1345X532X322 200L
8-98099-832-0
01
1
0710-0809
●
●
1
TANK; FUEL
1345X532X322 200L
8-98122-992-3
01
1
0810-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30
8-98067-041-0
01
1
0710-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=14.2 OD=23.0
9-09572-014-0
01
1
0710-0912
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0
9-09571-418-0
01
1
1001-
●
●
11
PLUG; DRAIN,FUEL TANK
(B) M30
8-98067-038-0
01
1
0710-
●
●
11
PLUG; DRAIN,FUEL TANK
(A) M14X14
9-09862-156-0
01
1
0710-0912
●
●
11
PLUG; DRAIN,FUEL TANK
(A) M18X12
0-92002-418-0
01
1
1001-
●
●
14
HOSE; BREATHER,OUTLET
L=270 SERVICED BY L=3000
0-01256-300-0
02
1
0710-0809
●
●
14
HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000
0-01256-300-0
01
1
0810-
●
●
14
HOSE; BREATHER,OUTLET
L=600 SERVICED BY L=3000
0-01256-300-0
01
1
0710-0809
●
●
14
HOSE; BREATHER,OUTLET
L=440 SERVICED BY L=3000
0-01256-300-0
01
1
0810-
●
●
14
HOSE; BREATHER,OUTLET
L=450 SERVICED BY L=3000
0-01256-300-0
01
1
0810-
●
●
19
GASKET; FUEL TANK UNIT
8-98051-797-0
01
1
0710-0710
●
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0710-
●
●
22
UNIT; FUEL TANK
8-98065-305-0
01
1
0710-0710
●
●
22
UNIT; FUEL TANK
8-98099-320-0
01
1
0710-
●
●
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
0710-
●
●
40
BELT; SUPPORT,FUEL TANK
L=880
8-98042-715-1
02
1
0710-
●
●
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
0710-
●
●
43
BRACKET; FUEL TANK
(A)
8-98088-123-0
02
1
0710-0809
●
●
43
BRACKET; FUEL TANK
(A)
8-98088-123-0
01
1
0810-
●
●
43
BRACKET; FUEL TANK
(B)
8-98122-883-0
01
1
0810-
●
●
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
12
1
0710-
●
●
49
NUT; BRKT
M10 FLANGE
0-91180-210-0
12
1
0710-
●
●
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
0710-
●
●
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
0710-
●
●
369
JOINT; HOSE
8-98067-080-0
01
1
0710-
●
●
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
0710-
●
●
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
0810-
●
●
