◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#44266) — 112 parça

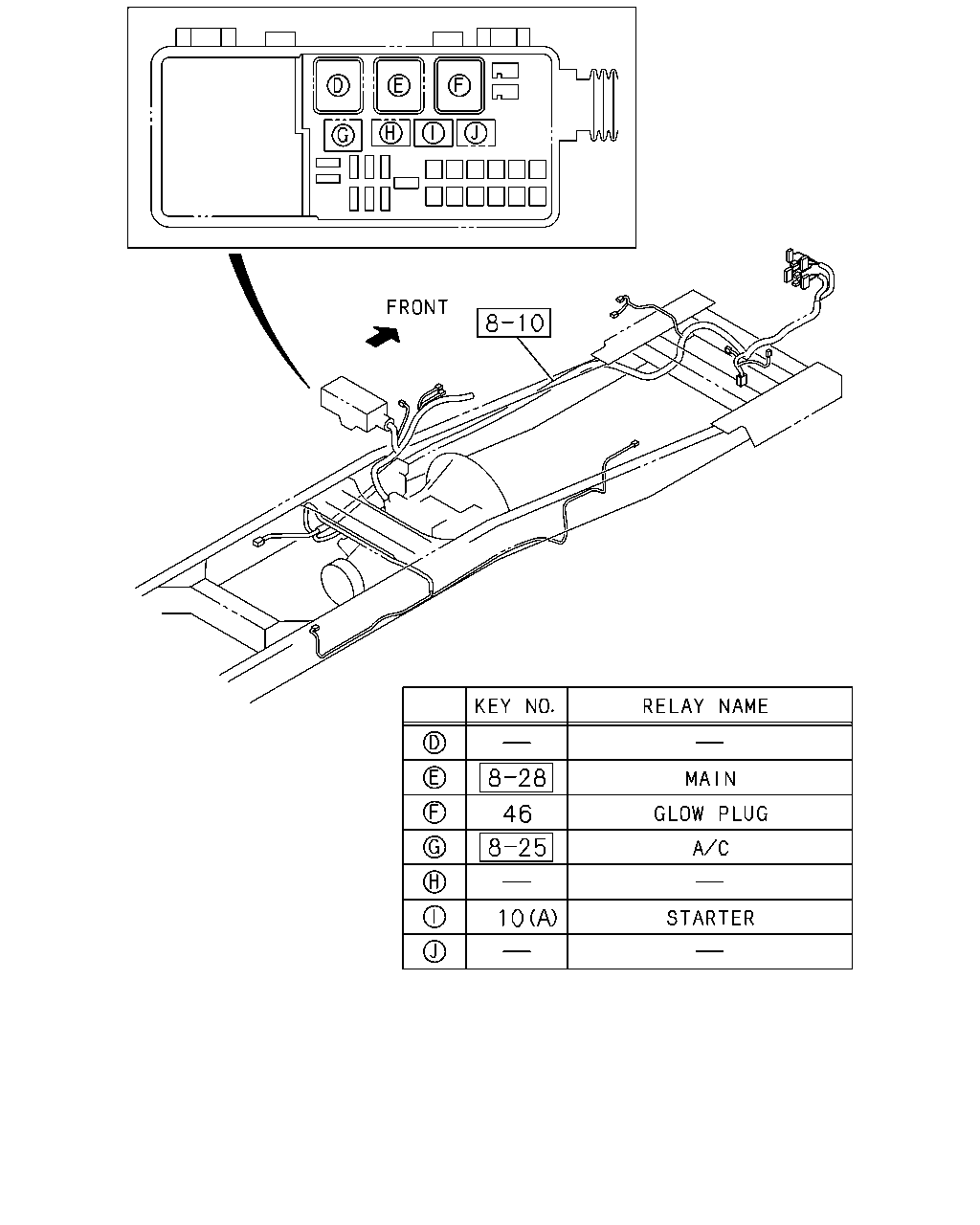

çizim 109338
46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0710- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0710- ● ●

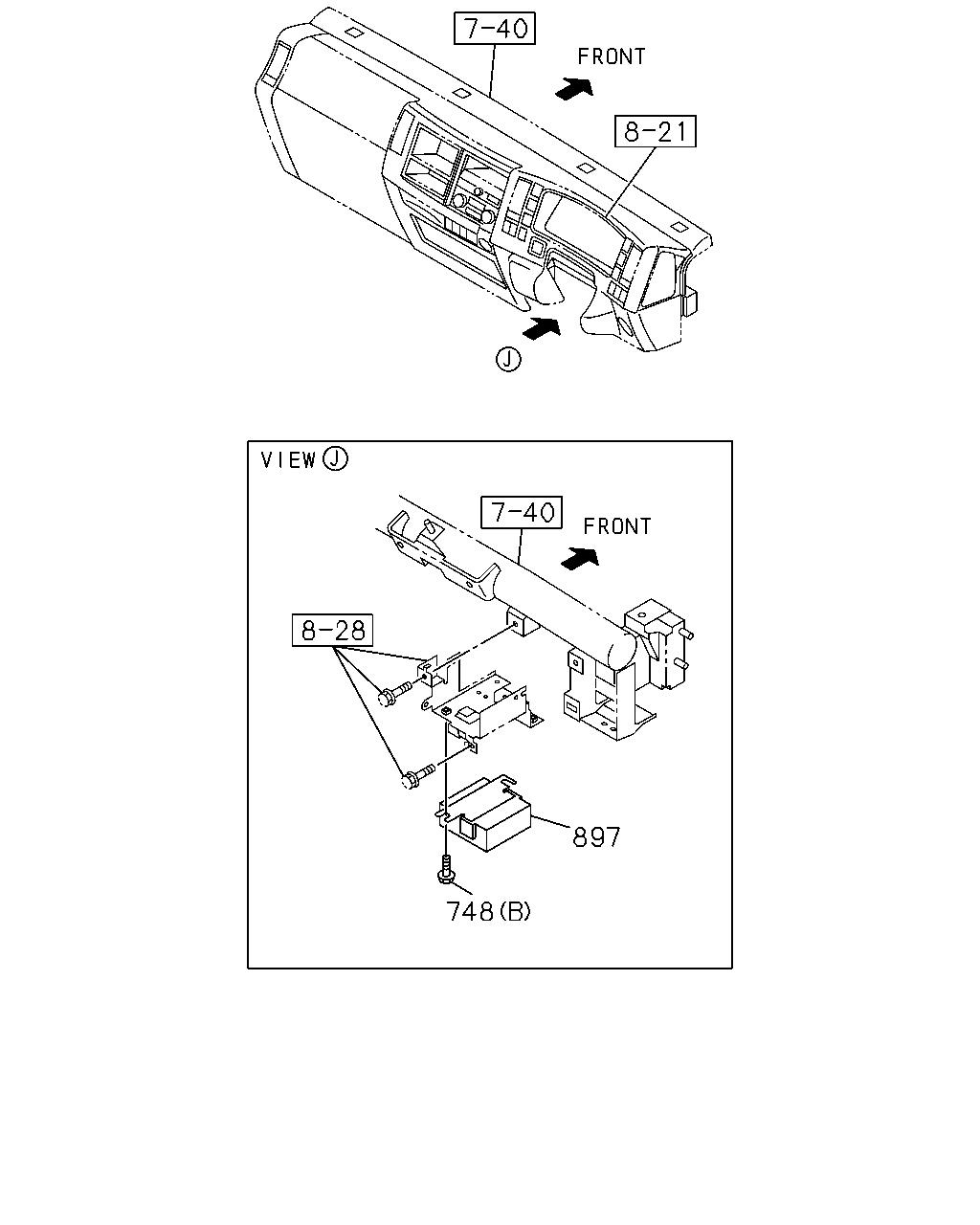

çizim 109345
897 748
BalonParca AdiParca NoAdetTipApplied Date A B
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0710- ● ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
897 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0710-1401 ● ●
897 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-0 01 1 1402- ● ●

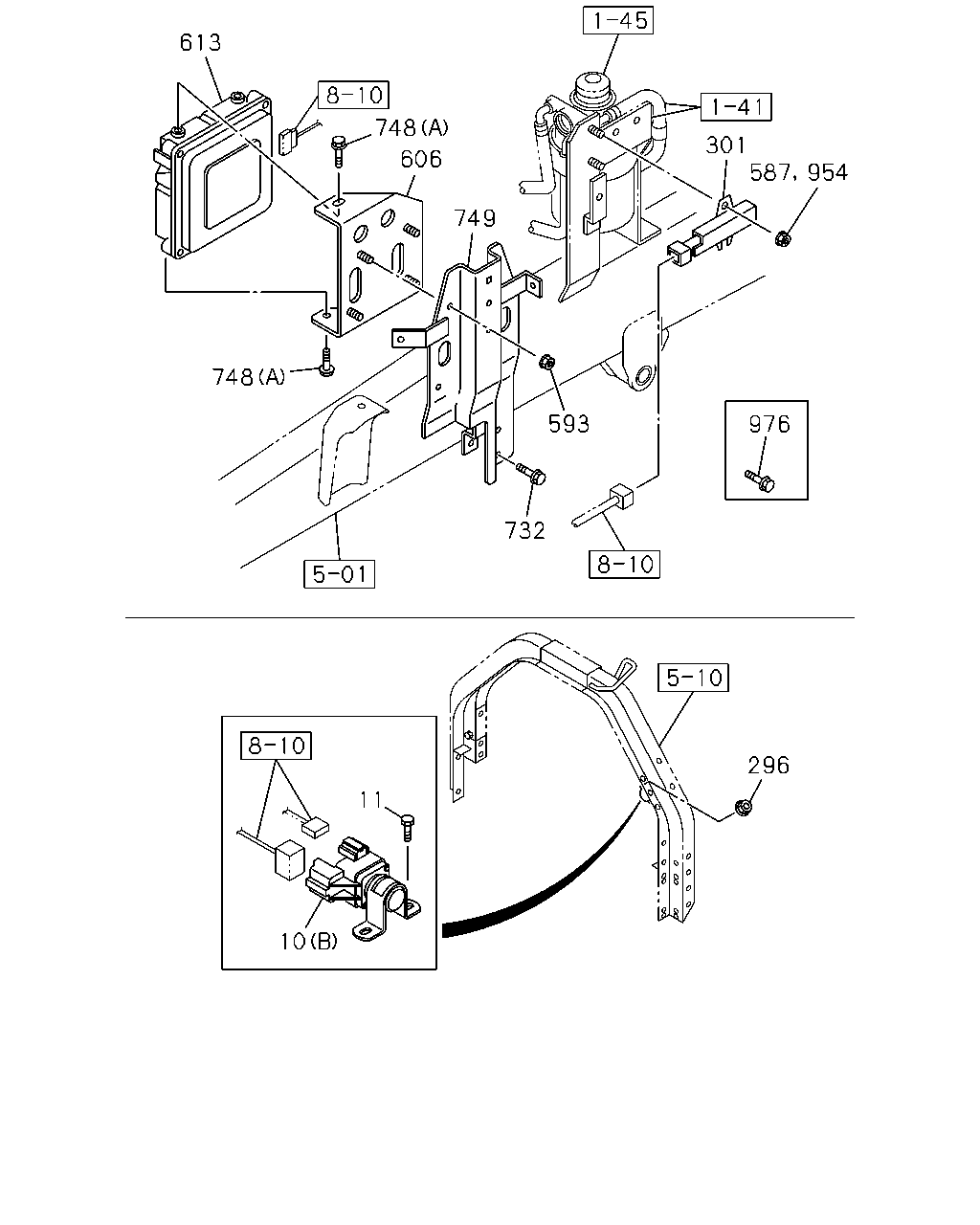

çizim 109388
613 748 301 587 606 954 749 748 593 976 732 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0710- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0710- ● ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0710- ● ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-897-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-897-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-576-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-576-2 01 1 0806-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-576-2 01 1 0907-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-631-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-892-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-892-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-571-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-571-1 01 1 0806-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-571-1 01 1 0907-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-626-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-895-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-895-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-574-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-574-1 01 1 0806-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-574-1 01 1 0907-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-629-0 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-227-0 01 1 0911-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-639-1 01 1 1005- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-875-2 01 1 0710-0804 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-875-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-875-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-551-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-551-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-551-2 01 1 0806-0906 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-551-2 01 1 0907-1004 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98163-606-1 01 1 1005- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-869-2 01 1 0710-0804 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-869-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98074-869-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-546-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-546-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-546-1 01 1 0806-0906 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98105-546-1 01 1 0907-1004 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 		8-98163-601-1 01 1 1005- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-877-2 01 1 0710-0804 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-877-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98074-877-2 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-553-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-553-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-553-1 01 1 0806-0906 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98105-553-1 01 1 0907-1004 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 		8-98163-608-1 01 1 1005- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-226-0 01 1 0911-0911 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98160-225-0 01 1 0911-1004 ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-637-1 01 1 1005- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2000 A/T ALLISON(Y4F) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98074-873-2 01 1 0710-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2000 A/T ALLISON(Y4F) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98105-550-1 01 1 0805-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) LCT2000 A/T ALLISON(Y4F) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98163-605-1 01 1 1005- ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0710- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0710- ● ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0710- ● ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0710-0906 ● ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0710-0906 ● ●

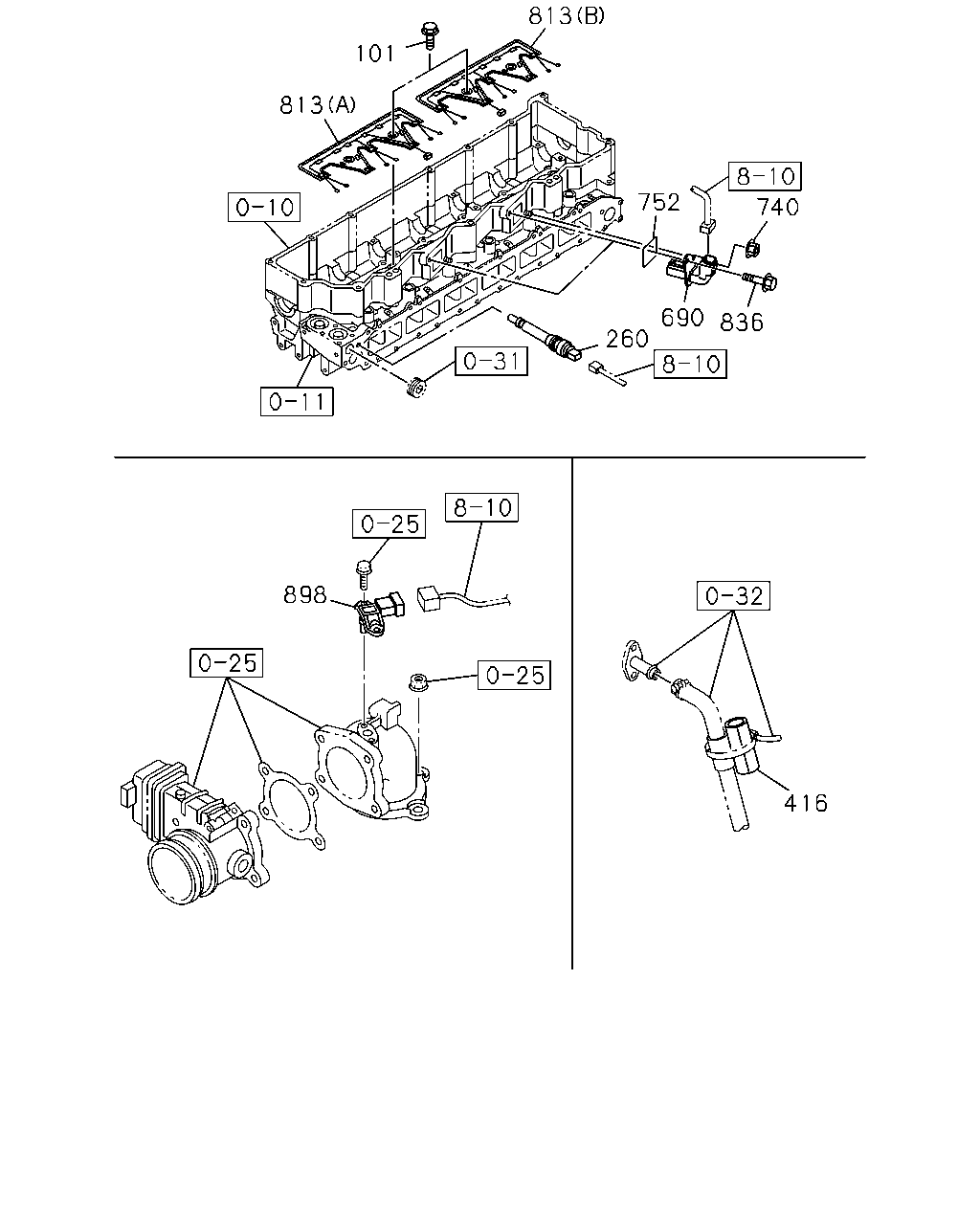

çizim 109395
813 101 813 752 740 690 836 260 898 416
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0710- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0710- ● ●
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710- ● ●
690 CONNECTOR 8-94390-858-1 02 1 0710- ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0710-1011 ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0710- ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0710-1008 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1112 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1201- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0710-1008 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1112 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1201- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0710- ● ●

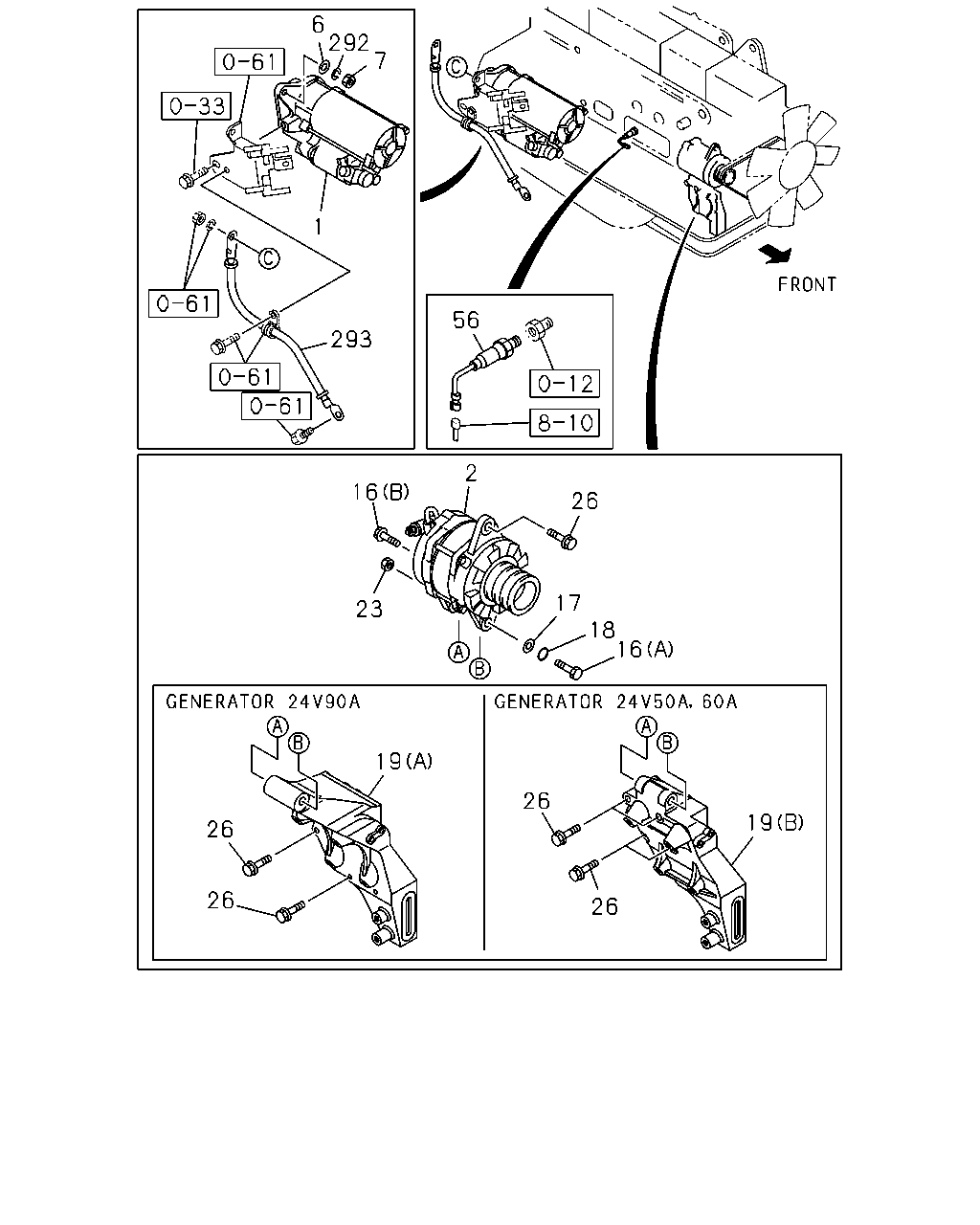

çizim 109421
6 292 7 1 56 293 2 16 26 17 23 18 16 19 26 19 26 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0710-0909 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-4 01 1 0710- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-4 01 1 0710- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-2 01 1 0710- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0710- ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0710- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0710- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0710- ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0710- ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0710- ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0710-0803 ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0804- ● ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0710- ● ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0710- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0710- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0710- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0710- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0710- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0710- ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0710- ● ●
293 CABLE; STARTER EARTH
L=530 		8-97621-354-0 01 1 0710-0710 ● ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 0711- ● ●
