Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶

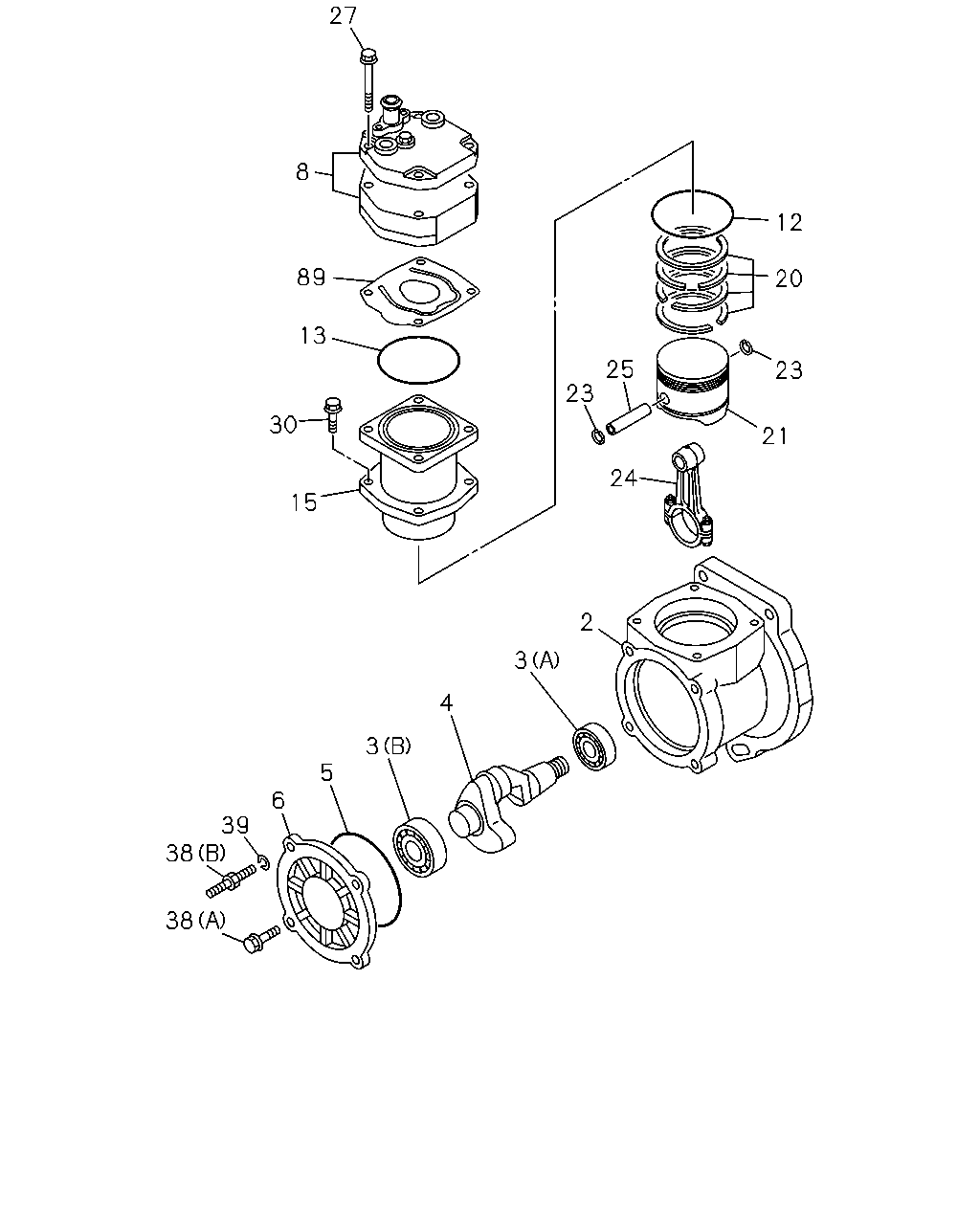

0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#44259) — 26 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCN ENG
27
8
12
89
20
13
25
23
23
30
21
24
15
2
3
4
3
5
6
39
38
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
1-19151-274-0
01
1
0710-
●
●
3
BEARING; AIR CMPR
(B)
9-00006-206-0
01
1
0710-
●
●
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
0710-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-096-0
01
1
0710-
●
●
5
GASKET; AIR CMPR
1-09623-361-0
01
1
0710-1107
●
●
5
GASKET; AIR CMPR
8-98192-460-0
01
1
1108-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-039-0
01
1
0710-
●
●
8
HEAD ASM; CYL,AIR CMPR
8-98038-657-2
01
1
0710-1012
●
●
8
HEAD ASM; CYL,AIR CMPR
8-98167-015-0
01
1
1101-
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0710-1107
●
●
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1108-
●
●
13
GASKET; AIR CMPR
1-09623-615-0
01
1
0710-1107
●
●
13
GASKET; AIR CMPR
8-98048-640-0
01
1
1108-
●
●
15
CYLINDER; AIR CMPR
8-98038-668-0
01
1
0710-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
0710-
●
●
21
PISTON; AIR CMPR
1-19161-027-0
01
1
0710-
●
●
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
0710-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
0710-
●
●
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
0710-
●
●
27
BOLT; HD
M10X80
8-98038-666-0
04
1
0710-1012
●
●
27
BOLT; HD
M10X75
8-98167-018-0
04
1
1101-
●
●
30
BOLT; CYL TO CRANKCASE
M10X25
8-98038-763-0
04
1
0710-
●
●
38
BOLT; COVER FIX
(B)
8-97617-894-0
02
1
0710-
●
●
38
BOLT; COVER FIX
(A) M8X20
8-97617-895-0
02
1
0710-
●
●
39
WASHER; LK,COVER FIX
8-97617-893-0
02
1
0710-
●
●
89
VALVE; SUCTION
1-19119-045-0
01
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
