Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#44255) — 21 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCN ENG
◀

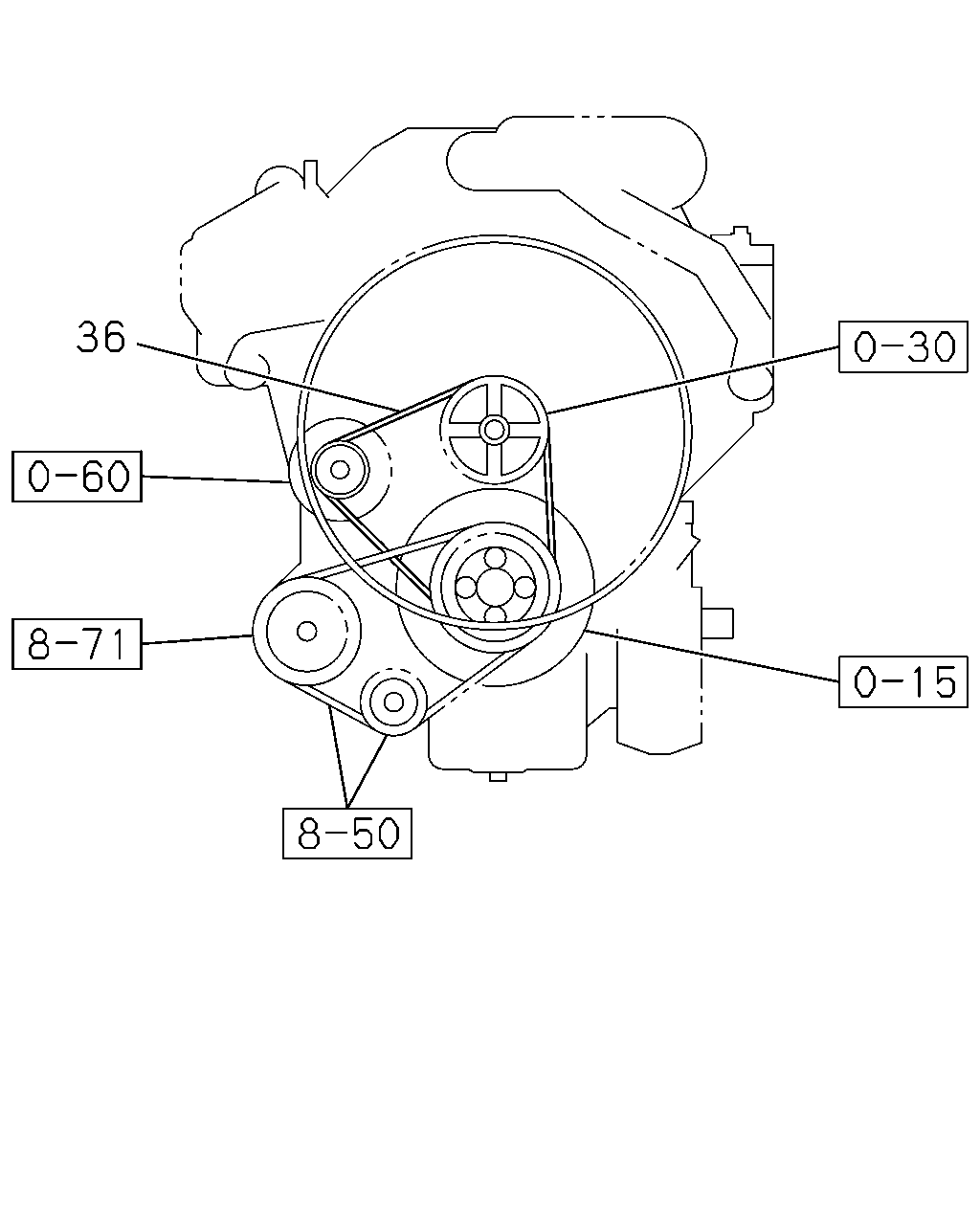

[033A] FAN BELT (2 parça)

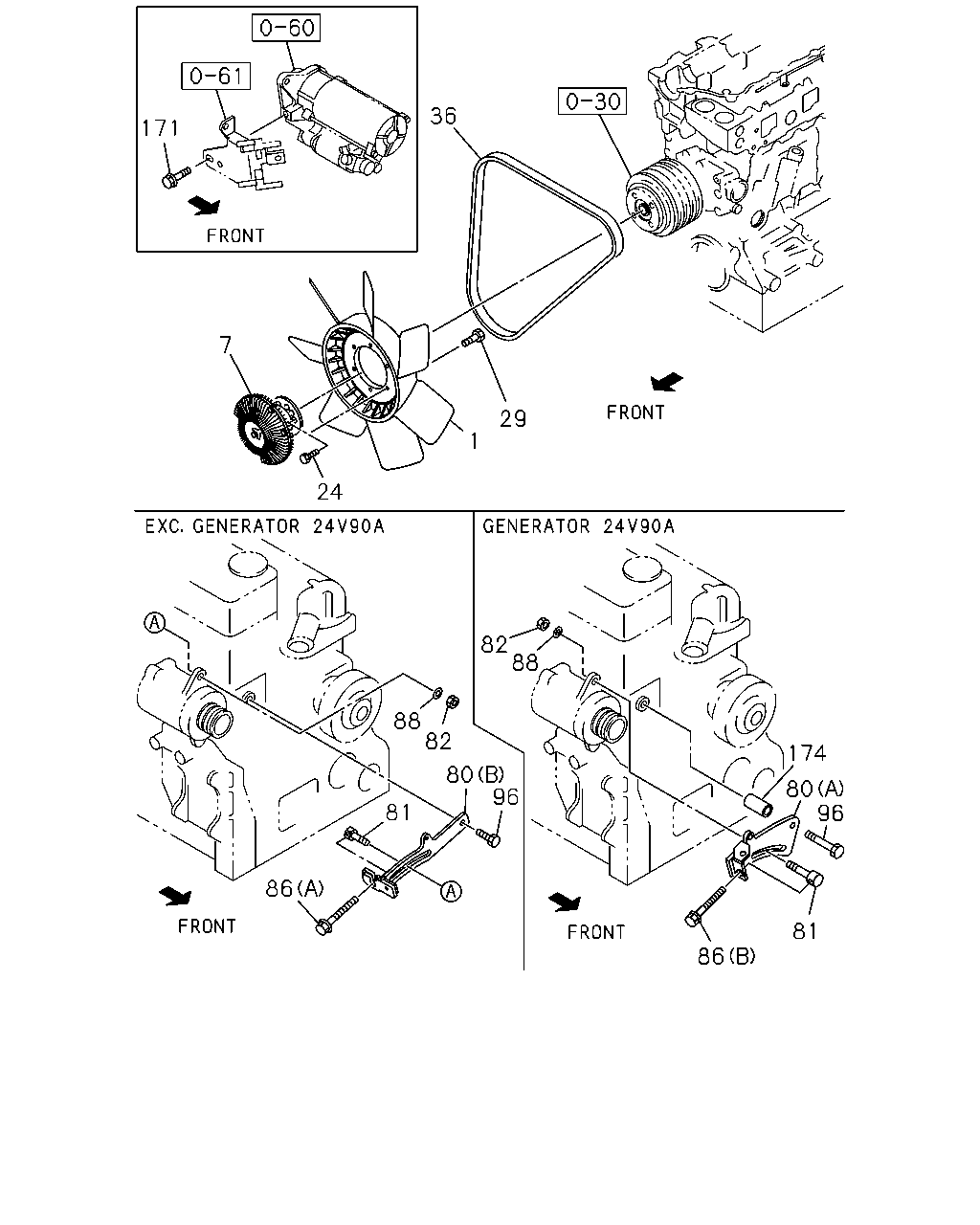

[033A] COOLING FAN AND PLATE (19 parça)
▶
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170
8-97611-859-1
01
1
0710-
●
●
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190
8-97611-860-0
01
1
0710-
●
●
36
171
7
29
1
24
82
88
88
82
174
80
96
80
96
81
86
81
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
OD=560
8-98073-467-1
01
1
0710-
●
●
7
COUPLING; FAN
8-98003-195-0
01
1
0710-0805
●
●
7
COUPLING; FAN
8-98075-290-1
01
1
0806-
●
●
24
BOLT; FAN
M10X25 FLANGE
0-28151-025-0
04
1
0710-
●
●
29
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
0-28050-816-0
06
1
0710-
●
●
36
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170
8-97611-859-1
01
1
0710-
●
●
36
BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190
8-97611-860-0
01
1
0710-
●
●
80
PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)
8-97601-020-1
01
1
0710-
●
●
80
PLATE; ADJ
GENERATOR 24V90A(K44) (A)
8-97617-940-0
01
1
0710-
●
●
81
PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45
1-13674-160-0
01
1
0710-
●
●
81
PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59
1-13674-161-0
01
1
0710-
●
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
01
1
0710-
●
●
86
BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X155 FLANGE
1-09009-114-1
01
1
0710-
●
●
86
BOLT; ADJ
GENERATOR 24V90A(K44) (B) M10X135
1-09009-113-1
01
1
0710-
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
0710-
●
●
96
BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X45 FLANGE
0-28151-045-0
01
1
0710-
●
●
96
BOLT; ADJ PLATE
GENERATOR 24V90A(K44) M10X75 FLANGE
8-94399-669-1
01
1
0710-
●
●
171
BOLT; HEAT PROTECTOR
M10X20 FLANGE
0-28051-020-0
01
1
0710-
●
●
174
SPACER; ADJ PLATE
GENERATOR 24V90A(K44)
8-98056-785-0
01
1
0710-
●
●
