0-31 — THERMOSTAT AND HOUSING (#44253) — 17 parça

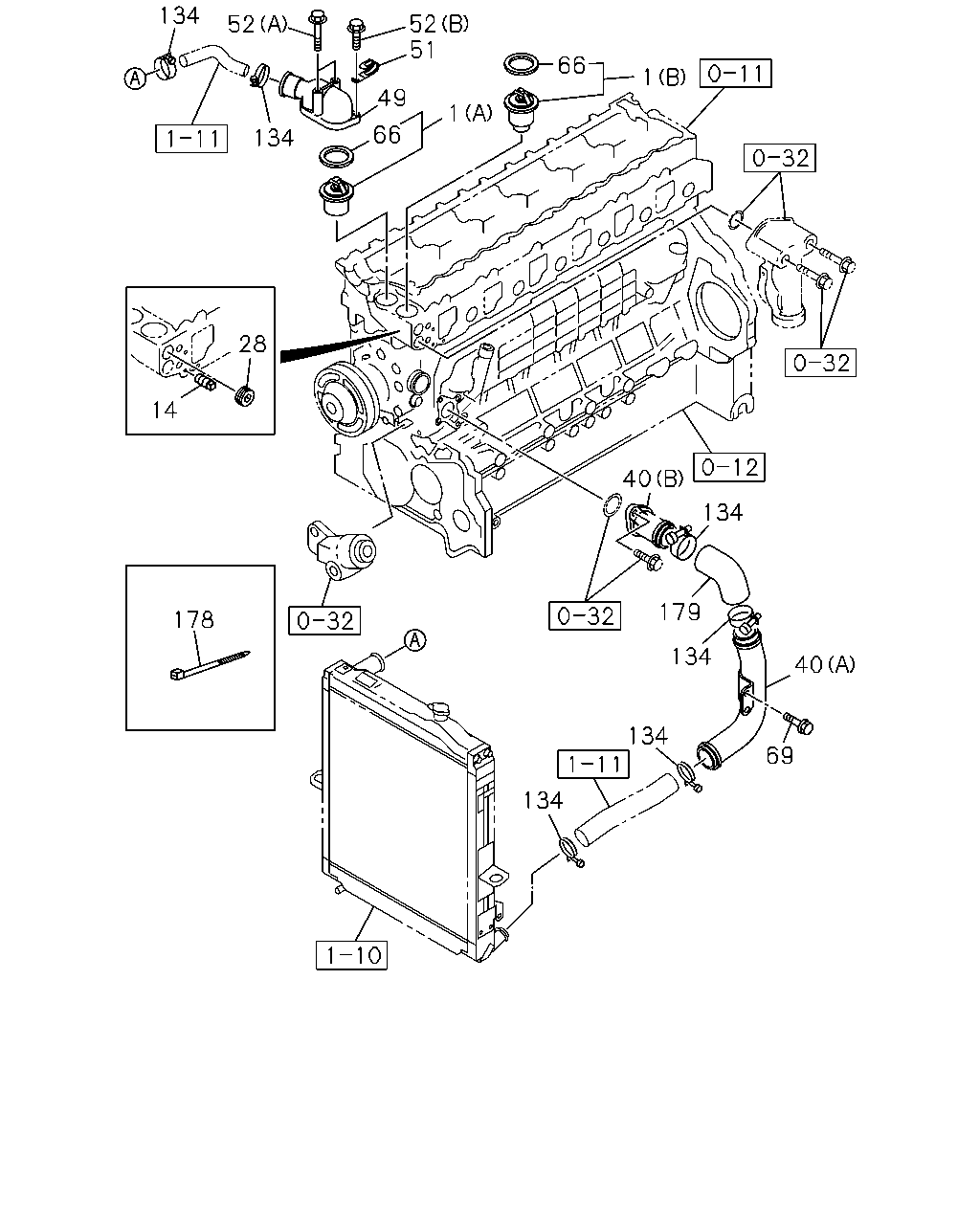

çizim 109356
134 52 51 52 66 1 49 1 66 134 28 14 40 134 179 178 134 40 134 69 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-2 01 1 0710- ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0710- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 0710- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0710- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 0710- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 0710- ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0710- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0710- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0710- ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 0710- ● ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		5-09707-030-1 01 1 0710-1205 ● ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=250 		8-98216-430-0 01 1 1206- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 0710- ● ●
