◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#4425) — 122 parça

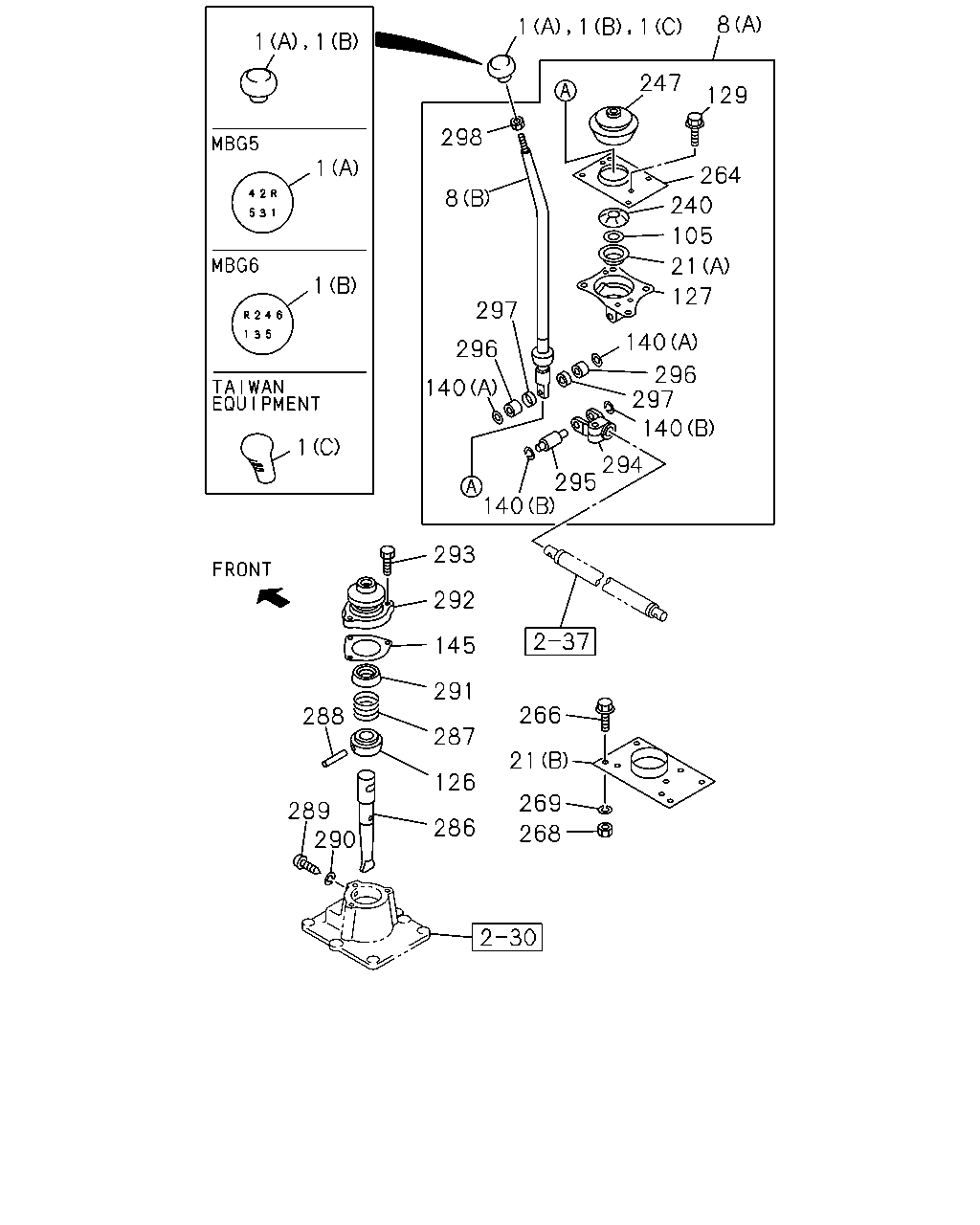

çizim 4422
8 1 1 1 1 1 247 129 298 1 264 8 240 105 21 1 127 297 140 296 296 297 140 140 294 295 140 1 293 292 145 291 266 288 287 21 126 269 289 286 268 290
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 KNOB; CHANGE LEVER
(A) 		1-33611-014-0 01 1 9101-9305 ●
1 KNOB; CHANGE LEVER
RIGHT HAND DRIVE(LTR5FB) (A) 		1-33611-014-0 01 1 9306-9504 ●
1 KNOB; CHANGE LEVER
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> (A) 		1-33611-014-0 01 1 9306-9504 ●
1 KNOB; CHANGE LEVER
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> (C) 		1-33611-060-0 01 1 9306-9504 ● ● ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-025-0 01 1 9101-9305 ● ● ●
1 KNOB; CHANGE LEVER
RIGHT HAND DRIVE(LTR5FB) (B) 		1-33611-025-0 01 1 9306-9504 ● ●
1 KNOB; CHANGE LEVER
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> (B) 		1-33611-025-0 01 1 9306-9504 ● ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-025-0 01 1 9306-9504 ●
8 LEVER; CHANGE
(B) 		1-33613-235-1 01 1 9101-9201 ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-235-1 01 1 9202-9303 ● ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-235-2 01 1 9304-9504 ● ● ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(LTR5FB) (A) 		1-33610-968-0 01 1 9101-9504 ● ● ●
8 LEVER; CHANGE
(A) 		1-33610-968-0 01 1 9101-9504 ●
8 LEVER; CHANGE
LEFT HAND DRIVE(LTR6FB) (A) 		1-33610-708-0 01 1 9101-9504 ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 9101-9201 ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 9202-9303 ● ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 9304-9504 ● ● ● ●
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 9101-9504 ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9101-9201 ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9202-9303 ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9304-9504 ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9101-9201 ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9202-9303 ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9304-9504 ● ● ● ●
126 BOSS; CHANGE LEVER 9-33615-041-0 01 1 9101-9202 ● ● ● ●
126 BOSS; CHANGE LEVER 9-33615-041-0 01 1 9203-9304 ● ● ● ●
126 BOSS; CHANGE LEVER 9-33615-041-0 01 1 9305-9504 ● ● ● ●
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9101-9201 ● ● ●
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9202-9303 ● ● ● ●
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9304-9504 ● ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9101-9201 ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9202-9204 ● ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9303 ● ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9304-9504 ● ● ● ●
140 RING; SNAP
(A) T=0.9 OD=19.5 		1-09587-068-0 AR 1 9101-9201 ● ● ●
140 RING; SNAP
(A) T=0.9 OD=19.5 		1-09587-068-0 AR 1 9202-9303 ● ● ● ●
140 RING; SNAP
(A) T=0.9 OD=19.5 		1-09587-068-0 AR 1 9304-9504 ● ● ● ●
140 RING; SNAP
(A) T=1.00 OD=19.5 		1-09587-069-0 AR 1 9101-9201 ● ● ●
140 RING; SNAP
(A) T=1.00 OD=19.5 		1-09587-069-0 AR 1 9202-9303 ● ● ● ●
140 RING; SNAP
(A) T=1.00 OD=19.5 		1-09587-069-0 AR 1 9304-9504 ● ● ● ●
140 RING; SNAP
(A) T=1.025 OD=19.5 		1-09587-070-0 AR 1 9101-9201 ● ● ●
140 RING; SNAP
(A) T=1.025 OD=19.5 		1-09587-070-0 AR 1 9202-9303 ● ● ● ●
140 RING; SNAP
(A) T=1.025 OD=19.5 		1-09587-070-0 AR 1 9304-9504 ● ● ● ●
140 RING; SNAP
(A) T=1.05 OD=19.5 		1-09587-071-0 AR 1 9101-9201 ● ● ●
140 RING; SNAP
(A) T=1.05 OD=19.5 		1-09587-071-0 AR 1 9202-9303 ● ● ● ●
140 RING; SNAP
(A) T=1.05 OD=19.5 		1-09587-071-0 AR 1 9304-9504 ● ● ● ●
140 RING; SNAP
(B) ID=14.7 		9-09180-416-0 02 1 9101-9201 ● ● ●
140 RING; SNAP
(B) ID=14.7 		9-09180-416-0 02 1 9202-9303 ● ● ● ●
140 RING; SNAP
(B) ID=14.7 		9-09180-416-0 02 1 9304-9504 ● ● ● ●
145 GASKET; CHANGE LEVER TO TRANS
ALSO INCLUDED IN GASKET SET(M/T). 		9-33619-089-0 01 1 9101-9202 ● ● ● ●
145 GASKET; CHANGE LEVER TO TRANS
ALSO INCLUDED IN GASKET SET(M/T). 		9-33619-089-0 01 1 9203-9304 ● ● ● ●
145 GASKET; CHANGE LEVER TO TRANS
ALSO INCLUDED IN GASKET SET(M/T). 		9-33619-089-0 01 1 9305-9504 ● ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9101-9201 ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9202-9303 ● ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9304-9504 ● ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9101-9201 ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9202-9303 ● ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9304-9504 ● ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 9101-9201 ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 9202-9303 ● ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 9304-9504 ● ● ● ●
266 BOLT; SEAT SET
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9101-9504 ● ● ● ●
268 NUT; SEAT SET
M8 		9-09110-408-0 04 1 9101-9504 ● ● ● ●
269 WASHER; PL,SEAT SET
ID=8.4 		9-09160-508-0 04 1 9101-9504 ● ● ● ●
286 LEVER; CHANGE,TRANS 1-33613-201-0 01 1 9101-9504 ● ● ● ●
287 SPRING; COIL,CHANGE LEVER 9-09940-012-0 01 1 9101-9202 ● ● ● ●
287 SPRING; COIL,CHANGE LEVER 9-09940-012-0 01 1 9203-9304 ● ● ● ●
287 SPRING; COIL,CHANGE LEVER 9-09940-012-0 01 1 9305-9504 ● ● ● ●
288 PIN; KNOCK,CHANGE LEVER 9-09878-110-0 01 1 9101-9202 ● ● ● ●
288 PIN; KNOCK,CHANGE LEVER 9-09878-110-0 01 1 9203-9304 ● ● ● ●
288 PIN; KNOCK,CHANGE LEVER 9-09878-110-0 01 1 9305-9504 ● ● ● ●
289 SCREW; BOSS 9-06130-820-0 01 1 9101-9202 ● ● ● ●
289 SCREW; BOSS 9-06130-820-0 01 1 9203-9304 ● ● ● ●
289 SCREW; BOSS 9-06130-820-0 01 1 9305-9504 ● ● ● ●
290 WASHER; LK,BOSS
ID=8.2 		9-09150-508-0 01 1 9101-9202 ● ● ● ●
290 WASHER; LK,BOSS
ID=8.2 		9-09150-508-0 01 1 9203-9304 ● ● ● ●
290 WASHER; LK,BOSS
ID=8.2 		9-09150-508-0 01 1 9305-9504 ● ● ● ●
291 CAGE; CHANGE LEVER 9-33616-005-0 01 1 9101-9202 ● ● ● ●
291 CAGE; CHANGE LEVER 9-33616-005-0 01 1 9203-9304 ● ● ● ●
291 CAGE; CHANGE LEVER 9-33616-005-0 01 1 9305-9504 ● ● ● ●
292 COVER; DUST,CAGE,CHANGE LEVER 1-33614-091-0 01 1 9101-9202 ● ● ● ●
292 COVER; DUST,CAGE,CHANGE LEVER 1-33614-091-0 01 1 9203-9304 ● ● ● ●
292 COVER; DUST,CAGE,CHANGE LEVER 1-33614-091-0 01 1 9305-9504 ● ● ● ●
293 BOLT; COVER,QUAD BOX
M8X20 		9-02040-820-0 03 1 9101-9204 ● ● ● ●
293 BOLT; COVER,QUAD BOX
M8X20 		0-20800-820-0 03 1 9205-9304 ● ● ● ●
293 BOLT; COVER,QUAD BOX
M8X20 		0-20800-820-0 03 1 9305-9504 ● ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9101-9201 ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9202-9303 ● ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9304-9504 ● ● ● ●
295 PIN; KNOCK PIN 1-33659-091-0 01 1 9101-9201 ● ● ●
295 PIN; KNOCK PIN 1-33659-091-0 01 1 9202-9303 ● ● ● ●
295 PIN; KNOCK PIN 1-33659-091-0 01 1 9304-9504 ● ● ● ●
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9101-9201 ● ● ●
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9202-9303 ● ● ● ●
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9304-9504 ● ● ● ●
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9101-9201 ● ● ●
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9202-9303 ● ● ● ●
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9304-9504 ● ● ● ●
298 NUT; LK,KNOB 9-33619-043-0 01 1 9101-9201 ● ● ●
298 NUT; LK,KNOB 9-33619-043-0 01 1 9202-9303 ● ● ● ●
298 NUT; LK,KNOB 9-33619-043-0 01 1 9304-9504 ● ● ● ●

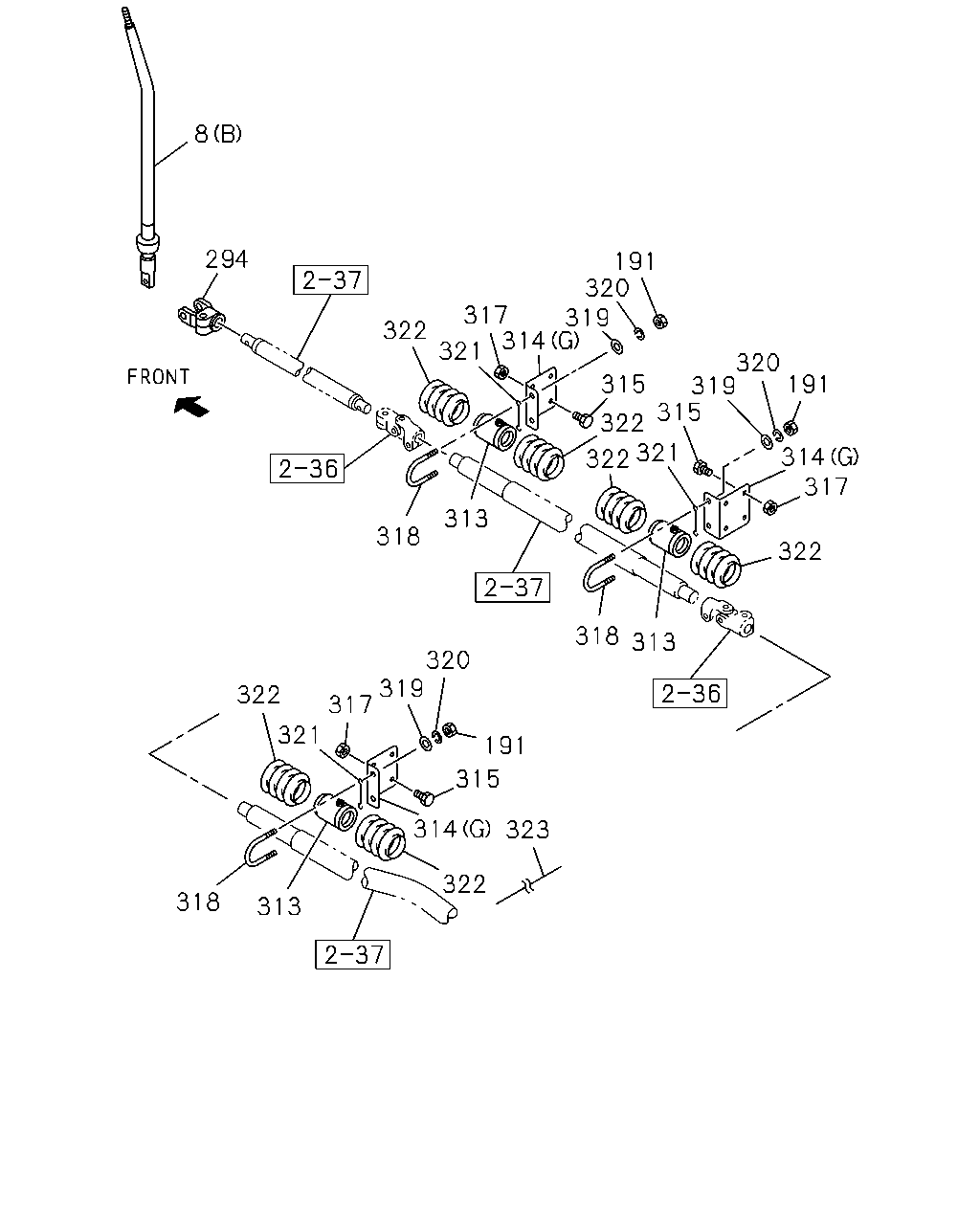

çizim 4448
8 294 191 320 317 319 314 322 321 320 319 191 315 315 322 321 322 314 317 313 318 322 318 313 320 319 317 322 321 191 315 314 323 322 318 313
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 LEVER; CHANGE
(B) 		1-33613-235-1 01 1 9101-9201 ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-235-1 01 1 9202-9303 ● ● ● ●
8 LEVER; CHANGE
(B) 		1-33613-235-2 01 1 9304-9504 ● ● ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(LTR5FB) (A) 		1-33610-968-0 01 1 9101-9504 ● ● ●
8 LEVER; CHANGE
(A) 		1-33610-968-0 01 1 9101-9504 ●
8 LEVER; CHANGE
LEFT HAND DRIVE(LTR6FB) (A) 		1-33610-708-0 01 1 9101-9504 ● ● ●
191 NUT; U BOLT
M8 		9-09110-408-0 06 1 9101-9504 ● ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9101-9201 ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9202-9303 ● ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9304-9504 ● ● ● ●
313 BUSHING; BALL,GUIDE ROD
W/GREASE NIPPLE 		1-23333-003-0 03 1 9101-9504 ● ● ● ●
314 BRACKET; BALL BUSHING
(G) 		1-53419-051-0 03 1 9101-9504 ● ● ● ●
315 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 12 1 9101-9504 ● ● ● ●
317 NUT; BRKT
M10 		9-09110-510-0 12 1 9101-9307 ● ● ● ●
317 NUT; BRKT
M10 		9-09110-510-0 12 1 9308-9504 ● ● ● ●
318 U-BOLT; BALL BUSHING
L=80 		1-33659-022-0 03 1 9101-9504 ● ● ● ●
319 WASHER; PL,BALL BUSHING
ID=8.4 OD=18 		9-09160-608-0 06 1 9101-9504 ● ● ● ●
320 WASHER; LK,BALL BUSHING
ID=8.2 		9-09150-508-0 06 1 9101-9504 ● ● ● ●
321 GUIDE; U BOLT 1-33659-021-0 03 1 9101-9504 ● ● ● ●
322 SEAL; DUST,BALL BUSHING 1-33659-047-0 06 1 9101-9504 ● ● ● ●
323 WIRE; SEAL
L=200 		9-08351-020-0 09 1 9101-9504 ● ● ● ●
