0-13 — OIL PAN AND LEVEL GAUGE (#44244) — 30 parça
çizim 109334
10 8 49 2 193 192 193 9 9 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98092-125-1 01 1 0710- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 0710- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 0710-0710 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97618-220-1 01 1 0710- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-761-0 01 1 0710- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0710- ● ●
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 0710- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 0710-0710 ● ●
192 HOSE; GUIDE TUBE
L=310 		8-98092-068-0 01 1 0710- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0710- ● ●

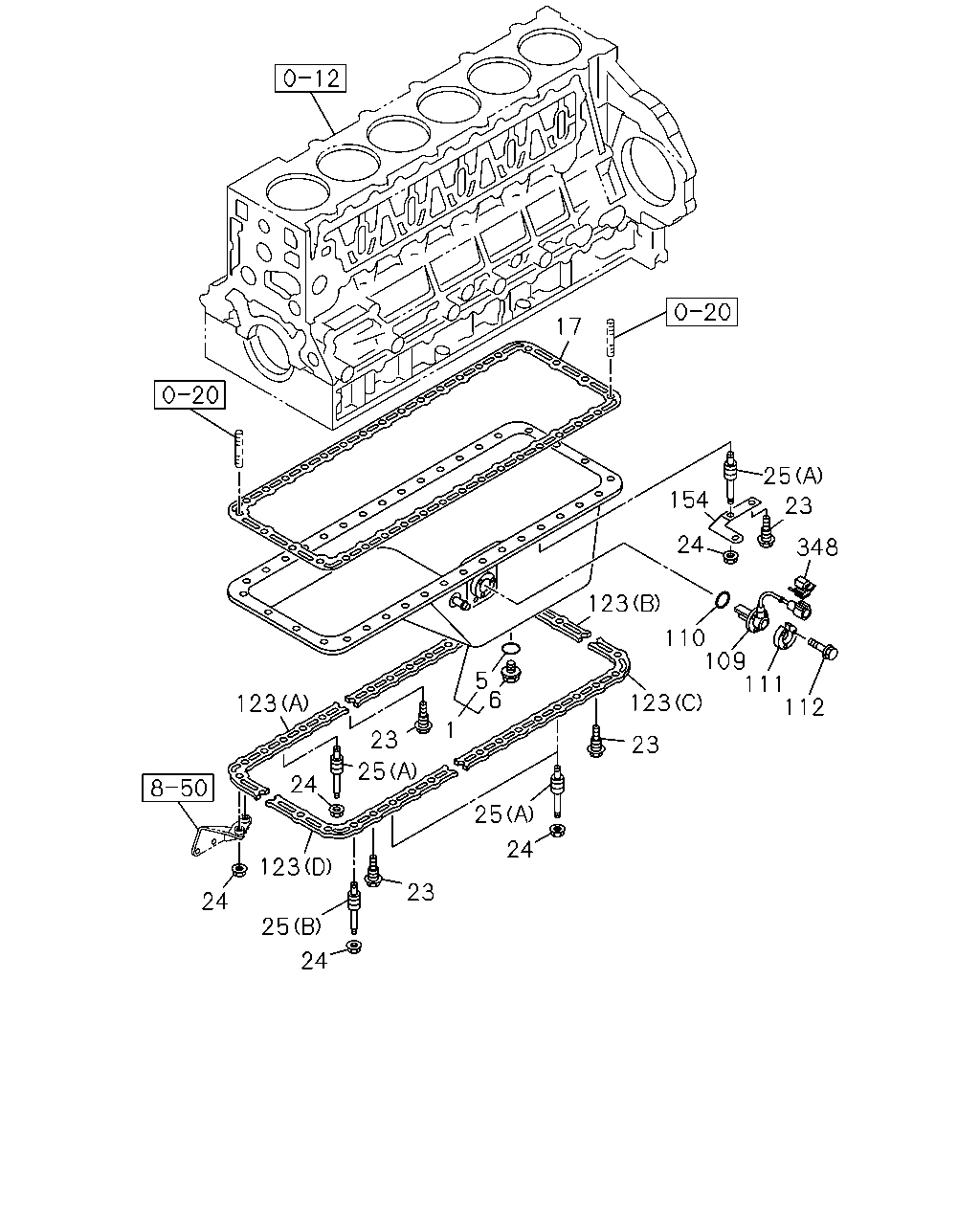

çizim 109354
17 25 154 23 24 348 123 110 109 111 112 5 6 123 123 1 23 23 25 24 25 24 123 23 24 25 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98061-543-0 01 1 0710- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0710- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0710- ● ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94390-617-1 01 1 0710- ● ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97087-634-0 20 1 0710- ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 14 1 0710- ● ●
25 STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 05 1 0710- ● ●
25 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 02 1 0710- ● ●
109 SWITCH; OIL LEVEL 8-97601-121-0 01 1 0710- ● ●
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 0710- ● ●
111 SPACER; SW,OIL LEVEL 5-11369-072-0 01 1 0710- ● ●
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0710- ● ●
123 RUBBER; SEAL OIL
(A) 		8-94391-755-0 01 1 0710- ● ●
123 RUBBER; SEAL OIL
(B) 		8-94391-757-0 01 1 0710- ● ●
123 RUBBER; SEAL OIL
(C) 		8-94391-758-0 01 1 0710- ● ●
123 RUBBER; SEAL OIL
(D) 		8-94392-548-0 01 1 0710- ● ●
154 BRACKET; CLIP,ENG HARNESS 8-98064-103-0 01 1 0710- ● ●
348 CONNECTOR
OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
