10676 - LT 111,112,132,133
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30C - GEAR SHIFTER AND QUADRANT BOX
▶

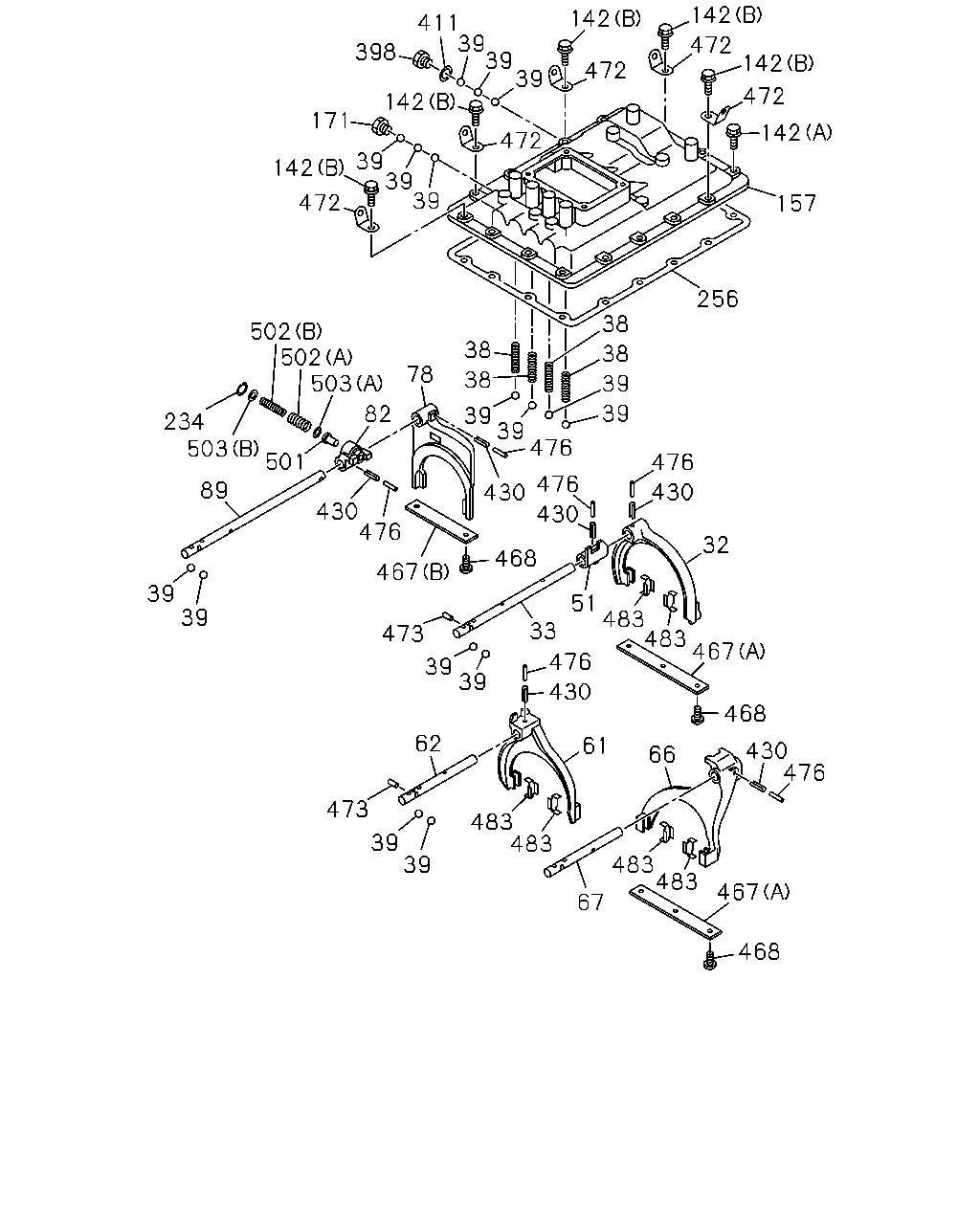

2-30C — GEAR SHIFTER AND QUADRANT BOX
(#4424) — 33 parça
142
142
411
39
39
39
472
472
398
142
472
142
472
171
142
39
39
39
142
472
157
256
38
502
502
503
38
38
78
38
39
39
82
39
39
476
234
503
501
476
476
89
430
430
430
476
430
32
468
467
39
39
51
483
483
467
33
473
476
39
39
430
468
62
61
430
476
66
473
483
483
39
39
483
483
467
67
468
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
ARM; SHIFT,1ST & 2ND
1-33511-596-0
01
1
9810-
33
ROD; SHIFT,LOW & 2ND
1-33531-463-0
01
1
9810-
38
SPRING; DETENT
1-33549-340-0
04
1
9810-
39
BALL; DETENT
1-33549-341-0
16
1
9810-
51
BLOCK; SHIFT,1ST & 2ND
1-33511-595-0
01
1
9810-
61
ARM; SHIFT,3RD & 4TH
1-33511-597-0
01
1
9810-
62
ROD; SHIFT,3RD & 4TH
1-33531-464-0
01
1
9810-
66
ARM; SHIFT,5TH & 6TH
1-33511-598-0
01
1
9810-
67
ROD; SHIFT,5TH & 6TH
1-33531-465-0
01
1
9810-
78
ARM; SHIFT,REV
1-33511-594-0
01
1
9810-
82
BLOCK; SHIFT,REV
1-33511-593-0
01
1
9810-
89
ROD; SHIFT,REV
1-33531-462-0
01
1
9810-
142
BOLT; QUAD BOX
(A)
1-33549-339-0
12
1
9810-
142
BOLT; QUAD BOX
(B)
1-33549-342-0
05
1
9810-
157
BOX; QUAD,TRANS
1-33541-516-0
01
1
9810-
171
SWITCH; NEUTRAL
1-87061-488-0
01
1
9810-
234
RING; SNAP
1-33539-067-0
01
1
9810-
256
GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33542-060-0
01
1
9810-
398
SWITCH; REV LAMP
1-82440-117-0
01
1
9810-
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T).
1-87060-781-0
01
1
9810-
430
PIN; SPR,SHIFT ROD
1-33534-009-0
06
1
9810-
467
RETAINER; SHIFT ROD
(A)
1-33539-071-0
02
1
9810-
467
RETAINER; SHIFT ROD
(B)
1-33539-072-0
01
1
9810-
468
SCREW; CAP,RET
1-87060-810-0
08
1
9810-
472
EYE; LIFTING
1-33549-343-0
05
1
9810-
473
PIN; ROLL
1-33534-007-0
02
1
9810-
476
PIN; SHIFT ROD
1-33534-008-0
06
1
9810-
483
BUSHING; SHIFT ARM
1-33519-134-0
06
1
9810-
501
PLUNGER; SHIFT BLOCK
1-33539-068-0
01
1
9810-
502
SPRING; PLUNGER
(A)
1-87060-799-0
01
1
9810-
502
SPRING; PLUNGER
(B)
1-87060-800-0
01
1
9810-
503
WASHER; PLUNGER
(A)
1-33539-069-0
01
1
9810-
503
WASHER; PLUNGER
(B)
1-33539-070-0
01
1
9810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
