Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#44238) — 247 parça

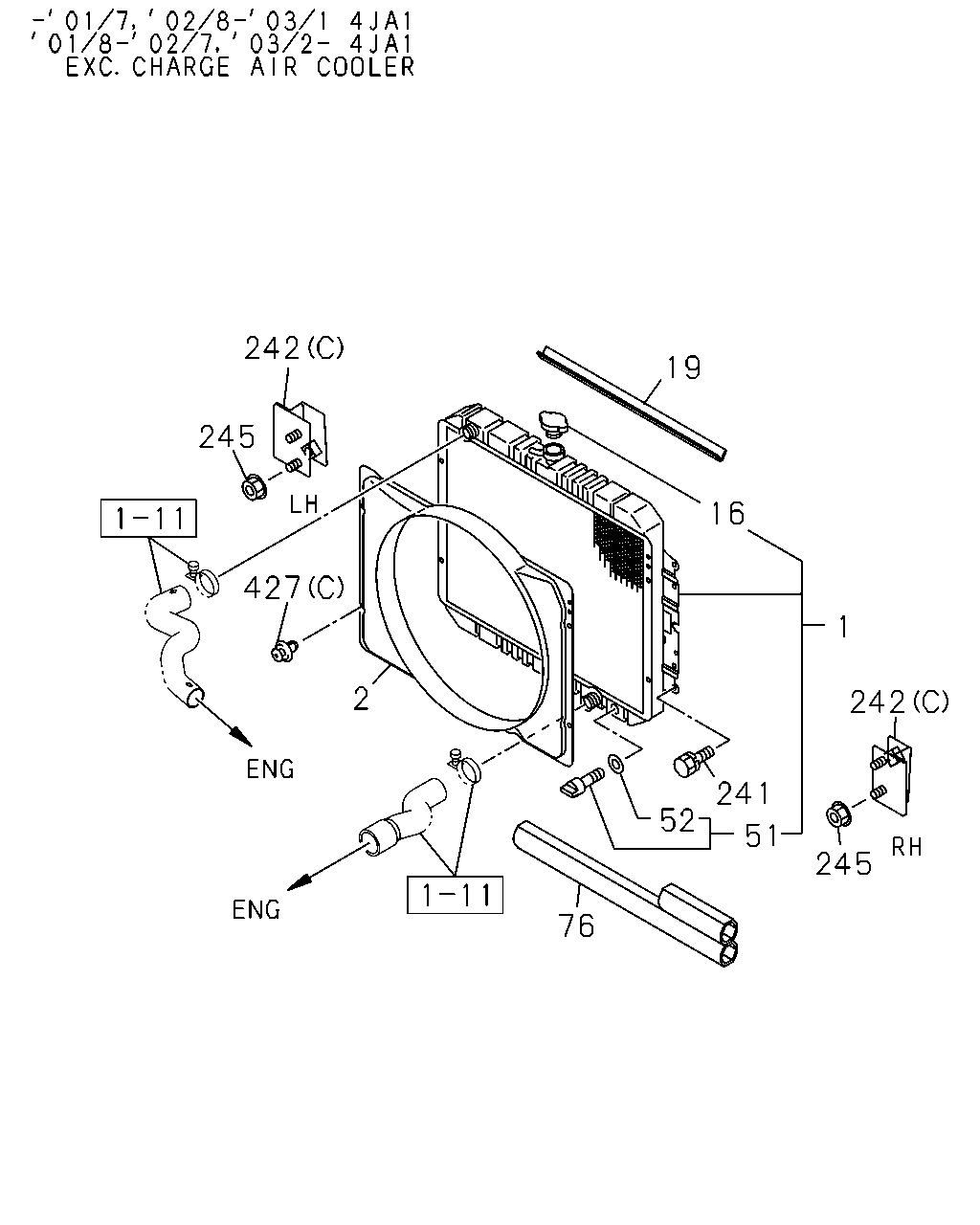

242 19 245 16 427 1 2 242 241 52 51 245 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-94383-646-1	01	1	0208-0301	●
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-97304-702-0	01	1	0302-	●
1	01.219 RADIATOR ASM	8-97116-005-0	01	1	9804-0107	●
1	01.219 RADIATOR ASM EXC. CHARGE AIR COOLER<6PL>	8-97116-005-0	01	1	0108-	●
1	01.219 RADIATOR ASM	8-97084-924-0	01	1	9804-9805		●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	9806-9906		●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	9907-0107		●
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-97084-924-0	01	1	0108-0207	●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	0108-0207		●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	0208-		●
1	01.219 RADIATOR ASM A/T AISIN(RMD)	8-97087-010-3	01	1	9806-		●
2	01.277 GUIDE; FAN CHARGE AIR COOLER<6PL>	8-97087-725-2	01	1	0302-	●
2	01.277 GUIDE; FAN	8-97164-550-1	01	1	9804-0107	●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97164-550-1	01	1	0108-0207	●
2	01.277 GUIDE; FAN	8-97164-550-1	01	1	0208-0301	●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97164-550-1	01	1	0302-	●
2	01.277 GUIDE; FAN	8-97087-725-1	01	1	9804-9807		●
2	01.277 GUIDE; FAN M/T MUA 5 SPEED(RMN)	8-97087-725-1	01	1	9808-9906		●
2	01.277 GUIDE; FAN A/T AISIN(RMD)	8-97214-344-0	01	1	9808-9906		●
2	01.277 GUIDE; FAN	8-97214-344-0	01	1	9907-0107		●
2	01.277 GUIDE; FAN CHARGE AIR COOLER<6PL>	8-97214-344-0	01	1	0108-0207	●
2	01.277 GUIDE; FAN	8-97214-344-0	01	1	0108-0207		●
2	01.277 GUIDE; FAN	8-97214-344-0	01	1	0208-		●
16	01.203 CAP; RAD CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0302-	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9804-9805	●	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9806-0301	●	●
16	01.203 CAP; RAD EXC. CHARGE AIR COOLER<6PL>	8-97104-194-0	01	1	0302-	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	0302-		●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=360	8-97164-208-1	01	1	0302-	●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=200	8-97304-967-0	01	1	0302-	●
19	01.270 SEAL; RAD UPR L=540	8-94468-115-1	01	1	9804-0107	●
19	01.270 SEAL; RAD UPR EXC. CHARGE AIR COOLER<6PL> L=540	8-94468-115-1	01	1	0108-0207	●
19	01.270 SEAL; RAD UPR L=540	8-94468-115-1	01	1	0208-0301	●
19	01.270 SEAL; RAD UPR EXC. CHARGE AIR COOLER<6PL> L=540	8-94468-115-1	01	1	0302-	●
19	01.270 SEAL; RAD UPR L=200	8-97081-956-2	01	1	9804-0107		●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=200	8-97081-956-2	01	1	0108-0207	●
19	01.270 SEAL; RAD UPR L=200	8-97081-956-2	01	1	0108-0207		●
19	01.270 SEAL; RAD UPR L=200	8-97081-956-2	01	1	0208-		●
19	01.270 SEAL; RAD UPR L=380	8-97081-957-2	01	1	9804-0002		●
19	01.270 SEAL; RAD UPR L=365	8-97254-404-0	01	1	0003-0107		●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=365	8-97254-404-0	01	1	0108-0207	●
19	01.270 SEAL; RAD UPR L=365	8-97254-404-0	01	1	0108-0207		●
19	01.270 SEAL; RAD UPR L=365	8-97254-404-0	01	1	0208-		●
51	08.951 PLUG; DRAIN CHARGE AIR COOLER<6PL> W/GASKET	8-97171-437-0	01	1	0302-	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9804-0107	●
51	08.951 PLUG; DRAIN EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0108-0207	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0208-0301	●
51	08.951 PLUG; DRAIN EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0302-	●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9804-0107		●
51	08.951 PLUG; DRAIN CHARGE AIR COOLER<6PL>	8-97036-939-0	01	1	0108-0207	●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	0108-0207		●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	0208-		●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9804-0107	●
52	08.951 GASKET; DRAIN PLUG EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0108-0207	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0208-0301	●
52	08.951 GASKET; DRAIN PLUG EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0302-	●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9804-0107		●
52	08.951 GASKET; DRAIN PLUG CHARGE AIR COOLER<6PL> 04.133 ID=9.8	9-09561-110-0	01	1	0108-0207	●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	0108-0207		●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	0208-		●
76	01.174 SEAL; RAD,LWR 01.276	8-94316-413-0	02	1	9804-0301	●
76	01.174 SEAL; RAD,LWR 4X2 SPACE CAB(TFBC) 01.276	8-94316-413-0	02	1	9804-0301		●
76	01.174 SEAL; RAD,LWR EXC. CHARGE AIR COOLER<6PL> 01.276	8-94316-413-0	02	1	0302-	●
241	01.274 BOLT; RAD TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9804-0107	●
241	01.274 BOLT; RAD TO BODY EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0108-0207	●
241	01.274 BOLT; RAD TO BODY 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0208-0301	●
241	01.274 BOLT; RAD TO BODY EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0302-	●
242	01.219 BRACKET; RAD (C)	8-97041-226-2	01	1	9804-0107	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-226-2	01	1	0108-0207	●
242	01.219 BRACKET; RAD (C)	8-97041-226-2	01	1	0208-0301	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-226-2	01	1	0302-	●
242	01.219 BRACKET; RAD (C)	8-97041-225-2	01	1	9804-0107	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-225-2	01	1	0108-0207	●
242	01.219 BRACKET; RAD (C)	8-97041-225-2	01	1	0208-0301	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-225-2	01	1	0302-	●
242	01.219 BRACKET; RAD (A)	8-97064-431-2	01	1	9804-9904		●
242	01.219 BRACKET; RAD (A)	8-97225-348-0	01	1	9905-0107		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (A)	8-97225-348-1	01	1	0108-0207	●
242	01.219 BRACKET; RAD (A)	8-97225-348-1	01	1	0108-0207		●
242	01.219 BRACKET; RAD (A)	8-97225-348-1	01	1	0208-0301		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (A)	8-97225-348-1	01	1	0302-	●
242	01.219 BRACKET; RAD (A)	8-97225-348-1	01	1	0302-		●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	9804-0107		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-635-1	01	1	0108-0207	●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	0108-0207		●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	0208-0301		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-635-1	01	1	0302-	●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	0302-		●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	9804-0107		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-636-1	01	1	0108-0207	●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	0108-0207		●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	0208-0301		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-636-1	01	1	0302-	●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	0302-		●
245	01.219 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-0107	●
245	01.219 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0108-0207	●
245	01.219 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	0208-0301	●
245	01.219 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-	●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	9804-0107		●
245	01.219 NUT; BRKT CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE	8-97046-127-0	04	1	0108-0207	●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	0108-0207		●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	0208-0301		●
245	01.219 NUT; BRKT CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE	8-97046-127-0	04	1	0302-	●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	0302-		●
427	01.240 CLIP; FAN GUIDE CHARGE AIR COOLER<6PL> (B)	8-97066-962-0	04	1	0302-	●
427	01.240 CLIP; FAN GUIDE (C)	8-97143-177-0	04	1	9804-0107	●
427	01.240 CLIP; FAN GUIDE EXC. CHARGE AIR COOLER<6PL> (C)	8-97143-177-0	04	1	0108-0207	●
427	01.240 CLIP; FAN GUIDE (C)	8-97143-177-0	04	1	0208-0301	●
427	01.240 CLIP; FAN GUIDE EXC. CHARGE AIR COOLER<6PL> (C)	8-97143-177-0	04	1	0302-	●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	9804-0107		●
427	01.240 CLIP; FAN GUIDE CHARGE AIR COOLER<6PL> 01.277 (A)	8-97043-862-0	02	1	0108-0207	●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	0108-0207		●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	0208-0301		●
427	01.240 CLIP; FAN GUIDE CHARGE AIR COOLER<6PL> 01.277 (A)	8-97043-862-0	02	1	0302-	●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	0302-		●
427	01.240 CLIP; FAN GUIDE (B)	8-97066-962-0	04	1	9804-9807		●
427	01.240 CLIP; FAN GUIDE M/T MUA 5 SPEED(RMN) (B)	8-97066-962-0	04	1	9808-9906		●

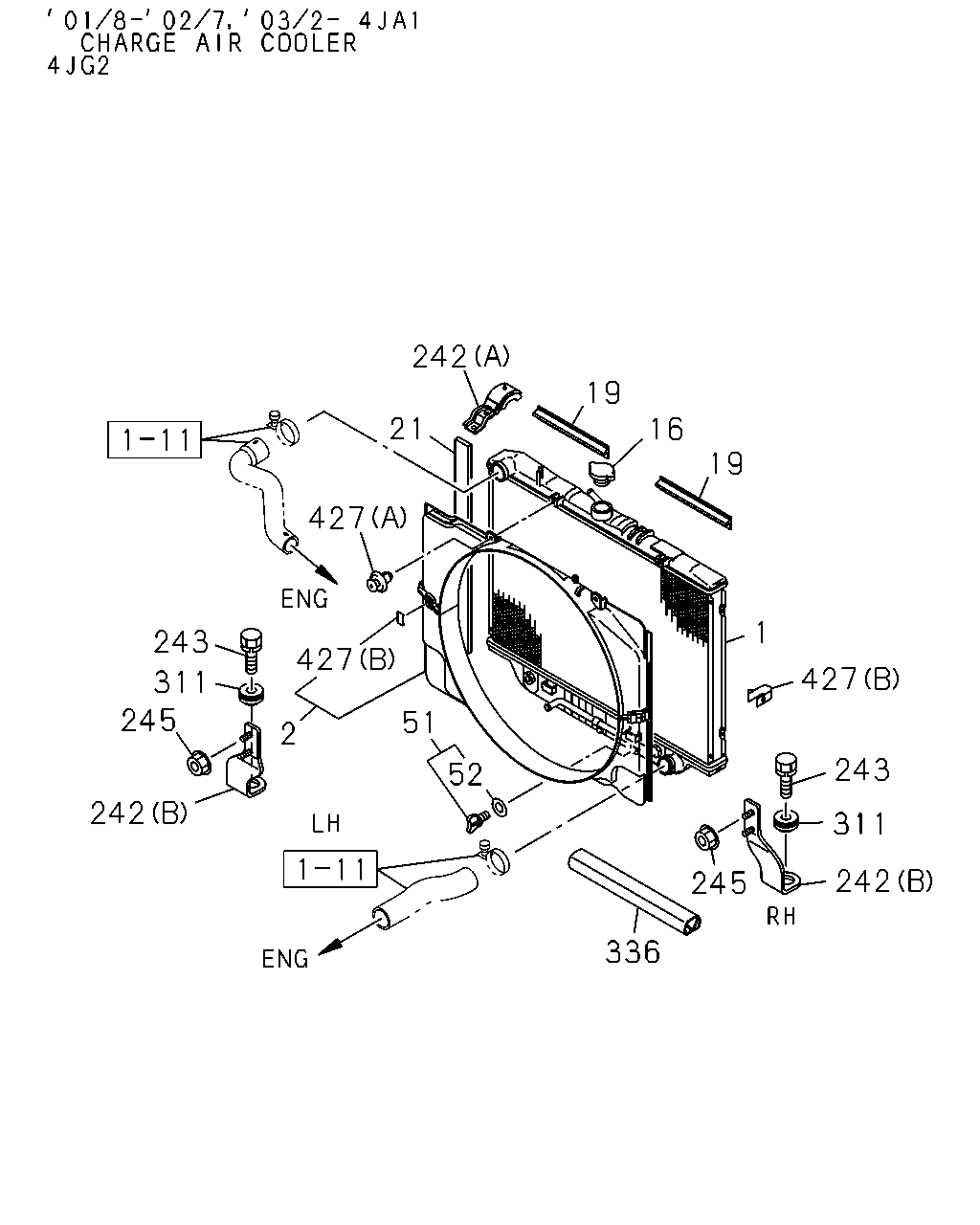

242 19 21 16 19 427 1 243 427 427 311 245 2 51 243 52 242 311 242 245 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-94383-646-1	01	1	0208-0301	●
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-97304-702-0	01	1	0302-	●
1	01.219 RADIATOR ASM	8-97116-005-0	01	1	9804-0107	●
1	01.219 RADIATOR ASM EXC. CHARGE AIR COOLER<6PL>	8-97116-005-0	01	1	0108-	●
1	01.219 RADIATOR ASM	8-97084-924-0	01	1	9804-9805		●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	9806-9906		●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	9907-0107		●
1	01.219 RADIATOR ASM CHARGE AIR COOLER<6PL>	8-97084-924-0	01	1	0108-0207	●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	0108-0207		●
1	01.219 RADIATOR ASM M/T MUA 5 SPEED(RMN)	8-97084-924-0	01	1	0208-		●
1	01.219 RADIATOR ASM A/T AISIN(RMD)	8-97087-010-3	01	1	9806-		●
2	01.277 GUIDE; FAN CHARGE AIR COOLER<6PL>	8-97087-725-2	01	1	0302-	●
2	01.277 GUIDE; FAN	8-97164-550-1	01	1	9804-0107	●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97164-550-1	01	1	0108-0207	●
2	01.277 GUIDE; FAN	8-97164-550-1	01	1	0208-0301	●
2	01.277 GUIDE; FAN EXC. CHARGE AIR COOLER<6PL>	8-97164-550-1	01	1	0302-	●
2	01.277 GUIDE; FAN	8-97087-725-1	01	1	9804-9807		●
2	01.277 GUIDE; FAN M/T MUA 5 SPEED(RMN)	8-97087-725-1	01	1	9808-9906		●
2	01.277 GUIDE; FAN A/T AISIN(RMD)	8-97214-344-0	01	1	9808-9906		●
2	01.277 GUIDE; FAN	8-97214-344-0	01	1	9907-0107		●
2	01.277 GUIDE; FAN CHARGE AIR COOLER<6PL>	8-97214-344-0	01	1	0108-0207	●
2	01.277 GUIDE; FAN	8-97214-344-0	01	1	0108-0207		●
2	01.277 GUIDE; FAN	8-97214-344-0	01	1	0208-		●
16	01.203 CAP; RAD CHARGE AIR COOLER<6PL>	8-97239-187-0	01	1	0302-	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9804-9805	●	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	9806-0301	●	●
16	01.203 CAP; RAD EXC. CHARGE AIR COOLER<6PL>	8-97104-194-0	01	1	0302-	●
16	01.203 CAP; RAD	8-97104-194-0	01	1	0302-		●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=360	8-97164-208-1	01	1	0302-	●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=200	8-97304-967-0	01	1	0302-	●
19	01.270 SEAL; RAD UPR L=540	8-94468-115-1	01	1	9804-0107	●
19	01.270 SEAL; RAD UPR EXC. CHARGE AIR COOLER<6PL> L=540	8-94468-115-1	01	1	0108-0207	●
19	01.270 SEAL; RAD UPR L=540	8-94468-115-1	01	1	0208-0301	●
19	01.270 SEAL; RAD UPR EXC. CHARGE AIR COOLER<6PL> L=540	8-94468-115-1	01	1	0302-	●
19	01.270 SEAL; RAD UPR L=200	8-97081-956-2	01	1	9804-0107		●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=200	8-97081-956-2	01	1	0108-0207	●
19	01.270 SEAL; RAD UPR L=200	8-97081-956-2	01	1	0108-0207		●
19	01.270 SEAL; RAD UPR L=200	8-97081-956-2	01	1	0208-		●
19	01.270 SEAL; RAD UPR L=380	8-97081-957-2	01	1	9804-0002		●
19	01.270 SEAL; RAD UPR L=365	8-97254-404-0	01	1	0003-0107		●
19	01.270 SEAL; RAD UPR CHARGE AIR COOLER<6PL> L=365	8-97254-404-0	01	1	0108-0207	●
19	01.270 SEAL; RAD UPR L=365	8-97254-404-0	01	1	0108-0207		●
19	01.270 SEAL; RAD UPR L=365	8-97254-404-0	01	1	0208-		●
21	01.276 SEAL; RAD	8-97084-019-0	02	1	9804-9807		●
21	01.276 SEAL; RAD M/T MUA 5 SPEED(RMN)	8-97084-019-0	02	1	9808-9906		●
21	01.276 SEAL; RAD A/T AISIN(RMD)	8-97084-019-0	02	1	0104-		●
51	08.951 PLUG; DRAIN CHARGE AIR COOLER<6PL> W/GASKET	8-97171-437-0	01	1	0302-	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9804-0107	●
51	08.951 PLUG; DRAIN EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0108-0207	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0208-0301	●
51	08.951 PLUG; DRAIN EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET	8-94321-236-0	01	1	0302-	●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9804-0107		●
51	08.951 PLUG; DRAIN CHARGE AIR COOLER<6PL>	8-97036-939-0	01	1	0108-0207	●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	0108-0207		●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	0208-		●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9804-0107	●
52	08.951 GASKET; DRAIN PLUG EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0108-0207	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0208-0301	●
52	08.951 GASKET; DRAIN PLUG EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10	9-09720-557-0	01	1	0302-	●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9804-0107		●
52	08.951 GASKET; DRAIN PLUG CHARGE AIR COOLER<6PL> 04.133 ID=9.8	9-09561-110-0	01	1	0108-0207	●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	0108-0207		●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	0208-		●
242	01.219 BRACKET; RAD (C)	8-97041-226-2	01	1	9804-0107	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-226-2	01	1	0108-0207	●
242	01.219 BRACKET; RAD (C)	8-97041-226-2	01	1	0208-0301	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-226-2	01	1	0302-	●
242	01.219 BRACKET; RAD (C)	8-97041-225-2	01	1	9804-0107	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-225-2	01	1	0108-0207	●
242	01.219 BRACKET; RAD (C)	8-97041-225-2	01	1	0208-0301	●
242	01.219 BRACKET; RAD EXC. CHARGE AIR COOLER<6PL> (C)	8-97041-225-2	01	1	0302-	●
242	01.219 BRACKET; RAD (A)	8-97064-431-2	01	1	9804-9904		●
242	01.219 BRACKET; RAD (A)	8-97225-348-0	01	1	9905-0107		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (A)	8-97225-348-1	01	1	0108-0207	●
242	01.219 BRACKET; RAD (A)	8-97225-348-1	01	1	0108-0207		●
242	01.219 BRACKET; RAD (A)	8-97225-348-1	01	1	0208-0301		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (A)	8-97225-348-1	01	1	0302-	●
242	01.219 BRACKET; RAD (A)	8-97225-348-1	01	1	0302-		●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	9804-0107		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-635-1	01	1	0108-0207	●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	0108-0207		●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	0208-0301		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-635-1	01	1	0302-	●
242	01.219 BRACKET; RAD (B)	8-97084-635-1	01	1	0302-		●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	9804-0107		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-636-1	01	1	0108-0207	●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	0108-0207		●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	0208-0301		●
242	01.219 BRACKET; RAD CHARGE AIR COOLER<6PL> (B)	8-97084-636-1	01	1	0302-	●
242	01.219 BRACKET; RAD (B)	8-97084-636-1	01	1	0302-		●
243	01.219 BOLT; BRKT 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9804-0107		●
243	01.219 BOLT; BRKT CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0108-0207	●
243	01.219 BOLT; BRKT 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0108-0207		●
243	01.219 BOLT; BRKT 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0208-0301		●
243	01.219 BOLT; BRKT CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0302-	●
243	01.219 BOLT; BRKT 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0302-		●
245	01.219 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-0107	●
245	01.219 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0108-0207	●
245	01.219 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	0208-0301	●
245	01.219 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-	●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	9804-0107		●
245	01.219 NUT; BRKT CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE	8-97046-127-0	04	1	0108-0207	●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	0108-0207		●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	0208-0301		●
245	01.219 NUT; BRKT CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE	8-97046-127-0	04	1	0302-	●
245	01.219 NUT; BRKT 04.010 M8 FLANGE	8-97046-127-0	04	1	0302-		●
311	01.270 RUBBER; MTG,RAD	8-94375-183-1	02	1	9804-9910		●
311	01.270 RUBBER; MTG,RAD	8-97231-024-0	02	1	9911-0107		●
311	01.270 RUBBER; MTG,RAD CHARGE AIR COOLER<6PL>	8-97231-024-0	02	1	0108-0207	●
311	01.270 RUBBER; MTG,RAD	8-97231-024-0	02	1	0108-0207		●
311	01.270 RUBBER; MTG,RAD	8-97231-024-0	02	1	0208-0301		●
311	01.270 RUBBER; MTG,RAD CHARGE AIR COOLER<6PL>	8-97231-024-0	02	1	0302-	●
311	01.270 RUBBER; MTG,RAD	8-97231-024-0	02	1	0302-		●
336	01.270 SEAL; LWR,RAD	8-97124-393-0	02	1	9804-0206		●
336	01.270 SEAL; LWR,RAD	8-97257-011-0	02	1	0207-0301		●
336	01.270 SEAL; LWR,RAD CHARGE AIR COOLER<6PL>	8-97257-011-0	02	1	0302-	●
336	01.270 SEAL; LWR,RAD	8-97257-011-0	02	1	0302-		●
427	01.240 CLIP; FAN GUIDE CHARGE AIR COOLER<6PL> (B)	8-97066-962-0	04	1	0302-	●
427	01.240 CLIP; FAN GUIDE (C)	8-97143-177-0	04	1	9804-0107	●
427	01.240 CLIP; FAN GUIDE EXC. CHARGE AIR COOLER<6PL> (C)	8-97143-177-0	04	1	0108-0207	●
427	01.240 CLIP; FAN GUIDE (C)	8-97143-177-0	04	1	0208-0301	●
427	01.240 CLIP; FAN GUIDE EXC. CHARGE AIR COOLER<6PL> (C)	8-97143-177-0	04	1	0302-	●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	9804-0107		●
427	01.240 CLIP; FAN GUIDE CHARGE AIR COOLER<6PL> 01.277 (A)	8-97043-862-0	02	1	0108-0207	●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	0108-0207		●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	0208-0301		●
427	01.240 CLIP; FAN GUIDE CHARGE AIR COOLER<6PL> 01.277 (A)	8-97043-862-0	02	1	0302-	●
427	01.240 CLIP; FAN GUIDE 01.277 (A)	8-97043-862-0	02	1	0302-		●
427	01.240 CLIP; FAN GUIDE (B)	8-97066-962-0	04	1	9804-9807		●
427	01.240 CLIP; FAN GUIDE M/T MUA 5 SPEED(RMN) (B)	8-97066-962-0	04	1	9808-9906		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
