1-01 — ACCELERATOR PEDAL AND CONTROL (#44237) — 62 parça

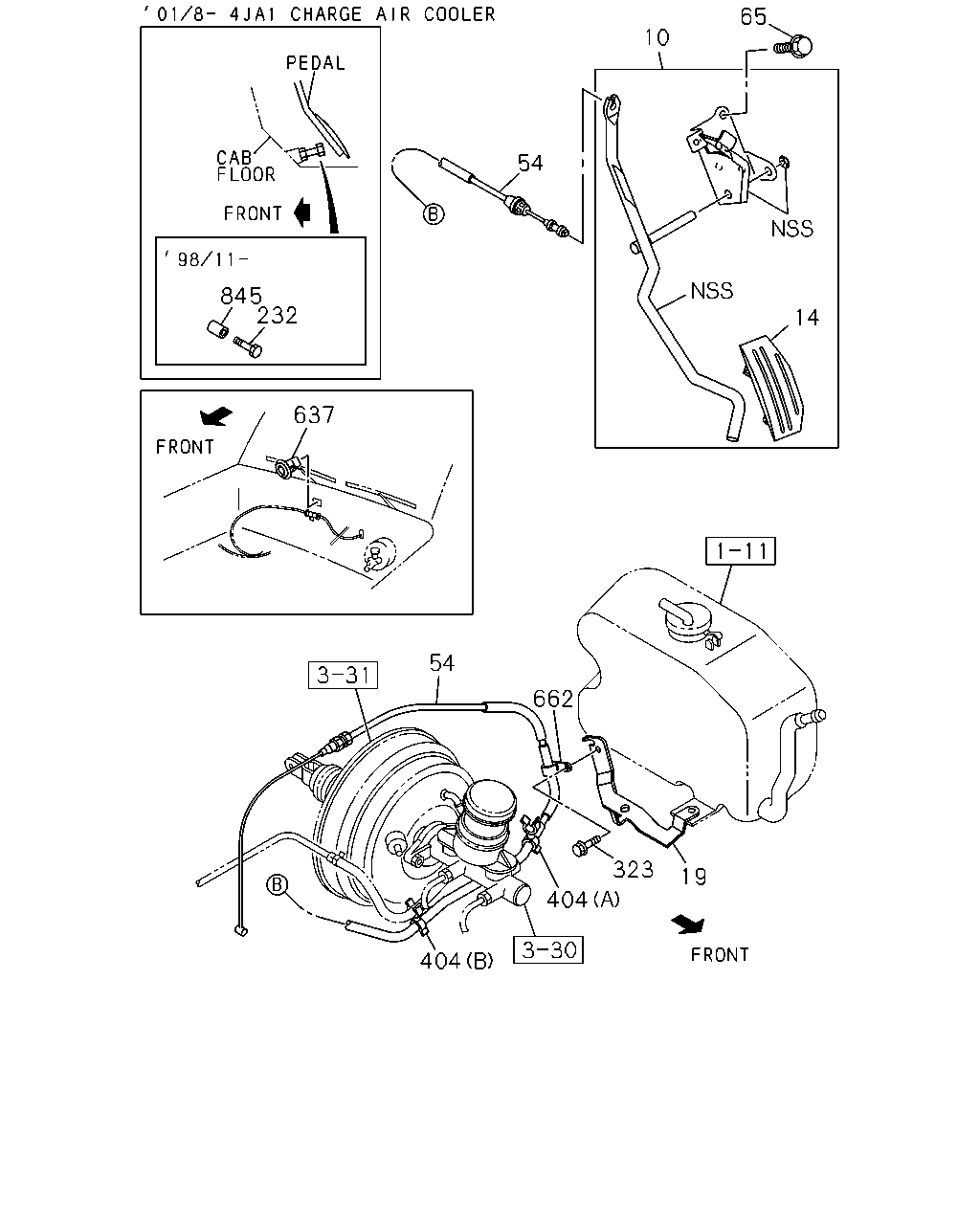

çizim 63997
65 10 54 845 232 14 637 54 662 323 19 404 404
BalonParca AdiParca NoAdetTipApplied Date A B
10 03.451 PEDAL ASM; ACCEL
CHARGE AIR COOLER<6PL> 		8-97181-388-0 01 1 0108- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9804- ● ●
19 03.452 BRACKET; ACCEL PEDAL
CHARGE AIR COOLER<6PL> 		8-97301-163-2 01 1 0108- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9804-0107 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. CHARGE AIR COOLER<6PL> 		8-97117-119-0 01 1 0108- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 0108- ●
54 03.430 CABLE; ENG CONT 8-97132-218-0 01 1 9804-0107 ●
54 03.430 CABLE; ENG CONT
EXC. CHARGE AIR COOLER<6PL> 		8-97132-218-3 01 1 0108- ●
54 03.430 CABLE; ENG CONT
CHARGE AIR COOLER<6PL> 		8-97301-168-2 01 1 0108- ●
54 03.430 CABLE; ENG CONT 8-97078-147-3 01 1 9804- ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804-9906 ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9907-0110 ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0111- ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
CHARGE AIR COOLER<6PL> 08.155 M8X25 FLANGE 		0-28480-825-0 01 1 0108- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9804-0107 ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
EXC. CHARGE AIR COOLER<6PL> 07.395 M8X28 		0-20800-828-0 01 1 0108- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 0108- ●
323 03.483 BOLT; CLIP
CHARGE AIR COOLER<6PL> 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 0108- ●
404 03.483 CLIP; CABLE
CHARGE AIR COOLER<6PL> (A) ID=6 & 10 		8-94154-844-0 01 1 0108- ●
404 03.483 CLIP; CABLE
CHARGE AIR COOLER<6PL> 04.930 (B) ID=10 & 16.5 		8-94360-745-0 01 1 0108-0108 ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9804- ● ●
662 03.430 CLIP; ACCEL CONT CABLE
CHARGE AIR COOLER<6PL> 01.516 ID=13 L=20 		9-09525-235-0 01 1 0108- ●
845 03.452 PIECE; DISTANCE,PEDAL
CHARGE AIR COOLER<6PL> 		8-97135-732-0 01 1 0108- ●

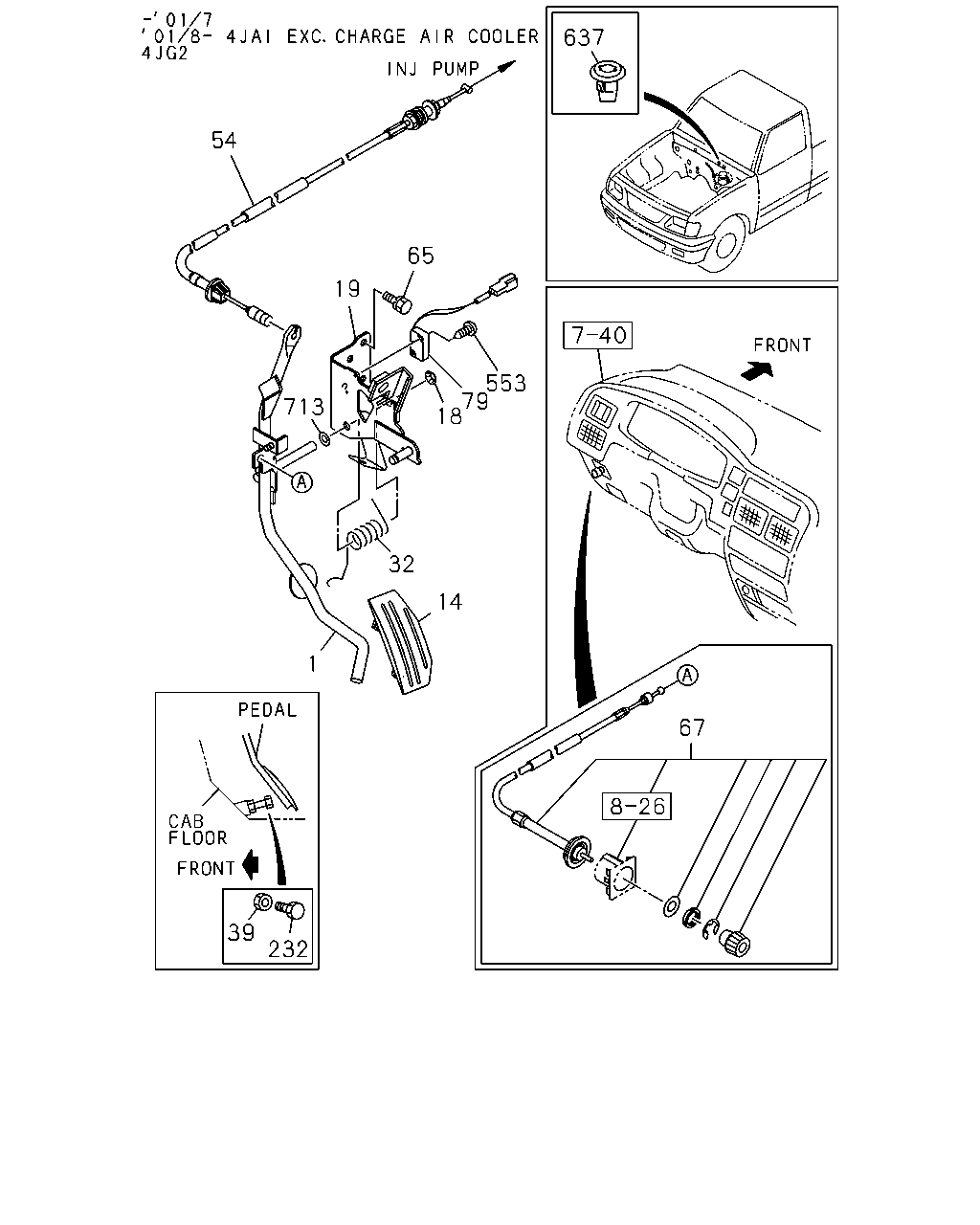

çizim 64144
637 54 65 19 553 79 18 713 32 14 1 67 39 232
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 9804-0107 ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97022-896-0 01 1 0108- ●
1 03.451 LEVER; PEDAL SIDE 8-97022-896-0 01 1 0108- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9804- ● ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 9804-0107 ● ●
18 03.459 NUT; JOINT LK
EXC. CHARGE AIR COOLER<6PL> 03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0108- ●
18 03.459 NUT; JOINT LK
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0108- ●
19 03.452 BRACKET; ACCEL PEDAL
CHARGE AIR COOLER<6PL> 		8-97301-163-2 01 1 0108- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 9804-0107 ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. CHARGE AIR COOLER<6PL> 		8-97117-119-0 01 1 0108- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-119-0 01 1 0108- ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 9804-0107 ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
EXC. CHARGE AIR COOLER<6PL> 		8-97019-283-0 01 1 0108- ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97019-283-0 01 1 0108- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 9804-0107 ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
EXC. CHARGE AIR COOLER<6PL> 02.559 M8 		9-09110-408-0 01 1 0108- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 0108- ●
54 03.430 CABLE; ENG CONT 8-97132-218-0 01 1 9804-0107 ●
54 03.430 CABLE; ENG CONT
EXC. CHARGE AIR COOLER<6PL> 		8-97132-218-3 01 1 0108- ●
54 03.430 CABLE; ENG CONT
CHARGE AIR COOLER<6PL> 		8-97301-168-2 01 1 0108- ●
54 03.430 CABLE; ENG CONT 8-97078-147-3 01 1 9804- ●
65 03.483 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804-9906 ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9907-0110 ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0111- ● ●
67 03.480 CABLE ASM; IDLE CONT 8-97112-106-2 01 1 9804-0107 ● ●
67 03.480 CABLE ASM; IDLE CONT
EXC. CHARGE AIR COOLER<6PL> 		8-97112-106-3 01 1 0108- ●
67 03.480 CABLE ASM; IDLE CONT 8-97112-106-3 01 1 0108- ●
79 03.451 SWITCH; ACCEL PEDAL 8-97084-553-0 01 1 9804-0107 ● ●
79 03.451 SWITCH; ACCEL PEDAL
EXC. CHARGE AIR COOLER<6PL> 		8-97084-553-0 01 1 0108- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
CHARGE AIR COOLER<6PL> 08.155 M8X25 FLANGE 		0-28480-825-0 01 1 0108- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 9804-0107 ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
EXC. CHARGE AIR COOLER<6PL> 07.395 M8X28 		0-20800-828-0 01 1 0108- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
07.395 M8X28 		0-20800-828-0 01 1 0108- ●
553 03.451 SCREW; TAP,PEDAL TO SW
M3X16 TAPPING 		0-71280-316-0 02 1 9804-0107 ● ●
553 03.451 SCREW; TAP,PEDAL TO SW
EXC. CHARGE AIR COOLER<6PL> M3X16 TAPPING 		0-71280-316-0 02 1 0108- ●
637 03.469 GROMMET; ACCEL CABLE
16.346 		8-97801-635-1 01 1 9804- ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9804-0107 ● ●
713 03.463 WASHER; PL
EXC. CHARGE AIR COOLER<6PL> 16.674 ID=8.4 		9-09160-508-0 01 1 0108- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0108- ●
