◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#4423) — 962 parça

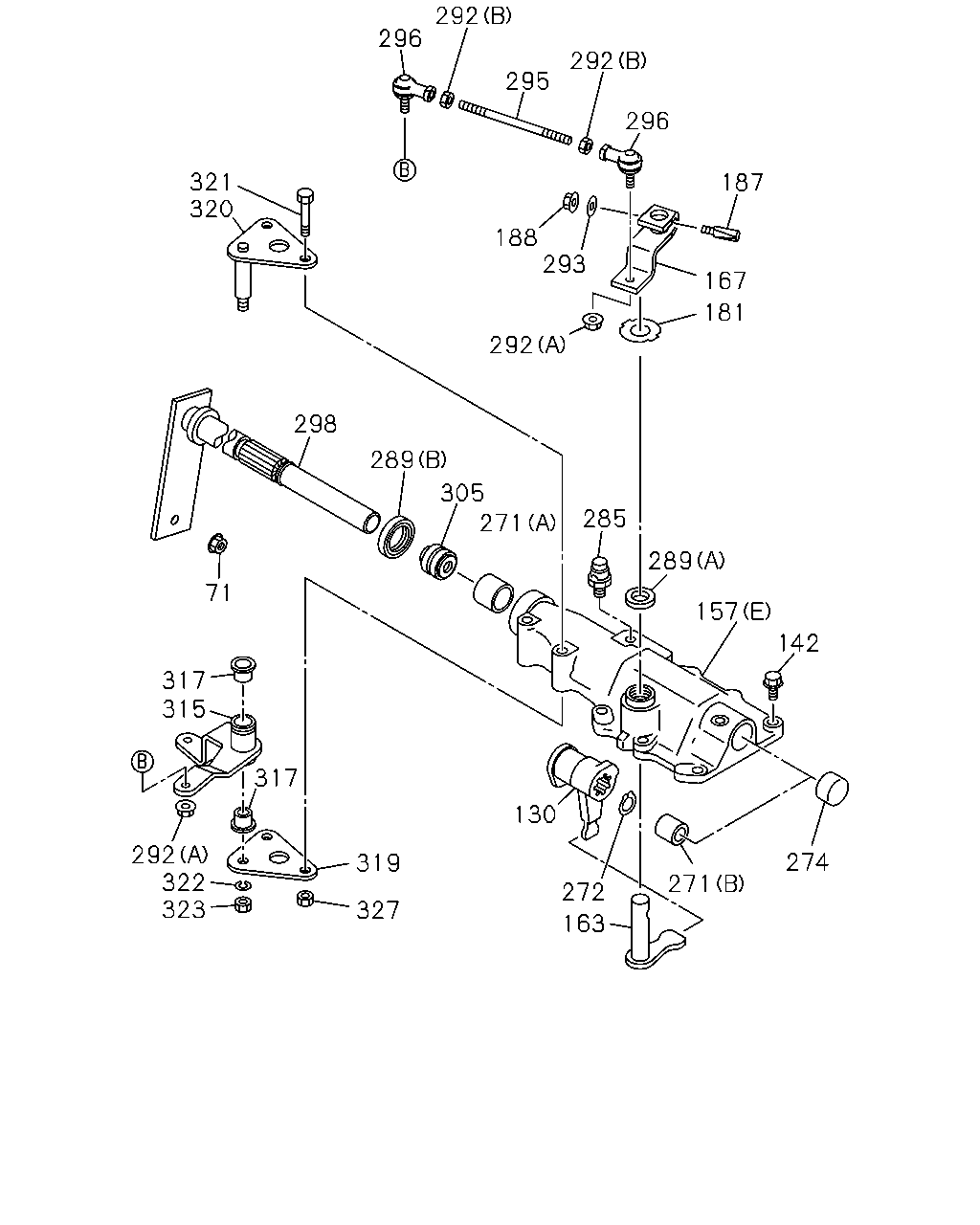

çizim 2978
292 296 292 295 296 321 320 187 188 293 167 181 292 298 289 305 271 285 289 71 157 142 317 315 317 130 292 322 323 274 319 271 272 327 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E
71 NUT; SHIFT LEVER
M10 		9-09110-410-0 01 1 9202-9202 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9305-9808 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9809-0602 ● ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-093-1 01 1 9202-9202 ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9505-9808 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9809- ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-094-2 01 1 9702- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9809-0512 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9304 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9305-9504 ● ● ●
142 BOLT; QUAD BOX
M10X22,M10X66 L=96 		1-09069-006-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9702-9805 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9809- ● ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-336-1 01 1 9203-9504 ● ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-392-1 01 1 9202-9202 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-295-6 01 1 9202-9601 ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-480-0 01 1 9602- ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-365-0 01 1 9505-9603 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9604-9808 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9809- ● ● ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-296-7 01 1 9305-9601 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9602-9808 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9809- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-392-1 01 1 9702-9706 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-393-1 01 1 9707- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9702- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9202-9202 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9505-9701 ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9702-9808 ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9809-9809 ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9810-0002 ● ● ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-33522-041-3 01 1 9810-0002 ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> 		1-33522-041-3 01 1 9810-0002 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0003-0203 ● ● ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-33522-041-4 01 1 0003-0203 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0204- ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9202-9202 ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9505-9701 ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9702-9808 ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 9809- ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9202-9202 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9505-9701 ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9702-9808 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9809- ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9202-9202 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9505-9701 ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9702-9808 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9809- ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9202-9202 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9505-9701 ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9702-9804 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-9808 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9809- ● ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 9505-9808 ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 9809- ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 9505-9808 ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 9809- ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9505-9808 ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9809- ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9202-9202 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9505-9701 ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9702-9808 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9809- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-002-0 01 1 9203-9304 ●
285 BREATHER; AIR,QUAD BOX 1-33149-002-0 01 1 9305-9504 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9505-9701 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9702-9808 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9809- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9505-9701 ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9702-9808 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9809-0307 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9505-9701 ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9702-9808 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9809- ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09110-408-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9505-9701 ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9702-9804 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9808 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9809- ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9505-9701 ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9702-9808 ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9809-0512 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9202-9202 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9505-9701 ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9702-9808 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9809-0605 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-33652-392-0 01 1 9202-9202 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9505-9701 ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9702-9808 ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9809- ● ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9202-9202 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9505-9701 ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9702-9808 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9809-0309 ● ● ● ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-091-1 01 1 9202-9202 ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9505-9808 ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9809-0307 ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0308- ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-159-0 01 1 9702- ●
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 9505-9808 ● ● ●
305 BOOT; LEVER SHAFT 1-33529-028-0 01 1 9809- ● ● ● ●
315 LEVER; SELECT 1-33651-496-0 01 1 9202-9202 ●
315 LEVER; SELECT 1-33651-487-0 01 1 9505-9808 ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9809- ● ● ● ●
315 LEVER; SELECT 1-33651-496-0 01 1 9702- ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9202-9202 ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9505-9701 ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9702-9808 ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9809- ● ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9202-9202 ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9505-9808 ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9809- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9702- ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9202-9202 ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9505-9808 ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9809- ● ● ● ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9702- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9202-9202 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9505-9701 ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9702-9808 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9809-0512 ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9202-9202 ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9505-9701 ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9702-9808 ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9809- ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9202-9202 ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9505-9701 ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9702-9808 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9809- ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 03 1 9202-9202 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9505-9701 ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9702-9808 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9809-0602 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9806-9808 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9809-0512 ● ● ● ● ●

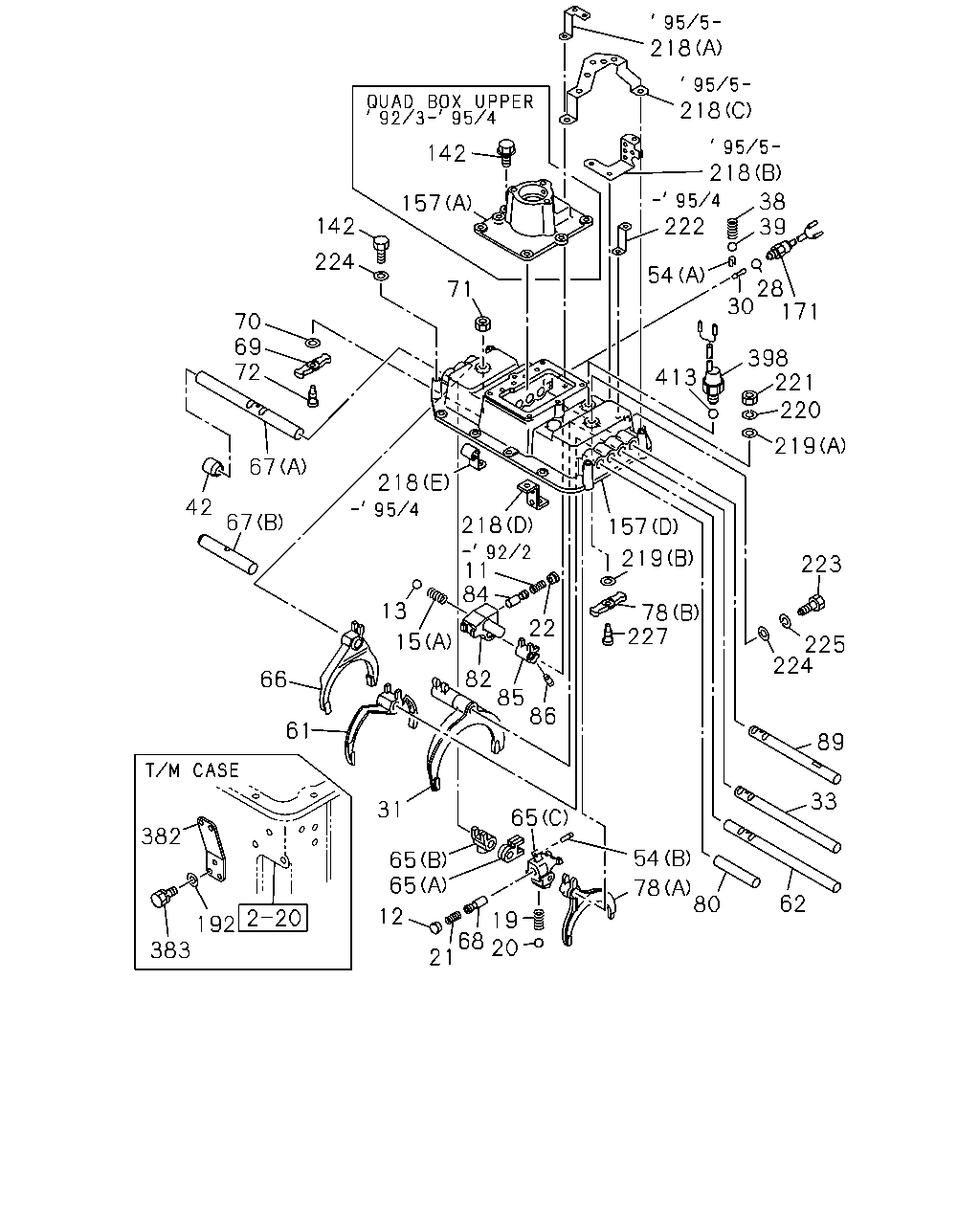

çizim 3815
218 218 218 222 142 38 39 157 142 224 28 30 171 54 71 70 69 72 398 221 220 413 219 67 218 42 218 11 84 67 157 219 223 13 78 227 22 15 225 224 82 85 86 66 61 89 33 31 65 382 19 68 20 21 54 65 65 78 80 62 12 192 383
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 SPRING; RETURN,SHIFT SLEEVE 9-09940-411-0 01 1 9202-9504 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9505-9701 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9702-9808 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9702-9808 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9809-0002 ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9809-0002 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0003-0203 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09941-160-0 01 1 0003-0203 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09941-160-0 01 1 0003-0203 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0204- ● ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9202-9604 ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9605-9701 ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9702-9808 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9809- ● ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9202-9701 ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9702-9808 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9809- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9202-9808 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9809- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9702- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9702- ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9202-9202 ●
19 SPRING; COIL COMP 1-09580-439-0 01 1 9203-9504 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9505-9808 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9809- ● ● ● ●
19 SPRING; COIL COMP 1-09580-403-1 01 1 9702- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9202-9701 ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9702-9808 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9809- ● ● ● ● ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9202-9808 ● ● ●
21 SPRING; COIL COMP SLEEVE 9-09941-160-0 01 1 9809- ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9202-9304 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9305-9808 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9809- ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9702- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9202-9701 ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9702-9808 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9809- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9202-9701 ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9702-9808 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9809- ● ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9202-9808 ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9809- ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9702- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9202-9808 ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9809-1202 ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203- ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9702-1202 ●
33 ROD; SHIFT,LOW & 2ND 8-98207-577-0 01 1 1203- ●
38 SPRING; DETENT 1-09580-419-0 04 1 9202-9202 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9203-9504 ● ● ●
38 SPRING; DETENT 1-09580-419-0 04 1 9505-9611 ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9612-9701 ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9702-9808 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9809- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9202-9701 ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9702-9808 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9809- ● ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9202-9808 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9809- ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9702- ●
54 PIN; SPR,SHIFT BLOCK
(B) OD=3.2 L=5.3 		1-09748-006-0 01 1 9202-9808 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) OD=3.2 L=5.3 		1-09748-006-0 01 1 9809-0201 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) OD=4.4 L=18 		1-09748-014-0 03 1 9202-9701 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) OD=4.4 L=18 		1-09748-014-0 03 1 9702-9808 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) OD=4.4 L=18 		1-09748-014-0 03 1 9809- ● ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-414-3 01 1 9202-9412 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9501-9808 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9809- ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-2 01 1 9702- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9202-9808 ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9809-1202 ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203- ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9702-1202 ●
62 ROD; SHIFT,3RD & 4TH 8-98207-585-0 01 1 1203- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-308-0 01 1 9202-9202 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-357-1 01 1 9203-9504 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-357-1 01 1 9505-9602 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9603-9808 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9809- ● ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9305-9808 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9809- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9505-9808 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9809- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-331-3 01 1 9702- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-224-2 01 1 9202-9412 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9501- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-217-1 01 1 9305-9412 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-487-0 01 1 9501-9504 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9505-9808 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9809- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9702- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9202-9808 ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9809-1202 ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		8-98207-589-0 01 1 1203- ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9305-9808 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9809-1202 ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		8-98207-587-0 01 1 1203- ● ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		1-33531-248-0 01 1 9702-1202 ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		8-98207-588-0 01 1 1203- ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9202-9808 ● ● ●
68 SLEEVE; 5TH & 6TH 1-33516-025-0 01 1 9809- ● ● ● ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9305-9808 ●
69 LEVER; SHIFT,5TH & 6TH 1-33511-082-0 01 1 9809- ● ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9305-9808 ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 9809- ● ●
71 NUT; SHIFT LEVER
M10 		9-09110-410-0 01 1 9202-9202 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9305-9808 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9809-0602 ● ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9305-9808 ●
72 SPINDLE; 5TH & 6TH 1-33519-012-0 01 1 9809- ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9202-9808 ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9809- ● ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9202-9808 ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9809- ● ● ● ●
78 ARM; SHIFT,REV
(C) 		1-33511-232-5 01 1 9702- ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9202-9808 ● ● ●
80 ROD; SHIFT,REV ARM 1-33531-234-1 01 1 9809-1202 ● ● ● ●
80 ROD; SHIFT,REV ARM 8-98207-584-0 01 1 1203- ● ● ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9202-9808 ● ● ●
82 BLOCK; SHIFT,REV 1-33511-310-1 01 1 9809- ● ● ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9202-9808 ● ● ●
84 SLEEVE; REV 1-33516-025-0 01 1 9809- ● ● ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9202-9808 ● ● ●
85 BLOCK; SHIFT,REV RR 1-33511-201-3 01 1 9809- ● ● ● ●
86 SCREW; TAPER,ARM TO ROD 1-09129-014-1 07 1 9202-9202 ●
86 SCREW; TAPER,ARM TO ROD 1-09129-014-2 07 1 9203-9412 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 07 1 9501-9512 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9601- ● ●
86 SCREW; TAPER,ARM TO ROD 1-09129-014-2 09 1 9305-9412 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 09 1 9501-9512 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9601-9701 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9702-9805 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9806-9808 ● ● ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9809- ● ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9202-9808 ● ● ●
89 ROD; SHIFT,REV 1-33531-252-1 01 1 9809-1202 ● ● ● ●
89 ROD; SHIFT,REV 8-98207-582-0 01 1 1203- ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9809-0512 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9304 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9305-9504 ● ● ●
142 BOLT; QUAD BOX
M10X22,M10X66 L=96 		1-09069-006-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9702-9805 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9809- ● ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-336-1 01 1 9203-9504 ● ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-392-1 01 1 9202-9202 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-295-6 01 1 9202-9601 ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-480-0 01 1 9602- ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-365-0 01 1 9505-9603 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9604-9808 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9809- ● ● ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-296-7 01 1 9305-9601 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9602-9808 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9809- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-392-1 01 1 9702-9706 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-393-1 01 1 9707- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9702- ●
171 SWITCH; NEUTRAL 1-82440-067-1 01 1 9202-9504 ● ● ●
171 SWITCH; NEUTRAL 1-82440-081-2 01 1 9505-9509 ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9510-9701 ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9702-9808 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9809-0702 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1104 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ● ● ● ● ●
192 WASHER; PL
ID=10.5 		9-09164-510-0 02 1 9203-9205 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9505-9701 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9702-9808 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9809- ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(E) 		1-09700-415-0 01 1 9202-9202 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(E) 		1-09700-415-0 02 1 9203-9504 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9505-9701 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9702-9808 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9809- ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(D) 		1-47476-812-1 01 1 9202-9202 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9505-9701 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9702-9808 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9809- ● ● ● ● ●
219 WASHER; PL,SPINDLE
(A) ID=12.5 OD=26 		9-09164-612-0 01 1 9202-9205 ●
219 WASHER; PL,SPINDLE
(B) ID=16.5 		9-09857-042-0 01 1 9202-9808 ● ● ●
219 WASHER; PL,SPINDLE
(B) ID=16.5 		9-09857-042-0 01 1 9809- ● ● ● ●
220 WASHER; LK,SPINDLE
ID=12.2 		9-09150-512-0 01 1 9202-9205 ●
221 NUT; SPINDLE
M12 		9-99110-512-0 01 1 9202-9205 ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9206-9808 ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9809-0602 ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ●
222 BRACKET; CLIP 1-47475-868-0 02 1 9202-9504 ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9202-9808 ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9809- ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 		9-09164-510-0 04 1 9202-9205 ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9202-9808 ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9809-0605 ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0606- ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 06 1 9202-9205 ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9202-9808 ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9809-0603 ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9202-9808 ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9809- ● ● ● ●
382 BRACKET; PARKING BRK CONT CABLE 1-46147-109-0 01 1 9202-9202 ●
382 BRACKET; PARKING BRK CONT CABLE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-46147-110-0 01 1 9305-9310 ● ● ●
382 BRACKET; PARKING BRK CONT CABLE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-46147-223-0 01 1 9311-9504 ● ● ●
382 BRACKET; PARKING BRK CONT CABLE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RETARDER BRK<RE2> 		1-46147-223-0 01 1 9505-0203 ● ● ●
383 BOLT; BRKT,PARK BRAKE
M10X25 W/LK WASHER 		0-50051-025-0 03 1 9202-9202 ●
383 BOLT; BRKT,PARK BRAKE
M10X20 W/LK WASHER 		0-50051-020-0 02 1 9203-9205 ●
383 BOLT; BRKT,PARK BRAKE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X22 FLANGE 		0-28181-022-0 03 1 9305-0203 ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9202-9304 ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9305-9504 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9505-9701 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9702-9808 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9809-0602 ● ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ● ● ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9202-9701 ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9702-9808 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9809- ● ● ● ● ●

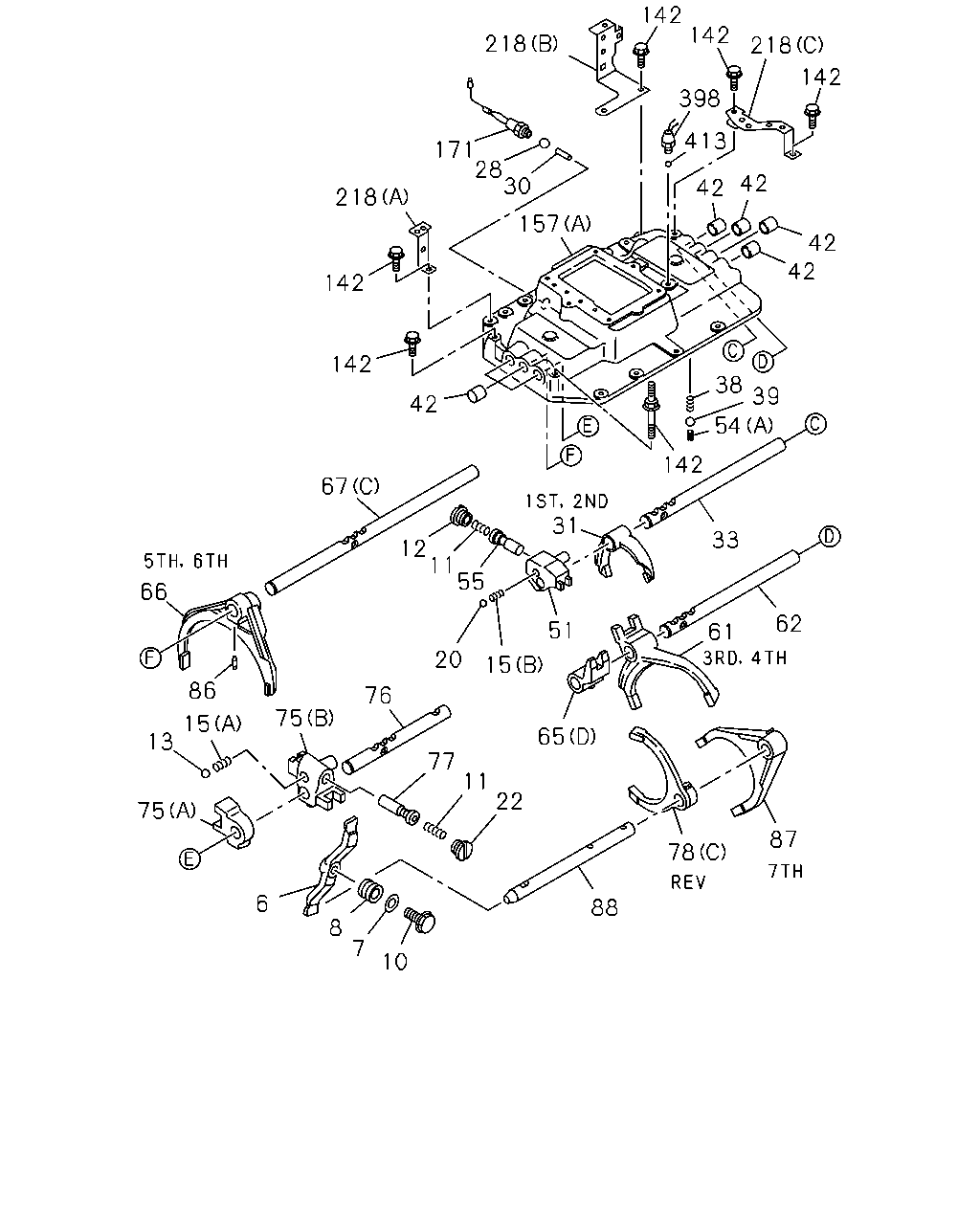

çizim 4447
142 142 218 218 142 398 413 171 28 30 42 42 218 157 42 42 142 142 38 39 42 54 142 67 31 33 12 11 55 66 62 51 61 20 15 86 76 75 15 65 13 77 11 22 75 87 78 7 6 88 8 7 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 LEVER; RELAY 1-33511-009-1 01 1 9702- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9702- ●
8 SPINDLE; REV & 7TH 9-33513-022-1 01 1 9702- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9702- ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09940-411-0 01 1 9202-9504 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9505-9701 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9702-9808 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9702-9808 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9809-0002 ● ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9809-0002 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0003-0203 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09941-160-0 01 1 0003-0203 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-09941-160-0 01 1 0003-0203 ●
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 0204- ● ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9202-9604 ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9605-9701 ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9702-9808 ● ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9809- ● ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9202-9701 ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9702-9808 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9809- ● ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9202-9808 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-442-0 01 1 9809- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-440-0 01 1 9702- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-553-0 01 1 9702- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9202-9701 ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9702-9808 ● ● ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9809- ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9202-9304 ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9305-9808 ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9809- ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9702- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9202-9701 ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9702-9808 ● ● ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 9809- ● ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9202-9701 ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9702-9808 ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9809- ● ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9202-9808 ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-439-1 01 1 9809- ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-426-0 01 1 9702- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9202-9808 ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-253-1 01 1 9809-1202 ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 8-98207-578-0 01 1 1203- ● ● ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-246-2 01 1 9702-1202 ●
33 ROD; SHIFT,LOW & 2ND 8-98207-577-0 01 1 1203- ●
38 SPRING; DETENT 1-09580-419-0 04 1 9202-9202 ●
38 SPRING; DETENT 1-09580-379-0 04 1 9203-9504 ● ● ●
38 SPRING; DETENT 1-09580-419-0 04 1 9505-9611 ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9612-9701 ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9702-9808 ● ● ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 9809- ● ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9202-9701 ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9702-9808 ● ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9809- ● ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9202-9808 ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 06 1 9809- ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9702- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-311-2 01 1 9702- ●
54 PIN; SPR,SHIFT BLOCK
(B) OD=3.2 L=5.3 		1-09748-006-0 01 1 9202-9808 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(B) OD=3.2 L=5.3 		1-09748-006-0 01 1 9809-0201 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) OD=4.4 L=18 		1-09748-014-0 03 1 9202-9701 ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) OD=4.4 L=18 		1-09748-014-0 03 1 9702-9808 ● ● ● ●
54 PIN; SPR,SHIFT BLOCK
(A) OD=4.4 L=18 		1-09748-014-0 03 1 9809- ● ● ● ● ●
55 SLEEVE; 1ST & 2ND 1-33516-025-0 01 1 9702- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-414-3 01 1 9202-9412 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9501-9808 ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-490-1 01 1 9809- ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-491-2 01 1 9702- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9202-9808 ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-254-1 01 1 9809-1202 ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 8-98207-586-0 01 1 1203- ● ● ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-247-0 01 1 9702-1202 ●
62 ROD; SHIFT,3RD & 4TH 8-98207-585-0 01 1 1203- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-308-0 01 1 9202-9202 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-357-1 01 1 9203-9504 ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-357-1 01 1 9505-9602 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9603-9808 ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-513-0 01 1 9809- ● ● ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9305-9808 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-208-3 01 1 9809- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9505-9808 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-202-3 01 1 9809- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(D) 		1-33511-331-3 01 1 9702- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-224-2 01 1 9202-9412 ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-488-1 01 1 9501- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-217-1 01 1 9305-9412 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-487-0 01 1 9501-9504 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9505-9808 ●
66 ARM; SHIFT,5TH & 6TH 1-33511-505-0 01 1 9809- ● ●
66 ARM; SHIFT,5TH & 6TH 1-33511-489-1 01 1 9702- ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9202-9808 ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		1-33531-255-1 01 1 9809-1202 ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(A) L=278 		8-98207-589-0 01 1 1203- ● ● ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9305-9808 ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		1-33531-235-1 01 1 9809-1202 ● ●
67 ROD; SHIFT,5TH & 6TH
(B) L=122 		8-98207-587-0 01 1 1203- ● ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		1-33531-248-0 01 1 9702-1202 ●
67 ROD; SHIFT,5TH & 6TH
(C) L=407 		8-98207-588-0 01 1 1203- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-202-3 01 1 9702- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-309-1 01 1 9702- ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-249-0 01 1 9702-1202 ●
76 ROD; SHIFT,REV & 7TH BLOCK 8-98207-591-0 01 1 1203- ●
77 SLEEVE; REV & 7TH 1-33516-025-0 01 1 9702- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9202-9808 ● ● ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9809- ● ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9202-9808 ● ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-234-1 01 1 9809- ● ● ● ●
78 ARM; SHIFT,REV
(C) 		1-33511-232-5 01 1 9702- ●
86 SCREW; TAPER,ARM TO ROD 1-09129-014-1 07 1 9202-9202 ●
86 SCREW; TAPER,ARM TO ROD 1-09129-014-2 07 1 9203-9412 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 07 1 9501-9512 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 07 1 9601- ● ●
86 SCREW; TAPER,ARM TO ROD 1-09129-014-2 09 1 9305-9412 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 NO-HOLE 		1-09052-032-1 09 1 9501-9512 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9601-9701 ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9702-9805 ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9806-9808 ● ● ● ●
86 SCREW; TAPER,ARM TO ROD
M12X20 		1-09052-039-0 09 1 9809- ● ● ●
87 ARM; SHIFT,7TH 1-33511-229-4 01 1 9702- ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-250-0 01 1 9702-1202 ●
88 ROD; SHIFT,REV & 7TH ARM 8-98207-592-0 01 1 1203- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9809-0512 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9304 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9305-9504 ● ● ●
142 BOLT; QUAD BOX
M10X22,M10X66 L=96 		1-09069-006-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9702-9805 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9809- ● ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-336-1 01 1 9203-9504 ● ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-392-1 01 1 9202-9202 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-295-6 01 1 9202-9601 ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-480-0 01 1 9602- ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-365-0 01 1 9505-9603 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9604-9808 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9809- ● ● ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-296-7 01 1 9305-9601 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9602-9808 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9809- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-392-1 01 1 9702-9706 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-393-1 01 1 9707- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9702- ●
171 SWITCH; NEUTRAL 1-82440-067-1 01 1 9202-9504 ● ● ●
171 SWITCH; NEUTRAL 1-82440-081-2 01 1 9505-9509 ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9510-9701 ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9702-9808 ● ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 9809-0702 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1104 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1105-1109 ● ● ● ● ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110- ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9505-9701 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9702-9808 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-663-1 01 1 9809- ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(E) 		1-09700-415-0 01 1 9202-9202 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(E) 		1-09700-415-0 02 1 9203-9504 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9505-9701 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9702-9808 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 9809- ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(D) 		1-47476-812-1 01 1 9202-9202 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9505-9701 ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9702-9808 ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-733-0 01 1 9809- ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9202-9304 ●
398 SWITCH; REV LAMP 1-82440-050-1 01 1 9305-9504 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9505-9701 ● ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9702-9808 ● ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9809-0602 ● ● ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ● ● ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9202-9701 ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9702-9808 ● ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9809- ● ● ● ● ●

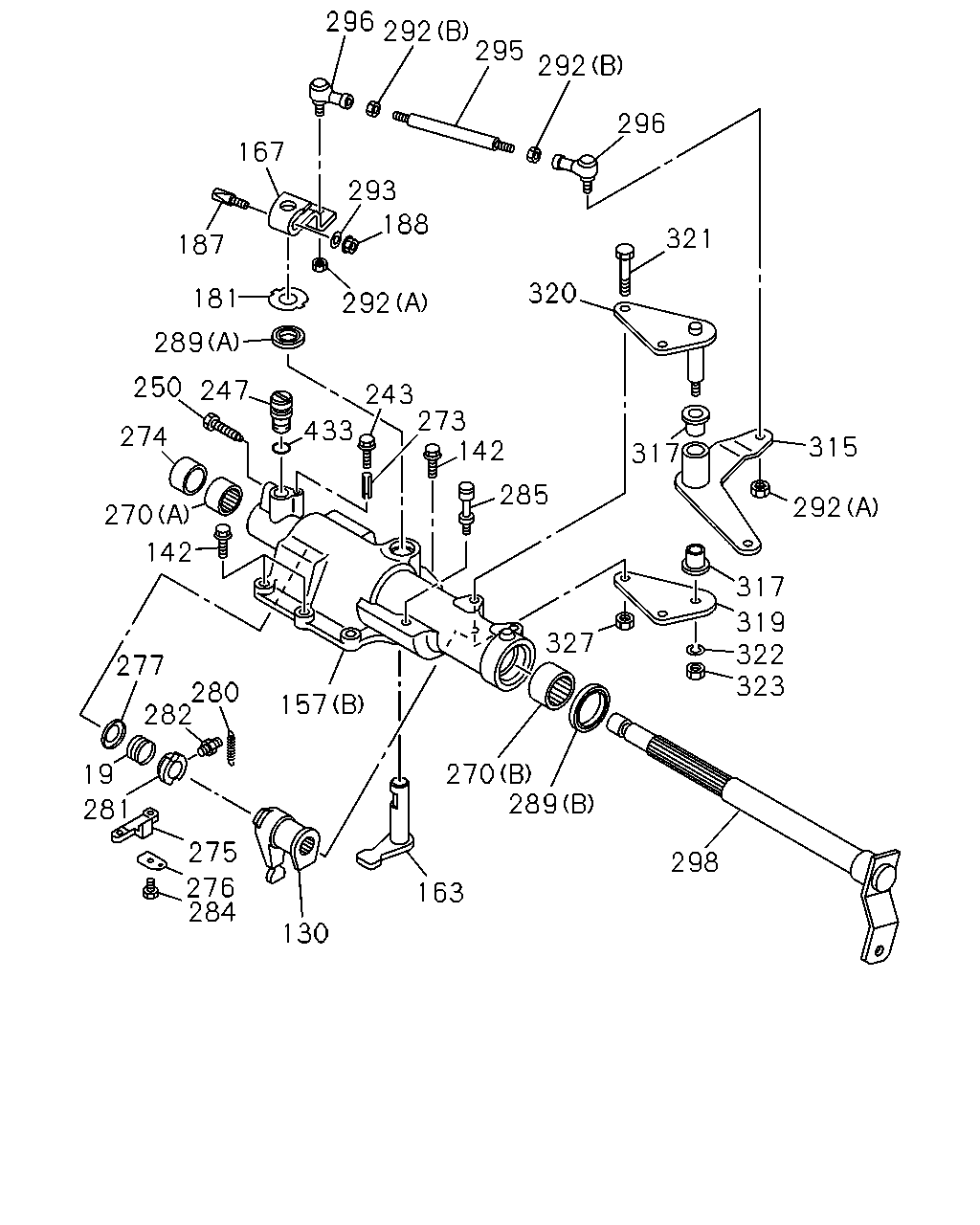

çizim 4738
296 292 295 292 296 167 293 188 321 187 320 181 292 289 250 247 243 273 433 142 274 317 315 270 142 285 292 317 319 322 323 277 327 157 280 282 19 281 270 289 275 276 284 298 163 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 SPRING; COIL COMP 1-09580-441-0 01 1 9202-9202 ●
19 SPRING; COIL COMP 1-09580-439-0 01 1 9203-9504 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9505-9808 ● ● ●
19 SPRING; COIL COMP 1-09580-441-0 01 1 9809- ● ● ● ●
19 SPRING; COIL COMP 1-09580-403-1 01 1 9702- ●
130 LEVER; SHIFT,INTERNAL 1-33521-093-1 01 1 9202-9202 ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9505-9808 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9809- ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-094-2 01 1 9702- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9809-0512 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9304 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9305-9504 ● ● ●
142 BOLT; QUAD BOX
M10X22,M10X66 L=96 		1-09069-006-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9702-9805 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9809- ● ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-336-1 01 1 9203-9504 ● ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-392-1 01 1 9202-9202 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-295-6 01 1 9202-9601 ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-480-0 01 1 9602- ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-365-0 01 1 9505-9603 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9604-9808 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9809- ● ● ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-296-7 01 1 9305-9601 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9602-9808 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9809- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-392-1 01 1 9702-9706 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-393-1 01 1 9707- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9702- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9202-9202 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9505-9701 ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9702-9808 ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9809-9809 ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9810-0002 ● ● ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-33522-041-3 01 1 9810-0002 ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> 		1-33522-041-3 01 1 9810-0002 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0003-0203 ● ● ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-33522-041-4 01 1 0003-0203 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0204- ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9202-9202 ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9505-9701 ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9702-9808 ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 9809- ● ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9202-9202 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9505-9701 ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9702-9808 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9809- ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9202-9202 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9505-9701 ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9702-9808 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9809- ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9202-9202 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9505-9701 ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9702-9804 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-9808 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9809- ● ● ● ● ●
243 BOLT; COVER
M6X10 		0-20800-610-0 01 1 9202-9202 ●
243 BOLT; COVER
M6X10 FLANGE 		0-28080-610-0 01 1 9702-0512 ●
243 BOLT; COVER
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9202-9202 ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9702-9706 ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9202-9202 ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9702-9706 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-006-0 01 1 9202-9202 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NSK 		1-09811-057-0 01 1 9202-9202 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-260-0 01 1 9202-9202 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9702- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9702- ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9702- ●
273 PIN; SPR,STOPPER
OD=4.2 L=45 		1-09748-016-0 01 1 9202-9202 ●
273 PIN; SPR,STOPPER
OD=4.2 L=45 		1-09748-016-0 01 1 9702- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9202-9202 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9505-9701 ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9702-9808 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9809- ● ● ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX 1-33529-027-0 01 1 9702- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 9702- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 9702- ●
280 SPRING; COIL TENSION 1-09583-227-0 01 1 9702- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-025-2 01 1 9702- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9702- ●
284 BOLT; REAMER,QUAD BOX
M8X22 		1-09040-075-1 02 1 9702- ●
285 BREATHER; AIR,QUAD BOX 1-33149-002-0 01 1 9203-9304 ●
285 BREATHER; AIR,QUAD BOX 1-33149-002-0 01 1 9305-9504 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9505-9701 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9702-9808 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9809- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9505-9701 ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9702-9808 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9809-0307 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9505-9701 ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9702-9808 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9809- ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09110-408-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9505-9701 ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9702-9804 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9808 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9809- ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9505-9701 ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9702-9808 ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9809-0512 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9202-9202 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9505-9701 ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9702-9808 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9809-0605 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-33652-392-0 01 1 9202-9202 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9505-9701 ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9702-9808 ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9809- ● ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9202-9202 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9505-9701 ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9702-9808 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9809-0309 ● ● ● ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-091-1 01 1 9202-9202 ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9505-9808 ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9809-0307 ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0308- ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-159-0 01 1 9702- ●
315 LEVER; SELECT 1-33651-496-0 01 1 9202-9202 ●
315 LEVER; SELECT 1-33651-487-0 01 1 9505-9808 ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9809- ● ● ● ●
315 LEVER; SELECT 1-33651-496-0 01 1 9702- ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9202-9202 ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9505-9701 ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9702-9808 ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9809- ● ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9202-9202 ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9505-9808 ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9809- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9702- ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9202-9202 ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9505-9808 ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9809- ● ● ● ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9702- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9202-9202 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9505-9701 ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9702-9808 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9809-0512 ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9202-9202 ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9505-9701 ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9702-9808 ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9809- ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9202-9202 ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9505-9701 ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9702-9808 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9809- ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 03 1 9202-9202 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9505-9701 ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9702-9808 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9809-0602 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9806-9808 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9809-0512 ● ● ● ● ●
433 GASKET; BUSHING 1-09623-130-0 01 1 9202-9202 ●
433 GASKET; BUSHING 1-09623-130-0 01 1 9702-9706 ●
çizim 5467
295 296 292 296 292 188 168 293 291 292 289 285 187 167 243 244 245 273 247 433 142 290 250 274 270 181 74 298 289 73 321 71 270 157 320 317 315 317 319 328 327 291 292 322 323 163 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E
71 NUT; SHIFT LEVER
M10 		9-09110-410-0 01 1 9202-9202 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9305-9808 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 9809-0602 ● ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
73 WASHER; LK,SHIFT LEVER
ID=10.2 		9-09150-510-0 01 1 9202-9202 ●
74 PIN; WIRE,SHIFT LEVER 1-33659-115-0 01 1 9202-9202 ●
130 LEVER; SHIFT,INTERNAL 1-33521-093-1 01 1 9202-9202 ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9505-9808 ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-111-1 01 1 9809- ● ● ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-094-2 01 1 9702- ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9809-0805 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		8-98044-944-0 12 1 0806- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X65 		0-16806-065-0 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9702-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28181-060-0 03 1 9809-0512 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X60 FLANGE 		0-28151-060-0 03 1 0601- ● ● ● ● ●
142 BOLT; QUAD BOX
M10X32 W/LK&PL WASHER 		0-50151-032-0 08 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE 		0-28181-028-0 12 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X35 W/LK&PL WASHER 		0-50151-035-0 04 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X35 		1-09040-064-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9206-9304 ●
142 BOLT; QUAD BOX
M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9305-9504 ● ● ●
142 BOLT; QUAD BOX
M10X22,M10X66 L=96 		1-09069-006-1 02 1 9202-9205 ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 02 1 9206-9504 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9505-9701 ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9702-9805 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9806-9808 ● ● ● ●
142 BOLT; QUAD BOX
M10X20,M10X60 L=90 		1-09049-020-0 01 1 9809- ● ● ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-336-1 01 1 9203-9504 ● ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-392-1 01 1 9202-9202 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-295-6 01 1 9202-9601 ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-480-0 01 1 9602- ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-365-0 01 1 9505-9603 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9604-9808 ● ● ●
157 BOX; QUAD,TRANS
(E) 		1-33541-478-0 01 1 9809- ● ● ● ●
157 BOX; QUAD,TRANS
(D) 		1-33541-296-7 01 1 9305-9601 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9602-9808 ●
157 BOX; QUAD,TRANS
(D) 		1-33541-481-0 01 1 9809- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-392-1 01 1 9702-9706 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-393-1 01 1 9707- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-482-0 01 1 9702- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9202-9202 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9505-9701 ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9702-9808 ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9809-9809 ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9810-0002 ● ● ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-33522-041-3 01 1 9810-0002 ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> 		1-33522-041-3 01 1 9810-0002 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0003-0203 ● ● ●
163 LEVER; SELECT,INTERNAL
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-33522-041-4 01 1 0003-0203 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0204- ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9202-9202 ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9505-9701 ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-0 01 1 9702-9808 ● ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-064-1 01 1 9809- ● ● ● ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9202-9202 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9202-9202 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9505-9701 ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9702-9808 ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9809- ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9202-9202 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9505-9701 ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9702-9808 ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9809- ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9202-9202 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9505-9701 ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9702-9804 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-9808 ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9809- ● ● ● ● ●
243 BOLT; COVER
M6X10 		0-20800-610-0 01 1 9202-9202 ●
243 BOLT; COVER
M6X10 FLANGE 		0-28080-610-0 01 1 9702-0512 ●
243 BOLT; COVER
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ●
244 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 01 1 9202-9202 ●
245 WASHER; PL,COVER
ID=6.4 		9-09160-506-0 01 1 9202-9202 ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9202-9202 ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9702-9706 ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9202-9202 ●
250 SCREW; BUSHING 9-06130-618-0 01 1 9702-9706 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-006-0 01 1 9202-9202 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NSK 		1-09811-057-0 01 1 9202-9202 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-260-0 01 1 9202-9202 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9702- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9702- ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9702- ●
273 PIN; SPR,STOPPER
OD=4.2 L=45 		1-09748-016-0 01 1 9202-9202 ●
273 PIN; SPR,STOPPER
OD=4.2 L=45 		1-09748-016-0 01 1 9702- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9202-9202 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9505-9701 ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9702-9808 ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9809- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-002-0 01 1 9203-9304 ●
285 BREATHER; AIR,QUAD BOX 1-33149-002-0 01 1 9305-9504 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9505-9701 ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9702-9808 ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9809- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9202-9202 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9505-9701 ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9702-9808 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-334-0 01 1 9809-0307 ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9505-9701 ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9702-9808 ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30 		1-09625-386-0 01 1 9809- ● ● ● ● ●
290 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9202-9202 ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(A) M8 		9-09110-408-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9202-9202 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9505-9701 ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9702-9804 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9808 ● ● ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9809- ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9505-9701 ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9702-9808 ● ● ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9809-0512 ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9202-9202 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9505-9701 ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9702-9808 ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9809-0605 ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-33652-392-0 01 1 9202-9202 ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9505-9701 ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9702-9808 ● ● ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9809- ● ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9202-9202 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9505-9701 ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9702-9808 ● ● ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9809-0309 ● ● ● ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-091-1 01 1 9202-9202 ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9505-9808 ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-140-0 01 1 9809-0307 ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-186-0 01 1 0308- ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-159-0 01 1 9702- ●
315 LEVER; SELECT 1-33651-496-0 01 1 9202-9202 ●
315 LEVER; SELECT 1-33651-487-0 01 1 9505-9808 ● ● ●
315 LEVER; SELECT 1-33651-487-0 01 1 9809- ● ● ● ●
315 LEVER; SELECT 1-33651-496-0 01 1 9702- ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9202-9202 ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9505-9701 ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9702-9808 ● ● ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9809- ● ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9202-9202 ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9505-9808 ● ● ●
319 BRACKET; SELECT LEVER 1-33657-412-0 01 1 9809- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-240-0 01 1 9702- ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9202-9202 ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9505-9808 ● ● ●
320 SHAFT; LEVER 1-33657-413-0 01 1 9809- ● ● ● ●
320 SHAFT; LEVER 1-33657-241-0 01 1 9702- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9202-9202 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9505-9701 ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9702-9808 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9809-0512 ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601- ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9202-9202 ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9505-9701 ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9702-9808 ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9809- ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9202-9202 ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9505-9701 ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9702-9808 ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9809- ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 03 1 9202-9202 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9505-9701 ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9702-9808 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9809-0602 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9806-9808 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 01 1 9809-0512 ● ● ● ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9202-9202 ●
433 GASKET; BUSHING 1-09623-130-0 01 1 9202-9202 ●
433 GASKET; BUSHING 1-09623-130-0 01 1 9702-9706 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
