0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#44225) — 41 parça

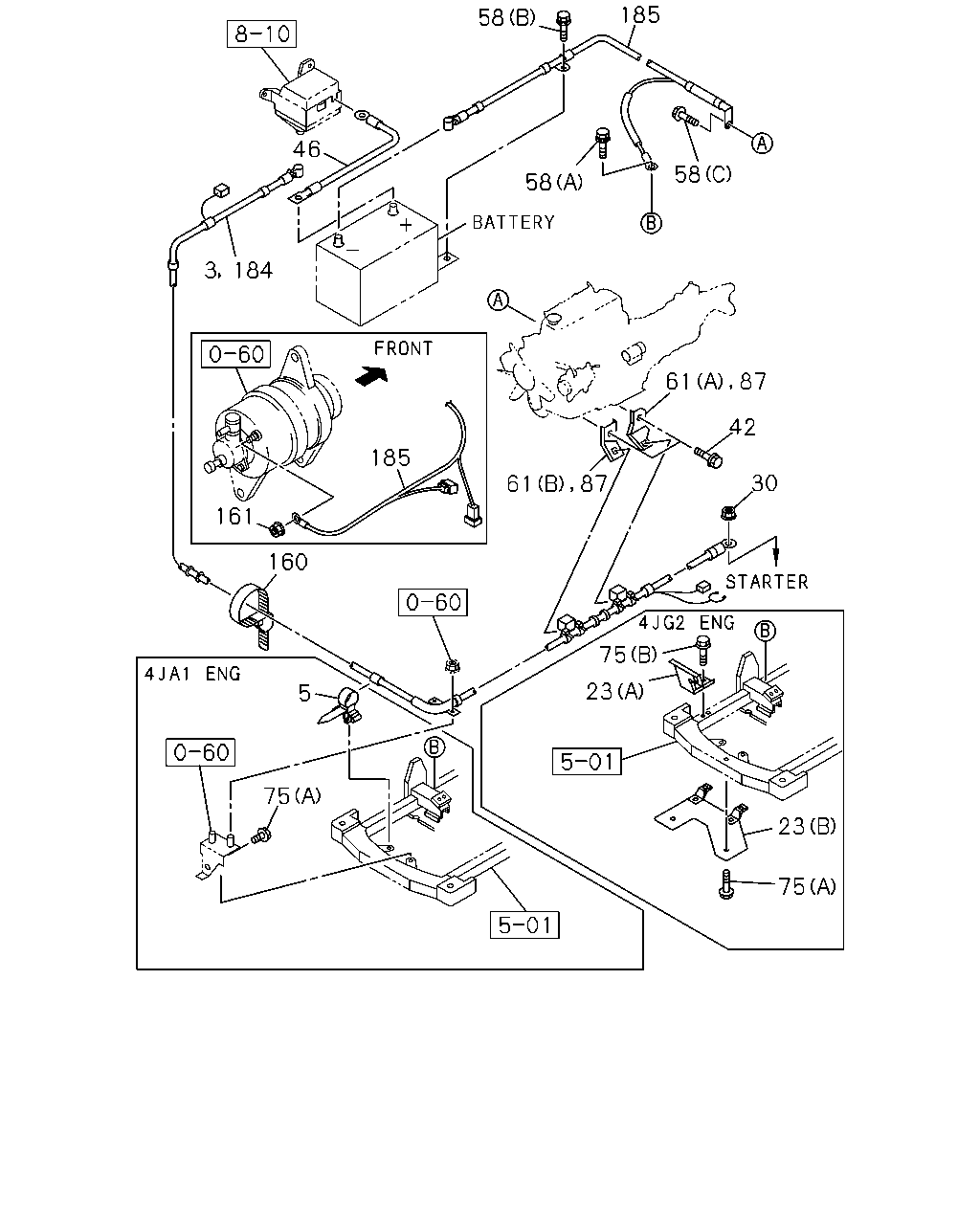

çizim 65208
185 58 46 58 58 3 184 61 87 42 185 30 161 160 75 23 5 75 23 75 61 87
BalonParca AdiParca NoAdetTipApplied Date A B
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97079-137-4 01 1 9804-9906 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97069-716-5 01 1 9804-9906 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.587 L=172 		8-94232-620-0 01 1 9804- ●
23 02.343 BRACKET; CABLE CLIP TO FRAME
(A) 		8-97066-915-0 01 1 9804- ●
23 02.343 BRACKET; CABLE CLIP TO FRAME
(B) 		8-97081-412-0 01 1 9804- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9804- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9804-0102 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0103- ● ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-2 01 1 9804-9906 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9804-0108 ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9906 ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804- ● ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 01 1 9804-9906 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9907-9907 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9908-9908 ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (A) 		8-97232-164-0 01 1 9908-9908 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9909- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 9804- ●
75 02.333 BOLT; BRKT
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 9804- ● ●
75 02.333 BOLT; BRKT
4X4(TFS***) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 02 1 9804-9906 ●
75 02.333 BOLT; BRKT
04.439 (B) M6X16 FLANGE 		0-28680-616-0 02 1 9907- ●
87 02.343 BRACKET; HARNESS 8-94315-286-0 02 1 9804-9805 ●
87 02.343 BRACKET; HARNESS
M/T MUA 5 SPEED(RMN) 		8-94315-286-0 02 1 9806-9907 ●
87 02.343 BRACKET; HARNESS
A/T AISIN(RMD) 02.333 		8-97189-357-0 01 1 9806- ●
87 02.343 BRACKET; HARNESS
M/T MUA 5 SPEED(RMN) 02.333 		8-97232-164-0 02 1 9909- ●
160 02.343 CLIP; BATTERY CABLE
03.162 L=140 		5-09707-031-1 01 1 9804-0107 ● ●
160 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0108- ● ●
161 02.343 NUT; BATTERY CABLE
CHARGE AIR COOLER<6PL> 04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97217-417-0 01 1 9907-0107 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
4X2(TFB***) 		8-97217-417-0 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
4X4(TFS***) EXC. SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
4X2 SPACE CAB(TFB*C*) 		8-97217-417-0 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
4X4(TFS***) SHIFT ON THE FLY(7EX) 		8-97217-416-2 01 1 0108- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97226-943-1 01 1 9907- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0108- ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97149-914-1 01 1 9804-9906 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 9907-0107 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. CHARGE AIR COOLER<6PL> 		8-97226-944-2 01 1 0108- ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0108- ●
