0-60 — ENGINE ELECTRICAL CONTROL PARTS (#44224) — 83 parça

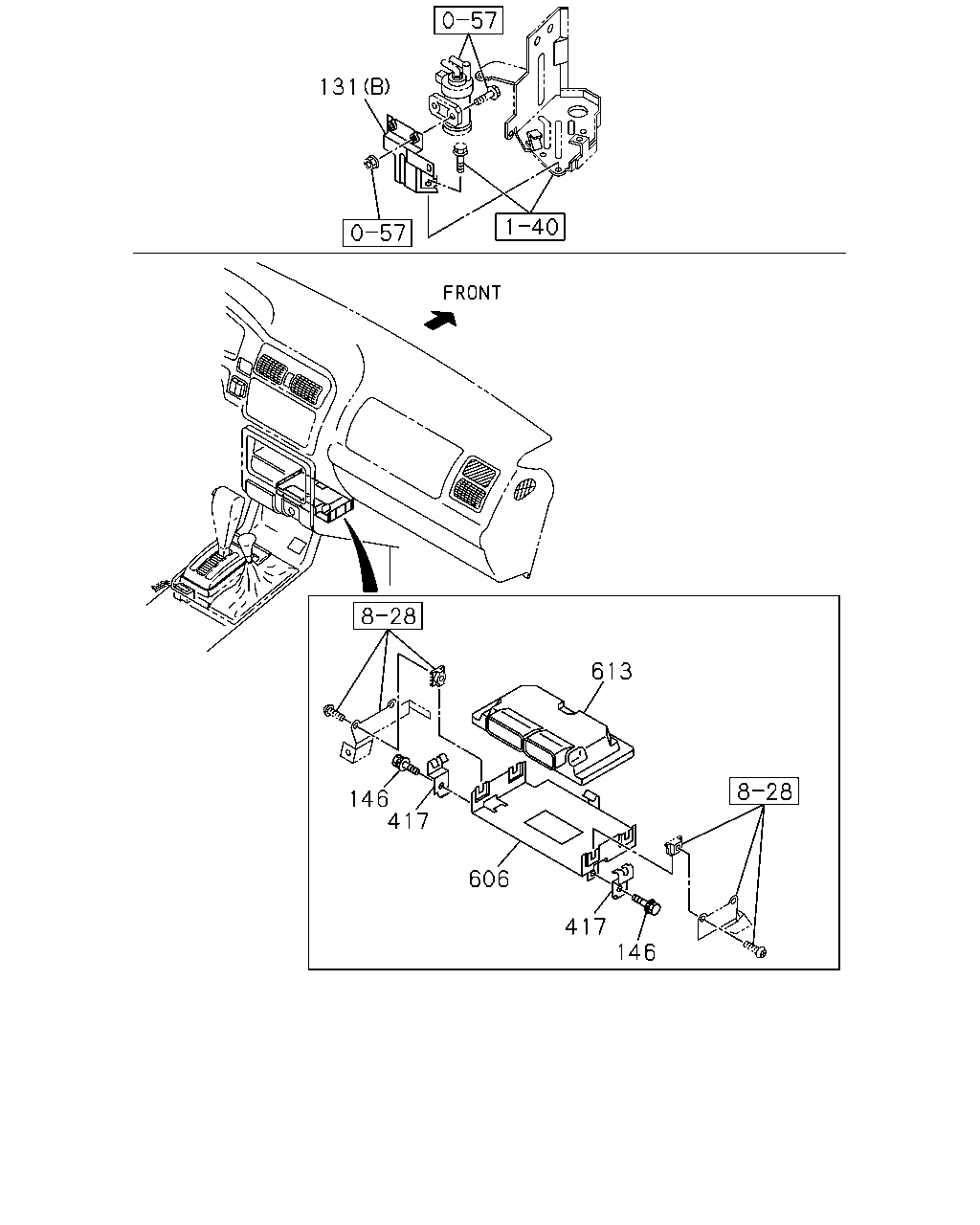

çizim 64153
131 613 146 417 606 417 146
BalonParca AdiParca NoAdetTipApplied Date A B
131 03.670 BRACKET; EGR
CHARGE AIR COOLER<6PL> (B) 		8-97322-094-0 01 1 0108- ●
131 03.670 BRACKET; EGR
(A) 		8-97106-698-0 01 1 9804-0107 ●
131 03.670 BRACKET; EGR
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97106-698-0 01 1 0108- ●
146 02.195 BOLT; CLIP
CHARGE AIR COOLER<6PL> 08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0108- ●
417 02.420 CLIP
CHARGE AIR COOLER<6PL> 02.500 		8-97240-154-1 02 1 0108- ●
606 03.680 BRACKET; CONT UNIT
CHARGE AIR COOLER<6PL> 		8-97287-149-0 01 1 0108- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> 		8-97303-593-5 01 1 0108- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97249-234-5 01 1 0108- ●

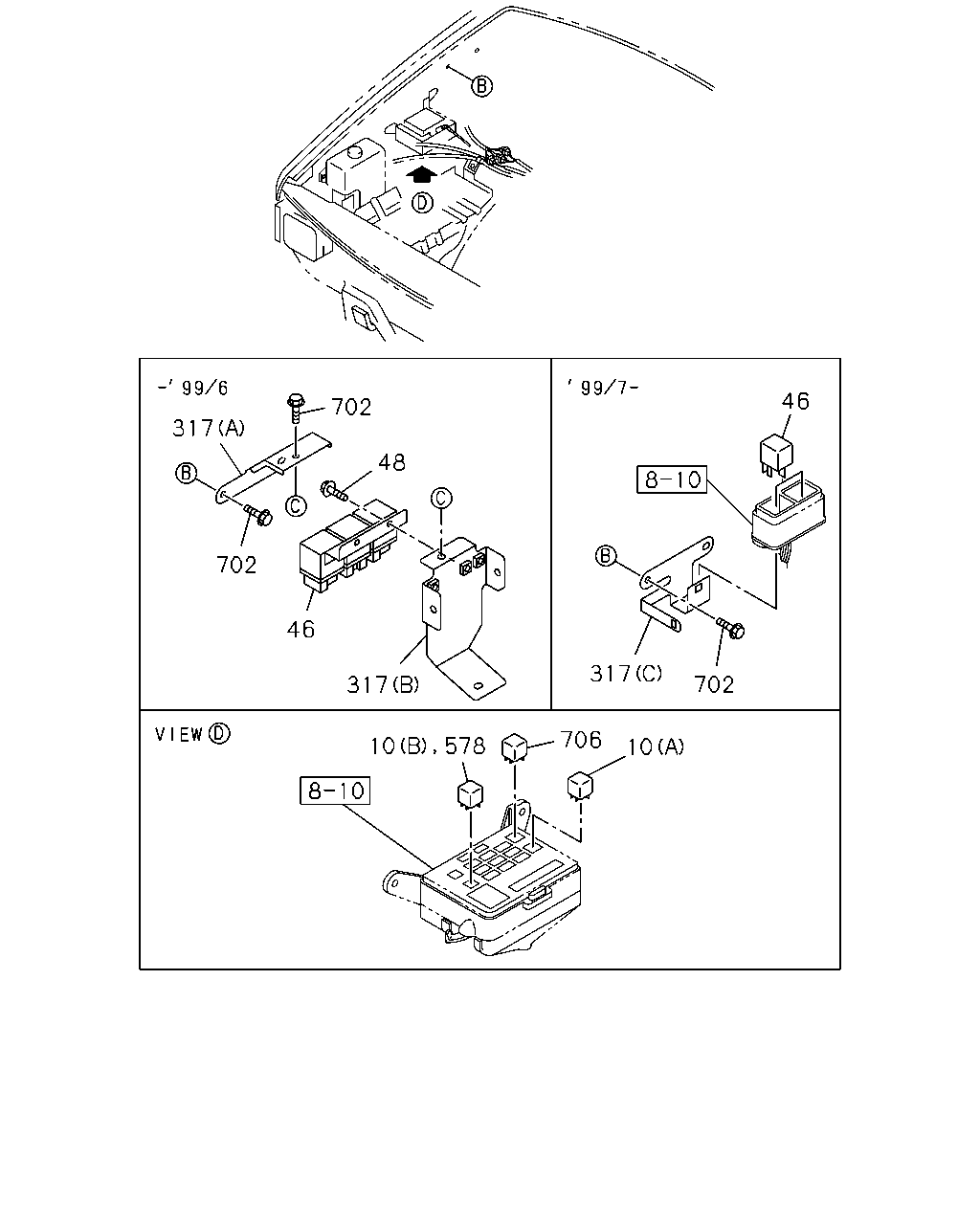

çizim 64656
46 702 317 48 702 46 317 702 317 706 10 10 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
CHARGE AIR COOLER<6PL> 08.852 (B) 12V 20A 		8-97060-926-1 01 1 0108- ●
10 02.100 RELAY; STARTER
02.510 (A) 12V 35A 		8-97180-794-1 01 1 9907- ● ●
46 02.510 RELAY; GLOW PLUG 8-94459-495-0 01 1 9804-9906 ●
46 02.510 RELAY; GLOW PLUG
12V 35A 		8-97180-794-1 01 1 9907- ●
46 02.510 RELAY; GLOW PLUG 8-97066-916-0 01 1 9804-9906 ●
46 02.510 RELAY; GLOW PLUG
12V 35A 		8-97180-794-1 02 1 9907- ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9804-9906 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(A) 		8-94479-552-2 01 1 9804-9906 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(C) 		8-97226-972-0 01 1 9907-0002 ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(C) 		8-97252-258-0 01 1 0003- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-97074-308-1 01 1 9804-9906 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-1 01 1 9804-0107 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. CHARGE AIR COOLER<6PL> 12V 		8-97063-441-2 01 1 0108- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0108- ●
702 02.500 BOLT; RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9804-9810 ● ●
702 02.500 BOLT; RELAY
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9811-9906 ● ●
702 02.500 BOLT; RELAY
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9907- ● ●
706 02.510 RELAY; QWS
08.852 12V 20A 		8-97060-926-1 01 1 9804-9906 ● ●
706 02.510 RELAY; QWS
02.100 12V 20A 		8-97173-039-1 01 1 9907-0107 ● ●
706 02.510 RELAY; QWS
ENG QUICK WARM UP SYSTEM<6JZ> 02.100 12V 20A 		8-97173-039-1 01 1 0108- ●
706 02.510 RELAY; QWS
EXC. CHARGE AIR COOLER<6PL> 02.100 12V 20A 		8-97173-039-1 01 1 0108- ●

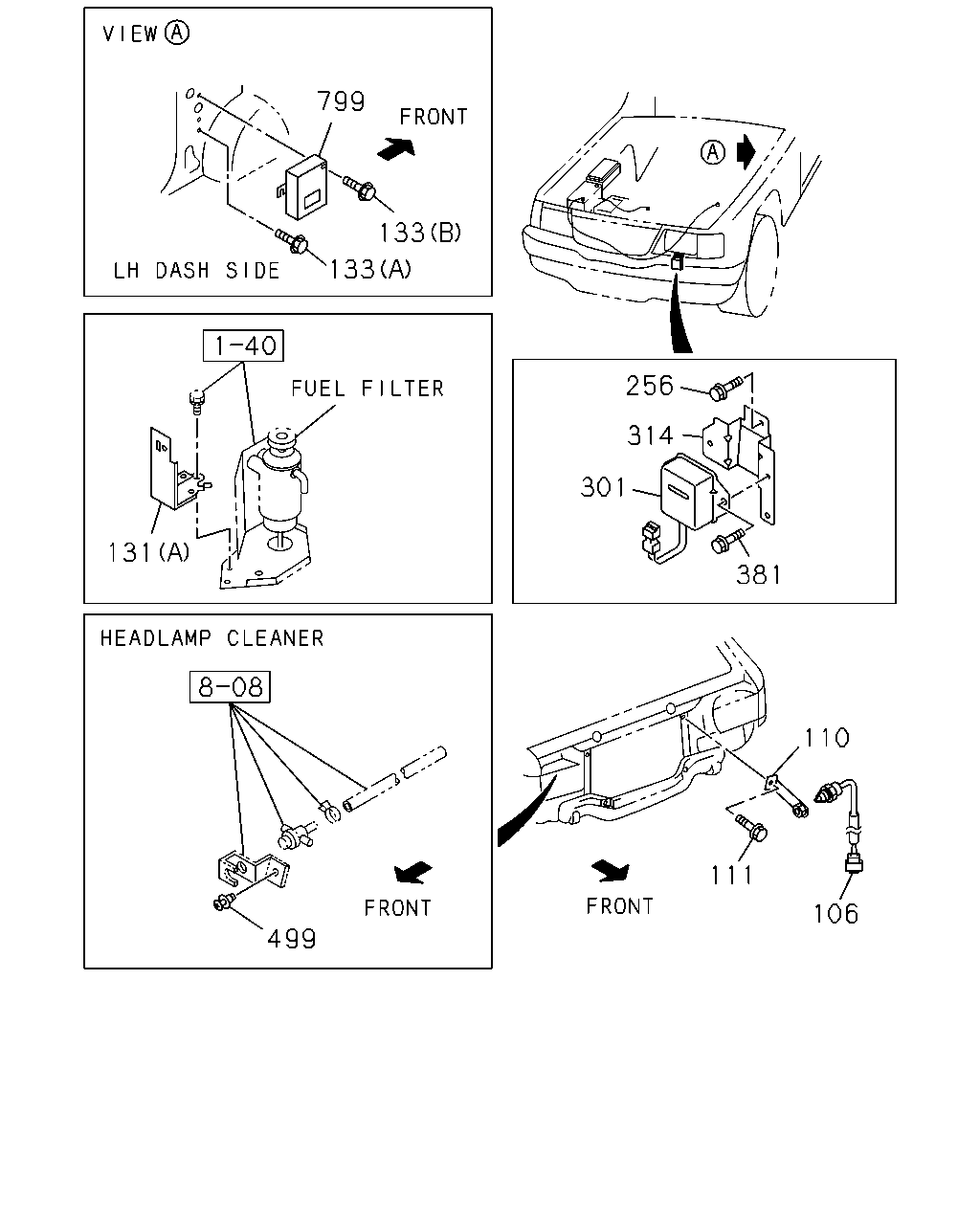

çizim 65250
799 133 133 256 314 301 131 381 110 111 106 499
BalonParca AdiParca NoAdetTipApplied Date A B
106 01.150 SWITCH; THERMO,AIR 8-97019-773-0 01 1 9804-0107 ● ●
106 01.150 SWITCH; THERMO,AIR
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97019-773-0 01 1 0108- ●
106 01.150 SWITCH; THERMO,AIR
EXC. CHARGE AIR COOLER<6PL> 		8-97019-773-0 01 1 0108- ●
106 01.150 SWITCH; THERMO,AIR 8-97019-773-0 01 1 0108- ●
110 01.251 BRACKET; THERMO SW CONNECTOR 8-97079-795-0 01 1 9804-0107 ● ●
110 01.251 BRACKET; THERMO SW CONNECTOR
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97079-795-0 01 1 0108- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EXC. CHARGE AIR COOLER<6PL> 		8-97079-795-0 01 1 0108- ●
110 01.251 BRACKET; THERMO SW CONNECTOR 8-97079-795-0 01 1 0108- ●
111 01.251 BOLT; SWITCH BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9804-0107 ● ●
111 01.251 BOLT; SWITCH BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0108- ● ●
111 01.251 BOLT; SWITCH BRKT
ENG QUICK WARM UP SYSTEM<6JZ> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0108- ●
131 03.670 BRACKET; EGR
CHARGE AIR COOLER<6PL> (B) 		8-97322-094-0 01 1 0108- ●
131 03.670 BRACKET; EGR
(A) 		8-97106-698-0 01 1 9804-0107 ●
131 03.670 BRACKET; EGR
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97106-698-0 01 1 0108- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 (A) M6X16 		8-97012-496-0 02 1 9804- ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9804-0107 ● ●
133 02.500 BOLT; EGR CONTROLLER
EXC. CHARGE AIR COOLER<6PL> 06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 0108- ●
133 02.500 BOLT; EGR CONTROLLER
06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 0108- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 (A) M6X16 		8-97012-496-0 01 1 9804- ●
256 02.510 BOLT; BRKT,RESISTOR
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9804-0012 ●
256 02.510 BOLT; BRKT,RESISTOR
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0101- ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9804- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97066-700-1 01 1 9804- ●
381 02.183 BOLT; DROPPING RESISTOR
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9804-0012 ●
381 02.183 BOLT; DROPPING RESISTOR
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0101- ●
499 02.510 GROMMET
HEADLAMP WASHER<CE3> 02.780 		8-94244-699-0 01 1 9804- ● ●
799 02.510 CONTROLLER; EGR/QOS 8-97189-475-1 01 1 9804-0107 ●
799 02.510 CONTROLLER; EGR/QOS
EXC. CHARGE AIR COOLER<6PL> 		8-97189-475-1 01 1 0108- ●
799 02.510 CONTROLLER; EGR/QOS 8-97116-900-1 01 1 9804- ●

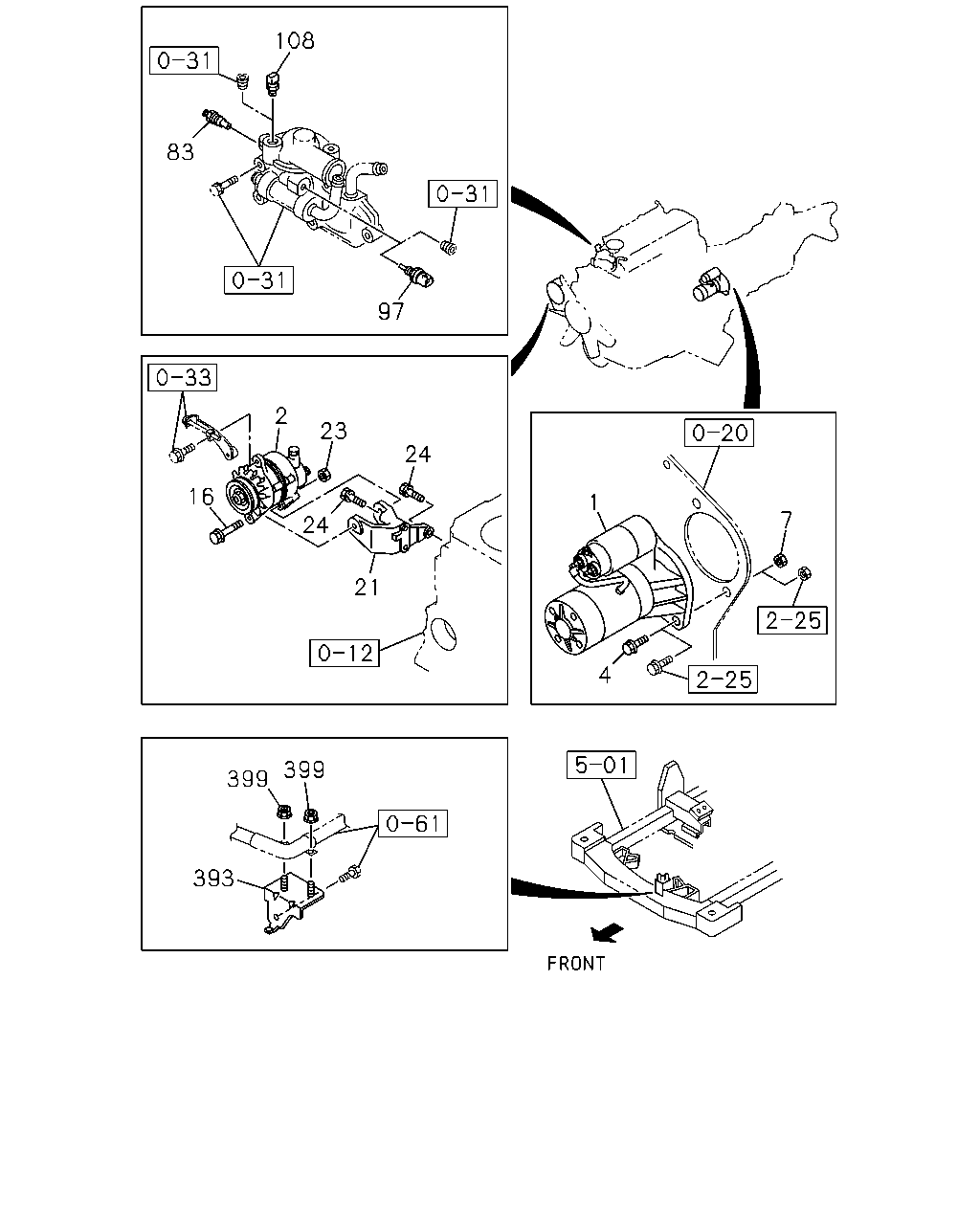

çizim 65299
108 83 97 2 23 24 16 1 7 24 21 4 399 399 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CHARGE AIR COOLER<6PL> 12V 2.3KW 		8-97255-390-1 01 1 0108-0201 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97255-390-1 01 1 0202- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 9804-0107 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL> 12V 2.3KW 		8-97136-688-0 01 1 0108-0201 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97136-688-0 01 1 0108-0201 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-653-0 01 1 9804-0107 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL> 12V 50A 		8-97187-653-1 01 1 0108- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. CHARGE AIR COOLER<6PL> 12V 60A 		8-97240-270-1 01 1 0108- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97187-655-0 01 1 9804- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9804- ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9804-9805 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9806- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9804- ● ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9804- ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9804- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9804- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9804- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9804- ● ●
97 01.150 SWITCH; THERMO,EGR CONT
CHARGE AIR COOLER<6PL> 		8-97069-786-1 01 1 0108- ●
108 01.150 SWITCH; THERMO 8-97069-786-1 01 1 9804-0107 ● ●
108 01.150 SWITCH; THERMO
EXC. CHARGE AIR COOLER<6PL> 		8-97069-786-1 01 1 0108- ●
108 01.150 SWITCH; THERMO 8-97069-786-1 01 1 0108- ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9804- ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9804- ●
