◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶

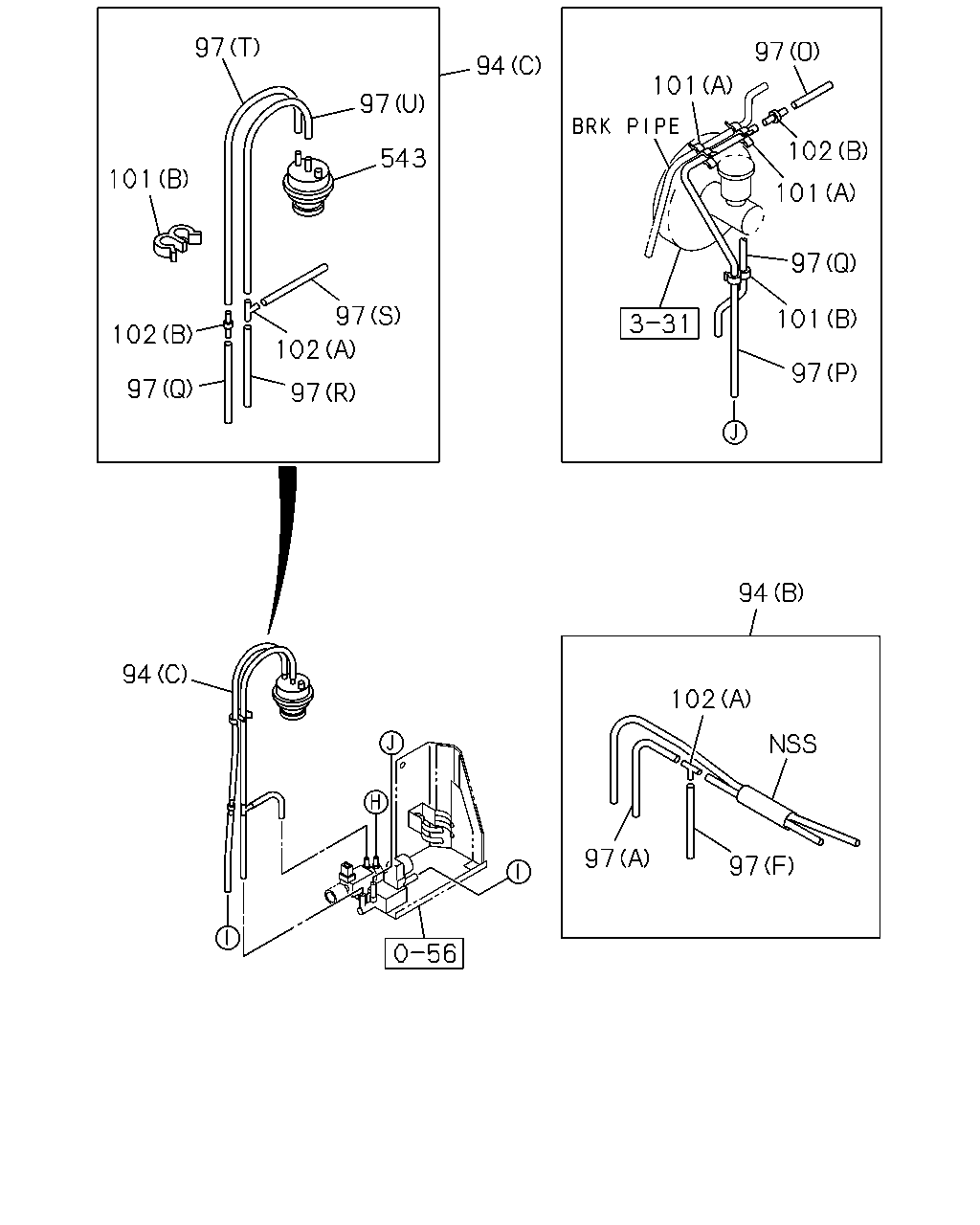

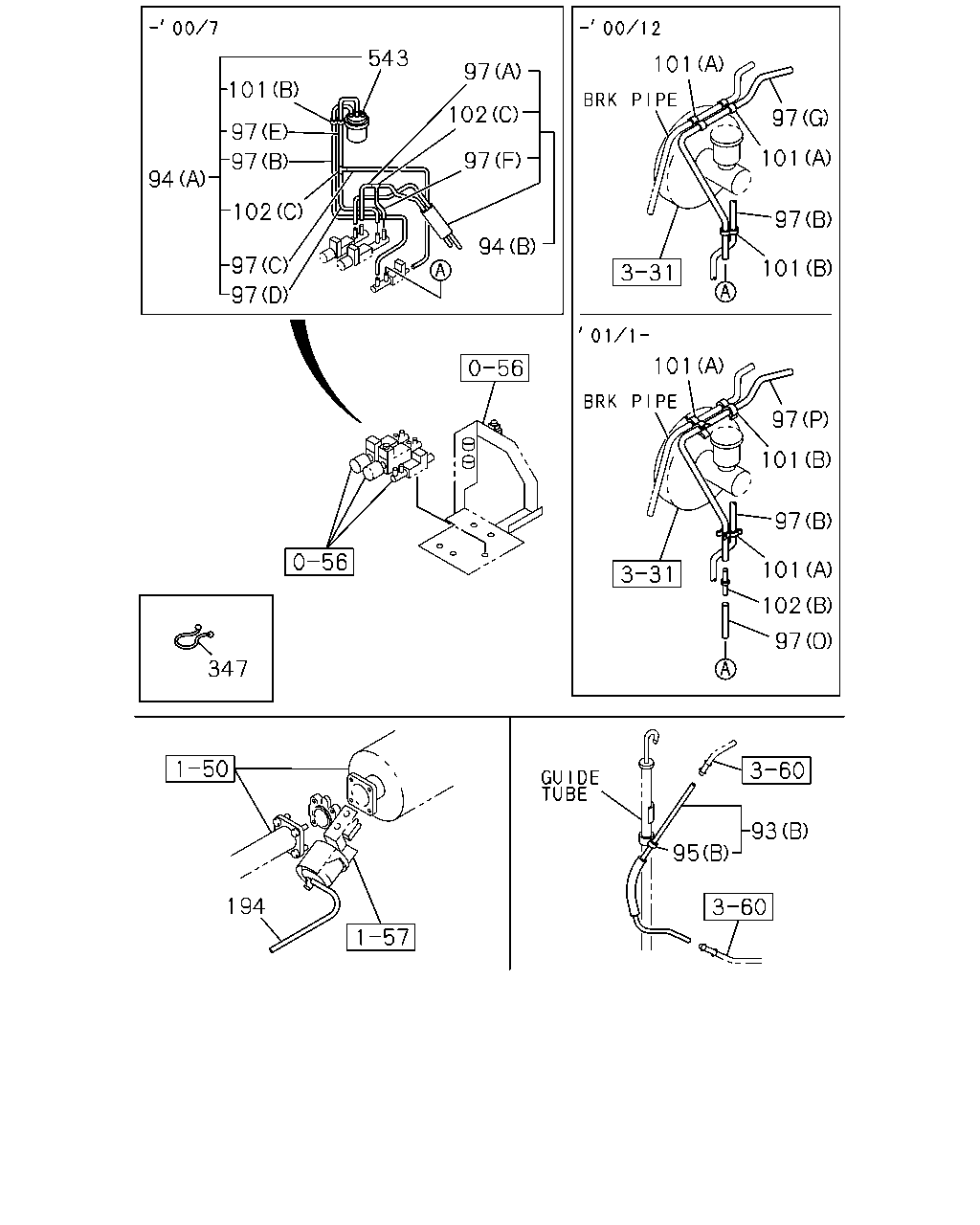

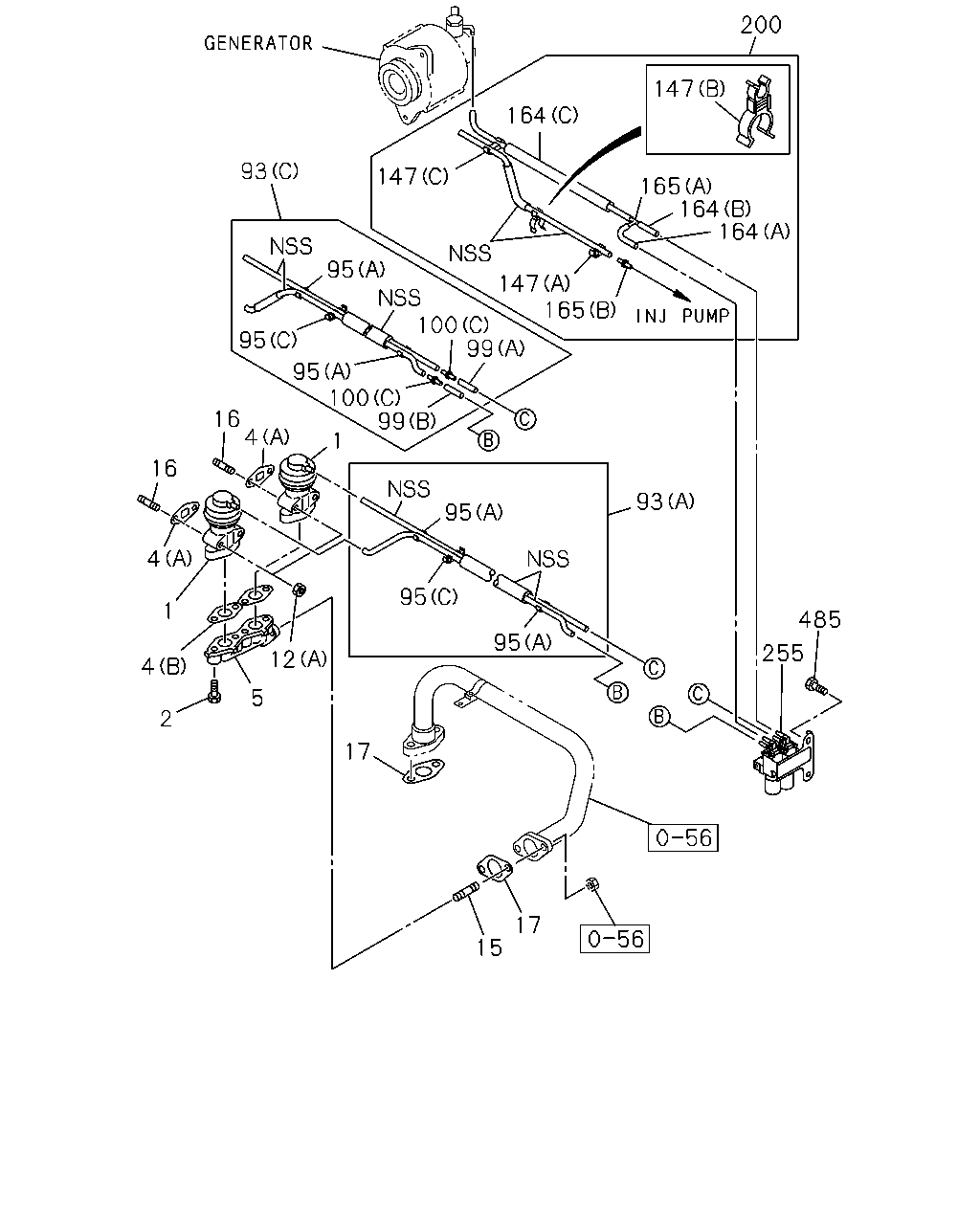

0-57 — EMISSION PIPING (#44223) — 800 parça

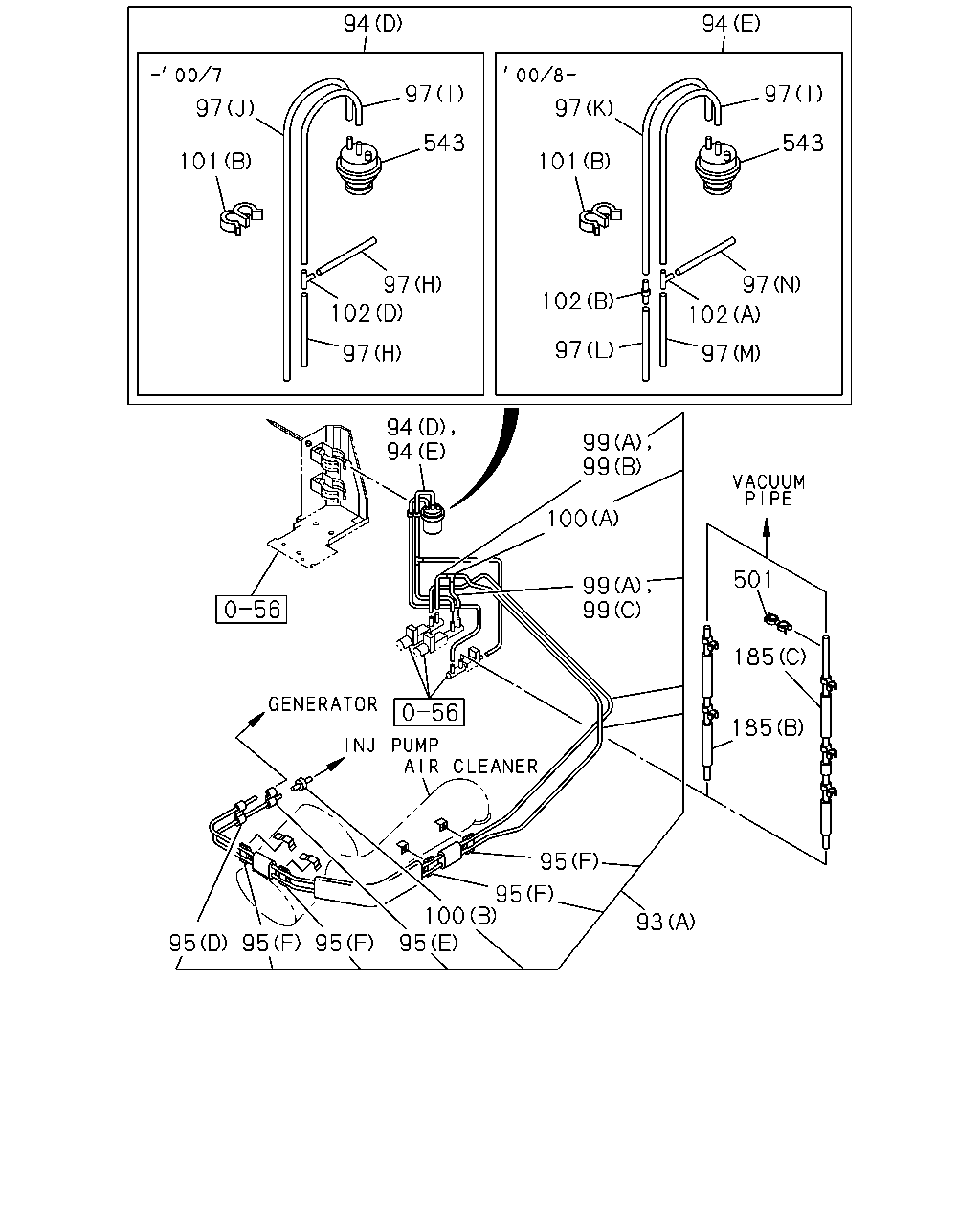

çizim 15607
94 94 97 97 97 97 543 543 101 101 97 102 97 102 102 97 97 97 94 94 99 99 100 501 99 99 185 185 95 95 100 95 93 95 95 95
BalonParca AdiParca NoAdetTipApplied Date A B
93 03.675 HOSE ASM
(B) 		8-97115-154-0 01 1 9804-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-154-0 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97209-160-0 01 1 9804-0007 ●
93 03.675 HOSE ASM
(C) 		8-97261-111-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97261-111-0 01 1 0108- ●
93 03.675 HOSE ASM
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) 		8-97312-479-2 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97149-827-1 01 1 9804-9906 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97149-827-1 01 1 9907-0007 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97259-676-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (E) 		8-97312-480-2 01 1 0108- ●
94 03.675 HOSE ASM
(A) 		8-97142-697-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(A) 		8-97261-106-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97261-106-0 01 1 0108- ●
94 03.675 HOSE ASM
(B) 		8-97143-003-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(B) 		8-97261-105-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 		8-97313-779-0 01 1 0108- ●
94 03.675 HOSE ASM
(D) 		8-97142-740-0 01 1 9804-9906 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (D) 		8-97142-740-0 01 1 9907-0007 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (E) 		8-97259-677-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) 		8-97289-618-1 01 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9804- ●
95 03.680 CLIP; HOSE
03.162 (B) ID=13.2 & 7.5 		8-94315-426-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(C) ID=14.5 & 7X4 		8-94368-499-0 01 1 9804-0107 ●
95 03.680 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4 		8-94368-499-0 01 1 0108- ●
95 03.680 CLIP; HOSE
CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2 		8-94470-738-0 03 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(F) 4XID=6.7 		8-94315-422-0 04 1 9804- ●
95 03.680 CLIP; HOSE
(D) ID=20 & 7X4 		8-94368-500-0 01 1 9804- ●
97 03.675 HOSE; RUBBER
08.962 (A) L=50 SERVICED BY L=3000 		0-04731-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (B) L=210 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.680 (C) L=90 SERVICED BY L=3000 		0-04733-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(G) L=530 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0012 ●
97 03.675 HOSE; RUBBER
(P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (D) L=30 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (E) L=130 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (F) L=40 SERVICED BY L=3000 		0-04735-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (G) L=530 SERVICED BY L=3000 		0-04741-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
(O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (U) L=100 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
97 03.675 HOSE; RUBBER
(K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (M) L=60 SERVICED BY L=3000 		0-04930-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (R) L=120 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (L) L=170 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (Q) L=60 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (N) L=60 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (T) L=150 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (I) L=120 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (S) L=80 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-04943-300-0 01 1 0008-0107 ●
99 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=60 SERVICED BY L=3000 		0-04943-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
(B) L=60 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
99 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=60 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
99 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
99 03.675 HOSE; RUBBER
CHARGE AIR COOLER<6PL> (D) L=250 SERVICED BY L=3000 		0-04940-300-0 01 1 0108-0108 ●
99 03.675 HOSE; RUBBER
ISRAEL EQUIPMENT(7LX) (B) 		8-97225-259-0 01 1 9907-0012 ●
99 03.675 HOSE; RUBBER
(B) 		8-97225-259-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (C) L=60 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
(C) 2WAY 		8-97165-694-0 02 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 01 1 0108- ●
100 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
(A) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (D) 3WAY 		8-94208-695-0 01 1 0108- ●
100 03.680 JOINT; HOSE
(B) 2WAY 		8-94313-805-0 01 1 9804- ●
101 03.675 CLIP; HOSE
03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 9804-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.854 (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ● ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
EXC. ISRAEL EQUIPMENT(7LX) 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 02 1 0108- ●
102 03.680 JOINT; HOSE
(C) 3WAY 		8-94208-695-0 02 1 9804-0007 ●
102 03.680 JOINT; HOSE
(A) 3WAY 		8-94210-631-0 02 1 0008-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
(D) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (D) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
185 03.163 HOSE; RUBBER,VSV
(A) L=670 STRIPE RED SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
185 03.163 HOSE; RUBBER,VSV
(B) L=850 		8-97070-534-2 01 1 9804-9906 ●
185 03.163 HOSE; RUBBER,VSV
EXC. ISRAEL EQUIPMENT(7LX) (C) 		8-97227-729-0 01 1 9907-0107 ●
501 03.680 CLIP; HOSE,VAC
EXC. ISRAEL EQUIPMENT(7LX) 04.104 ID=12 & 6.8 		8-97125-842-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9804-9906 ● ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
EXC. ISRAEL EQUIPMENT(7LX) 		8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING
EXC. CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●

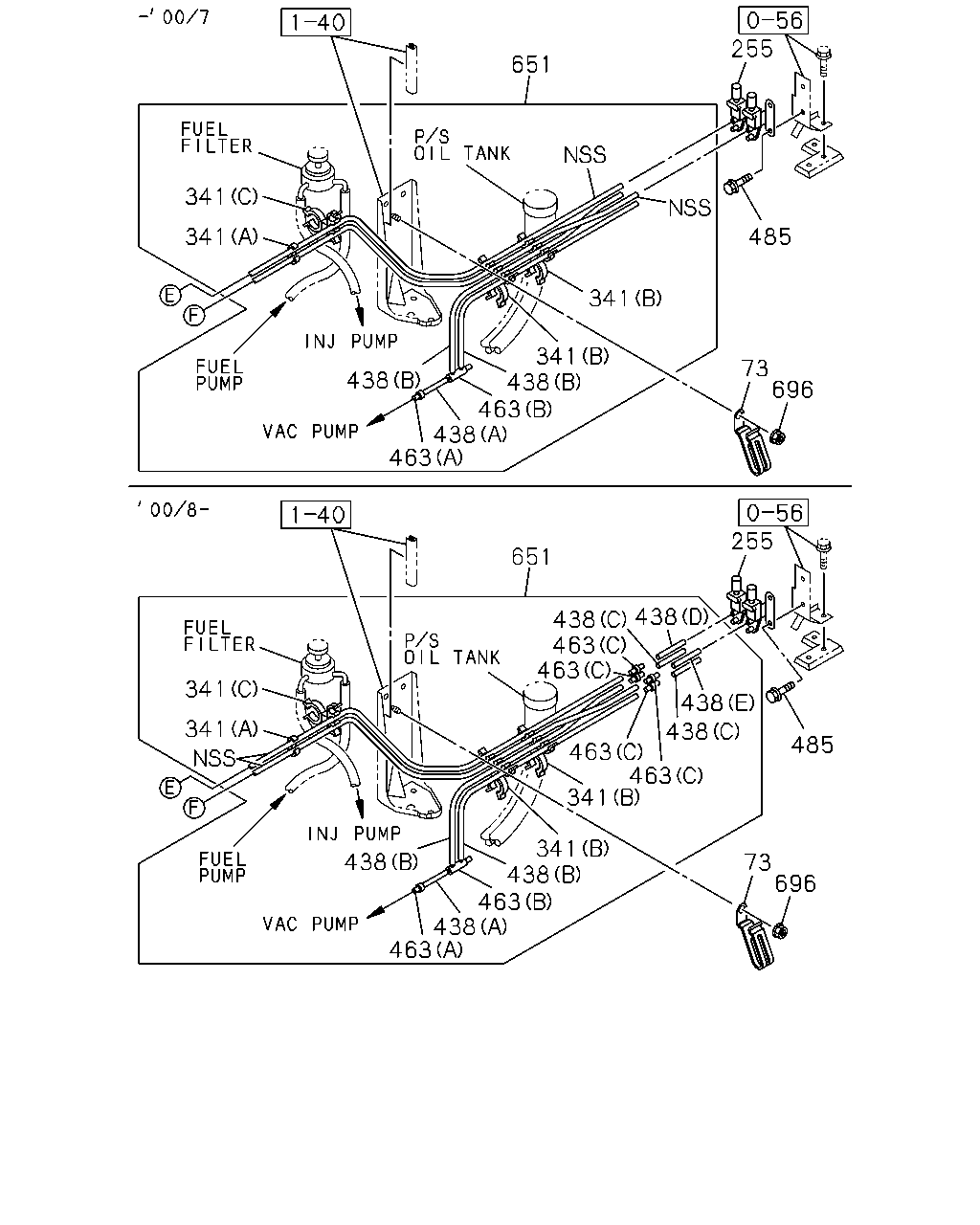

çizim 15701
255 651 341 341 485 341 341 438 463 438 463 73 696 438 255 651 438 438 463 463 341 438 341 438 485 463 463 341 341 438 463 438 463 438 73 696
BalonParca AdiParca NoAdetTipApplied Date A B
73 03.680 CLIP; VAC HOSE
03.278 		8-94406-478-0 01 1 9910- ●
255 03.675 VALVE; VAC SW,EGR CONT
CHARGE AIR COOLER<6PL> 03.670 		8-97240-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 9804-0107 ● ●
255 03.675 VALVE; VAC SW,EGR CONT
EXC. CHARGE AIR COOLER<6PL> 03.670 		8-94340-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 0108- ●
341 03.680 CLIP; RUBBER HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 9804- ●
341 03.680 CLIP; RUBBER HOSE
(C) ID=14.5 & 7X4 		8-94368-499-0 01 1 9804- ●
341 03.680 CLIP; RUBBER HOSE
(B) ID=20 & 7X4 		8-94368-500-0 02 1 9804-9909 ●
341 03.680 CLIP; RUBBER HOSE
02.251 (B) 4XID=6.8 		8-94132-799-0 02 1 9910- ●
438 03.675 HOSE; RUBBER,VSV,EGR
08.962 (A) L=80 SERVICED BY L=3000 		0-04730-300-0 01 1 9804-0007 ●
438 03.675 HOSE; RUBBER,VSV,EGR
(A) L=80 SERVICED BY L=3000 		0-04932-300-0 01 1 0008- ●
438 03.675 HOSE; RUBBER,VSV,EGR
08.962 (B) L=320 SERVICED BY L=3000 		0-04732-300-0 02 1 9804-0007 ●
438 03.675 HOSE; RUBBER,VSV,EGR
(B) L=240 SERVICED BY L=3000 		0-04932-300-0 02 1 0008- ●
438 03.675 HOSE; RUBBER,VSV,EGR
(C) L=80 SERVICED BY L=3000 		0-04942-300-0 02 1 0008- ●
438 03.675 HOSE; RUBBER,VSV,EGR
(E) L=80 SERVICED BY L=3000 		0-04943-300-0 01 1 0008- ●
438 03.675 HOSE; RUBBER,VSV,EGR
(D) L=80 SERVICED BY L=3000 		0-04945-300-0 01 1 0008- ●
463 03.680 JOINT; RUBBER HOSE
(A) 2WAY 		8-94313-805-0 01 1 9804- ●
463 03.680 JOINT; RUBBER HOSE
(B) 4WAY 		8-94429-994-0 01 1 9804- ●
463 03.680 JOINT; RUBBER HOSE
(C) 2WAY 		8-97165-694-0 04 1 0008- ●
485 03.671 BOLT; VSV
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9804-0107 ● ●
485 03.671 BOLT; VSV
EXC. CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0108- ●
485 03.671 BOLT; VSV
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0108- ●
651 03.675 HOSE ASM; VSV,EGR 8-97175-901-0 01 1 9804-9909 ●
651 03.675 HOSE ASM; VSV,EGR 8-97233-661-0 01 1 9910-0007 ●
651 03.675 HOSE ASM; VSV,EGR 8-97259-684-0 01 1 0008- ●
696 03.680 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9910- ●
çizim 17260
200 147 164 93 147 165 164 164 95 100 99 147 165 95 95 100 99 16 4 1 16 93 95 4 95 1 485 12 95 255 4 5 2 17 17 15
BalonParca AdiParca NoAdetTipApplied Date A B

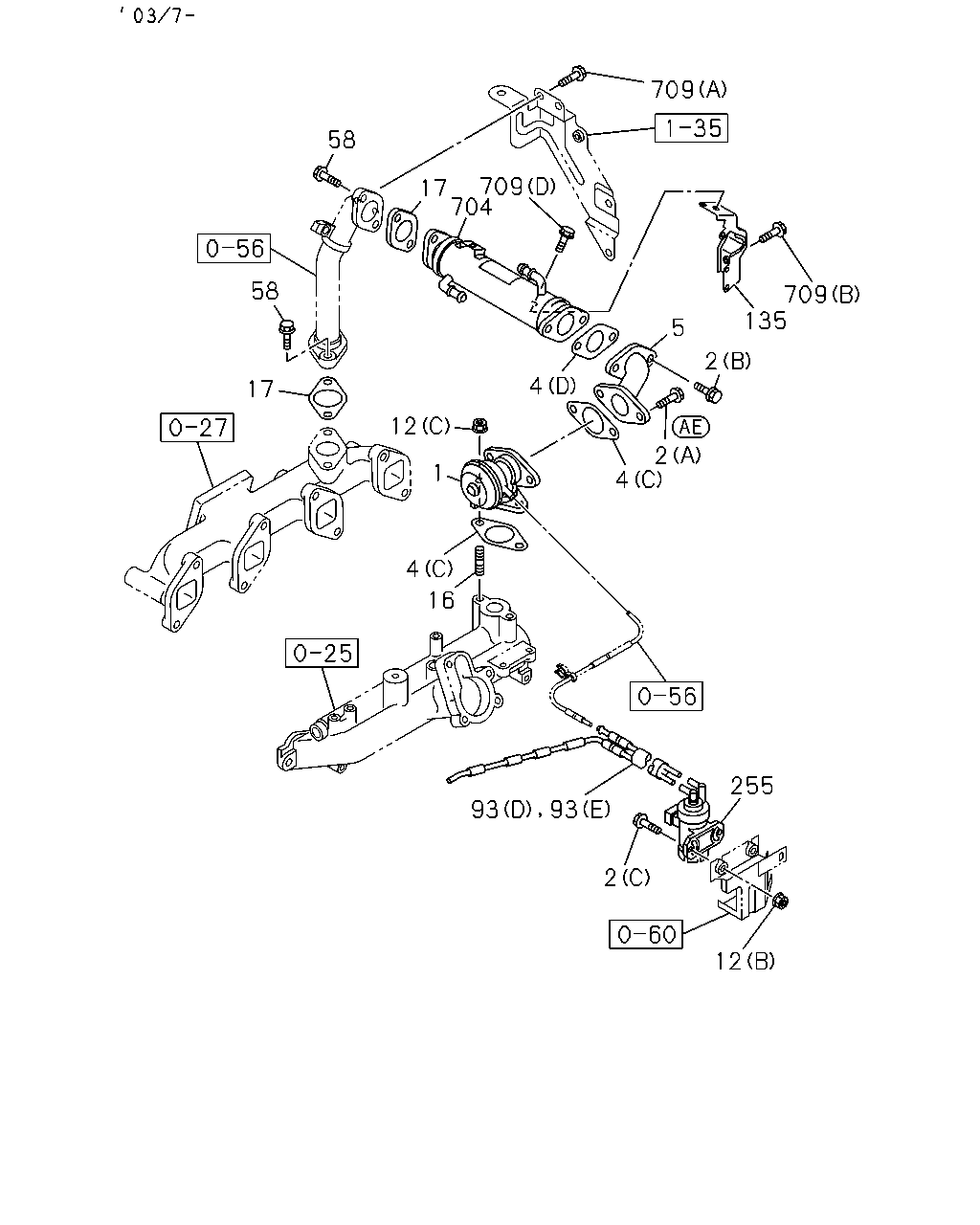

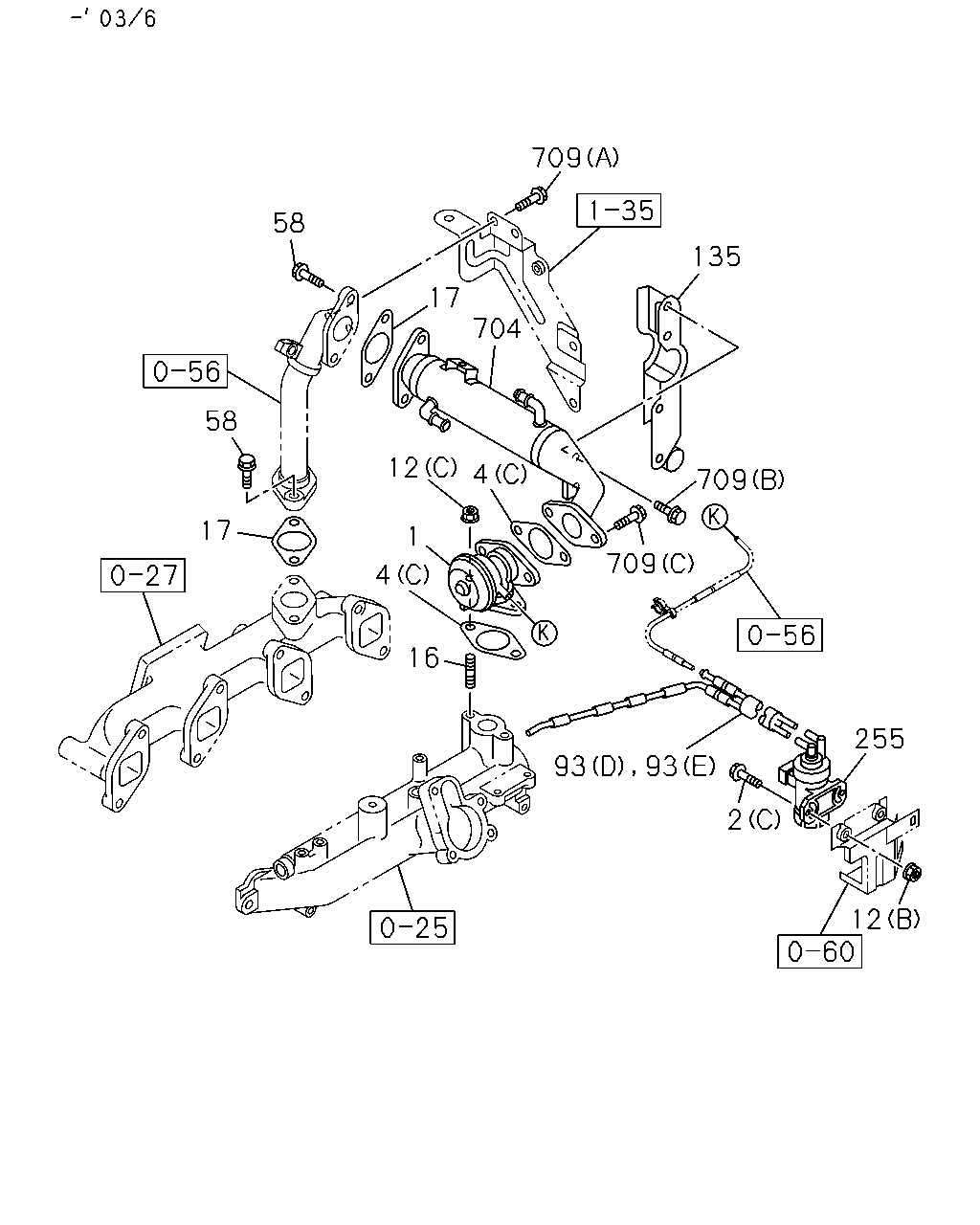

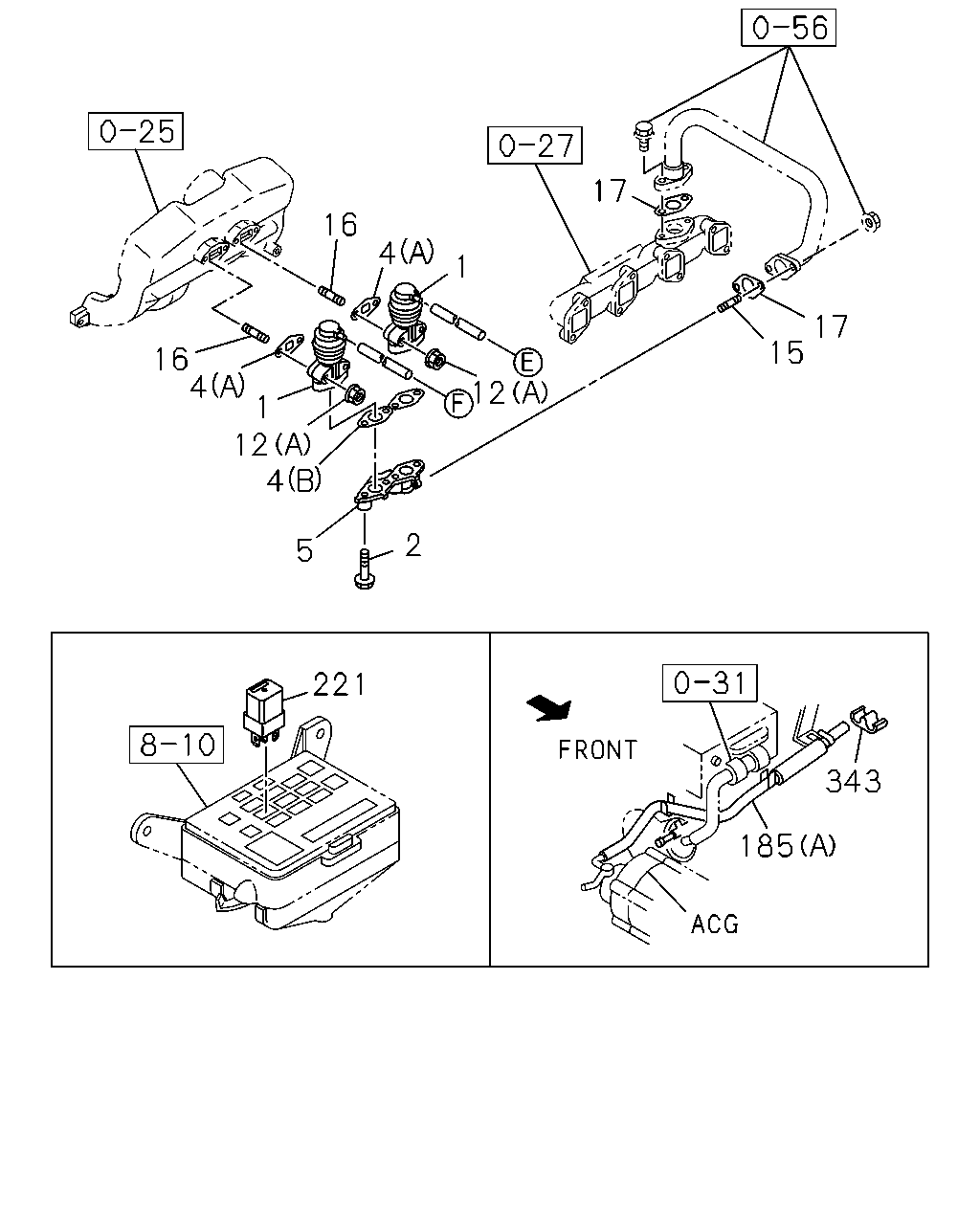

1 03.670 VALVE; EGR 8-97132-802-2 02 1 9804-0107 ●
1 03.670 VALVE; EGR
EXC. CHARGE AIR COOLER<6PL> 		8-97132-802-4 02 1 0108- ●
1 03.670 VALVE; EGR
CHARGE AIR COOLER<6PL> 		8-97312-533-1 01 1 0108- ●
1 03.670 VALVE; EGR 8-97135-674-4 02 1 9804- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE 		0-28680-630-0 02 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9804-0107 ● ●
2 03.670 BOLT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D) 		8-97324-052-0 01 1 0307- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C) 		8-97192-765-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (B) 		8-94379-754-0 01 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 0108- ●
5 03.670 ADAPTER ASM
CHARGE AIR COOLER<6PL> 		8-97329-584-2 01 1 0307- ●
5 03.670 ADAPTER ASM
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97117-260-0 01 1 9804-0107 ● ●
5 03.670 ADAPTER ASM
EXC. CHARGE AIR COOLER<6PL> 		8-97117-260-0 01 1 0108- ●
5 03.670 ADAPTER ASM
M/T MUA 5 SPEED(RMN) 		8-97117-260-0 01 1 0108- ●
5 03.670 ADAPTER ASM
CREW CAB(TF**W*) A/T AISIN(RMD) 		8-97245-928-1 01 1 0005- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE 		0-91150-208-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9804-0107 ● ●
12 03.671 NUT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
15 03.670 STUD; EGR PIPE
03.901 M8X25 L=37 		9-04110-825-0 02 1 9804-0107 ● ●
15 03.670 STUD; EGR PIPE
EXC. CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0108- ●
15 03.670 STUD; EGR PIPE
03.901 M8X25 L=37 		9-04110-825-0 02 1 0108- ●
16 03.275 STUD; EGR VLV
CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67 		8-94343-897-0 02 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 9804-0107 ● ●
16 03.275 STUD; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94340-670-0 02 1 9804- ● ●

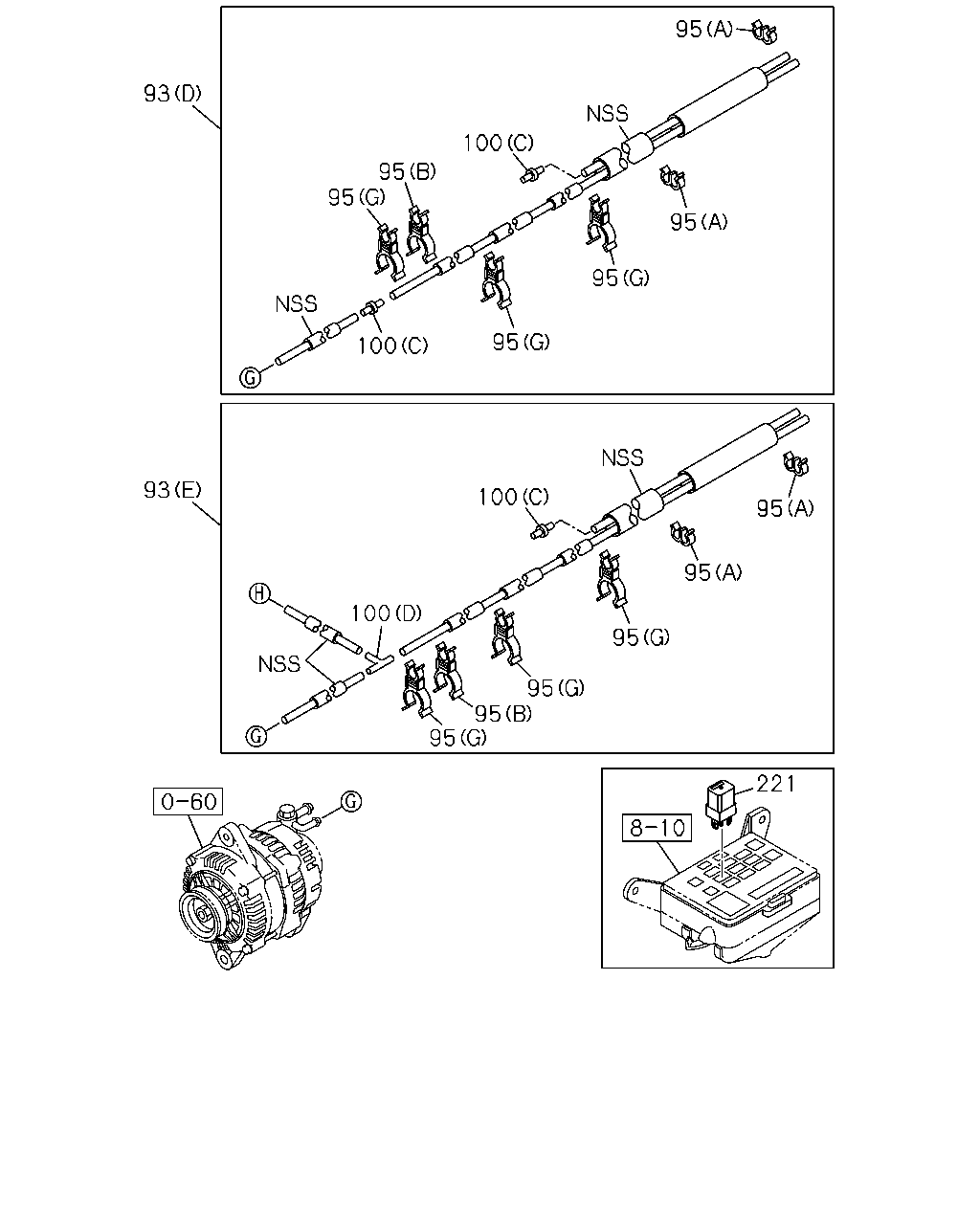

93 03.675 HOSE ASM
(B) 		8-97115-154-0 01 1 9804-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-154-0 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97209-160-0 01 1 9804-0007 ●
93 03.675 HOSE ASM
(C) 		8-97261-111-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97261-111-0 01 1 0108- ●
93 03.675 HOSE ASM
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) 		8-97312-479-2 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97149-827-1 01 1 9804-9906 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97149-827-1 01 1 9907-0007 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97259-676-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (E) 		8-97312-480-2 01 1 0108- ●

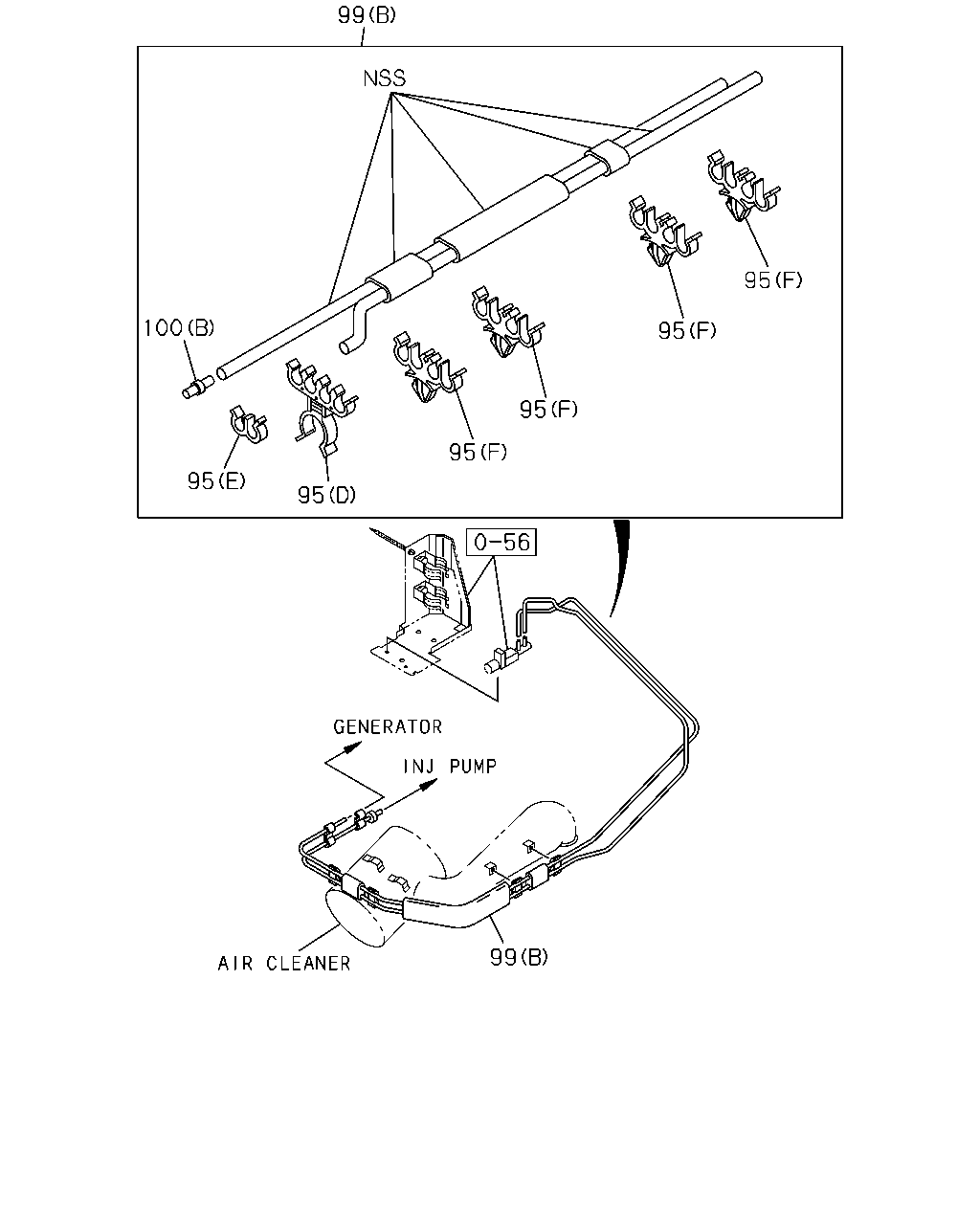

95 03.680 CLIP; HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9804- ●
95 03.680 CLIP; HOSE
03.162 (B) ID=13.2 & 7.5 		8-94315-426-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(C) ID=14.5 & 7X4 		8-94368-499-0 01 1 9804-0107 ●
95 03.680 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4 		8-94368-499-0 01 1 0108- ●
95 03.680 CLIP; HOSE
CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2 		8-94470-738-0 03 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(F) 4XID=6.7 		8-94315-422-0 04 1 9804- ●
95 03.680 CLIP; HOSE
(D) ID=20 & 7X4 		8-94368-500-0 01 1 9804- ●
99 03.675 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-04943-300-0 01 1 0008-0107 ●
99 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=60 SERVICED BY L=3000 		0-04943-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
(B) L=60 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
99 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=60 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
99 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
99 03.675 HOSE; RUBBER
CHARGE AIR COOLER<6PL> (D) L=250 SERVICED BY L=3000 		0-04940-300-0 01 1 0108-0108 ●
99 03.675 HOSE; RUBBER
ISRAEL EQUIPMENT(7LX) (B) 		8-97225-259-0 01 1 9907-0012 ●
99 03.675 HOSE; RUBBER
(B) 		8-97225-259-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (C) L=60 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
(C) 2WAY 		8-97165-694-0 02 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 01 1 0108- ●
100 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
(A) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (D) 3WAY 		8-94208-695-0 01 1 0108- ●
100 03.680 JOINT; HOSE
(B) 2WAY 		8-94313-805-0 01 1 9804- ●
147 03.680 CLIP; RUBBER HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 9804-0107 ●
147 03.680 CLIP; RUBBER HOSE
EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
147 03.680 CLIP; RUBBER HOSE
(C) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9804-0107 ●
147 03.680 CLIP; RUBBER HOSE
EXC. CHARGE AIR COOLER<6PL> (C) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 0108- ●
147 03.680 CLIP; RUBBER HOSE
03.162 (B) ID=13.2 & 7.5 		8-94315-426-0 01 1 9804-0007 ●
147 03.680 CLIP; RUBBER HOSE
04.661 (B) ID=14.5 & 6 		8-94312-791-0 01 1 0008-0107 ●
147 03.680 CLIP; RUBBER HOSE
EXC. CHARGE AIR COOLER<6PL> 04.661 (B) ID=14.5 & 6 		8-94312-791-0 01 1 0108- ●
164 03.675 HOSE; RUBBER
08.962 (A) L=70 SERVICED BY L=3000 		0-04840-300-0 01 1 9804-0107 ●
164 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=70 SERVICED BY L=3000 		0-04840-300-0 01 1 0108- ●
164 03.675 HOSE; RUBBER
(B) L=50 SERVICED BY L=3000 		0-04841-300-0 01 1 9804-0107 ●
164 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=50 SERVICED BY L=3000 		0-04841-300-0 01 1 0108- ●
164 03.675 HOSE; RUBBER
(C) L=190 SERVICED BY L=3000 		0-04842-300-0 01 1 9804-9906 ●
164 03.675 HOSE; RUBBER
(C) L=190 SERVICED BY L=3000 		0-04942-300-0 01 1 9907-0007 ●
164 03.675 HOSE; RUBBER
(C) L=190 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
164 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (C) L=190 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
165 03.680 JOINT; HOSE
(A) 3WAY 		8-94208-695-0 01 1 9804-0007 ●
165 03.680 JOINT; HOSE
(A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
165 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
165 03.680 JOINT; HOSE
(B) 2WAY 		8-94313-805-0 01 1 9804-0107 ●
165 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-94313-805-0 01 1 0108- ●
200 03.675 HOSE; VAC 8-97188-457-0 01 1 9804-0007 ●
200 03.675 HOSE; VAC 8-97261-104-0 01 1 0008-0107 ●
200 03.675 HOSE; VAC
EXC. CHARGE AIR COOLER<6PL> 		8-97261-104-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
CHARGE AIR COOLER<6PL> 03.670 		8-97240-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 9804-0107 ● ●
255 03.675 VALVE; VAC SW,EGR CONT
EXC. CHARGE AIR COOLER<6PL> 03.670 		8-94340-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 0108- ●
485 03.671 BOLT; VSV
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9804-0107 ● ●
485 03.671 BOLT; VSV
EXC. CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0108- ●
485 03.671 BOLT; VSV
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0108- ●
çizim 18039
95 93 100 95 95 95 95 95 100 93 100 95 95 100 95 95 95 95 221
BalonParca AdiParca NoAdetTipApplied Date A B
93 03.675 HOSE ASM
(B) 		8-97115-154-0 01 1 9804-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-154-0 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97209-160-0 01 1 9804-0007 ●
93 03.675 HOSE ASM
(C) 		8-97261-111-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97261-111-0 01 1 0108- ●
93 03.675 HOSE ASM
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) 		8-97312-479-2 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97149-827-1 01 1 9804-9906 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97149-827-1 01 1 9907-0007 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97259-676-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (E) 		8-97312-480-2 01 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9804- ●
95 03.680 CLIP; HOSE
03.162 (B) ID=13.2 & 7.5 		8-94315-426-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(C) ID=14.5 & 7X4 		8-94368-499-0 01 1 9804-0107 ●
95 03.680 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4 		8-94368-499-0 01 1 0108- ●
95 03.680 CLIP; HOSE
CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2 		8-94470-738-0 03 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(F) 4XID=6.7 		8-94315-422-0 04 1 9804- ●
95 03.680 CLIP; HOSE
(D) ID=20 & 7X4 		8-94368-500-0 01 1 9804- ●
100 03.680 JOINT; HOSE
(C) 2WAY 		8-97165-694-0 02 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 01 1 0108- ●
100 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
(A) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (D) 3WAY 		8-94208-695-0 01 1 0108- ●
100 03.680 JOINT; HOSE
(B) 2WAY 		8-94313-805-0 01 1 9804- ●
221 03.670 RELAY; MAIN
EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.100 12V 20A 		8-97173-039-1 01 1 0108- ●
çizim 64017
97 94 97 94 543 101 102 97 102 102 97 97 97 97 94 94
BalonParca AdiParca NoAdetTipApplied Date A B
94 03.675 HOSE ASM
(A) 		8-97142-697-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(A) 		8-97261-106-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97261-106-0 01 1 0108- ●
94 03.675 HOSE ASM
(B) 		8-97143-003-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(B) 		8-97261-105-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 		8-97313-779-0 01 1 0108- ●
94 03.675 HOSE ASM
(D) 		8-97142-740-0 01 1 9804-9906 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (D) 		8-97142-740-0 01 1 9907-0007 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (E) 		8-97259-677-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) 		8-97289-618-1 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (A) L=50 SERVICED BY L=3000 		0-04731-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (B) L=210 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.680 (C) L=90 SERVICED BY L=3000 		0-04733-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(G) L=530 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0012 ●
97 03.675 HOSE; RUBBER
(P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (D) L=30 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (E) L=130 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (F) L=40 SERVICED BY L=3000 		0-04735-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (G) L=530 SERVICED BY L=3000 		0-04741-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
(O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (U) L=100 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
97 03.675 HOSE; RUBBER
(K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (M) L=60 SERVICED BY L=3000 		0-04930-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (R) L=120 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (L) L=170 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (Q) L=60 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (N) L=60 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (T) L=150 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (I) L=120 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (S) L=80 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 9804-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.854 (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ● ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
EXC. ISRAEL EQUIPMENT(7LX) 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 02 1 0108- ●
102 03.680 JOINT; HOSE
(C) 3WAY 		8-94208-695-0 02 1 9804-0007 ●
102 03.680 JOINT; HOSE
(A) 3WAY 		8-94210-631-0 02 1 0008-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
(D) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (D) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9804-9906 ● ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
EXC. ISRAEL EQUIPMENT(7LX) 		8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING
EXC. CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
çizim 64107
709 58 704 58 709 135 5 2 4 17 12 2 4 1 4 16 255 2 12 17 709 93 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.670 VALVE; EGR 8-97132-802-2 02 1 9804-0107 ●
1 03.670 VALVE; EGR
EXC. CHARGE AIR COOLER<6PL> 		8-97132-802-4 02 1 0108- ●
1 03.670 VALVE; EGR
CHARGE AIR COOLER<6PL> 		8-97312-533-1 01 1 0108- ●
1 03.670 VALVE; EGR 8-97135-674-4 02 1 9804- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE 		0-28680-630-0 02 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9804-0107 ● ●
2 03.670 BOLT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D) 		8-97324-052-0 01 1 0307- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C) 		8-97192-765-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (B) 		8-94379-754-0 01 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 0108- ●
5 03.670 ADAPTER ASM
CHARGE AIR COOLER<6PL> 		8-97329-584-2 01 1 0307- ●
5 03.670 ADAPTER ASM
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97117-260-0 01 1 9804-0107 ● ●
5 03.670 ADAPTER ASM
EXC. CHARGE AIR COOLER<6PL> 		8-97117-260-0 01 1 0108- ●
5 03.670 ADAPTER ASM
M/T MUA 5 SPEED(RMN) 		8-97117-260-0 01 1 0108- ●
5 03.670 ADAPTER ASM
CREW CAB(TF**W*) A/T AISIN(RMD) 		8-97245-928-1 01 1 0005- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE 		0-91150-208-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9804-0107 ● ●
12 03.671 NUT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
16 03.275 STUD; EGR VLV
CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67 		8-94343-897-0 02 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 9804-0107 ● ●
16 03.275 STUD; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94340-670-0 02 1 9804- ● ●
58 03.417 BOLT; PIPE
CHARGE AIR COOLER<6PL> 03.670 M8X23 FLANGE 		8-94103-629-2 04 1 0108- ●
93 03.675 HOSE ASM
(B) 		8-97115-154-0 01 1 9804-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-154-0 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97209-160-0 01 1 9804-0007 ●
93 03.675 HOSE ASM
(C) 		8-97261-111-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97261-111-0 01 1 0108- ●
93 03.675 HOSE ASM
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) 		8-97312-479-2 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97149-827-1 01 1 9804-9906 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97149-827-1 01 1 9907-0007 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97259-676-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (E) 		8-97312-480-2 01 1 0108- ●
135 03.680 BRACKET; EGR
CHARGE AIR COOLER<6PL> 		8-97311-694-0 01 1 0108-0306 ●
135 03.680 BRACKET; EGR
CHARGE AIR COOLER<6PL> 		8-97329-585-0 01 1 0307- ●
255 03.675 VALVE; VAC SW,EGR CONT
CHARGE AIR COOLER<6PL> 03.670 		8-97240-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 9804-0107 ● ●
255 03.675 VALVE; VAC SW,EGR CONT
EXC. CHARGE AIR COOLER<6PL> 03.670 		8-94340-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 0108- ●
704 03.337 COOLER ASM; EGR
CHARGE AIR COOLER<6PL> 		8-97310-515-1 01 1 0108-0306 ●
704 03.337 COOLER ASM; EGR
CHARGE AIR COOLER<6PL> 		8-97329-581-0 01 1 0307- ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0108-0306 ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0307- ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 01.271 (B) M8X40 FLANGE 		0-28080-840-0 02 1 0108- ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0108-0306 ●

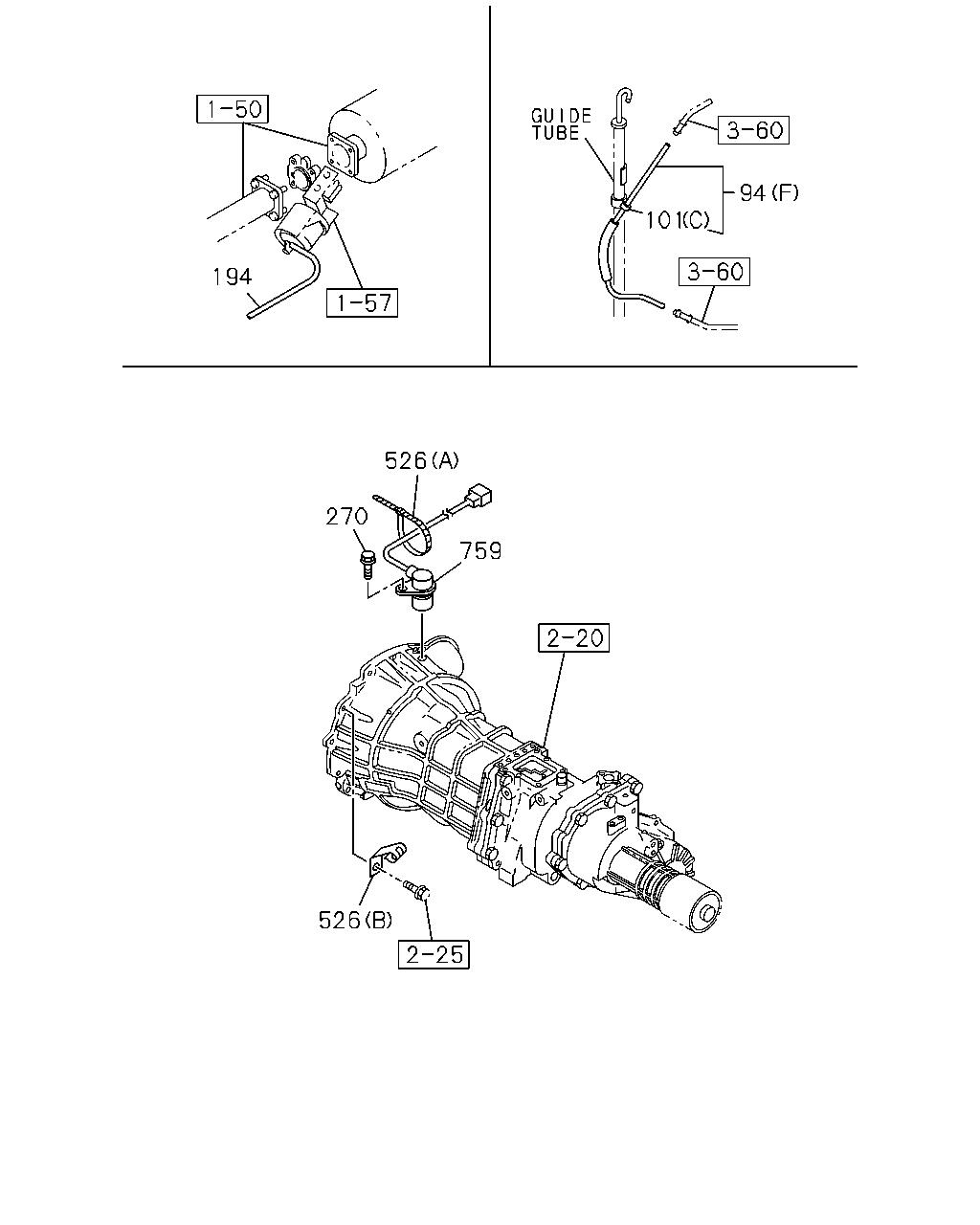

çizim 64289
94 101 194 526 270 759 526
BalonParca AdiParca NoAdetTipApplied Date A B
94 03.675 HOSE ASM
(A) 		8-97142-697-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(A) 		8-97261-106-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97261-106-0 01 1 0108- ●
94 03.675 HOSE ASM
(B) 		8-97143-003-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(B) 		8-97261-105-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 		8-97313-779-0 01 1 0108- ●
94 03.675 HOSE ASM
(D) 		8-97142-740-0 01 1 9804-9906 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (D) 		8-97142-740-0 01 1 9907-0007 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (E) 		8-97259-677-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) 		8-97289-618-1 01 1 0108- ●
101 03.675 CLIP; HOSE
03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 9804-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.854 (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ● ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
EXC. ISRAEL EQUIPMENT(7LX) 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 02 1 0108- ●
194 03.675 HOSE; VAC
08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 9804-0107 ●
194 03.675 HOSE; VAC
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 0108- ●
194 03.675 HOSE; VAC
EXC. CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 0108- ●
270 03.680 BOLT
CHARGE AIR COOLER<6PL> 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0108- ●
526 03.675 CLIP; BAND
CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0108- ●
526 03.675 CLIP; BAND
CHARGE AIR COOLER<6PL> 		8-97322-092-0 01 1 0108- ●
759 03.670 SENSOR; TDC
CHARGE AIR COOLER<6PL> 		8-97323-554-0 01 1 0108-0205 ●
759 03.670 SENSOR; TDC
CHARGE AIR COOLER<6PL> 		8-97324-402-0 01 1 0206- ●
çizim 64422
17 16 4 1 17 15 16 4 12 1 12 4 2 5 221 343 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.670 VALVE; EGR 8-97132-802-2 02 1 9804-0107 ●
1 03.670 VALVE; EGR
EXC. CHARGE AIR COOLER<6PL> 		8-97132-802-4 02 1 0108- ●
1 03.670 VALVE; EGR
CHARGE AIR COOLER<6PL> 		8-97312-533-1 01 1 0108- ●
1 03.670 VALVE; EGR 8-97135-674-4 02 1 9804- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE 		0-28680-630-0 02 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9804-0107 ● ●
2 03.670 BOLT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D) 		8-97324-052-0 01 1 0307- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C) 		8-97192-765-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (B) 		8-94379-754-0 01 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 0108- ●
5 03.670 ADAPTER ASM
CHARGE AIR COOLER<6PL> 		8-97329-584-2 01 1 0307- ●
5 03.670 ADAPTER ASM
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97117-260-0 01 1 9804-0107 ● ●
5 03.670 ADAPTER ASM
EXC. CHARGE AIR COOLER<6PL> 		8-97117-260-0 01 1 0108- ●
5 03.670 ADAPTER ASM
M/T MUA 5 SPEED(RMN) 		8-97117-260-0 01 1 0108- ●
5 03.670 ADAPTER ASM
CREW CAB(TF**W*) A/T AISIN(RMD) 		8-97245-928-1 01 1 0005- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE 		0-91150-208-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9804-0107 ● ●
12 03.671 NUT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
15 03.670 STUD; EGR PIPE
03.901 M8X25 L=37 		9-04110-825-0 02 1 9804-0107 ● ●
15 03.670 STUD; EGR PIPE
EXC. CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37 		9-04110-825-0 02 1 0108- ●
15 03.670 STUD; EGR PIPE
03.901 M8X25 L=37 		9-04110-825-0 02 1 0108- ●
16 03.275 STUD; EGR VLV
CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67 		8-94343-897-0 02 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 9804-0107 ● ●
16 03.275 STUD; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94340-670-0 02 1 9804- ● ●
185 03.163 HOSE; RUBBER,VSV
(A) L=670 STRIPE RED SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
185 03.163 HOSE; RUBBER,VSV
(B) L=850 		8-97070-534-2 01 1 9804-9906 ●
185 03.163 HOSE; RUBBER,VSV
EXC. ISRAEL EQUIPMENT(7LX) (C) 		8-97227-729-0 01 1 9907-0107 ●
221 03.670 RELAY; MAIN
EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.100 12V 20A 		8-97173-039-1 01 1 0108- ●
343 03.680 CLIP; RUBBER HOSE
03.162 ID=6.8X2 		8-94126-636-0 01 1 9804- ●
çizim 65211
543 101 97 101 102 97 97 101 97 97 94 102 97 94 97 101 97 101 97 101 97 101 102 97 347 93 95 194
BalonParca AdiParca NoAdetTipApplied Date A B
93 03.675 HOSE ASM
(B) 		8-97115-154-0 01 1 9804-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-154-0 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97209-160-0 01 1 9804-0007 ●
93 03.675 HOSE ASM
(C) 		8-97261-111-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97261-111-0 01 1 0108- ●
93 03.675 HOSE ASM
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) 		8-97312-479-2 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97149-827-1 01 1 9804-9906 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97149-827-1 01 1 9907-0007 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97259-676-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (E) 		8-97312-480-2 01 1 0108- ●
94 03.675 HOSE ASM
(A) 		8-97142-697-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(A) 		8-97261-106-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97261-106-0 01 1 0108- ●
94 03.675 HOSE ASM
(B) 		8-97143-003-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(B) 		8-97261-105-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 		8-97313-779-0 01 1 0108- ●
94 03.675 HOSE ASM
(D) 		8-97142-740-0 01 1 9804-9906 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (D) 		8-97142-740-0 01 1 9907-0007 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (E) 		8-97259-677-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) 		8-97289-618-1 01 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9804- ●
95 03.680 CLIP; HOSE
03.162 (B) ID=13.2 & 7.5 		8-94315-426-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(C) ID=14.5 & 7X4 		8-94368-499-0 01 1 9804-0107 ●
95 03.680 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4 		8-94368-499-0 01 1 0108- ●
95 03.680 CLIP; HOSE
CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2 		8-94470-738-0 03 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(F) 4XID=6.7 		8-94315-422-0 04 1 9804- ●
95 03.680 CLIP; HOSE
(D) ID=20 & 7X4 		8-94368-500-0 01 1 9804- ●
97 03.675 HOSE; RUBBER
08.962 (A) L=50 SERVICED BY L=3000 		0-04731-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (B) L=210 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.680 (C) L=90 SERVICED BY L=3000 		0-04733-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(G) L=530 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0012 ●
97 03.675 HOSE; RUBBER
(P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (D) L=30 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (E) L=130 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (F) L=40 SERVICED BY L=3000 		0-04735-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (G) L=530 SERVICED BY L=3000 		0-04741-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
(O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (U) L=100 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
97 03.675 HOSE; RUBBER
(K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (M) L=60 SERVICED BY L=3000 		0-04930-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (R) L=120 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (L) L=170 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (Q) L=60 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (N) L=60 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (T) L=150 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (I) L=120 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (S) L=80 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 9804-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.854 (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ● ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
EXC. ISRAEL EQUIPMENT(7LX) 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 02 1 0108- ●
102 03.680 JOINT; HOSE
(C) 3WAY 		8-94208-695-0 02 1 9804-0007 ●
102 03.680 JOINT; HOSE
(A) 3WAY 		8-94210-631-0 02 1 0008-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
(D) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (D) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
194 03.675 HOSE; VAC
08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 9804-0107 ●
194 03.675 HOSE; VAC
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 0108- ●
194 03.675 HOSE; VAC
EXC. CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000 		0-04742-300-0 01 1 0108- ●
347 03.675 CLIP; RUBBER HOSE,PRESSURE REG
04.510 ID=23 		8-97010-411-0 01 1 9806-0107 ●
347 03.675 CLIP; RUBBER HOSE,PRESSURE REG
EXC. CHARGE AIR COOLER<6PL> 04.510 ID=23 		8-97010-411-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9804-9906 ● ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
EXC. ISRAEL EQUIPMENT(7LX) 		8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING
EXC. CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
çizim 65337
97 97 94 101 97 102 543 101 101 97 97 101 102 102 97 97 97 94 94 102 97 97
BalonParca AdiParca NoAdetTipApplied Date A B
94 03.675 HOSE ASM
(A) 		8-97142-697-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(A) 		8-97261-106-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97261-106-0 01 1 0108- ●
94 03.675 HOSE ASM
(B) 		8-97143-003-0 01 1 9804-0007 ●
94 03.675 HOSE ASM
(B) 		8-97261-105-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97261-105-0 01 1 0108- ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 		8-97313-779-0 01 1 0108- ●
94 03.675 HOSE ASM
(D) 		8-97142-740-0 01 1 9804-9906 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (D) 		8-97142-740-0 01 1 9907-0007 ●
94 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (E) 		8-97259-677-0 01 1 0008-0107 ●
94 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) 		8-97289-618-1 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (A) L=50 SERVICED BY L=3000 		0-04731-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (B) L=210 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.680 (C) L=90 SERVICED BY L=3000 		0-04733-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(G) L=530 SERVICED BY L=3000 		0-04931-300-0 01 1 0008-0012 ●
97 03.675 HOSE; RUBBER
(P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (P) L=430 SERVICED BY L=3000 		0-04931-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (D) L=30 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
03.163 (E) L=130 SERVICED BY L=3000 		0-04734-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (F) L=40 SERVICED BY L=3000 		0-04735-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (G) L=530 SERVICED BY L=3000 		0-04741-300-0 01 1 9804-0007 ●
97 03.675 HOSE; RUBBER
(F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
(O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0101-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000 		0-04941-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (U) L=100 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (H) L=60 SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
97 03.675 HOSE; RUBBER
(K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (I) L=120 SERVICED BY L=3000 		0-04730-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (M) L=60 SERVICED BY L=3000 		0-04930-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (R) L=120 SERVICED BY L=3000 		0-04933-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9804-9906 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (J) L=240 SERVICED BY L=3000 		0-04732-300-0 01 1 9907-0007 ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (L) L=170 SERVICED BY L=3000 		0-04932-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (Q) L=60 SERVICED BY L=3000 		0-04932-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (N) L=60 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (T) L=150 SERVICED BY L=3000 		0-04942-300-0 01 1 0108- ●
97 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (I) L=120 SERVICED BY L=3000 		0-04940-300-0 01 1 0008-0107 ●
97 03.675 HOSE; RUBBER
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (S) L=80 SERVICED BY L=3000 		0-04944-300-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 9804-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=7.2 & 10 		5-09707-056-0 02 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 0108- ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 00.854 (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0108- ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ● ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9804-9906 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
EXC. ISRAEL EQUIPMENT(7LX) 03.162 (B) ID=6.8X2 		8-94126-636-0 01 1 9907-0107 ●
101 03.675 CLIP; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2 		8-94126-636-0 02 1 0108- ●
102 03.680 JOINT; HOSE
(C) 3WAY 		8-94208-695-0 02 1 9804-0007 ●
102 03.680 JOINT; HOSE
(A) 3WAY 		8-94210-631-0 02 1 0008-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0008-0012 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
(B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (B) 2WAY 		8-97165-694-0 01 1 0101-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (B) 2WAY 		8-97165-694-0 01 1 0108- ●
102 03.680 JOINT; HOSE
(D) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (D) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
102 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
102 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (A) 3WAY 		8-94210-631-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9804-9906 ● ●
543 03.670 VALVE; VAC REGULATING 8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
EXC. ISRAEL EQUIPMENT(7LX) 		8-94111-775-0 01 1 9907-0107 ●
543 03.670 VALVE; VAC REGULATING
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
543 03.670 VALVE; VAC REGULATING
EXC. CHARGE AIR COOLER<6PL> 		8-94111-775-0 01 1 0108- ●
çizim 65437
99 95 100 95 95 95 95 95 99
BalonParca AdiParca NoAdetTipApplied Date A B
95 03.680 CLIP; HOSE
03.162 (A) ID=6.8X2 		8-94126-636-0 02 1 9804- ●
95 03.680 CLIP; HOSE
03.162 (B) ID=13.2 & 7.5 		8-94315-426-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(C) ID=14.5 & 7X4 		8-94368-499-0 01 1 9804-0107 ●
95 03.680 CLIP; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4 		8-94368-499-0 01 1 0108- ●
95 03.680 CLIP; HOSE
CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2 		8-94470-738-0 03 1 0108- ●
95 03.680 CLIP; HOSE
03.162 (E) ID=6.8X2 		8-94126-636-0 01 1 9804- ●
95 03.680 CLIP; HOSE
(F) 4XID=6.7 		8-94315-422-0 04 1 9804- ●
95 03.680 CLIP; HOSE
(D) ID=20 & 7X4 		8-94368-500-0 01 1 9804- ●
99 03.675 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-04943-300-0 01 1 0008-0107 ●
99 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (A) L=60 SERVICED BY L=3000 		0-04943-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
(B) L=60 SERVICED BY L=3000 		0-04945-300-0 01 1 0008-0107 ●
99 03.675 HOSE; RUBBER
EXC. CHARGE AIR COOLER<6PL> (B) L=60 SERVICED BY L=3000 		0-04945-300-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000 		0-04730-300-0 02 1 9804-9906 ●
99 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000 		0-04730-300-0 02 1 9907-0007 ●
99 03.675 HOSE; RUBBER
CHARGE AIR COOLER<6PL> (D) L=250 SERVICED BY L=3000 		0-04940-300-0 01 1 0108-0108 ●
99 03.675 HOSE; RUBBER
ISRAEL EQUIPMENT(7LX) (B) 		8-97225-259-0 01 1 9907-0012 ●
99 03.675 HOSE; RUBBER
(B) 		8-97225-259-0 01 1 0108- ●
99 03.675 HOSE; RUBBER
EXC. ISRAEL EQUIPMENT(7LX) (C) L=60 SERVICED BY L=3000 		0-04942-300-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
(C) 2WAY 		8-97165-694-0 02 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 01 1 0108- ●
100 03.680 JOINT; HOSE
EXC. CHARGE AIR COOLER<6PL> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY 		8-97165-694-0 02 1 0108- ●
100 03.680 JOINT; HOSE
(A) 3WAY 		8-94208-695-0 01 1 9804-9906 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94208-695-0 01 1 9907-0007 ●
100 03.680 JOINT; HOSE
EXC. ISRAEL EQUIPMENT(7LX) (A) 3WAY 		8-94210-631-0 01 1 0008-0107 ●
100 03.680 JOINT; HOSE
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (D) 3WAY 		8-94208-695-0 01 1 0108- ●
100 03.680 JOINT; HOSE
(B) 2WAY 		8-94313-805-0 01 1 9804- ●
çizim 65492
709 58 135 17 704 58 12 4 709 17 1 709 4 16 255 2 12 93 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.670 VALVE; EGR 8-97132-802-2 02 1 9804-0107 ●
1 03.670 VALVE; EGR
EXC. CHARGE AIR COOLER<6PL> 		8-97132-802-4 02 1 0108- ●
1 03.670 VALVE; EGR
CHARGE AIR COOLER<6PL> 		8-97312-533-1 01 1 0108- ●
1 03.670 VALVE; EGR 8-97135-674-4 02 1 9804- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE 		8-94103-629-2 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE 		8-94368-563-1 02 1 0307- ●
2 03.670 BOLT; EGR VLV
CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE 		0-28680-630-0 02 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 9804-0107 ● ●
2 03.670 BOLT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
2 03.670 BOLT; EGR VLV
01.271 M8X40 FLANGE 		0-28080-840-0 04 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (D) 		8-97324-052-0 01 1 0307- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.665 (C) 		8-97192-765-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94334-338-0 02 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 9804-0107 ● ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (B) 		8-94379-754-0 01 1 0108- ●
4 03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-94379-754-0 01 1 0108- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE 		0-91150-208-0 02 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 9804-0107 ● ●
12 03.671 NUT; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
12 03.671 NUT; EGR VLV
01.540 (A) M8 FLANGE 		0-91150-208-0 04 1 0108- ●
16 03.275 STUD; EGR VLV
CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67 		8-94343-897-0 02 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 9804-0107 ● ●
16 03.275 STUD; EGR VLV
EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
16 03.275 STUD; EGR VLV
03.613 M8X45 L=57 		8-94105-162-1 04 1 0108- ●
17 03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94340-670-0 02 1 9804- ● ●
58 03.417 BOLT; PIPE
CHARGE AIR COOLER<6PL> 03.670 M8X23 FLANGE 		8-94103-629-2 04 1 0108- ●
93 03.675 HOSE ASM
(B) 		8-97115-154-0 01 1 9804-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97115-154-0 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97209-160-0 01 1 9804-0007 ●
93 03.675 HOSE ASM
(C) 		8-97261-111-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
EXC. CHARGE AIR COOLER<6PL> (C) 		8-97261-111-0 01 1 0108- ●
93 03.675 HOSE ASM
CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) 		8-97312-479-2 01 1 0108- ●
93 03.675 HOSE ASM
(A) 		8-97149-827-1 01 1 9804-9906 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97149-827-1 01 1 9907-0007 ●
93 03.675 HOSE ASM
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97259-676-0 01 1 0008-0107 ●
93 03.675 HOSE ASM
ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (E) 		8-97312-480-2 01 1 0108- ●
135 03.680 BRACKET; EGR
CHARGE AIR COOLER<6PL> 		8-97311-694-0 01 1 0108-0306 ●
135 03.680 BRACKET; EGR
CHARGE AIR COOLER<6PL> 		8-97329-585-0 01 1 0307- ●
255 03.675 VALVE; VAC SW,EGR CONT
CHARGE AIR COOLER<6PL> 03.670 		8-97240-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 9804-0107 ● ●
255 03.675 VALVE; VAC SW,EGR CONT
EXC. CHARGE AIR COOLER<6PL> 03.670 		8-94340-699-0 01 1 0108- ●
255 03.675 VALVE; VAC SW,EGR CONT
03.670 		8-94340-699-0 01 1 0108- ●
704 03.337 COOLER ASM; EGR
CHARGE AIR COOLER<6PL> 		8-97310-515-1 01 1 0108-0306 ●
704 03.337 COOLER ASM; EGR
CHARGE AIR COOLER<6PL> 		8-97329-581-0 01 1 0307- ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0108-0306 ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0307- ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 01.271 (B) M8X40 FLANGE 		0-28080-840-0 02 1 0108- ●
709 03.670 BOLT; EGR COOLER
CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 02 1 0108-0306 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
