0-52 — OIL AND VACUUM PIPING; ENGINE (#44221) — 102 parça

309 310 310 308 310 311 310 310 310 310 310 310 309 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

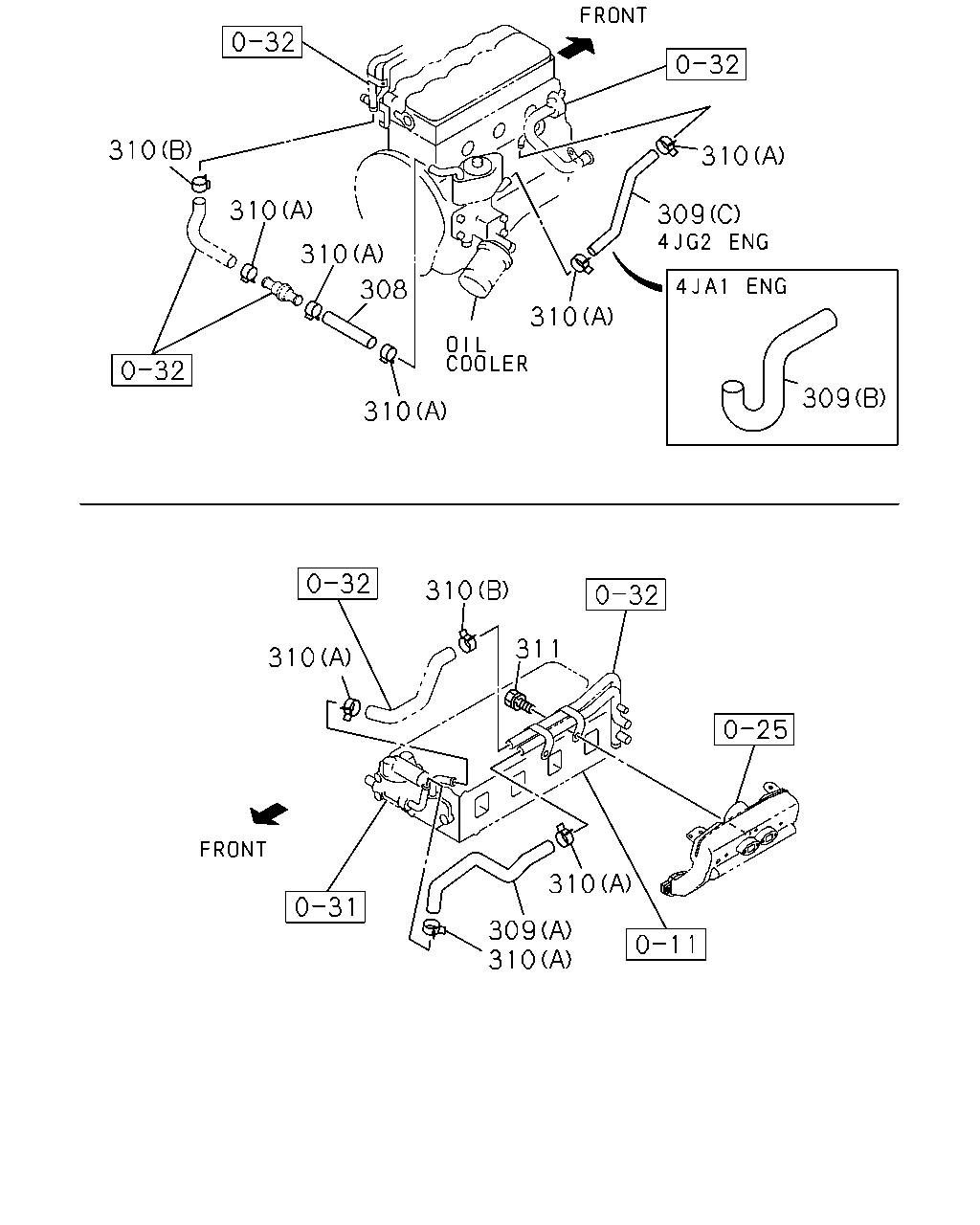

308	01.540 HOSE; OIL COOLER FEED CHARGE AIR COOLER<6PL>	8-97249-288-0	01	1	0108-0308	●
308	01.540 HOSE; OIL COOLER FEED CHARGE AIR COOLER<6PL>	8-97331-175-0	01	1	0309-	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9804-0107	●	●
308	01.540 HOSE; OIL COOLER FEED EXC. CHARGE AIR COOLER<6PL> 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0108-0112	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0108-0112		●
308	01.540 HOSE; OIL COOLER FEED EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-		●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97168-220-0	01	1	9804-0107	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-220-0	01	1	0108-	●

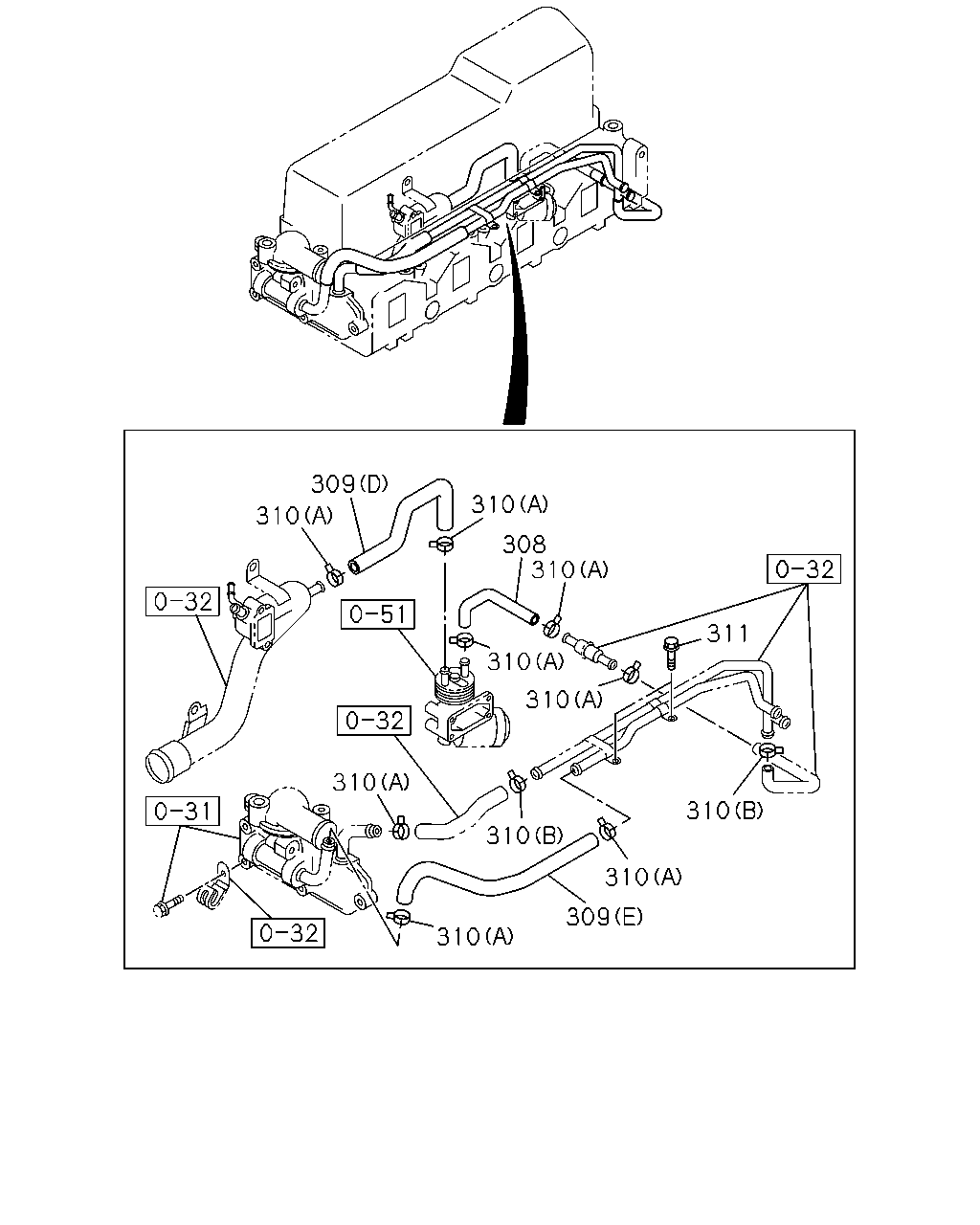

309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97049-285-0	01	1	9804-0107	●	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHARGE AIR COOLER<6PL> (A)	8-97049-285-0	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97049-285-0	01	1	0108-		●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9804-0212		●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97351-571-0	01	1	0301-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9804-	●	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-0201	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●

2 147 147 63 3 3 248 40 147 40 40 149 79 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

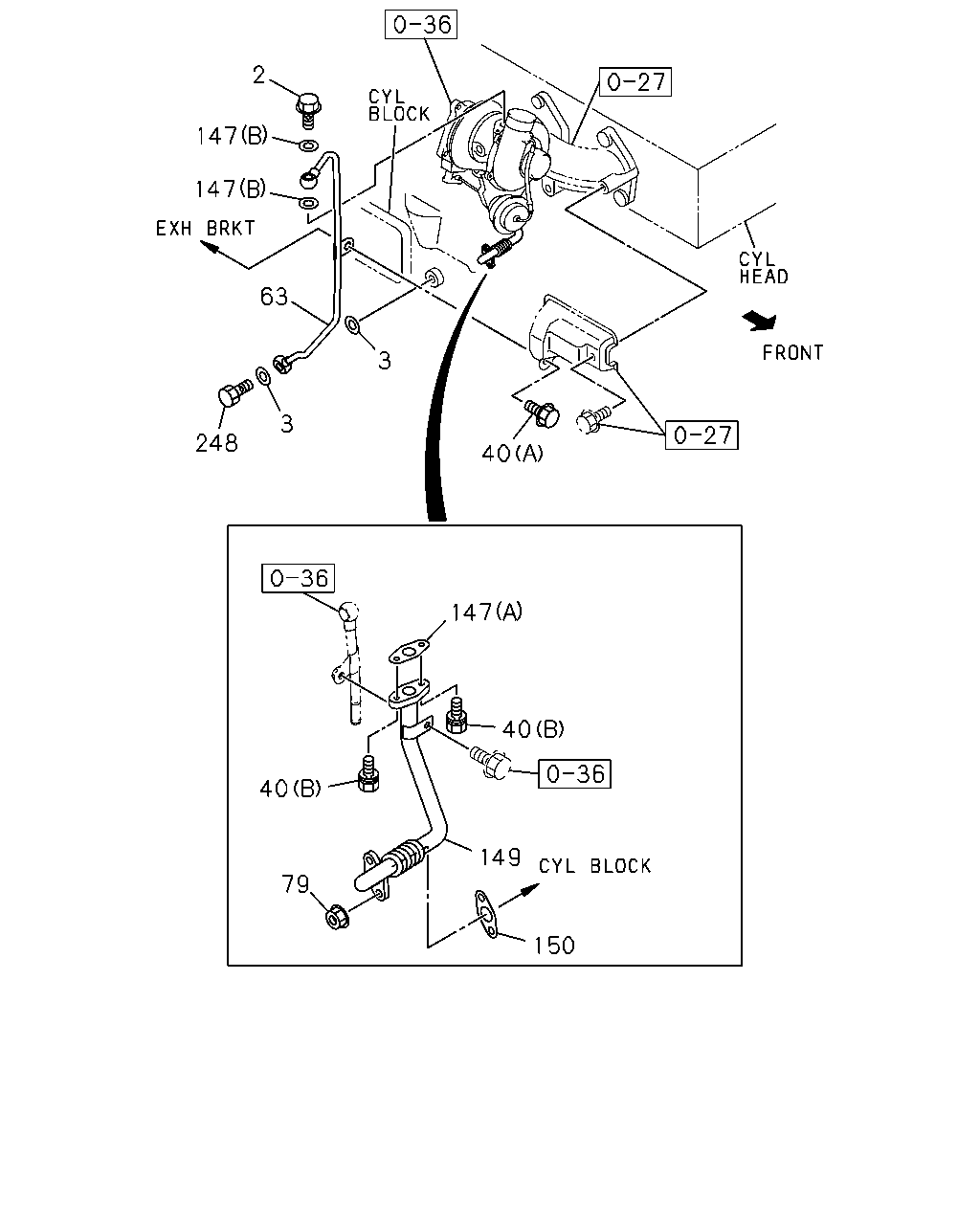

2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9804-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-	●	●
40	01.531 BOLT; OIL PIPE 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9804-0107	●
40	01.531 BOLT; OIL PIPE EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0108-	●
40	01.531 BOLT; OIL PIPE 02.559 (B) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	9804-0107	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97161-201-0	01	1	0108-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL>	8-97310-794-2	01	1	0108-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	9804-		●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9804-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9804-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	9804-0107	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97162-108-0	01	1	0108-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97249-229-0	01	1	0108-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	9804-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	9804-	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED CHARGE AIR COOLER<6PL>	8-97305-198-1	01	1	0108-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9804-0107	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED EXC. CHARGE AIR COOLER<6PL> M14X25	8-94315-336-1	01	1	0108-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0108-		●

310 310 310 309 310 308 310 309 310 310 311 310 310 309 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
308	01.540 HOSE; OIL COOLER FEED CHARGE AIR COOLER<6PL>	8-97249-288-0	01	1	0108-0308	●
308	01.540 HOSE; OIL COOLER FEED CHARGE AIR COOLER<6PL>	8-97331-175-0	01	1	0309-	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9804-0107	●	●
308	01.540 HOSE; OIL COOLER FEED EXC. CHARGE AIR COOLER<6PL> 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0108-0112	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0108-0112		●
308	01.540 HOSE; OIL COOLER FEED EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-		●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97168-220-0	01	1	9804-0107	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHARGE AIR COOLER<6PL> (B)	8-97168-220-0	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97049-285-0	01	1	9804-0107	●	●
309	01.540 HOSE; OIL COOLER RETURN EXC. CHARGE AIR COOLER<6PL> (A)	8-97049-285-0	01	1	0108-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97049-285-0	01	1	0108-		●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9804-0212		●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97351-571-0	01	1	0301-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9804-	●	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-0201	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●

58 29 29 57 28 26 331 331 330 330 331 331 47 47 47 400 47 47 85 332 332 51 51 44 44 47 47 47 47 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

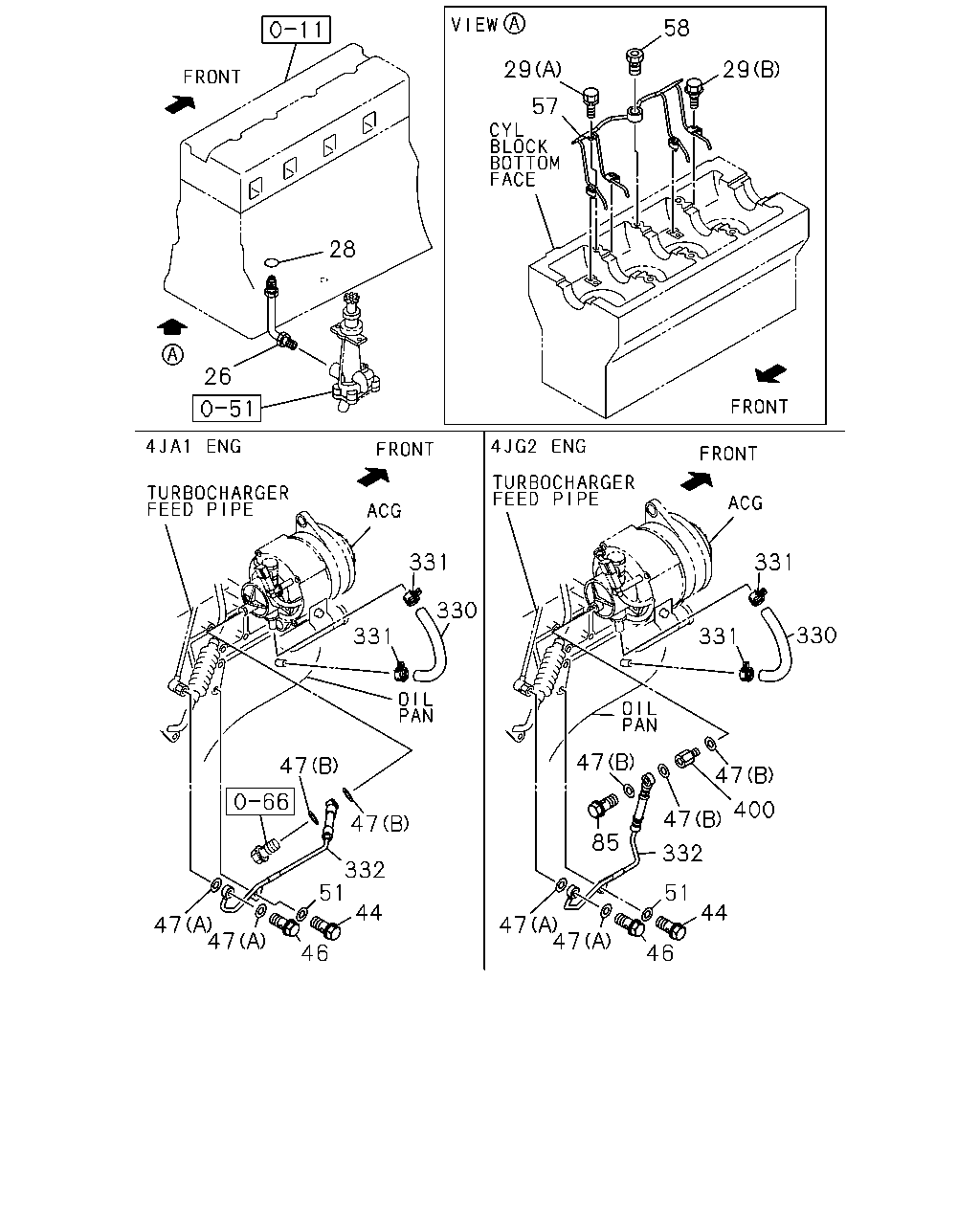

26	01.519 PIPE; OIL,PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97080-301-2	01	1	0108-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9804-0107	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-94434-828-2	01	1	0108-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	0108-		●
28	01.531 GASKET; OIL PIPE CHARGE AIR COOLER<6PL> 01.516 ID=11 ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	02	1	0108-	●
28	01.531 GASKET; OIL PIPE 01.516 ID=11	5-09623-002-0	01	1	9804-0107	●	●
28	01.531 GASKET; OIL PIPE EXC. CHARGE AIR COOLER<6PL>.	5-09623-002-0	01	1	0108-	●
28	01.531 GASKET; OIL PIPE 01.516 ID=11 ALSO INCLUDED IN GASKET SET(ENGINE).	5-09623-002-0	01	1	0108-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9804-0202	●
29	01.531 BOLT; OIL PIPE,OIL JET CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 M8X10 FLANGE	0-28080-810-0	01	1	0301-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9804-0107	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0108-	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9804-0202		●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X22 FLANGE	8-97117-298-0	04	1	9804-0107		●
29	01.531 BOLT; OIL PIPE,OIL JET CHARGE AIR COOLER<6PL> (B) M6X20	8-97117-298-1	04	1	0108-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0108-		●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-		●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9804-	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-1	01	1	9804-0107	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-94469-992-2	01	1	0108-0308	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-97912-536-2	01	1	0309-	●
57	01.519 PIPE; OIL,OIL JET CHARGE AIR COOLER<6PL>	8-97249-279-0	01	1	0108-	●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	9804-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9804-0104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-0	01	1	0105-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9804-		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9804-	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9804-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-94468-522-1	01	1	9804-0107	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. CHARGE AIR COOLER<6PL>	8-94468-522-1	01	1	0108-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP CHARGE AIR COOLER<6PL>	8-97314-892-1	01	1	0108-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9804-		●
400	01.531 NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9804-		●
