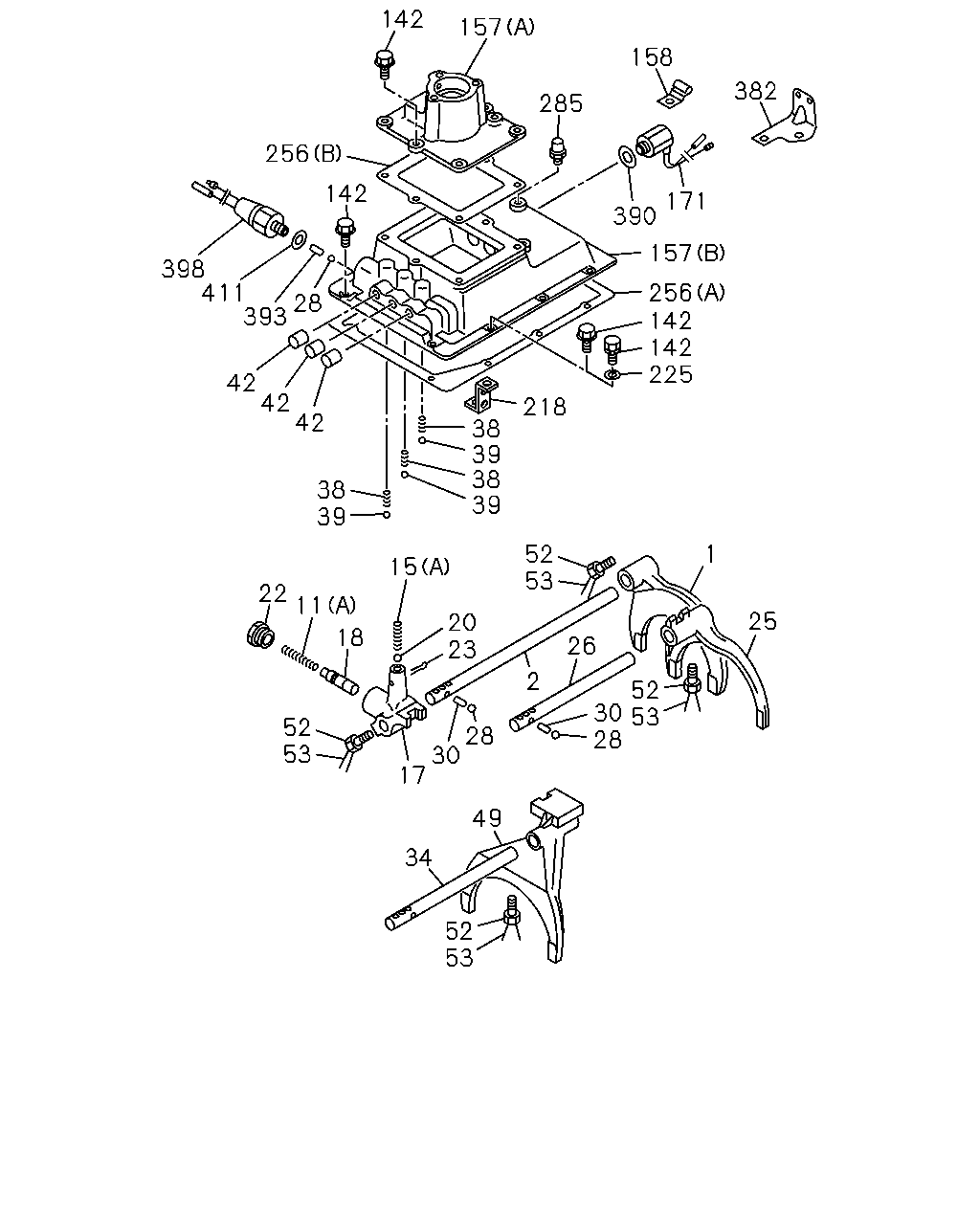

2-30A — GEAR SHIFTER AND QUADRANT BOX (#4422) — 170 parça

142 157 158 382 285 256 142 171 390 398 411 28 393 157 256 142 142 225 38 39 38 39 42 42 42 218 38 39 1 52 53 15 22 11 18 25 20 23 26 2 52 30 53 28 28 30 17 52 53 49 34 52 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ARM; SHIFT,1ST & REV	1-33511-078-2	01	1	9101-9504	●	●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9101-9504	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9101-9504	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9101-9504		●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09940-854-0	01	1	9101-9504	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-308-0	01	1	9101-9504		●	●	●
17	BLOCK; SHIFT,1ST & REV	1-33511-161-1	01	1	9101-9504	●	●	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-015-1	01	1	9101-9504	●	●	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9101-9504	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9101-9201	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-9304	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9305-9808	●	●	●	●
23	PIN; SPLIT,LOCK SPRING OD=3.7 L=22	9-08114-022-0	01	1	9101-9504	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-259-2	01	1	9101-9201	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-448-0	01	1	9202-9504	●	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-245-0	01	1	9101-9504	●	●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9101-9504	●
28	BALL; INTER LK	9-00097-010-0	07	1	9101-9504		●	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9101-9504	●
30	PIN; INTER LK	1-33534-002-0	03	1	9101-9504		●	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-218-0	01	1	9101-9504	●	●	●	●
38	SPRING; DETENT	1-09580-422-0	03	1	9101-9504	●
38	SPRING; DETENT	1-09580-422-0	04	1	9101-9504		●	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9101-9504	●
39	BALL; DETENT	9-00097-013-0	04	1	9101-9504		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9101-9504	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9101-9504		●	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-190-1	01	1	9101-9201	●
49	ARM; SHIFT,4TH & 5TH	1-33511-444-1	01	1	9202-9504	●
49	ARM; SHIFT,4TH & 5TH	1-33511-189-2	01	1	9101-9201		●	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-443-0	01	1	9202-9504		●	●	●
52	BOLT; SHIFT ARM	1-09052-004-2	04	1	9101-9107	●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9108-9504	●
52	BOLT; SHIFT ARM	1-09052-004-2	06	1	9101-9107		●	●	●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9108-9504		●	●	●
53	WIRE; BOLT L=200	9-08351-020-0	04	1	9101-9107	●
53	WIRE; BOLT L=200	9-08351-020-0	06	1	9101-9107		●	●	●
142	BOLT; QUAD BOX M10X30 W/LK WASHER	0-50051-030-0	08	1	9101-9205	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9206-9504	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	0-50051-035-0	01	1	9101-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9206-9504	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	01	1	9101-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-9504	●
142	BOLT; QUAD BOX BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35	1-09040-064-1	01	1	9101-9205	●
142	BOLT; QUAD BOX BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X34 FLANGE	1-09040-091-0	01	1	9206-9504	●
142	BOLT; QUAD BOX BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50051-030-0	09	1	9101-9205	●
142	BOLT; QUAD BOX BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X28 FLANGE	0-28181-028-0	09	1	9206-9504	●
142	BOLT; QUAD BOX M10X30 W/LK WASHER	0-50051-030-0	04	1	9101-9205	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	04	1	9206-9504	●	●	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9101-9205	●	●	●	●
142	BOLT; QUAD BOX EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X30	1-09040-063-1	02	1	9101-9205		●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9101-9205				●
142	BOLT; QUAD BOX EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-9504		●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-9504				●
142	BOLT; QUAD BOX M10X30 W/LK WASHER	0-50051-030-0	11	1	9101-9205		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9206-9504		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-9304	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9305-9504	●	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-285-2	01	1	9101-9504	●
157	BOX; QUAD,TRANS (A)	1-33541-336-1	01	1	9101-9202	●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-336-1	01	1	9203-9504	●	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-286-1	01	1	9101-9504		●	●	●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9101-9504	●	●	●	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9101-9504	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-47476-812-1	01	1	9208-9504	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	04	1	9101-9106	●	●	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33542-036-2	01	1	9101-9504	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33542-046-0	01	1	9101-9108	●	●	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33542-037-1	01	1	9101-9504		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-002-0	01	1	9101-9202	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-002-0	01	1	9203-9304	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-002-0	01	1	9305-9504	●	●	●	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-086-1	01	1	9101-9104	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-137-1	01	1	9105-9504	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9101-9208	●	●	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-9504	●	●	●	●
393	PIN; SW	1-33534-003-0	01	1	9101-9504	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9101-9201	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-9304	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9305-9504	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9101-9208	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-9504	●	●	●	●

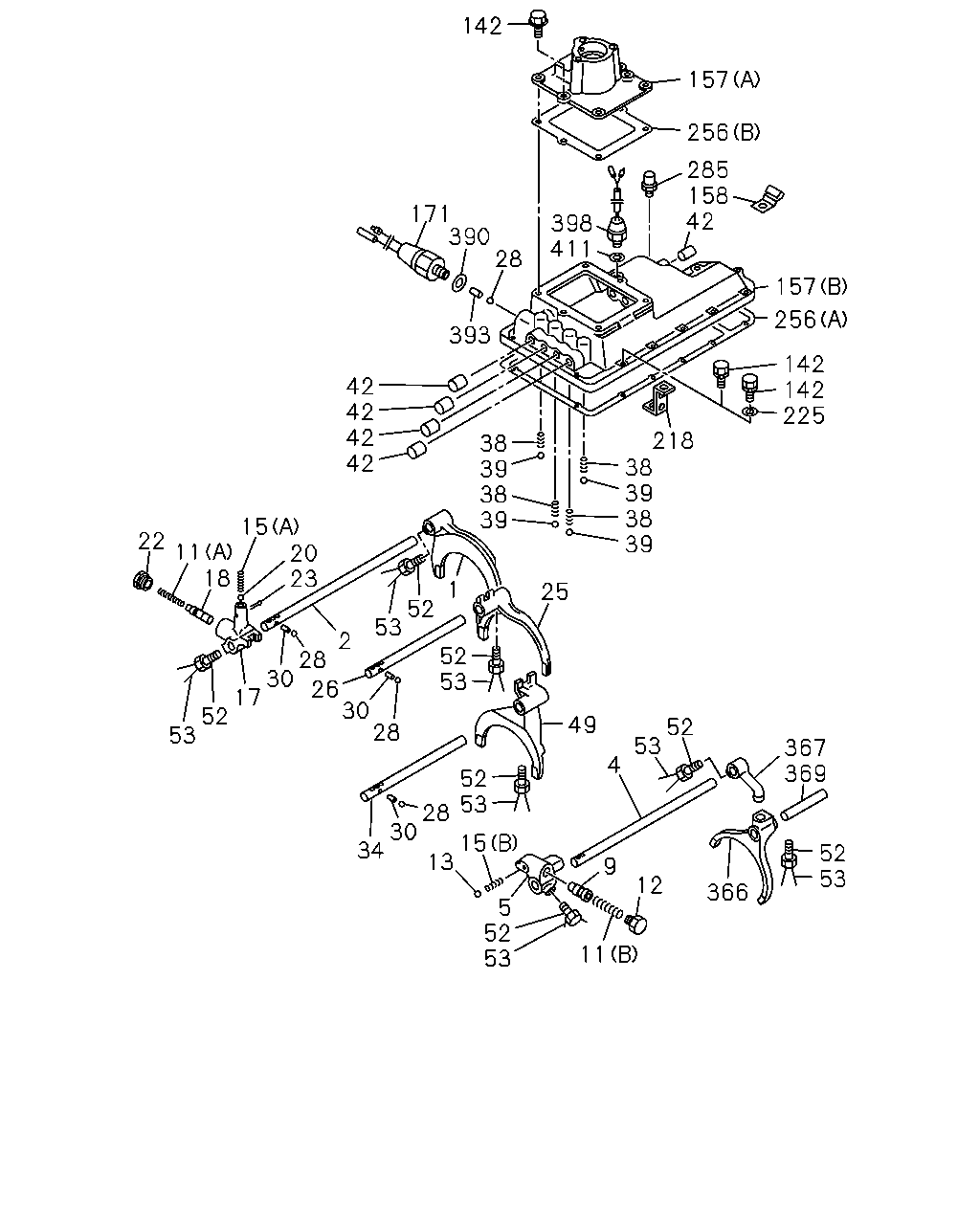

142 157 256 285 158 42 171 390 28 398 411 157 256 393 142 142 225 42 42 42 42 218 38 39 38 39 38 39 38 39 15 22 11 20 18 23 1 52 53 25 2 28 30 26 17 52 30 53 28 52 53 49 52 53 4 367 369 52 53 28 30 15 34 13 5 52 53 52 53 9 12 366 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ARM; SHIFT,1ST & REV	1-33511-078-2	01	1	9101-9504	●	●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9101-9504	●	●	●	●
4	ROD; SHIFT,6TH	1-33531-219-0	01	1	9101-9504		●	●	●
5	BLOCK; SHIFT,6TH	1-33511-163-1	01	1	9101-9504		●	●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-015-1	01	1	9101-9504		●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9101-9504	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	9101-9504		●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9101-9504		●	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9101-9504		●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09940-854-0	01	1	9101-9504	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-308-0	01	1	9101-9504		●	●	●
17	BLOCK; SHIFT,1ST & REV	1-33511-161-1	01	1	9101-9504	●	●	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-015-1	01	1	9101-9504	●	●	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9101-9504	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9101-9201	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-9304	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9305-9808	●	●	●	●
23	PIN; SPLIT,LOCK SPRING OD=3.7 L=22	9-08114-022-0	01	1	9101-9504	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-259-2	01	1	9101-9201	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-448-0	01	1	9202-9504	●	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-245-0	01	1	9101-9504	●	●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9101-9504	●
28	BALL; INTER LK	9-00097-010-0	07	1	9101-9504		●	●	●
30	PIN; INTER LK	1-33534-002-0	02	1	9101-9504	●
30	PIN; INTER LK	1-33534-002-0	03	1	9101-9504		●	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-218-0	01	1	9101-9504	●	●	●	●
38	SPRING; DETENT	1-09580-422-0	03	1	9101-9504	●
38	SPRING; DETENT	1-09580-422-0	04	1	9101-9504		●	●	●
39	BALL; DETENT	9-00097-013-0	03	1	9101-9504	●
39	BALL; DETENT	9-00097-013-0	04	1	9101-9504		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9101-9504	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9101-9504		●	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-190-1	01	1	9101-9201	●
49	ARM; SHIFT,4TH & 5TH	1-33511-444-1	01	1	9202-9504	●
49	ARM; SHIFT,4TH & 5TH	1-33511-189-2	01	1	9101-9201		●	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-443-0	01	1	9202-9504		●	●	●
52	BOLT; SHIFT ARM	1-09052-004-2	04	1	9101-9107	●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9108-9504	●
52	BOLT; SHIFT ARM	1-09052-004-2	06	1	9101-9107		●	●	●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9108-9504		●	●	●
53	WIRE; BOLT L=200	9-08351-020-0	04	1	9101-9107	●
53	WIRE; BOLT L=200	9-08351-020-0	06	1	9101-9107		●	●	●
142	BOLT; QUAD BOX M10X30 W/LK WASHER	0-50051-030-0	08	1	9101-9205	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9206-9504	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	0-50051-035-0	01	1	9101-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9206-9504	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	01	1	9101-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-9504	●
142	BOLT; QUAD BOX BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35	1-09040-064-1	01	1	9101-9205	●
142	BOLT; QUAD BOX BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X34 FLANGE	1-09040-091-0	01	1	9206-9504	●
142	BOLT; QUAD BOX BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50051-030-0	09	1	9101-9205	●
142	BOLT; QUAD BOX BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X28 FLANGE	0-28181-028-0	09	1	9206-9504	●
142	BOLT; QUAD BOX M10X30 W/LK WASHER	0-50051-030-0	04	1	9101-9205	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	04	1	9206-9504	●	●	●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9101-9205	●	●	●	●
142	BOLT; QUAD BOX EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X30	1-09040-063-1	02	1	9101-9205		●	●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9101-9205				●
142	BOLT; QUAD BOX EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-9504		●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-9504				●
142	BOLT; QUAD BOX M10X30 W/LK WASHER	0-50051-030-0	11	1	9101-9205		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9206-9504		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-9304	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9305-9504	●	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-285-2	01	1	9101-9504	●
157	BOX; QUAD,TRANS (A)	1-33541-336-1	01	1	9101-9202	●	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-336-1	01	1	9203-9504	●	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-286-1	01	1	9101-9504		●	●	●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9101-9504	●	●	●	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9101-9504	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-47476-812-1	01	1	9208-9504	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	04	1	9101-9106	●	●	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33542-036-2	01	1	9101-9504	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33542-046-0	01	1	9101-9108	●	●	●	●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33542-037-1	01	1	9101-9504		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-002-0	01	1	9101-9202	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-002-0	01	1	9203-9304	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-002-0	01	1	9305-9504	●	●	●	●
366	ARM; SHIFT,LWR,6TH	1-33511-218-0	01	1	9101-9504		●	●	●
367	ARM; SHIFT,UPR,6TH	1-33511-073-2	01	1	9101-9504		●	●	●
369	SPINDLE; 6TH,SHIFT ARM	9-33513-003-0	01	1	9101-9504		●	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9101-9208	●	●	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-9504	●	●	●	●
393	PIN; SW	1-33534-003-0	01	1	9101-9504	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9101-9201	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-9304	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9305-9504	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9101-9208	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-9504	●	●	●	●
