◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#44217) — 34 parça
çizim 16703
1 1 93 92 2 112 112 3 66 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
CHARGE AIR COOLER<6PL> 		8-97263-325-1 01 1 0108- ●
1 03.890 FILTER ASM; FUEL 8-97038-184-1 01 1 9804-0107 ● ●
1 03.890 FILTER ASM; FUEL
EXC. CHARGE AIR COOLER<6PL> 		8-97038-184-1 01 1 0108- ●
1 03.890 FILTER ASM; FUEL 8-97038-184-1 01 1 0108- ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-94369-299-3 01 1 9804- ● ●
3 03.890 SENSOR ASM; FUEL FILTER 8-97064-712-1 01 1 9804- ● ●
7 03.890 PLUG; SENSOR,FUEL FILTER 8-97123-549-0 01 1 9804- ● ●
66 03.890 GASKET; PLUG,FUEL FILTER
CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0108- ●
66 03.890 GASKET; PLUG,FUEL FILTER
01.844 ID=6.8 		8-94167-886-0 01 1 9804-0107 ● ●
66 03.890 GASKET; PLUG,FUEL FILTER
EXC. CHARGE AIR COOLER<6PL> 01.844 ID=6.8 		8-94167-886-0 01 1 0108- ●
66 03.890 GASKET; PLUG,FUEL FILTER
01.844 ID=6.8 		8-94167-886-0 01 1 0108- ●
92 03.417 CAP; FUEL FILTER
CHARGE AIR COOLER<6PL> 		8-97172-548-0 01 1 0108- ●
93 03.890 CONNECTOR; FUEL FILTER
CHARGE AIR COOLER<6PL> 		8-97172-546-1 01 1 0108- ●
112 06.605 GASKET; SENSOR TO CASE
CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0108- ●

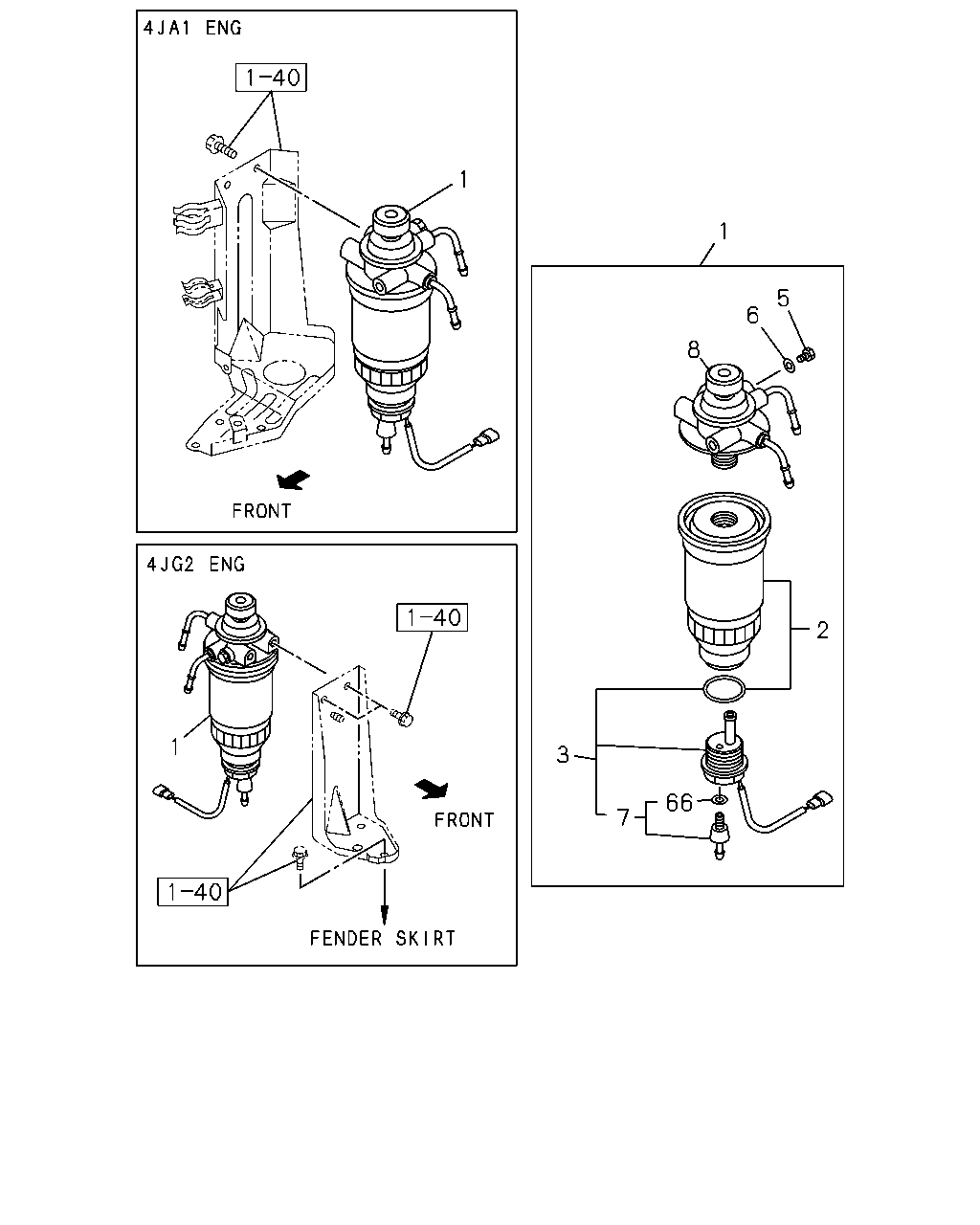

çizim 17687
1 1 5 6 8 2 1 3 66 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 FILTER ASM; FUEL
CHARGE AIR COOLER<6PL> 		8-97263-325-1 01 1 0108- ●
1 03.890 FILTER ASM; FUEL 8-97038-184-1 01 1 9804-0107 ● ●
1 03.890 FILTER ASM; FUEL
EXC. CHARGE AIR COOLER<6PL> 		8-97038-184-1 01 1 0108- ●
1 03.890 FILTER ASM; FUEL 8-97038-184-1 01 1 0108- ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-94369-299-3 01 1 9804- ● ●
3 03.890 SENSOR ASM; FUEL FILTER 8-97064-712-1 01 1 9804- ● ●
5 03.890 BOLT; FUEL FILTER 8-94132-674-0 01 1 9804-0107 ● ●
5 03.890 BOLT; FUEL FILTER
EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0108- ●
5 03.890 BOLT; FUEL FILTER 8-94132-674-0 01 1 0108- ●
6 03.890 GASKET; FUEL FILTER 8-94132-675-0 01 1 9804-0107 ● ●
6 03.890 GASKET; FUEL FILTER
EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0108- ●
6 03.890 GASKET; FUEL FILTER 8-94132-675-0 01 1 0108- ●
7 03.890 PLUG; SENSOR,FUEL FILTER 8-97123-549-0 01 1 9804- ● ●
8 03.890 COVER; FUEL FILTER 8-94450-135-2 01 1 9804-0107 ● ●
8 03.890 COVER; FUEL FILTER
EXC. CHARGE AIR COOLER<6PL> 		8-94450-135-2 01 1 0108- ●
8 03.890 COVER; FUEL FILTER 8-94450-135-2 01 1 0108- ●
66 03.890 GASKET; PLUG,FUEL FILTER
CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0108- ●
66 03.890 GASKET; PLUG,FUEL FILTER
01.844 ID=6.8 		8-94167-886-0 01 1 9804-0107 ● ●
66 03.890 GASKET; PLUG,FUEL FILTER
EXC. CHARGE AIR COOLER<6PL> 01.844 ID=6.8 		8-94167-886-0 01 1 0108- ●
66 03.890 GASKET; PLUG,FUEL FILTER
01.844 ID=6.8 		8-94167-886-0 01 1 0108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
