Sayfa 0-37 - Isuzu EPC

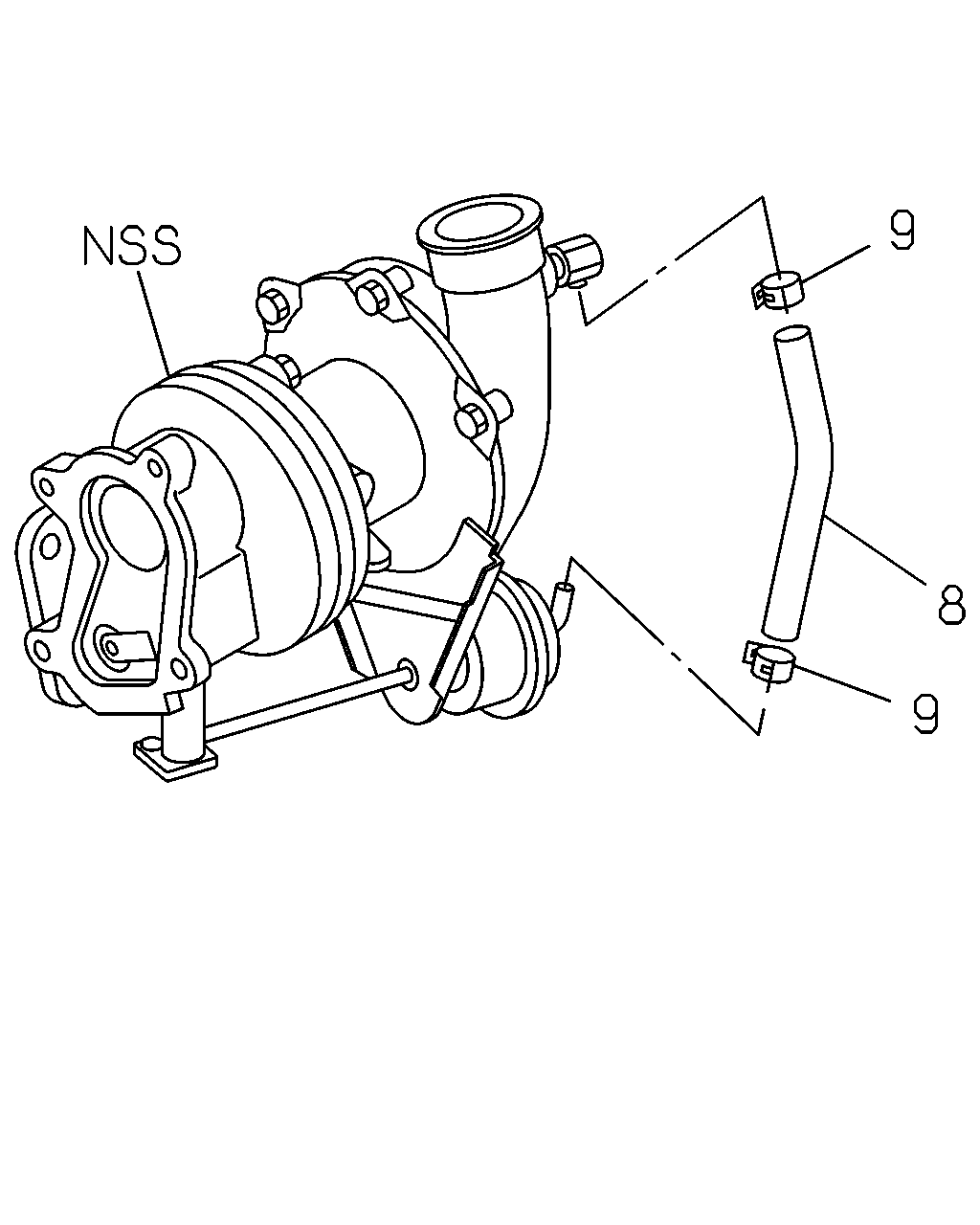

0-37 — TURBOCHARGER (#44215) — 5 parça

9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-97070-029-2, 97070029, B = 8-97161-827-2, 97161827	8-94311-234-0	01	1	-
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-97289-468-2, 97289468	8-97302-523-0	01	1	-0111
8	03.342 HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: C = 8-97289-468-2, 97289468	8-97327-882-0	01	1	0112-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: C = 8-97289-468-2, 97289468	8-94167-469-0	02	1	-
9	03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: B = 8-97161-827-2, 97161827	8-94167-469-0	02	1	0004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
