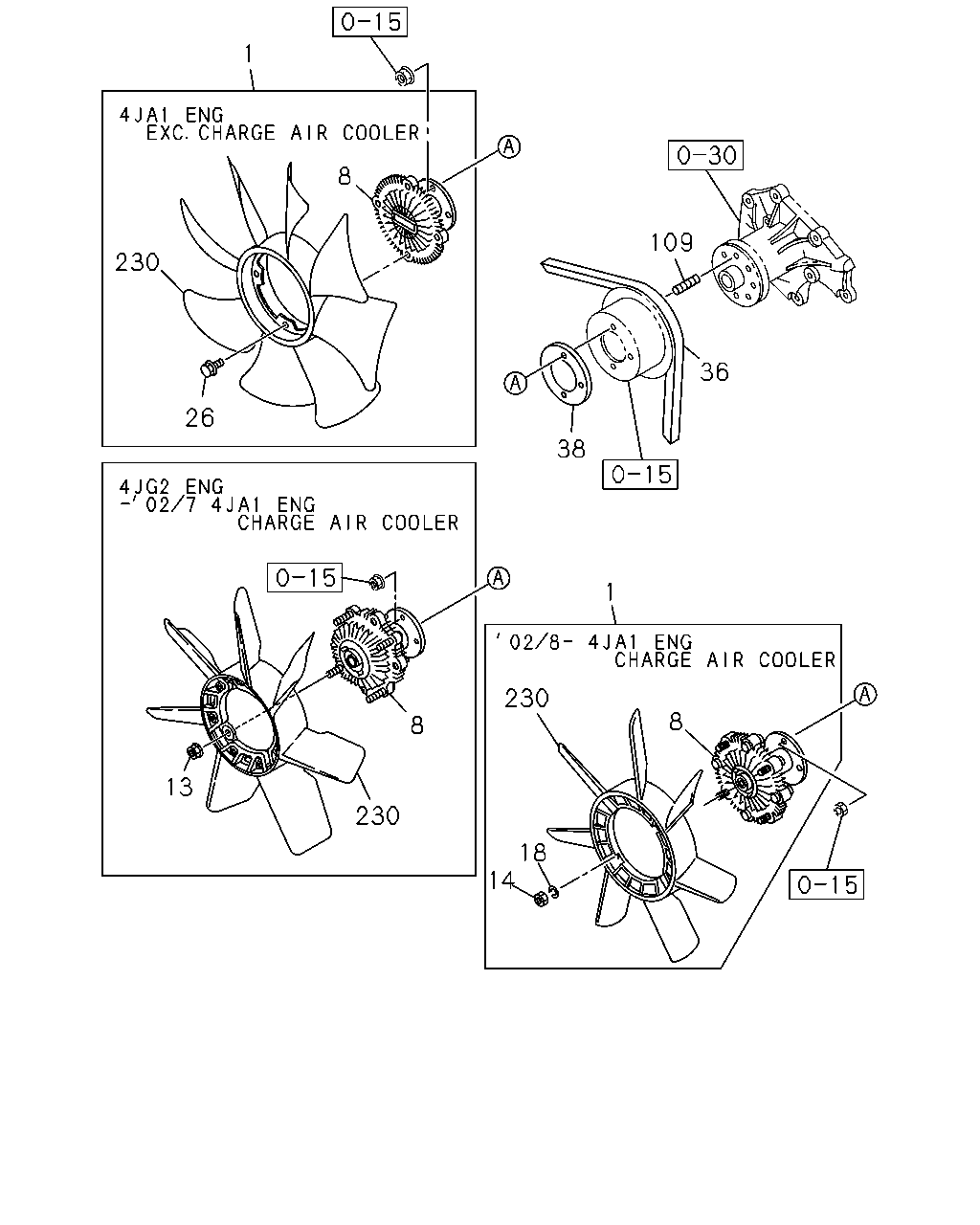

0-33 — FAN AND FAN BELT (#44212) — 42 parça

1 8 109 230 36 26 38 1 230 8 8 13 230 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.064 FAN; COOLING CHARGE AIR COOLER<6PL> OD=410	8-94103-469-0	01	1	0208-	●
1	01.064 FAN; COOLING OD=390	8-94175-331-0	01	1	9804-0107	●
1	01.064 FAN; COOLING EXC. CHARGE AIR COOLER<6PL> OD=390	8-94175-331-0	01	1	0108-	●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-94244-409-0	01	1	0208-	●
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9804-0107	●
8	01.064 CLUTCH; COOLING FAN EXC. CHARGE AIR COOLER<6PL>	8-94311-257-0	01	1	0108-	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	9804-0107		●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-97069-783-0	01	1	0108-0207	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0108-0207		●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0208-		●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	9804-0107		●
13	01.062 NUT; COOLING FAN CHARGE AIR COOLER<6PL> 07.829 M6 FLANGE	5-09440-004-0	04	1	0108-0207	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0108-0207		●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0208-		●
14	01.062 NUT; FAN TO CLU CHARGE AIR COOLER<6PL> 00.413 M6	9-09110-506-0	04	1	0208-	●
18	01.062 WASHER; FAN TO CLU CHARGE AIR COOLER<6PL> 00.206 ID=6.1	9-09150-506-0	04	1	0208-	●
26	01.062 BOLT; FAN TO CLU 03.671 M6X20 FLANGE	0-28020-620-0	04	1	9804-0107	●
26	01.062 BOLT; FAN TO CLU EXC. CHARGE AIR COOLER<6PL> 03.671 M6X20	0-28020-620-0	04	1	0108-	●
36	01.066 BELT; COOLING FAN CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	0208-0208	●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	9804-0207	●
36	01.066 BELT; COOLING FAN EXC. CHARGE AIR COOLER<6PL> L=1051	8-94161-841-0	01	1	0208-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9804-0206		●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-0207		●
36	01.066 BELT; COOLING FAN CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0208-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0208-		●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9804-	●	●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9804-	●	●
230	01.055 FAN; COOLING CHARGE AIR COOLER<6PL> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	0208-	●
230	01.055 FAN; COOLING 01.604 OD=390 7-BLADE	8-94311-258-0	01	1	9804-0107	●
230	01.055 FAN; COOLING EXC. CHARGE AIR COOLER<6PL> 01.604	8-94311-258-0	01	1	0108-	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	9804-0107		●
230	01.055 FAN; COOLING CHARGE AIR COOLER<6PL> 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0108-0207	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0108-0207		●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0208-		●

80 80 96 96 96 96 96 88 80 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	02.317 PLATE; ADJ (B) ADJ PLATE	8-97132-049-0	01	1	9804-	●	●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60) (A) ADJ SLIDER	8-97132-048-0	01	1	9804-	●	●
88	02.317 WASHER; PL,ADJ PLATE HEATER & DEFROSTER(C41) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9804-	●	●
96	02.317 BOLT; ADJ PLATE 01.540 (D) M8X45 FLANGE	0-28080-845-0	01	1	0202-	●	●
96	02.317 BOLT; ADJ PLATE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-0201	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-0201	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 (C) M8X45 W/LK WASHER	0-50040-845-0	01	1	0202-	●	●
96	02.317 BOLT; ADJ PLATE HEATER & DEFROSTER(C41) 01.073 (A) M8X25 W/LK WASHER	0-50040-825-0	01	1	9804-	●	●
