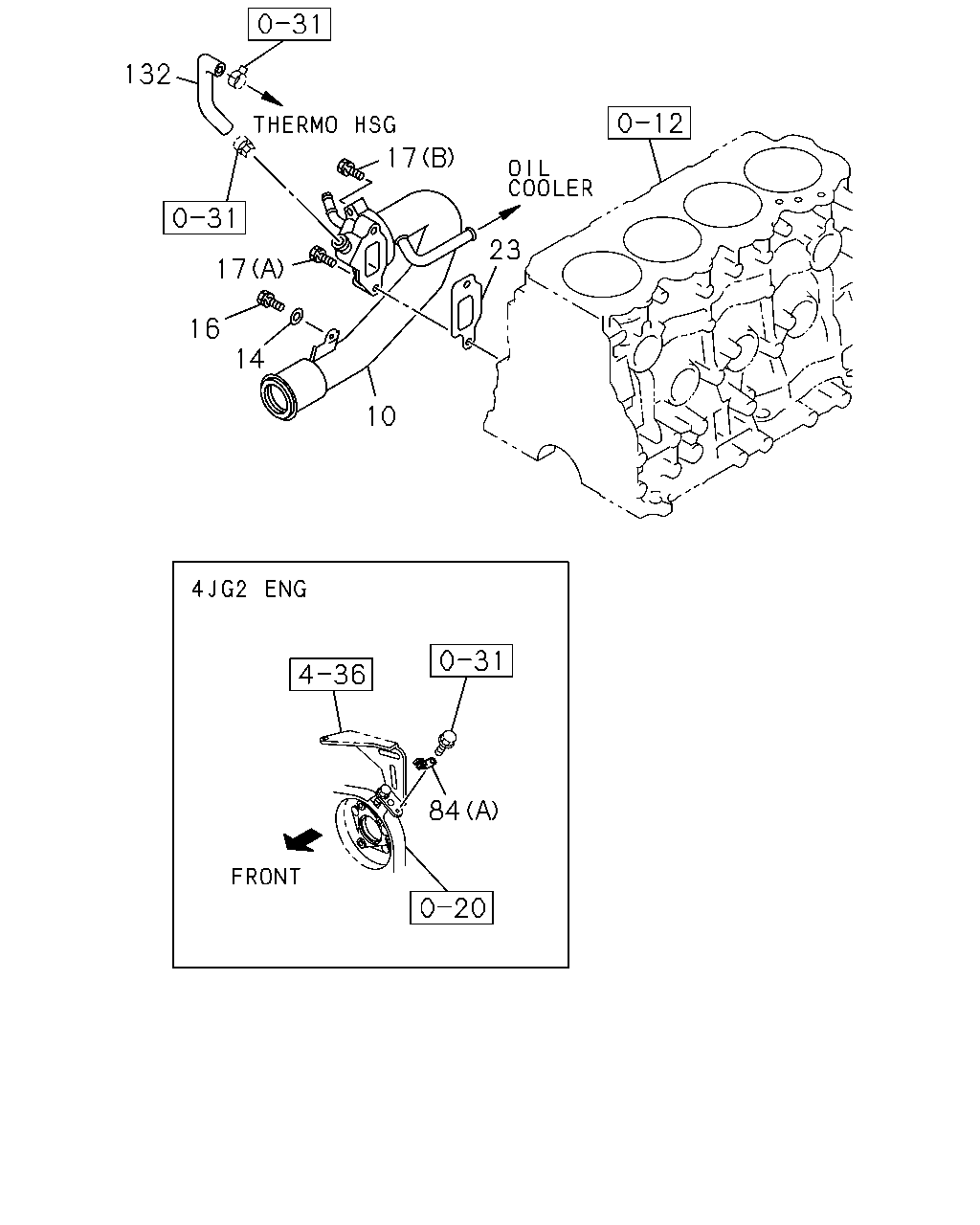

0-32 — WATER PIPING; ENGINE (#44211) — 70 parça

132 17 23 17 16 14 10 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	01.153 PIPE; SUCTION	8-97188-176-0	01	1	9804-0012	●
10	01.153 PIPE; SUCTION	8-97264-246-0	01	1	0101-0107	●
10	01.153 PIPE; SUCTION EXC. CHARGE AIR COOLER<6PL>	8-97264-246-0	01	1	0108-	●
10	01.153 PIPE; SUCTION CHARGE AIR COOLER<6PL>	8-97249-190-1	01	1	0108-	●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9804-0012		●
10	01.153 PIPE; SUCTION	8-97264-247-0	01	1	0101-		●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9804-	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9804-	●	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0108-0212	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0108-	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9804-0012	●	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0101-0107	●	●
17	01.153 BOLT; SUCTION PIPE EXC. CHARGE AIR COOLER<6PL> 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0108-	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0108-		●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-0012	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	9804-	●	●
84	01.240 CLIP; HOSE,W/CSD 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●	●
84	01.240 CLIP; HOSE,W/CSD 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-0107	●	●
84	01.240 CLIP; HOSE,W/CSD EXC. CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0108-	●
84	01.240 CLIP; HOSE,W/CSD 01.153 (B) ID=12.8	8-94367-943-0	04	1	0108-		●
84	01.240 CLIP; HOSE,W/CSD 02.559 (A) ID=12	5-09700-331-0	01	1	9804-0302		●
84	01.240 CLIP; HOSE,W/CSD 01.150 (A) ID=12	8-97367-983-0	01	1	0303-		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9804-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9804-		●

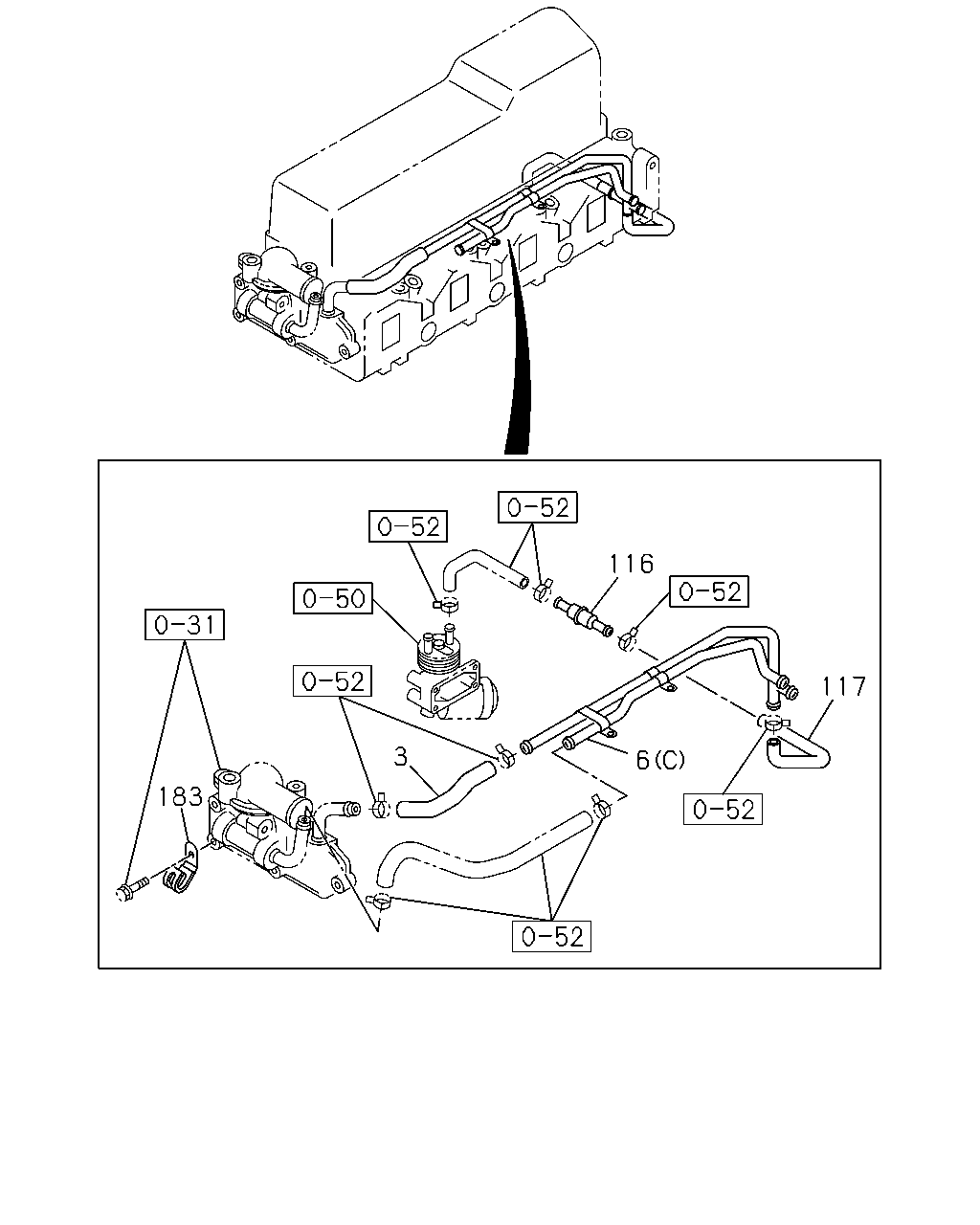

116 117 3 6 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.540 HOSE; WATER,OIL COOLER CHARGE AIR COOLER<6PL>	8-97256-046-0	01	1	0108-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9804-0107	●	●
3	01.540 HOSE; WATER,OIL COOLER EXC. CHARGE AIR COOLER<6PL>	8-97043-720-1	01	1	0108-0301	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	0108-0301		●
3	01.540 HOSE; WATER,OIL COOLER EXC. CHARGE AIR COOLER<6PL>	8-97354-155-1	01	1	0302-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97354-155-1	01	1	0302-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE (A)	8-97116-640-0	01	1	9804-9912	●
6	09.190 CONNECTOR; HTR & COOLER HOSE CHARGE AIR COOLER<6PL> (C)	8-97256-045-0	01	1	0108-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE (B)	8-97049-193-4	01	1	9804-0107	●	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-193-4	01	1	0108-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE (B)	8-97049-193-4	01	1	0108-		●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	9804-	●	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	9804-	●	●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9804-0302	●	●
183	01.242 CLIP; VACUUM HOSE 01.150 ID=12	8-97367-983-0	01	1	0303-	●	●

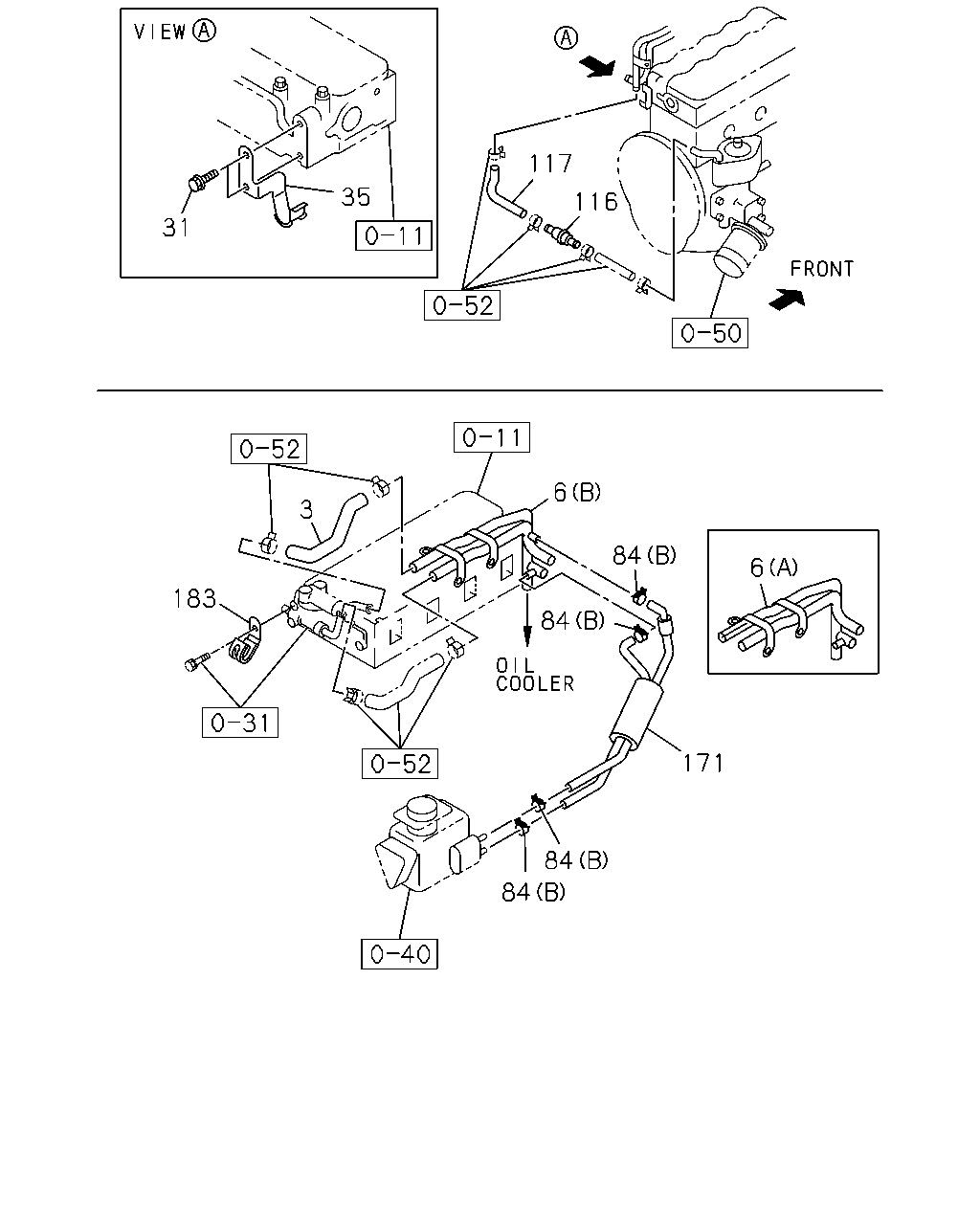

117 35 116 31 6 3 84 6 183 84 171 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.540 HOSE; WATER,OIL COOLER CHARGE AIR COOLER<6PL>	8-97256-046-0	01	1	0108-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9804-0107	●	●
3	01.540 HOSE; WATER,OIL COOLER EXC. CHARGE AIR COOLER<6PL>	8-97043-720-1	01	1	0108-0301	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	0108-0301		●
3	01.540 HOSE; WATER,OIL COOLER EXC. CHARGE AIR COOLER<6PL>	8-97354-155-1	01	1	0302-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97354-155-1	01	1	0302-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE (A)	8-97116-640-0	01	1	9804-9912	●
6	09.190 CONNECTOR; HTR & COOLER HOSE CHARGE AIR COOLER<6PL> (C)	8-97256-045-0	01	1	0108-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE (B)	8-97049-193-4	01	1	9804-0107	●	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-193-4	01	1	0108-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE (B)	8-97049-193-4	01	1	0108-		●
31	01.159 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-0107	●	●
31	01.159 BOLT; CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0108-	●
31	01.159 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0108-		●
35	01.242 CLIP; RUBBER HOSE 01.540	8-97039-302-0	01	1	9804-0107	●	●
35	01.242 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.540	8-97039-302-0	01	1	0108-	●
35	01.242 CLIP; RUBBER HOSE 01.540	8-97039-302-0	01	1	0108-		●
84	01.240 CLIP; HOSE,W/CSD 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●	●
84	01.240 CLIP; HOSE,W/CSD 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-0107	●	●
84	01.240 CLIP; HOSE,W/CSD EXC. CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0108-	●
84	01.240 CLIP; HOSE,W/CSD 01.153 (B) ID=12.8	8-94367-943-0	04	1	0108-		●
84	01.240 CLIP; HOSE,W/CSD 02.559 (A) ID=12	5-09700-331-0	01	1	9804-0302		●
84	01.240 CLIP; HOSE,W/CSD 01.150 (A) ID=12	8-97367-983-0	01	1	0303-		●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	9804-	●	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	9804-	●	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97048-903-3	01	1	9804-0107	●	●
171	01.240 HOSE; RUBBER,WAX CSD EXC. CHARGE AIR COOLER<6PL>	8-97048-903-3	01	1	0108-	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97048-903-3	01	1	0108-		●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9804-0302	●	●
183	01.242 CLIP; VACUUM HOSE 01.150 ID=12	8-97367-983-0	01	1	0303-	●	●
