Isuzu WW
▶
PICKUP
▶
TFR
▶
50802 - TFR/TFS(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

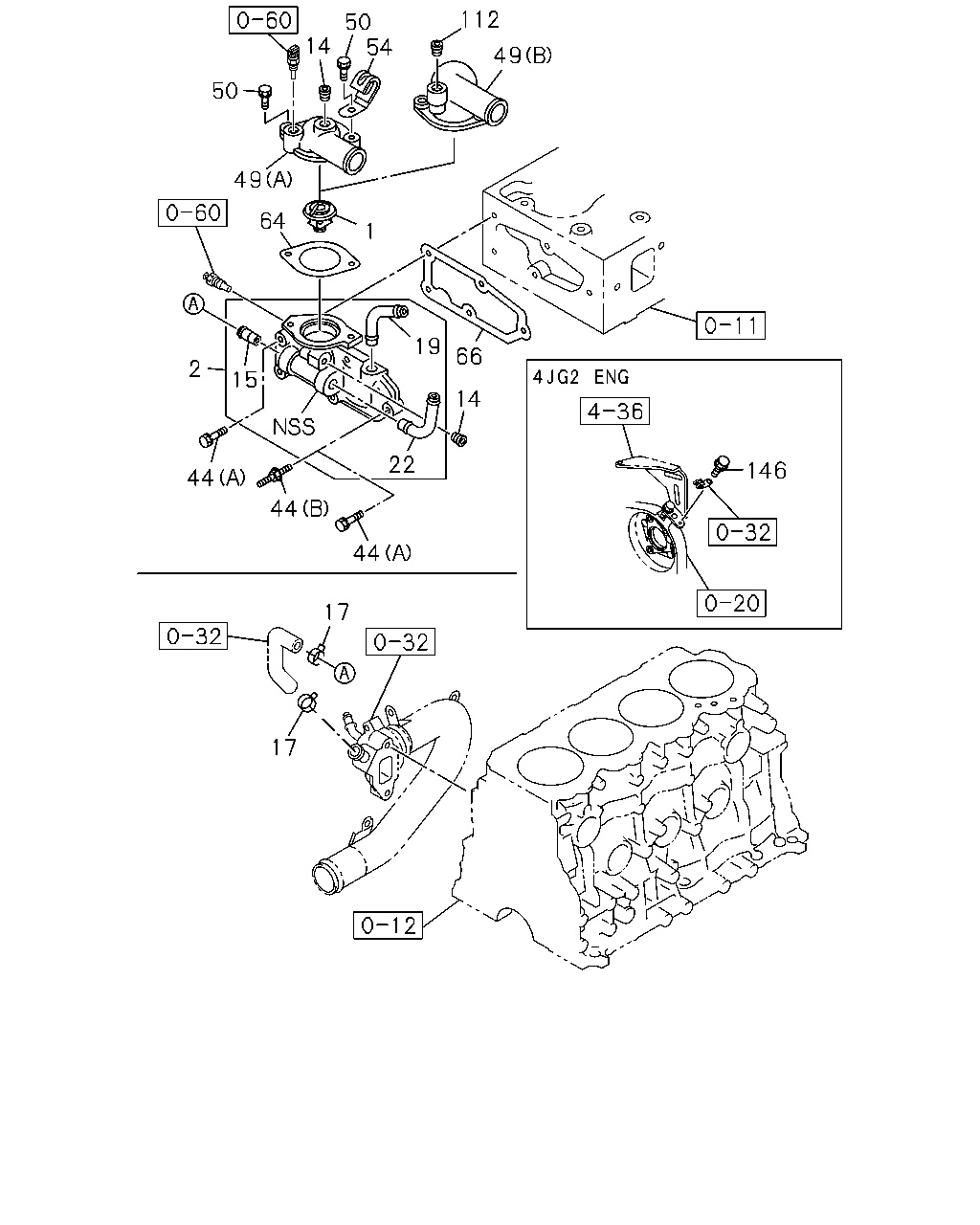

0-31 — THERMOSTAT AND HOUSING
(#44210) — 28 parça
Tümü
A - 4JG2 ENG
B - 4JA1 ENG
112
50
54
14
49
50
49
64
1
19
66
2
15
14
22
146
44
44
44
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.246 THERMOSTAT
82 CELSIUS
8-97089-891-0
01
1
9804-0301
●
●
1
01.246 THERMOSTAT
82 CELSIUS
8-97361-770-0
01
1
0302-
●
●
2
01.251 HOUSING; THERMOSTAT
8-97117-243-0
01
1
9804-
●
●
14
01.252 PLUG; SW
01.073 PT3/8
5-09605-005-0
01
1
0104-0107
●
14
01.252 PLUG; SW
EXC. CHARGE AIR COOLER<6PL> 01.073 PT3/8
5-09605-005-0
01
1
0108-
●
14
01.252 PLUG; SW
01.073 PT3/8
5-09605-005-0
02
1
9804-0103
●
●
14
01.252 PLUG; SW
01.073 PT3/8
5-09605-005-0
02
1
0104-
●
15
01.251 PIPE; BYPASS
8-94343-211-1
01
1
9804-
●
●
17
01.166 CLIP; WATER HOSE
ID=20.8
8-94125-862-1
02
1
9804-
●
●
19
01.252 PIPE; HSG TO HTR
8-94478-870-1
01
1
9804-
●
●
22
03.278 PIPE; HTR,RETURN
8-94478-869-2
01
1
9804-
●
●
44
01.252 BOLT; HSG TO HD
POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER
0-50040-830-0
04
1
9804-9906
●
●
44
01.252 BOLT; HSG TO HD
00.780 (A) M8X30 W/LK WASHER
0-50040-830-0
04
1
9907-
●
●
44
01.252 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X28,M8X34 L=69
8-94479-011-1
01
1
9804-9906
●
●
44
01.252 BOLT; HSG TO HD
(B) M8X28,M8X34 L=69
8-94479-011-1
01
1
9907-
●
●
44
01.252 BOLT; HSG TO HD
EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER
0-50040-830-0
05
1
9804-9906
●
●
49
01.153 PIPE; WATER OUTLET
(A)
8-97139-712-0
01
1
9804-0107
●
49
01.153 PIPE; WATER OUTLET
EXC. CHARGE AIR COOLER<6PL> (A)
8-97139-712-0
01
1
0108-
●
49
01.153 PIPE; WATER OUTLET
CHARGE AIR COOLER<6PL> (B)
8-97249-274-1
01
1
0108-
●
49
01.153 PIPE; WATER OUTLET
(A)
8-97183-181-0
01
1
9804-
●
50
01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER
0-50140-830-0
02
1
9804-
●
●
54
01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12
5-09700-331-0
01
1
9804-0302
●
●
54
01.152 CLIP; THERMO SWITCH,OUTLET PIPE
01.150 ID=12
8-97367-983-0
01
1
0303-
●
●
64
01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252
8-94365-674-2
01
1
9804-
●
●
66
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94365-675-1
01
1
9804-9902
●
●
66
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97216-156-0
01
1
9903-
●
●
112
01.251 PLUG
CHARGE AIR COOLER<6PL> 01.073 PT3/8
5-09605-005-0
01
1
0108-
●
146
01.166 BOLT; CLIP
01.428 M6X12 FLANGE
0-28080-612-0
01
1
9804-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
