0-25 — INLET MANIFOLD (#44206) — 87 parça

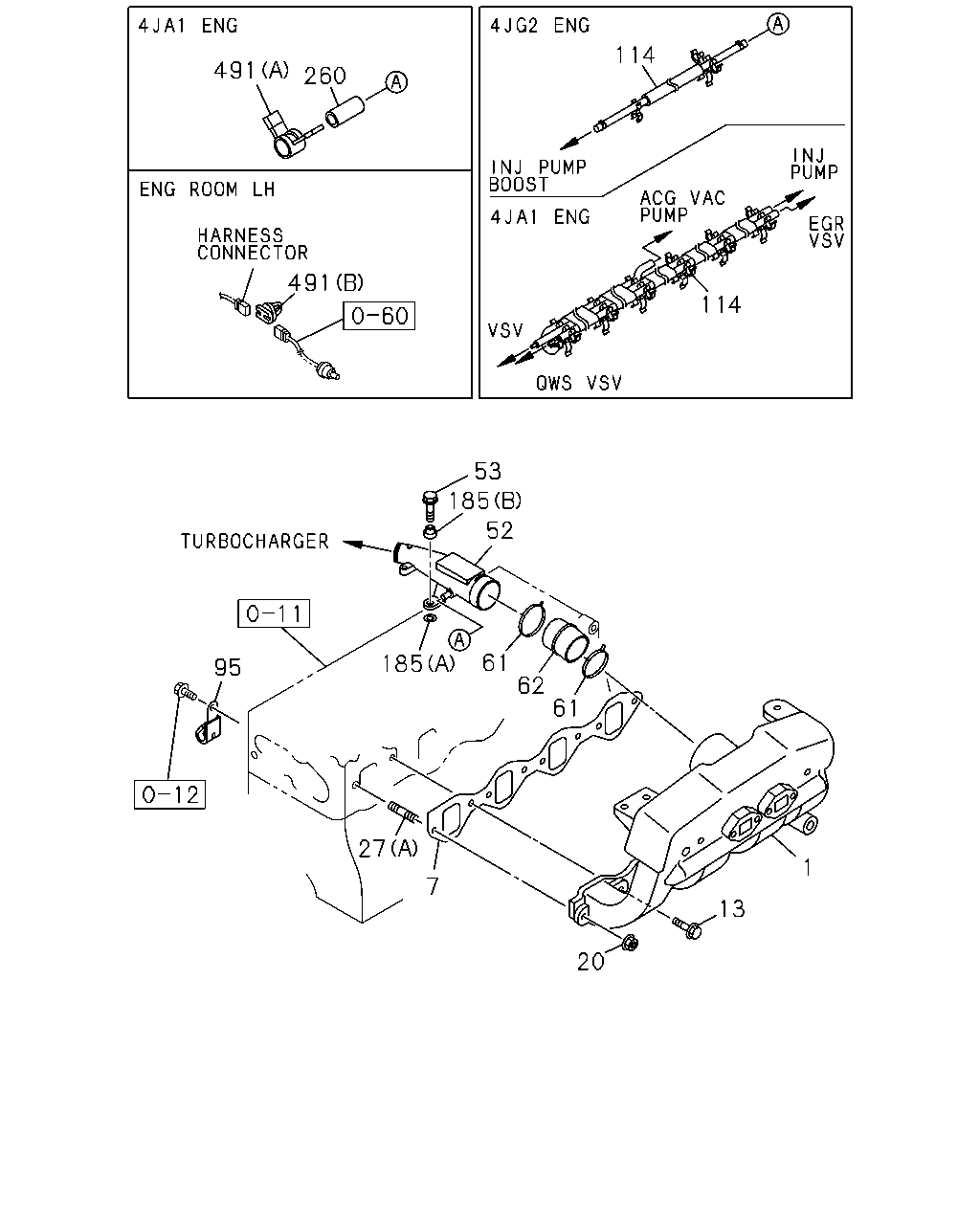

114 491 260 491 114 53 185 52 61 185 95 62 61 27 1 7 13 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL CHARGE AIR COOLER<6PL>	8-97249-064-4	01	1	0108-	●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	9804-0107	●	●
1	03.265 MANIFOLD; INL EXC. CHARGE AIR COOLER<6PL>	8-97139-649-1	01	1	0108-0308	●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	0108-0308		●
1	03.265 MANIFOLD; INL EXC. CHARGE AIR COOLER<6PL>	8-97253-952-0	01	1	0309-	●
1	03.265 MANIFOLD; INL	8-97253-952-0	01	1	0309-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9804-9905	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-	●	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-	●	●
27	03.275 STUD; INL MANIF CHARGE AIR COOLER<6PL> 03.901 (B) M8X25 L=37	9-04110-825-0	01	1	0108-	●
27	03.275 STUD; INL MANIF CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0108-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9804-0107	●	●
27	03.275 STUD; INL MANIF EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0108-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0108-		●
52	01.097 PIPE; INL CHARGE AIR COOLER<6PL>	8-97249-223-2	01	1	0108-	●
52	01.097 PIPE; INL	8-97188-068-1	01	1	9804-0107	●	●
52	01.097 PIPE; INL EXC. CHARGE AIR COOLER<6PL>	8-97188-068-1	01	1	0108-	●
52	01.097 PIPE; INL	8-97188-068-1	01	1	0108-		●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-0107	●	●
53	03.602 BOLT; INL PIPE EXC. CHARGE AIR COOLER<6PL> 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0108-	●
53	03.602 BOLT; INL PIPE 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0108-		●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	9804-0107	●	●
61	03.273 CLIP; CONNECTOR HOSE EXC. CHARGE AIR COOLER<6PL> ID=65-82	8-97131-942-0	02	1	0108-	●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	0108-		●
62	03.265 HOSE; CONNECTOR	8-97137-018-0	01	1	9804-0107	●	●
62	03.265 HOSE; CONNECTOR EXC. CHARGE AIR COOLER<6PL>	8-97137-018-1	01	1	0108-	●
62	03.265 HOSE; CONNECTOR	8-97137-018-1	01	1	0108-		●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9804-0101		●
95	03.278 CLIP; RUBBER HOSE 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0102-		●
114	03.265 HOSE; VAC,INT THROTTLE	8-97142-687-0	01	1	9804-9805	●
114	03.265 HOSE; VAC,INT THROTTLE	8-97211-188-0	01	1	9806-0007	●
114	03.265 HOSE; VAC,INT THROTTLE	8-97261-103-0	01	1	0008-0009	●
114	03.265 HOSE; VAC,INT THROTTLE	8-97300-888-0	01	1	0010-0107	●
114	03.265 HOSE; VAC,INT THROTTLE EXC. CHARGE AIR COOLER<6PL>	8-97300-888-0	01	1	0108-	●
114	03.265 HOSE; VAC,INT THROTTLE	8-97148-482-0	01	1	9804-0007		●
114	03.265 HOSE; VAC,INT THROTTLE	8-97259-674-0	01	1	0008-		●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B) W/COLLAR ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9804-0107	●	●
185	03.273 RUBBER; MTG,INL MANIF,UPR EXC. CHARGE AIR COOLER<6PL> (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	0108-	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	0108-		●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A)	8-94434-927-0	02	1	9804-0107	●	●
185	03.273 RUBBER; MTG,INL MANIF,UPR EXC. CHARGE AIR COOLER<6PL> (A)	8-94434-927-0	02	1	0108-	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A)	8-94434-927-0	02	1	0108-		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9804-0107	●
260	03.278 CAP; RUBBER EXC. CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR 03.278 (A)	8-97031-674-0	01	1	9804-0107	●
491	01.152 CLIP; CONNECTOR EXC. CHARGE AIR COOLER<6PL> 03.278 (A)	8-97031-674-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	9804-0107	●	●
491	01.152 CLIP; CONNECTOR ENG QUICK WARM UP SYSTEM<6JZ> (B) OD=7 H=1.2	8-94364-750-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR EXC. CHARGE AIR COOLER<6PL> (B) OD=7 H=1.2	8-94364-750-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	0108-		●

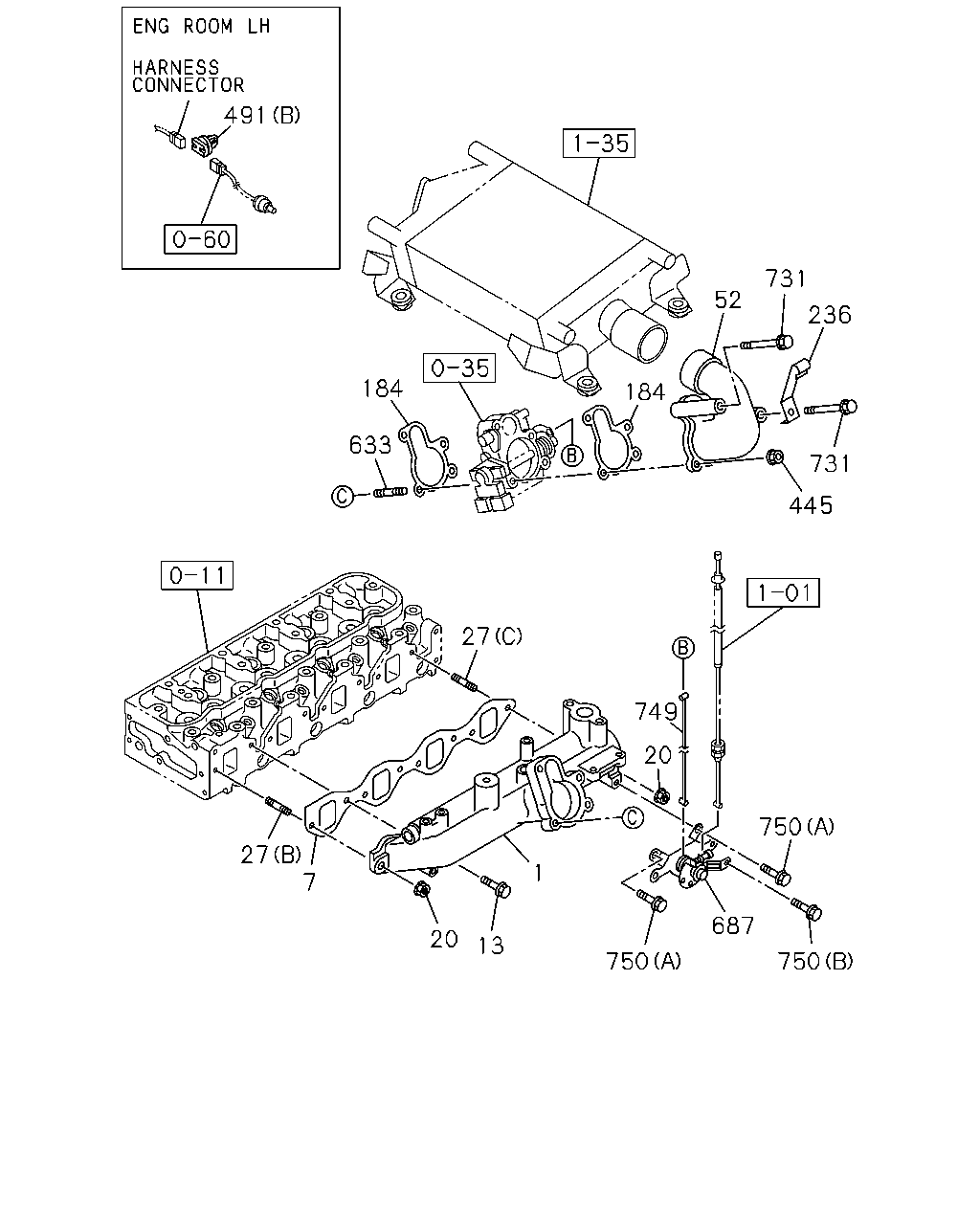

491 731 52 236 184 184 633 731 445 27 749 20 750 27 7 1 687 20 13 750 750

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL CHARGE AIR COOLER<6PL>	8-97249-064-4	01	1	0108-	●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	9804-0107	●	●
1	03.265 MANIFOLD; INL EXC. CHARGE AIR COOLER<6PL>	8-97139-649-1	01	1	0108-0308	●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	0108-0308		●
1	03.265 MANIFOLD; INL EXC. CHARGE AIR COOLER<6PL>	8-97253-952-0	01	1	0309-	●
1	03.265 MANIFOLD; INL	8-97253-952-0	01	1	0309-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9804-9905	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0102-	●	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-	●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-	●	●
27	03.275 STUD; INL MANIF CHARGE AIR COOLER<6PL> 03.901 (B) M8X25 L=37	9-04110-825-0	01	1	0108-	●
27	03.275 STUD; INL MANIF CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0108-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9804-0107	●	●
27	03.275 STUD; INL MANIF EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0108-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0108-		●
52	01.097 PIPE; INL CHARGE AIR COOLER<6PL>	8-97249-223-2	01	1	0108-	●
52	01.097 PIPE; INL	8-97188-068-1	01	1	9804-0107	●	●
52	01.097 PIPE; INL EXC. CHARGE AIR COOLER<6PL>	8-97188-068-1	01	1	0108-	●
52	01.097 PIPE; INL	8-97188-068-1	01	1	0108-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97214-127-0	02	1	0108-	●
236	03.162 CLIP; ACCEL CABLE CHARGE AIR COOLER<6PL>	8-97309-195-1	01	1	0108-	●
445	03.275 NUT; THROTTLE BODY TO MANIF CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-	●
491	01.152 CLIP; CONNECTOR 03.278 (A)	8-97031-674-0	01	1	9804-0107	●
491	01.152 CLIP; CONNECTOR EXC. CHARGE AIR COOLER<6PL> 03.278 (A)	8-97031-674-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	9804-0107	●	●
491	01.152 CLIP; CONNECTOR ENG QUICK WARM UP SYSTEM<6JZ> (B) OD=7 H=1.2	8-94364-750-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR EXC. CHARGE AIR COOLER<6PL> (B) OD=7 H=1.2	8-94364-750-0	01	1	0108-	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	0108-		●
633	03.275 STUD; THROTTLE BODY CHARGE AIR COOLER<6PL> 01.060 M8X55 L=71	9-04020-855-0	02	1	0108-	●
687	03.415 LEVER CHARGE AIR COOLER<6PL>	8-97263-653-5	01	1	0108-	●
731	02.559 BOLT; THROTTLE ASM CHARGE AIR COOLER<6PL> 02.277 M8X130 FLANGE	0-28085-813-0	02	1	0108-	●
749	03.480 CABLE ASM; ENG CONTROL CHARGE AIR COOLER<6PL>	8-97263-742-0	01	1	0108-	●
750	03.483 BOLT; LEVER CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0108-	●
750	03.483 BOLT; LEVER CHARGE AIR COOLER<6PL> 09.171 (B) M14X20 FLANGE	0-28881-420-0	01	1	0108-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
