0-22 — ENGINE MOUNTING (#44205) — 65 parça

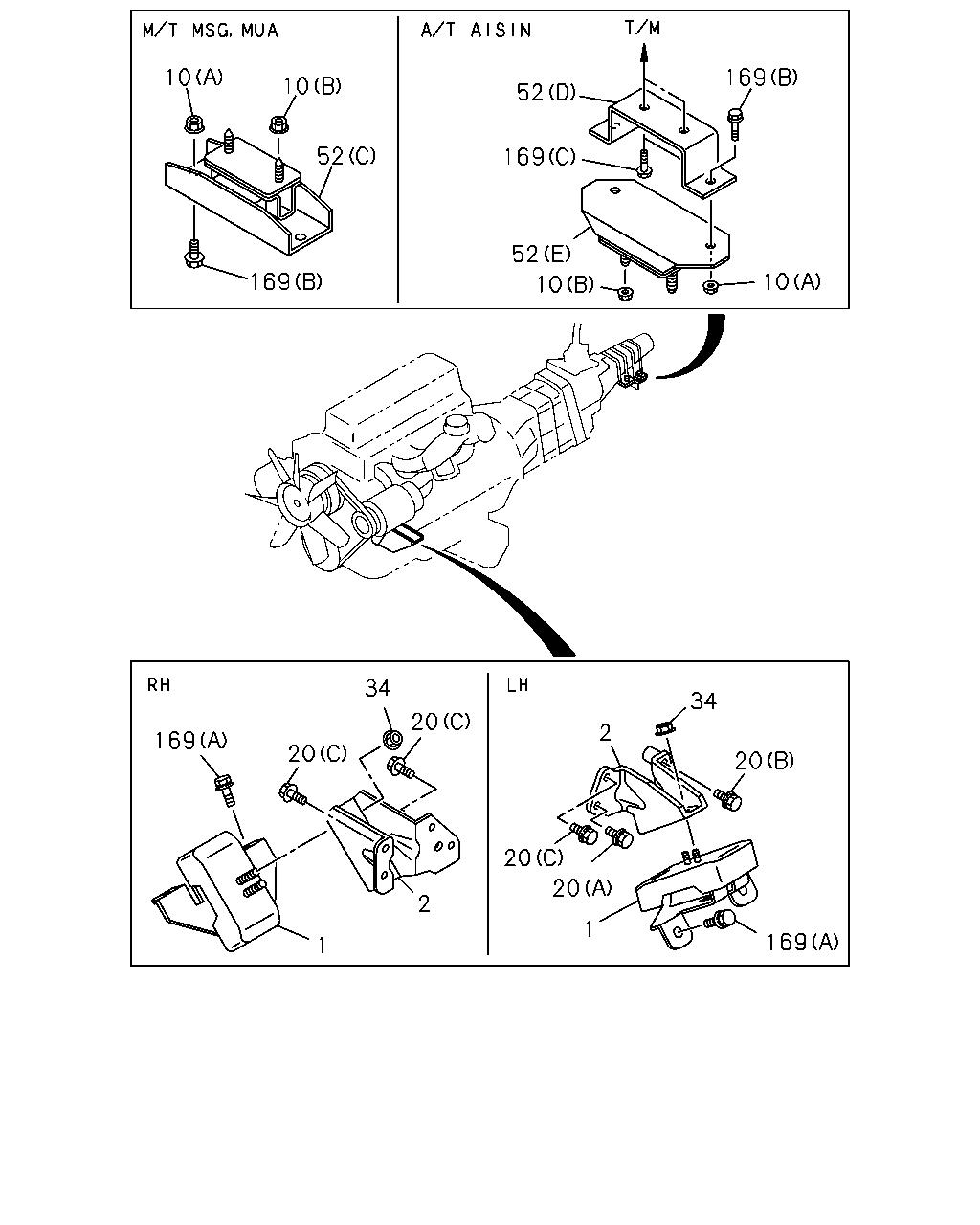

207 169 169 52 52 169 52 10 10 10 170 34 34 20 2 169 20 20 20 20 2 1 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-	●	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-	●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-	●	●
10	04.085 NUT; MTG RUBBER (B) RR SUPPORT	8-94126-973-0	02	1	9804-	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.785 (A) RR SUPPORT M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-	●	●
20	00.029 BOLT; ENG FOOT 09.171 (B) M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-	●	●
20	00.029 BOLT; ENG FOOT 00.002 (A) M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-	●	●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (F)	8-94458-384-3	01	1	0108-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (C)	8-94434-208-1	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	9907-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	9907-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (B)	8-97039-196-6	01	1	9804-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97039-195-6	01	1	9806-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) 00.002 (B) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-0107		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (B) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	0108-		●
169	00.029 BOLT; SUPPORT 00.002 (A)	8-97035-564-0	04	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-0011	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	9907-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9809-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-9805	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9806-9808	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9809-9906	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9907-0107	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9907-0107	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0108-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0108-	●
170	00.029 NUT; SUPPORT 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-	●
207	00.029 BRACKET; SUPPORT,FRAME 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97063-019-3	01	1	9804-	●
207	00.029 BRACKET; SUPPORT,FRAME 4X4 CREW CAB(TFSW) A/T AISIN(RMD)	8-97063-020-3	01	1	9806-	●

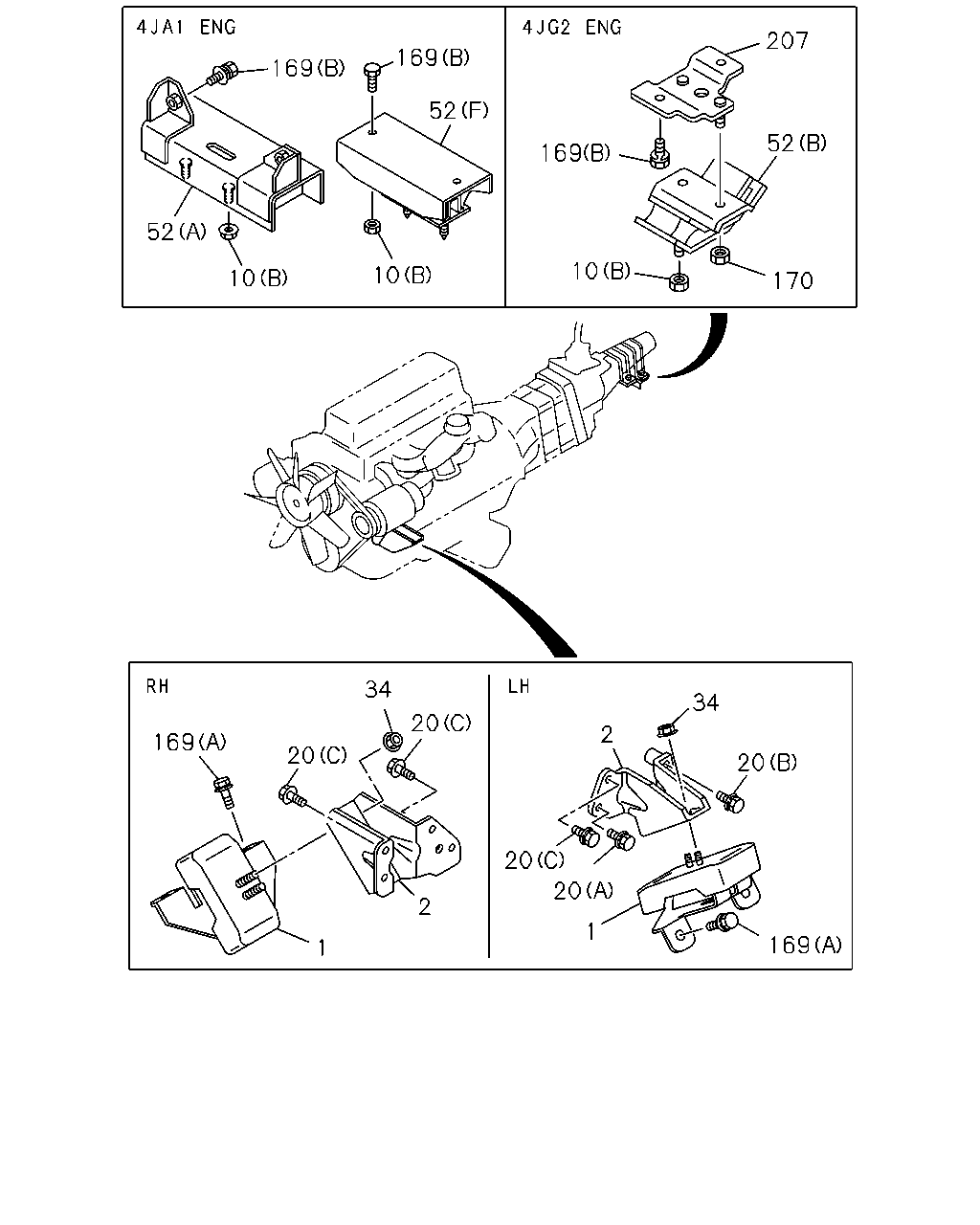

10 169 10 52 52 169 52 10 169 10 34 34 20 2 169 20 20 20 20 2 1 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9804-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9804-	●	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9804-	●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9804-	●	●
10	04.085 NUT; MTG RUBBER (B) RR SUPPORT	8-94126-973-0	02	1	9804-	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.785 (A) RR SUPPORT M10 FLANGE	0-91150-110-0	02	1	9804-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	06	1	9804-	●	●
20	00.029 BOLT; ENG FOOT 09.171 (B) M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-	●	●
20	00.029 BOLT; ENG FOOT 00.002 (A) M14X25 W/LK WASHER	0-50041-425-0	01	1	9804-	●	●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (A)	8-94472-973-0	01	1	9804-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (F)	8-94458-384-3	01	1	0108-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (C)	8-94434-208-1	01	1	9804-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (E)	8-97132-065-1	01	1	9907-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (D)	8-97229-171-0	01	1	9907-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (B)	8-97039-196-6	01	1	9804-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4 CREW CAB(TFSW) A/T AISIN(RMD) (B)	8-97039-195-6	01	1	9806-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) 00.002 (B) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9804-0107		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (B) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	0108-		●
169	00.029 BOLT; SUPPORT 00.002 (A)	8-97035-564-0	04	1	9804-	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9804-0011	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0012-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) (C) M10X22	8-97229-172-0	02	1	9907-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD) 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9809-	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9804-9805	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9806-9808	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9809-9906	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9907-0107	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9907-0107	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0108-	●	●
169	00.029 BOLT; SUPPORT 4X2 CREW CAB(TFBW) A/T AISIN(RMD) 01.652 (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	0108-	●
