0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#44204) — 81 parça

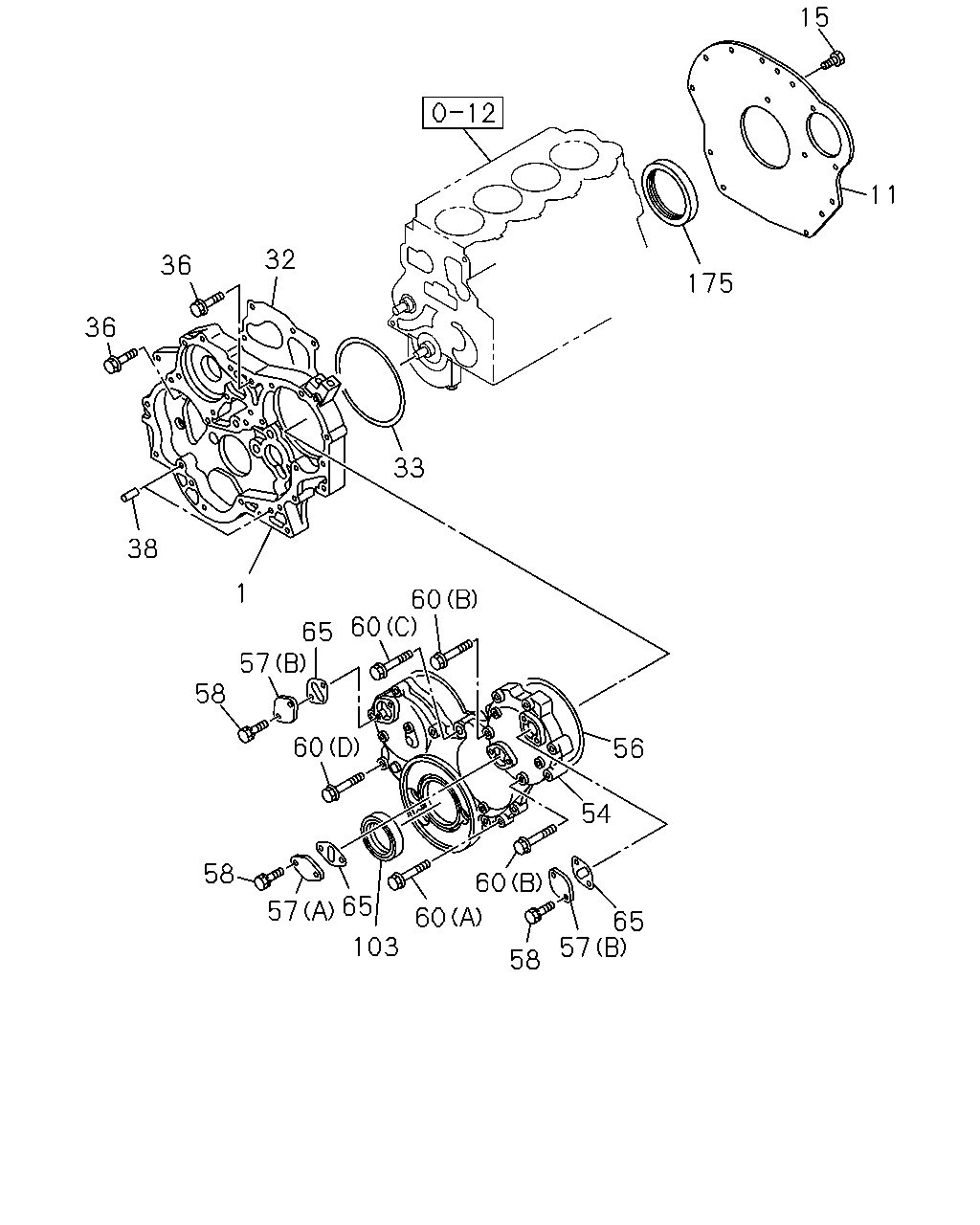

15 11 32 36 175 36 33 38 1 60 60 65 57 58 60 56 54 58 60 65 57 60 65 57 103 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.206 CASE; TIMING GEAR CHARGE AIR COOLER<6PL>	8-97289-574-0	01	1	0108-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-0	01	1	9804-0107	●	●
1	00.206 CASE; TIMING GEAR EXC. CHARGE AIR COOLER<6PL>	8-97160-960-1	01	1	0108-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-1	01	1	0108-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97129-426-0	01	1	0108-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97287-672-0	01	1	0108-	●
36	00.206 BOLT; GEAR CASE CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0108-	●
36	00.206 BOLT; GEAR CASE CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0108-	●
38	00.685 PIN; GEAR CASE COVER CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20	8-97135-423-0	02	1	0108-	●
54	00.206 COVER; GEAR CASE CHARGE AIR COOLER<6PL>	8-97289-576-2	01	1	0108-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97287-694-0	01	1	0108-	●
57	00.206 COVER; TIMING CHECK HOLE CHARGE AIR COOLER<6PL> (B)	5-11321-009-0	02	1	0108-	●
57	00.206 COVER; TIMING CHECK HOLE CHARGE AIR COOLER<6PL> (A)	8-97304-608-1	01	1	0108-	●
58	00.206 BOLT; CHECK HOLE COVER CHARGE AIR COOLER<6PL> M6X14 W/LK WASHER	0-50040-614-0	06	1	0108-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0108-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0108-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0108-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0108-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE CHARGE AIR COOLER<6PL>	8-97027-601-1	03	1	0108-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=68.0 ID=48.0 T=9.0	8-97049-145-0	01	1	9804-0206	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=68.0 ID=50.0 T=11.5	8-97071-560-1	01	1	9804-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-	●	●

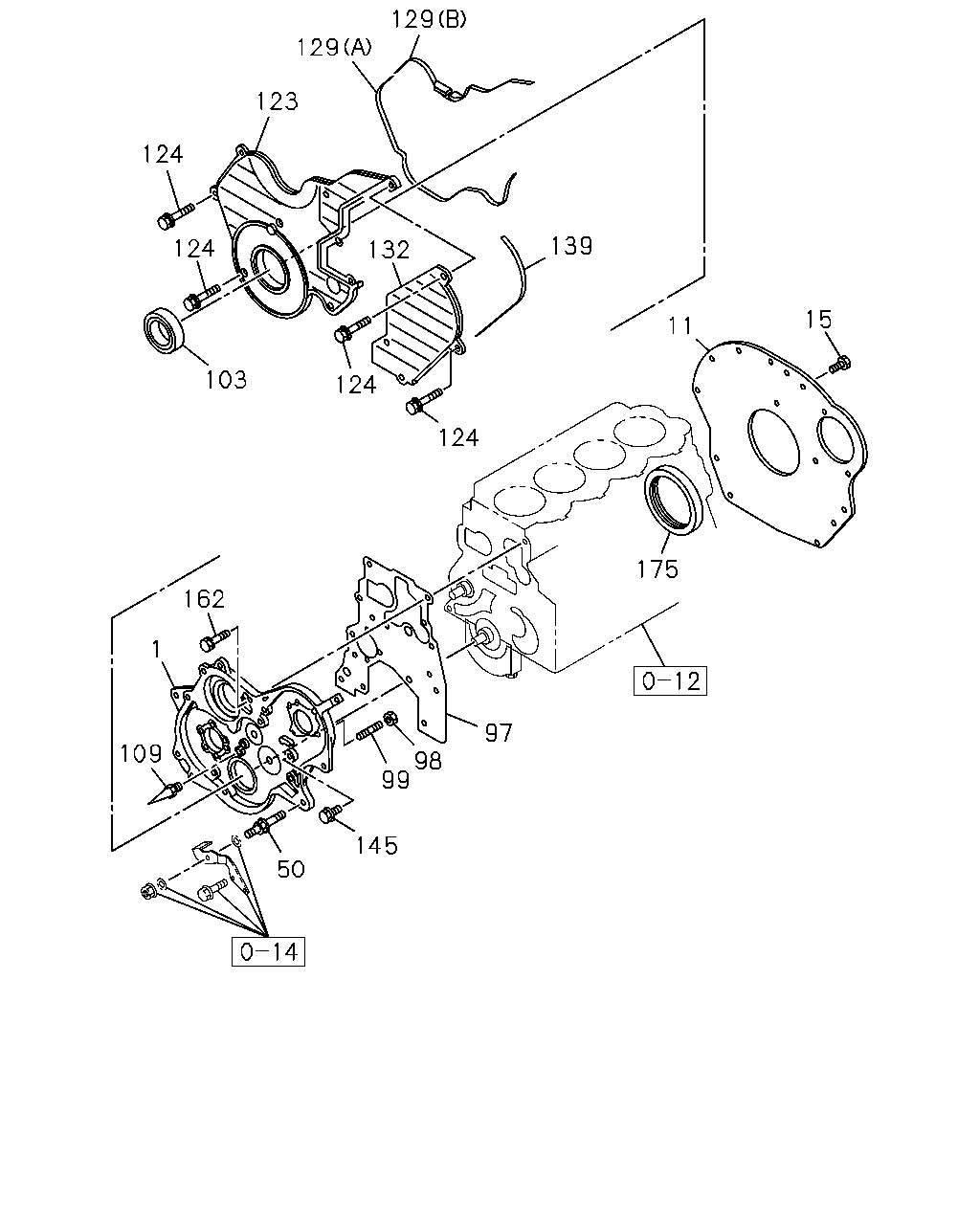

129 129 123 124 124 132 139 11 15 103 124 124 175 162 109 1 97 98 99 145 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.206 CASE; TIMING GEAR CHARGE AIR COOLER<6PL>	8-97289-574-0	01	1	0108-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-0	01	1	9804-0107	●	●
1	00.206 CASE; TIMING GEAR EXC. CHARGE AIR COOLER<6PL>	8-97160-960-1	01	1	0108-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-1	01	1	0108-		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-	●	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	9804-0107	●	●
50	00.206 STUD EXC. CHARGE AIR COOLER<6PL> M8X42.5 L=69	8-97148-539-0	01	1	0108-	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	0108-		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-428-0	01	1	9804-0107	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>	8-97129-428-0	01	1	0108-	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9804-		●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	03	1	9804-0107	●	●
98	00.206 NUT; STUD,INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.340 M8	8-94224-829-0	03	1	0108-	●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	03	1	0108-		●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	03	1	9804-0107	●	●
99	00.206 STUD; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 00.004 M8X28 L=44	9-04020-828-0	03	1	0108-	●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	03	1	0108-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=68.0 ID=48.0 T=9.0	8-97049-145-0	01	1	9804-0206	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=68.0 ID=50.0 T=11.5	8-97071-560-1	01	1	9804-		●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9804-0107	●	●
109	00.219 POINTER; TIMING EXC. CHARGE AIR COOLER<6PL> M5X7.5	8-94133-500-0	01	1	0108-	●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	0108-		●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9804-0107	●	●
123	00.206 COVER; TIMING,LWR EXC. CHARGE AIR COOLER<6PL>	8-97038-105-1	01	1	0108-	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	0108-		●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9804-0107	●	●
124	00.206 BOLT; TIMING COVER EXC. CHARGE AIR COOLER<6PL> M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0108-	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0108-		●
124	00.206 BOLT; TIMING COVER	8-94152-616-1	03	1	9804-0107	●	●
124	00.206 BOLT; TIMING COVER EXC. CHARGE AIR COOLER<6PL> M6X50 W/LK WASHER	8-94152-616-1	03	1	0108-	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	0108-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9804-0107	●	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (A) L=560	8-94464-695-1	01	1	0108-0203	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	0108-0203		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (A) L=560	8-97318-925-0	01	1	0204-	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-97318-925-0	01	1	0204-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9804-0107	●	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. (B) L=366	8-94464-696-0	01	1	0108-	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	0108-		●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9804-0107	●	●
132	00.206 COVER; TIMING,UPR EXC. CHARGE AIR COOLER<6PL>	8-97038-103-1	01	1	0108-	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	0108-		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9804-0107	●	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. L=215	8-94139-961-0	01	1	0108-0203	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	0108-0203		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. L=215	8-97318-924-0	01	1	0204-	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-97318-924-0	01	1	0204-		●
145	00.206 BOLT; TENSIONER GUIDE	8-94152-617-1	01	1	9804-0107	●	●
145	00.206 BOLT; TENSIONER GUIDE EXC. CHARGE AIR COOLER<6PL> M8X20	8-94152-617-1	01	1	0108-	●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	0108-		●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	9804-0107	●	●
162	00.206 BOLT; FRT PLATE EXC. CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	0108-	●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	0108-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-	●	●
