Sayfa 0-15 - Isuzu EPC

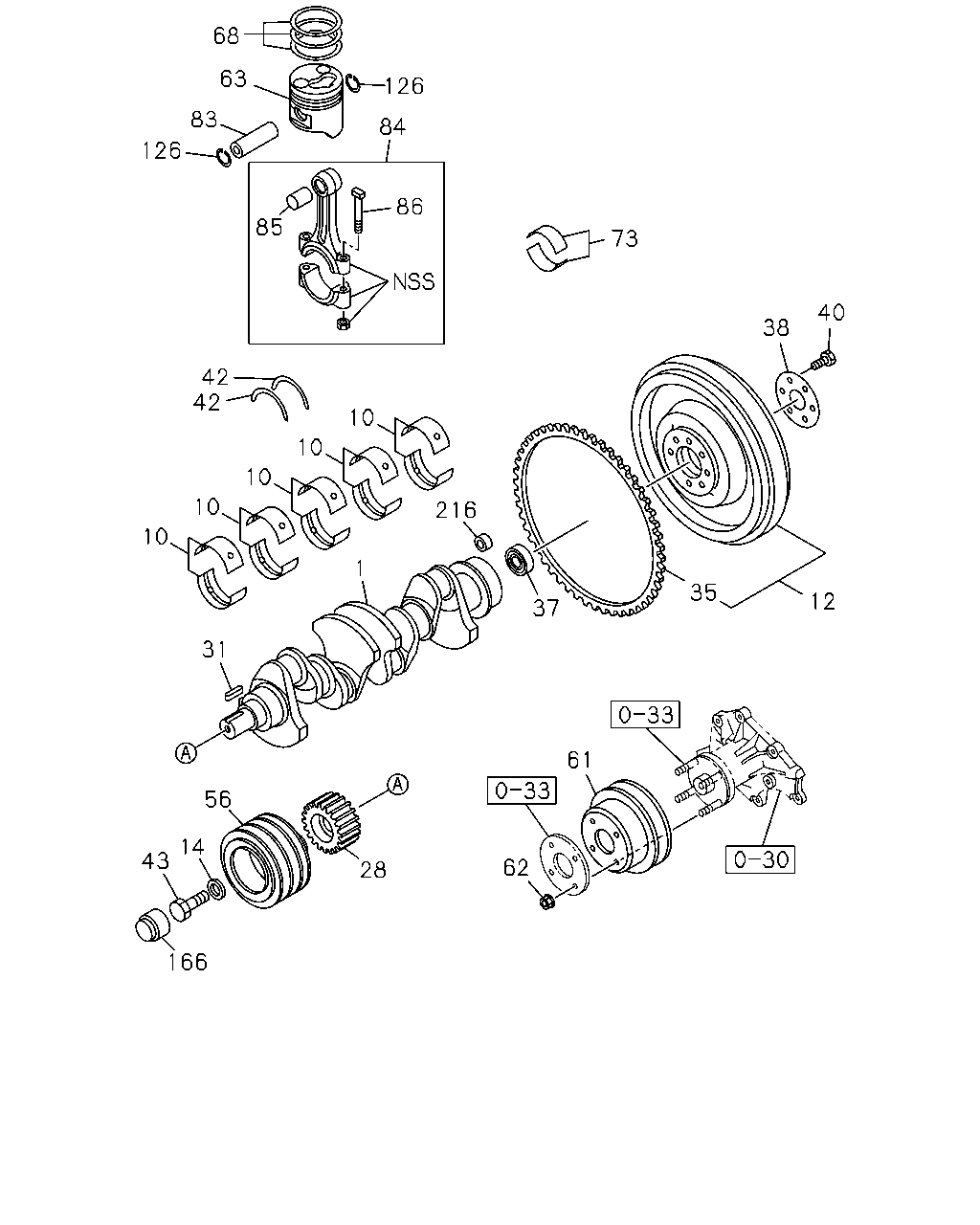

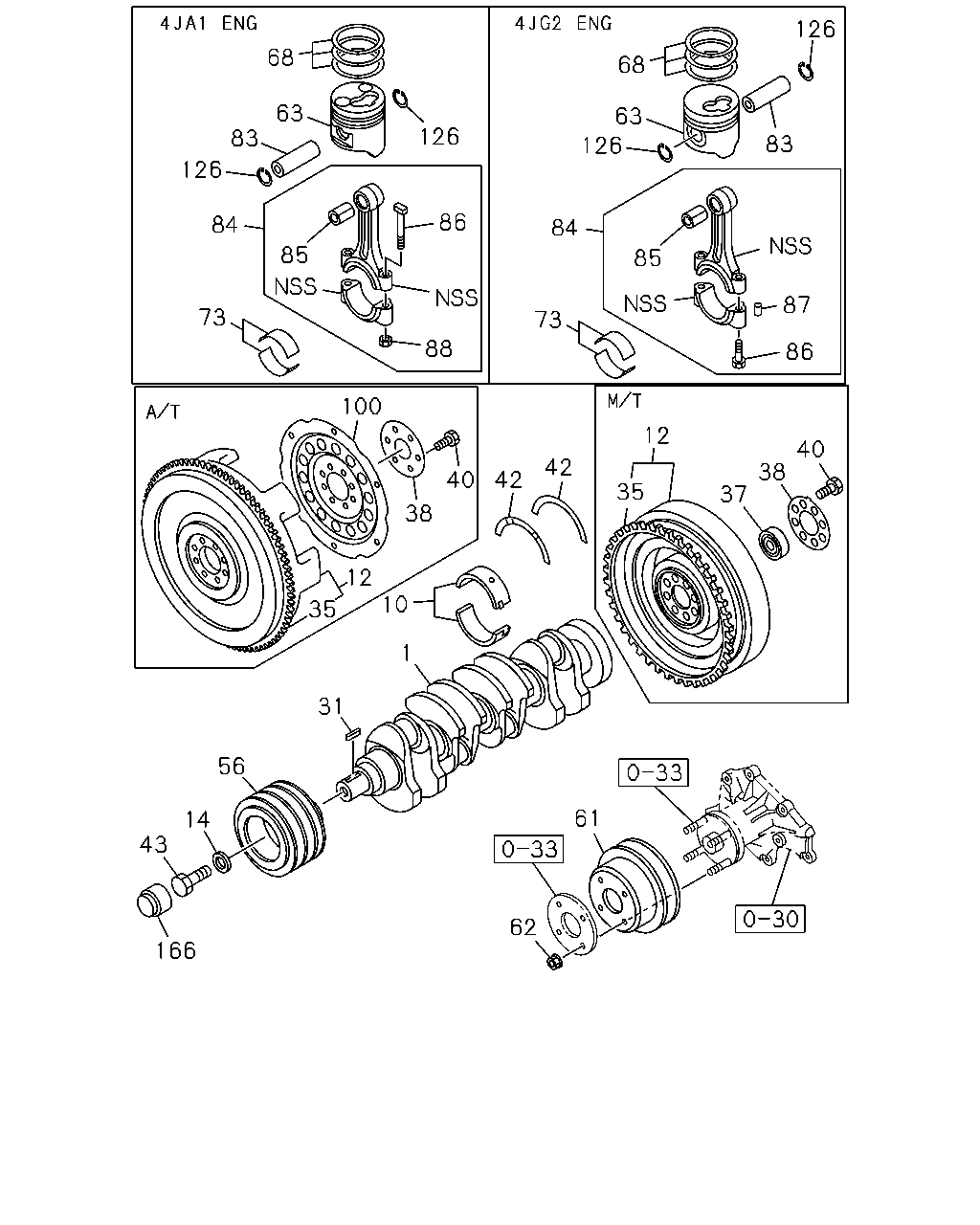

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#44203) — 189 parça

126 68 68 63 63 126 83 83 126 126 86 84 84 85 85 87 73 73 88 86 100 12 40 42 38 42 40 35 37 38 12 10 35 1 31 56 61 14 43 62 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9804-0008	●
1	00.646 CRANKSHAFT	8-97190-927-0	01	1	0009-0107	●
1	00.646 CRANKSHAFT EXC. CHARGE AIR COOLER<6PL>	8-97190-927-0	01	1	0108-0108	●
1	00.646 CRANKSHAFT CHARGE AIR COOLER<6PL>	8-97249-041-0	01	1	0108-0108	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0109-	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9804-0008		●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9804-0107	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. CHARGE AIR COOLER<6PL> BLUE	8-97063-261-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9804-0107	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. CHARGE AIR COOLER<6PL> BLACK	8-97063-262-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9804-0107	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. CHARGE AIR COOLER<6PL> GREEN	8-97063-263-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> GREEN	8-97287-437-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLACK	8-97287-438-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLUE	8-97287-439-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BROWN	8-97287-440-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> YELLOW	8-97287-441-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9804-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9804-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9804-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9804-0107	●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-94172-529-1	01	1	0108-	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL>	8-97249-214-0	01	1	0108-	●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	9806-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	9804-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9804-	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9804-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9804-	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.649 NSK	9-00090-679-0	01	1	9804-	●	●
38	00.862 WASHER; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.669	8-94133-970-0	01	1	9804-	●	●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9806-		●
40	00.669 BOLT; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	9804-	●	●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97080-561-1	08	1	9806-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9804-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9804-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9804-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97184-137-0	01	1	9804-0107	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. CHARGE AIR COOLER<6PL> 3-GROOVE	8-97184-137-0	01	1	0108-	●
56	00.659 PULLEY; CR/SHF DAMPER CHARGE AIR COOLER<6PL> 3-GROOVE	8-97289-473-0	01	1	0108-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9804-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9804-0207	●
61	00.659 PULLEY; FAN DRIVE CHARGE AIR COOLER<6PL> 1-GROOVE OD=120	8-94459-815-3	01	1	0208-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0208-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9804-0207		●
61	00.659 PULLEY; FAN DRIVE EXC. CHARGE AIR COOLER<6PL> 1-GROOVE	8-94146-638-1	01	1	0208-	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9804-	●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9804-0107	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-600-0	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9804-0107	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-601-0	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97319-083-2	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97319-084-2	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-1	04	1	9804-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-1	04	1	9804-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9804-0107	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-94247-867-1	04	1	0108-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97319-087-0	04	1	0108-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9804-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9804-0210	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9804-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9804-		●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0307-		●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9804-0107	●
84	00.603 ROD ASM; CONN EXC. CHARGE AIR COOLER<6PL>	8-94333-119-3	04	1	0108-	●
84	00.603 ROD ASM; CONN CHARGE AIR COOLER<6PL>	8-97252-850-3	04	1	0108-	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	9804-0306		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0307-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9804-0107	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0108-0111	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0108-0111	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0112-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9804-0306		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0307-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9804-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9804-0306		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0307-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9804-0306		●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9804-0107	●
88	00.623 NUT; CONNROD EXC. CHARGE AIR COOLER<6PL> 00.626 M11	5-09409-016-0	08	1	0108-	●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	9806-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	9804-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9804-		●
166	00.659 RUBBER; SPACE,PULLEY CHARGE AIR COOLER<6PL>	8-97231-528-0	01	1	0108-	●

68 63 126 83 84 126 86 85 73 40 38 42 42 10 10 10 10 216 10 1 35 12 37 31 61 56 14 43 62 28 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9804-0008	●
1	00.646 CRANKSHAFT	8-97190-927-0	01	1	0009-0107	●
1	00.646 CRANKSHAFT EXC. CHARGE AIR COOLER<6PL>	8-97190-927-0	01	1	0108-0108	●
1	00.646 CRANKSHAFT CHARGE AIR COOLER<6PL>	8-97249-041-0	01	1	0108-0108	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0109-	●
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9804-0008		●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9804-0107	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. CHARGE AIR COOLER<6PL> BLUE	8-97063-261-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9804-0107	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. CHARGE AIR COOLER<6PL> BLACK	8-97063-262-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9804-0107	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EXC. CHARGE AIR COOLER<6PL> GREEN	8-97063-263-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> GREEN	8-97287-437-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLACK	8-97287-438-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLUE	8-97287-439-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BROWN	8-97287-440-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> YELLOW	8-97287-441-0	05	1	0108-0205	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-0	05	1	0206-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9804-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9804-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9804-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9804-0107	●
12	00.666 FLYWHEEL EXC. CHARGE AIR COOLER<6PL>	8-94172-529-1	01	1	0108-	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL>	8-97249-214-0	01	1	0108-	●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	9806-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	9804-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9804-	●	●
28	00.728 GEAR; CR/SHF CHARGE AIR COOLER<6PL> Z=30	8-97240-011-2	01	1	0108-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9804-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9804-	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.649 NSK	9-00090-679-0	01	1	9804-	●	●
38	00.862 WASHER; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.669	8-94133-970-0	01	1	9804-	●	●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9806-		●
40	00.669 BOLT; FLYWHEEL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	9804-	●	●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD) M13X78	8-97080-561-1	08	1	9806-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9804-	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9804-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9804-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97184-137-0	01	1	9804-0107	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. CHARGE AIR COOLER<6PL> 3-GROOVE	8-97184-137-0	01	1	0108-	●
56	00.659 PULLEY; CR/SHF DAMPER CHARGE AIR COOLER<6PL> 3-GROOVE	8-97289-473-0	01	1	0108-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	9804-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9804-0207	●
61	00.659 PULLEY; FAN DRIVE CHARGE AIR COOLER<6PL> 1-GROOVE OD=120	8-94459-815-3	01	1	0208-	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0208-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9804-0207		●
61	00.659 PULLEY; FAN DRIVE EXC. CHARGE AIR COOLER<6PL> 1-GROOVE	8-94146-638-1	01	1	0208-	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9804-	●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9804-0107	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX	8-97176-600-0	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9804-0107	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX	8-97176-601-0	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97319-083-2	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97319-084-2	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-1	04	1	9804-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-1	04	1	9804-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9804-0107	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL>	8-94247-867-1	04	1	0108-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97319-087-0	04	1	0108-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9804-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9804-0210	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9804-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9804-		●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0307-		●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9804-0107	●
84	00.603 ROD ASM; CONN EXC. CHARGE AIR COOLER<6PL>	8-94333-119-3	04	1	0108-	●
84	00.603 ROD ASM; CONN CHARGE AIR COOLER<6PL>	8-97252-850-3	04	1	0108-	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	9804-0306		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0307-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9804-0107	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	0108-0111	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0108-0111	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0112-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9804-0306		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0307-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9804-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9804-0306		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	9804-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9804-		●
166	00.659 RUBBER; SPACE,PULLEY CHARGE AIR COOLER<6PL>	8-97231-528-0	01	1	0108-	●
216	00.293 DOWEL CHARGE AIR COOLER<6PL>	8-97259-856-0	01	1	0108-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
