0-14 — CAMSHAFT AND VALVE (#44202) — 133 parça

85 87 86 84 78 78 78 56 55 78 78 78 86 85 95 86 53 83 55 54 54 88 81 78 84 56 78 89 65 65 71 68 72 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.296 VALVE; INL	8-94464-921-0	04	1	9804-0107	●
4	00.296 VALVE; INL EXC. CHARGE AIR COOLER<6PL>	8-94464-921-0	04	1	0108-	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9804-0107		●
4	00.296 VALVE; INL CHARGE AIR COOLER<6PL>	8-97131-729-0	04	1	0108-	●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0108-		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9804-0107	●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-94433-245-0	04	1	0108-	●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9804-0107		●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97043-861-1	04	1	0108-	●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0108-		●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9804-0012	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0101-	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9804-	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9804-	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9804-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9804-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9804-	●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9804-	●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9804-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9804-	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9804-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9804-	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9804-	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9804-	●	●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	9804-	●	●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	9804-	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9804-	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9804-	●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9804-	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9804-		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9804-	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9804-	●	●

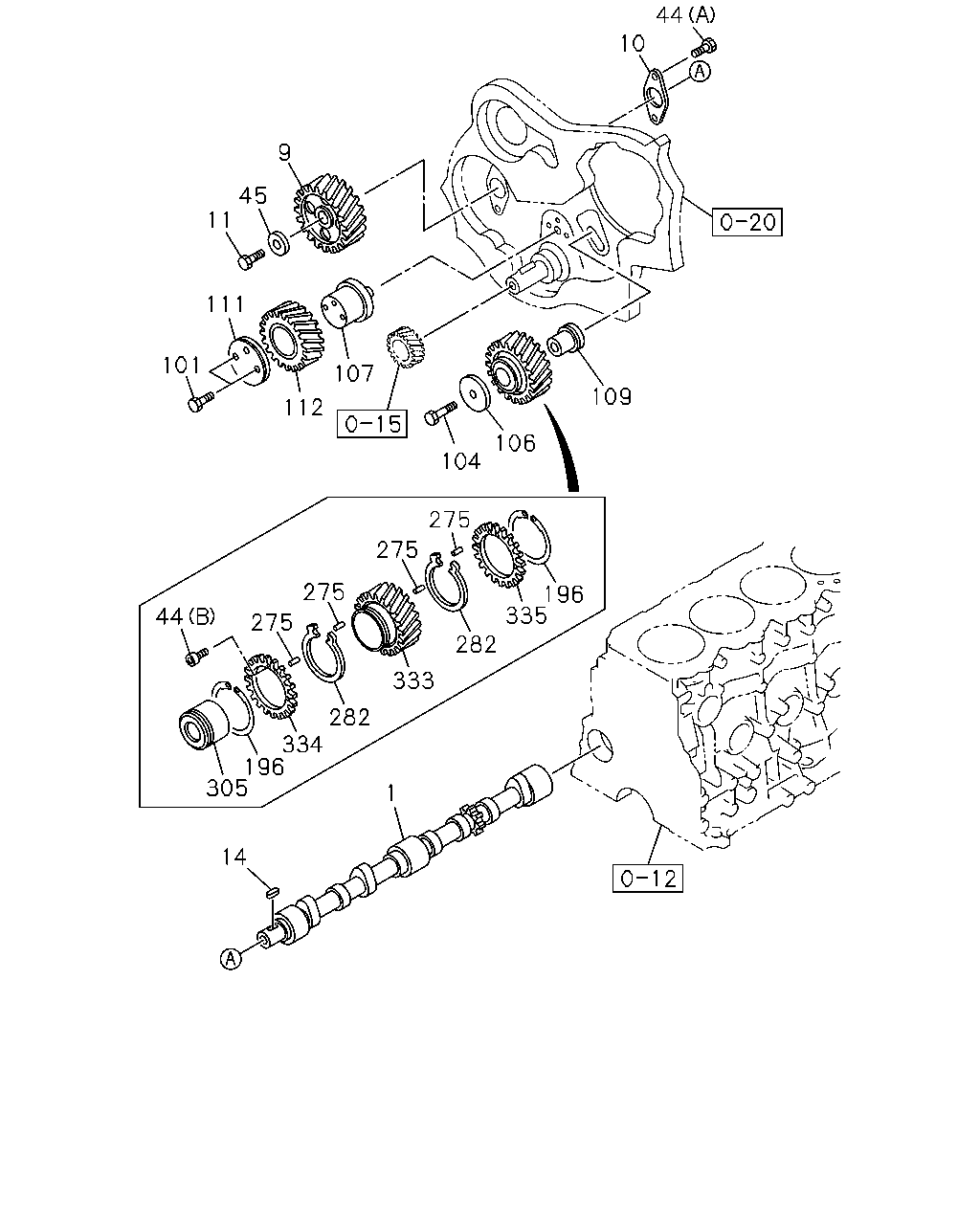

44 10 9 45 11 111 101 107 109 112 106 104 275 275 275 196 335 44 275 282 333 282 334 196 305 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9804-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-	●	●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=60	8-97240-012-2	01	1	0108-	●
10	00.533 PLATE; THRUST CHARGE AIR COOLER<6PL>	8-94110-480-1	01	1	0108-	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9804-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9804-	●	●
44	00.738 BOLT CHARGE AIR COOLER<6PL> (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0108-	●
44	00.738 BOLT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0108-	●
45	00.738 WASHER; GEAR CAM	5-12519-002-1	01	1	9804-	●	●
101	00.724 BOLT; THRUST COLLAR CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	0108-	●
104	00.724 BOLT; SHAFT IDLE CHARGE AIR COOLER<6PL> M12X77	8-94129-384-1	01	1	0108-	●
106	00.724 WASHER; IDLE GEAR SHAFT CHARGE AIR COOLER<6PL> 00.738 ID=13 OD=36	5-12519-002-1	01	1	0108-	●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-021-0	01	1	0108-0308	●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-224-0	01	1	0309-	●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-023-1	01	1	0108-0308	●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-225-0	01	1	0309-	●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL>	8-94171-289-0	01	1	0108-	●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> Z=43	8-97240-014-1	01	1	0108-	●
196	00.724 RING; SNAP CHARGE AIR COOLER<6PL>	8-97245-684-1	02	1	0108-	●
275	00.724 PIN; IDLE GEAR CHARGE AIR COOLER<6PL> OD=5 L=7.5	8-97245-683-0	04	1	0108-	●
282	00.738 SPRING; GEAR CHARGE AIR COOLER<6PL>	8-97245-337-0	02	1	0108-	●
305	00.724 BEARING; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-019-1	01	1	0108-	●
333	00.724 GEAR; IDLE,MAIN CHARGE AIR COOLER<6PL> Z=52	8-97240-018-2	01	1	0108-	●
334	00.724 GEAR; IDLE,FRT CHARGE AIR COOLER<6PL> Z=52	8-97264-988-1	01	1	0108-	●
335	00.724 GEAR; IDLE,RR CHARGE AIR COOLER<6PL> Z=52	8-97245-231-1	01	1	0108-	●

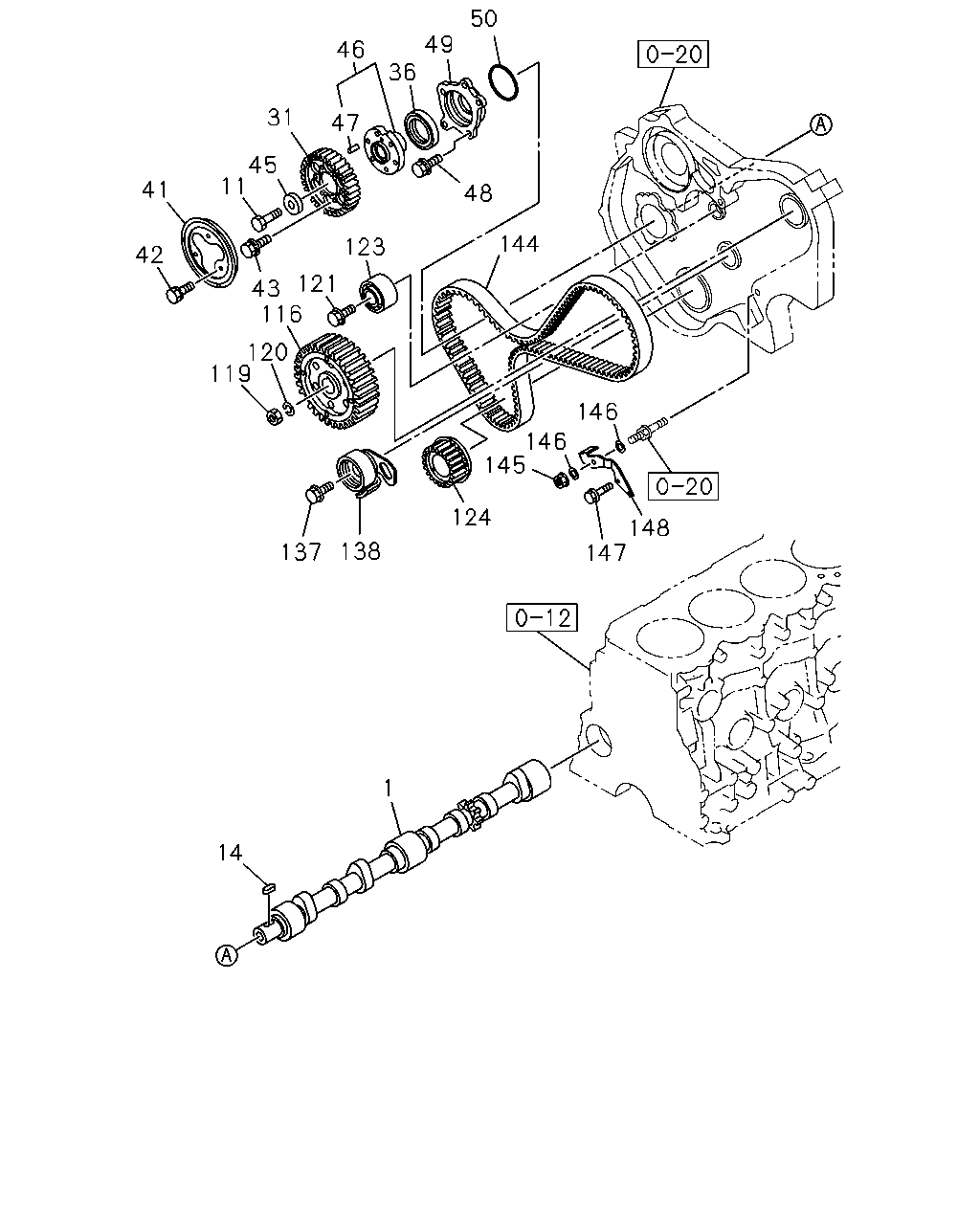

50 49 36 46 31 47 45 11 41 48 144 123 42 43 121 116 120 119 146 146 145 124 148 147 138 137 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9804-0012	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-	●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9804-	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9804-	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9804-0107	●	●
31	00.736 SPROCKET; CM/SHF EXC. CHARGE AIR COOLER<6PL> Z=44	8-97147-983-0	01	1	0108-	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	0108-		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56.0 ID=38.9 T=7.0	8-97080-562-0	01	1	9804-0107	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	0108-0207	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	0108-0207		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=6.5	8-97352-745-0	01	1	0208-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=6.5	8-97352-745-0	01	1	0208-		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9804-0107	●	●
41	00.662 FLANGE; CAM PULLEY EXC. CHARGE AIR COOLER<6PL>	8-94157-492-0	01	1	0108-	●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	0108-		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9804-0107	●	●
42	00.662 BOLT; FLANGE CAM EXC. CHARGE AIR COOLER<6PL> 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0108-	●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0108-		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9804-0107	●	●
43	00.662 BOLT; PULLEY EXC. CHARGE AIR COOLER<6PL> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0108-	●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0108-		●
45	00.738 WASHER; GEAR CAM	5-12519-002-1	01	1	9804-	●	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9804-0107	●	●
46	00.736 CENTER ASM; TIMING PULLEY EXC. CHARGE AIR COOLER<6PL>	8-97118-491-1	01	1	0108-	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-1	01	1	0108-		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9804-0107	●	●
47	00.662 PIN; STRAIGHT,CENTER EXC. CHARGE AIR COOLER<6PL> 08.939 OD=4 L=12	9-08160-412-0	01	1	0108-	●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	0108-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9804-0107	●	●
48	00.724 BOLT; RET EXC. CHARGE AIR COOLER<6PL> 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0108-	●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0108-		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9804-0107	●	●
49	00.724 RETAINER; OIL SEAL,CM/SHF EXC. CHARGE AIR COOLER<6PL>	8-94133-516-2	01	1	0108-	●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	0108-		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.7	8-97080-893-0	01	1	9804-0107	●	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	0108-	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	0108-		●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44	8-97088-392-0	01	1	9804-0107	●
116	00.659 PULLEY; TIMING,INJ PUMP EXC. CHARGE AIR COOLER<6PL> Z=44	8-97088-392-0	01	1	0108-	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9804-		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9804-0107	●	●
119	00.662 NUT; PULLEY EXC. CHARGE AIR COOLER<6PL> 03.340 M14	8-94226-565-0	01	1	0108-	●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	0108-		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340 ID=14.2	8-94226-554-0	01	1	9804-0107	●	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.340	8-94226-554-0	01	1	0108-	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	0108-		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9804-0107	●	●
121	00.724 BOLT; IDLE PULLEY EXC. CHARGE AIR COOLER<6PL> M12X57 FLANGE	8-94433-408-1	01	1	0108-	●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	0108-		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9804-0107	●	●
123	00.724 PULLEY; IDLE,TIMING EXC. CHARGE AIR COOLER<6PL>	8-94382-215-1	01	1	0108-	●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	0108-		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9804-0107	●	●
124	00.659 PULLEY; TIMING,CR/SHF EXC. CHARGE AIR COOLER<6PL> Z=22	8-94133-501-3	01	1	0108-	●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	0108-		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9804-0107	●	●
137	00.724 BOLT; TENSIONER EXC. CHARGE AIR COOLER<6PL> M12X57 FLANGE	8-94433-408-1	01	1	0108-	●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	0108-		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9804-0107	●	●
138	00.724 TENSIONER; TIMING BELT EXC. CHARGE AIR COOLER<6PL>	8-94382-214-1	01	1	0108-	●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	0108-		●
144	00.724 BELT; TIMING	8-94380-679-0	01	1	9804-0107	●	●
144	00.724 BELT; TIMING EXC. CHARGE AIR COOLER<6PL> BLUE	8-94380-679-0	01	1	0108-	●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0108-		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-0107	●	●
145	00.724 NUT; FLANGE EXC. CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-	●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9804-0107	●	●
146	00.724 WASHER; PL,TENSION LEVER EXC. CHARGE AIR COOLER<6PL> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0108-	●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0108-		●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-0107	●	●
147	00.724 BOLT; TENSION LEVER EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-		●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9804-0107	●	●
148	00.724 LEVER; TENSION,TIMING BELT EXC. CHARGE AIR COOLER<6PL>	8-97146-370-0	01	1	0108-	●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	0108-		●
