0-12 — CYLINDER BLOCK (#44200) — 86 parça

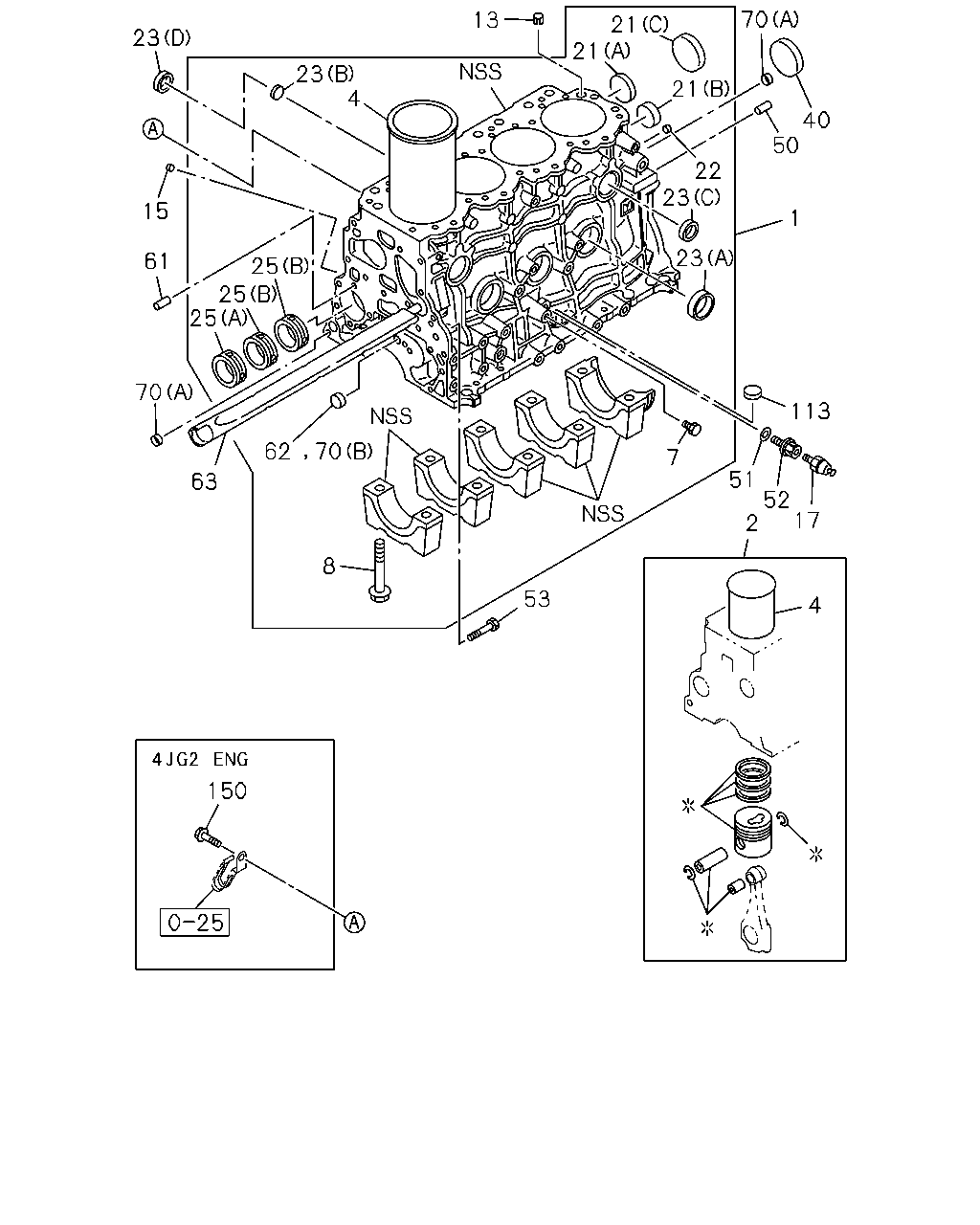

çizim 65305
70 13 21 21 23 23 4 21 40 50 23 22 23 15 1 61 25 25 25 70 113 62 70 7 51 63 52 2 17 8 53 4 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-94438-404-4 01 1 9804-0107 ●
1 00.033 BLOCK ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94438-404-4 01 1 0108-0205 ●
1 00.033 BLOCK ASM; CYL
CHARGE AIR COOLER<6PL> 		8-97249-021-0 01 1 0108-0205 ●
1 00.033 BLOCK ASM; CYL 8-97249-021-1 01 1 0206- ●
1 00.033 BLOCK ASM; CYL 8-97043-280-1 01 1 9804-0202 ●
1 00.033 BLOCK ASM; CYL 8-97314-579-1 01 1 0203- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-173-0 04 1 9804-0107 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=1 		5-87813-173-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-174-0 04 1 9804-0107 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=2 		5-87813-174-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-175-0 04 1 9804-0107 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=3 		5-87813-175-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-176-0 04 1 9804-0107 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=4 		5-87813-176-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1 		5-87814-132-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=2 		5-87814-133-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3 		5-87814-134-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=4 		5-87814-135-0 04 1 0108- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-213-1 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-214-1 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-215-1 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-216-1 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-691-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-692-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-693-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-694-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-695-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-696-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-697-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-698-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 9804- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 9804- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9804- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9804- ● ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 9804- ● ●
17 01.800 SWITCH; OIL PRESSURE 9-82720-209-2 01 1 9804- ● ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=56 		8-94250-514-0 01 1 0212-0305 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 9804- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 9804- ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 9804- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0211-0211 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. CHARGE AIR COOLER<6PL> (D) OD=36 		5-11219-018-0 03 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. CHARGE AIR COOLER<6PL> (D) OD=36 		5-11219-018-0 03 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=45 		1-09600-005-1 03 1 9804-0210 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=45 		1-09600-005-1 03 1 0211-0211 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
CHARGE AIR COOLER<6PL> (D) OD=36 		5-11219-018-0 06 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
OD=36 		5-11219-018-0 03 1 0306- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 9804- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 9804-0211 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0212- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 02 1 9804- ●
25 00.539 METAL; CM/SHF
(B) 		8-94427-201-2 02 1 9804- ● ●
25 00.539 METAL; CM/SHF
(A) 		8-94427-206-2 01 1 9804- ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-0 01 1 9804- ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 9804- ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 9804- ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 9804- ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 9804- ● ●
61 00.206 PIN; STRAIGHT
CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 01 1 0108- ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 9804-0107 ● ●
61 00.206 PIN; STRAIGHT
EXC. CHARGE AIR COOLER<6PL> 00.669 OD=10 L=20 		9-08151-020-0 02 1 0108-0201 ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 0108-0201 ●
61 00.206 PIN; STRAIGHT
EXC. CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0202- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0202- ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 9804-0107 ● ●
62 00.034 CUP; SEALING,C/BL FRT
EXC. CHARGE AIR COOLER<6PL> OD=14 		5-11219-011-0 01 1 0108- ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 0108- ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 9804- ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 9804- ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=14 		5-11219-011-0 01 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
EXC. CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
EXC. CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 9804-0211 ● ●
70 00.034 CUP; SEALING,FRT & RR
CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 04 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0306- ● ●
113 00.034 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 9804- ● ●
150 02.313 BOLT; CLIP
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 9804- ●
