Sayfa 2-26B - Isuzu EPC

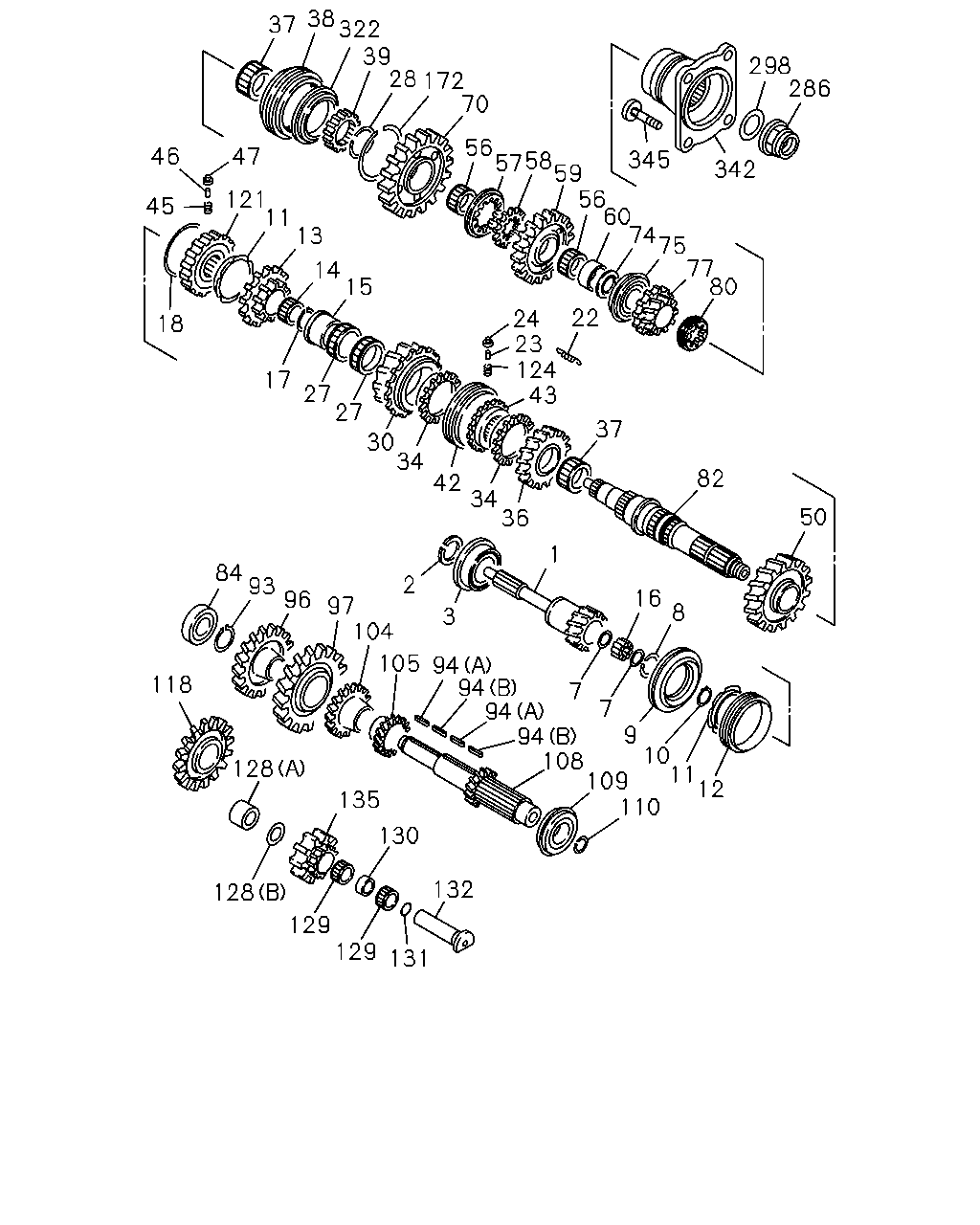

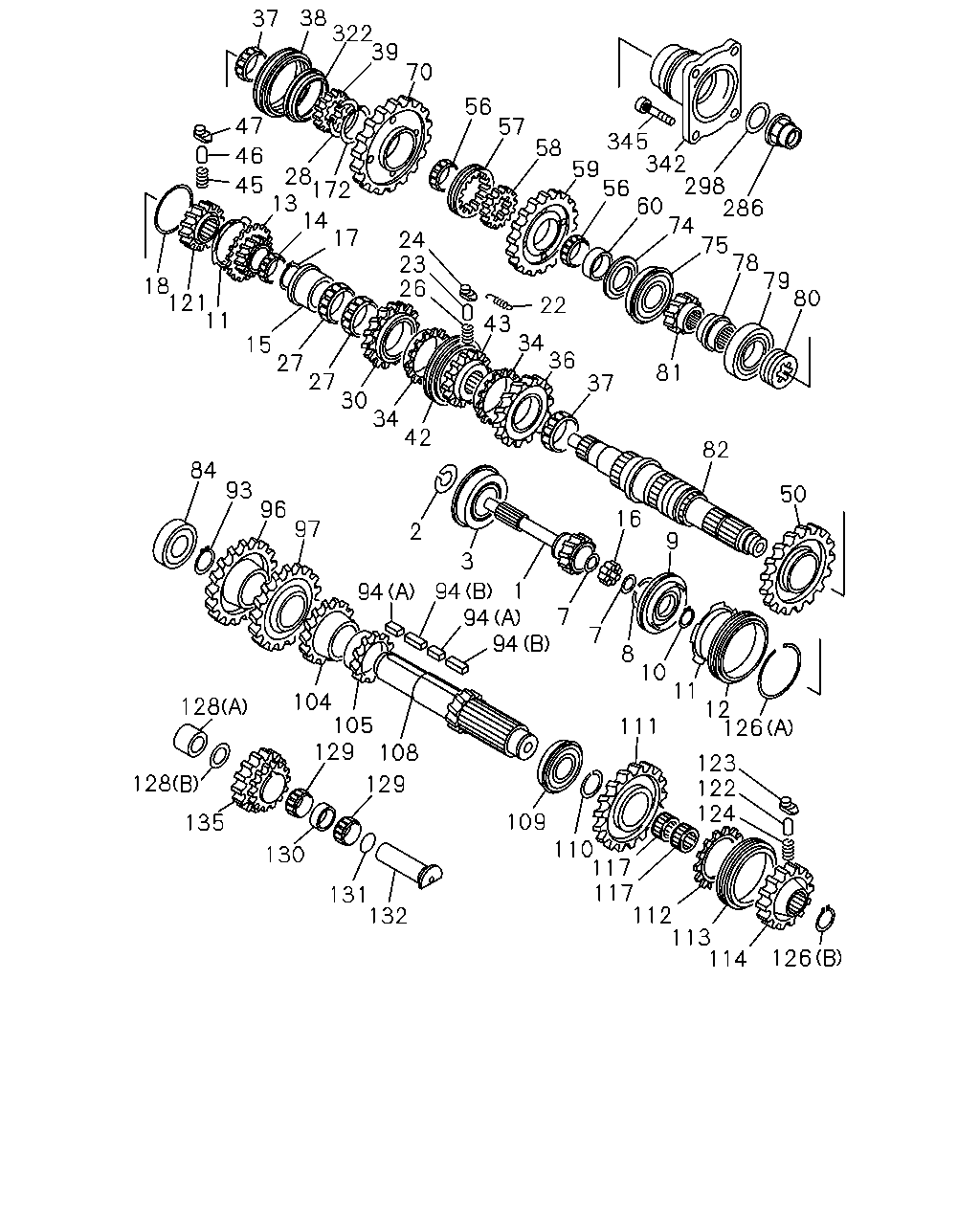

2-26B — MANUAL TRANSMISSION GEAR (#4420) — 674 parça

38 322 39 70 37 56 57 345 58 59 342 56 298 60 286 74 75 78 79 80 47 46 28 45 172 13 14 17 24 23 26 18 121 11 43 34 36 37 22 15 27 27 30 34 42 81 82 84 93 96 97 50 16 2 9 3 94 1 94 7 94 94 7 8 10 11 12 126 104 105 129 108 129 128 111 128 123 122 124 130 109 110 117 117 112 113 114 135 131 132 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9202-0006	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9305-0006		●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-		●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-555-0	01	1	9305-0006			●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-990-0	01	1	0007-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9702-0006				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9809-0006					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9809-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9809-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9809-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9809-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-9701	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9702-9808	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9809-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-162-0	01	1	9202-9504	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-9701	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9702-9808	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9809-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-9701	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9702-9808	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9809-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-9701	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9702-9808	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9809-	●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9202-9701	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9702-9808	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9809-	●	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-9701	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9702-9808	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9809-	●	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-9701	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9702-9808	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9809-	●	●	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-9701	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9702-9908	●			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-	●			●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9305-9308		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-9908		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-712-0	01	1	9909-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-9701	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9702-9808	●	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9809-	●	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-9701	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9702-9808	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9809-	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9202-9701	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9702-9808	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9809-	●	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-9701	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9702-9808	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9809-	●	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-9701	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9702-9808	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9809-	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-9701	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9702-9808	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9809-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-9304	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9305-9504	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9505-9701	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9702-9808	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9809-	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-9304	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9305-9504	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9505-9701	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9702-9808	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9809-	●	●	●	●	●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9702-				●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-9701	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9702-9808	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9809-	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-9701	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9702-9808	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9809-	●	●	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-9701	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9702-9805	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9806-9809	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9810-	●			●
30	GEAR; 4TH,MAINSHAFT Z=34	1-33253-523-1	01	1	9305-9308		●
30	GEAR; 4TH,MAINSHAFT Z=34	1-33253-504-0	01	1	9309-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-475-1	01	1	9305-9308			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9309-9808			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9809-1107			●		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-			●		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-9701	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9702-9808	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9809-0312	●	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-9701	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9702-	●			●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-336-2	01	1	9305-9308		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9309-9808		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9809-		●	●		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-9701	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9702-9808	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9809-	●	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-9701	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9702-9808	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9809-	●	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-9701	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9702-9808	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9809-0312	●	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-	●	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=37	1-33261-197-0	01	1	9202-9412	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-9701	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9702-9808	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9809-	●	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-9701	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9702-9808	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9809-	●	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-9701	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9702-9808	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9809-	●	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9210-9701	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9702-9808	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9809-	●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-9701	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9702-9808	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9809-	●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-9701	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9702-9808	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9809-	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-9701	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9702-9805	●	●	●
50	GEAR; 2ND,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) Z=48	1-33251-294-0	01	1	9702-9805				●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9806-9808	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9809-	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9202-9701	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9702-9808	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9809-	●	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-9701	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9702-9808	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9809-	●	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-9701	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9702-9808	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9809-	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-9701	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9702-9808	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9809-	●	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-9701	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9702-9808	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9809-0009	●	●	●	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-9701	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9702-9808	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9809-	●	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-9701	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9702-9808	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9809-	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-9701	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9702-9808	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9809-	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9505-9701	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9702-9808	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9809-	●	●	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9702-				●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-150-0	01	1	9702-				●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9702-				●
80	GEAR; SPD DRIVE Z=5	1-33371-041-1	01	1	9202-9202	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T) Z=5	1-33371-041-1	01	1	9203-9504	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9505-9701	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9702-9808	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9809-	●	●	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K) Z=7	1-33371-040-1	01	1	9203-9504	●	●	●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9702-				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-9808	●	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9809-	●	●	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9702-				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-9701	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9702-9808	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9809-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-9701	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9702-9808	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9809-	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-9701	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9702-9808	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9809-	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-9701	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9702-9808	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9809-	●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9305-9308		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-186-0	01	1	9305-9308			●
96	GEAR; COUNTER DRIVE Z=41	1-33331-216-1	01	1	9309-			●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9702-				●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9809-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-9701	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9702-	●			●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9305-9308		●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-9701	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9702-9805	●			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302	●			●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-	●			●
104	GEAR; 4TH,COUNTER Z=35	1-33332-082-1	01	1	9305-9308		●
104	GEAR; 4TH,COUNTER Z=35	1-33332-099-0	01	1	9309-9805		●
104	GEAR; 4TH,COUNTER Z=35	1-33332-124-0	01	1	9806-1302		●
104	GEAR; 4TH,COUNTER Z=35	8-98240-189-0	01	1	1303-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-073-1	01	1	9305-9308			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-096-0	01	1	9309-9805			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9806-9808			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9809-1107			●		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311			●		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-			●		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-9701	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9702-9805	●			●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-9809	●			●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9810-1311	●			●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-	●			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-125-0	01	1	9305-9805		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9806-9808		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9809-1311		●	●		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●	●		●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●	●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-9808	●	●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9809-	●	●	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9702-				●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-9701	●	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9702-9808	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9809-	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-9701	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9702-9808	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9809-	●	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-9701	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9702-9808	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9809-	●	●	●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9702-				●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9702-				●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9702-				●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9702-				●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9702-				●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-9701	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9702-9808	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9809-0212	●	●	●	●	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-	●	●	●	●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9702-				●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9702-				●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9202-9701	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9702-9808	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9809-	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9702-				●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9702-				●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9202-9701	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9702-9808	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9809-	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9202-9701	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9702-9808	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9809-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9202-9701	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9702-9808	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9809-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-9701	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9702-9808	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9809-	●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-9701	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9702-9808	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9809-	●	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-9701	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9702-9808	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9809-	●	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-9701	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9702-9808	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9809-	●	●	●	●	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-9701	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9702-9808	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9809-	●	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-9701	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9702-9808	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9809-	●	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9203-9701	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9702-9805	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9806-9808	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9809-9809	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9809-9809					●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9810-0002	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> M36 FLANGE	1-09449-063-0	01	1	9810-0002					●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0003-0805	●	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9203-9701	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9702-9805	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9806-9808	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06). ID=47 T=5	1-09623-380-0	01	1	9809-9809	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9809-9809					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9810-0002	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> ID=47 T=5	1-09623-380-0	01	1	9810-0002					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0003-	●	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-9701	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9702-9808	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9809-	●	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-223-0	01	1	9203-9504	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-223-0	01	1	9505-9605	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	9606-9701	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	9702-9805	●	●	●	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	9806-9808	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	9809-0002	●	●	●	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	9809-0002					●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	0003-0203	●	●	●	●	●
342	FLANGE; OUTPUT EXC. RETARDER BRK<RE2>	1-37243-307-1	01	1	0204-	●	●	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X43 KNURL	1-09046-003-0	04	1	9203-9504	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9505-9701	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9702-9805	●	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9806-9808	●	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9809-0002	●	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9809-0002					●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	0003-0203	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	0204-0707	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. RETARDER BRK<RE2> M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●	●	●	●

37 38 322 39 28 172 70 298 286 345 56 57 58 59 56 60 74 75 77 80 46 47 342 121 11 13 14 15 45 22 24 23 124 43 18 17 27 27 30 34 42 34 36 37 82 50 1 84 93 96 2 16 8 97 104 105 94 94 94 7 94 9 108 10 11 109 12 110 3 118 7 128 135 130 132 128 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9202-0006	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9305-0006		●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-		●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-555-0	01	1	9305-0006			●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-990-0	01	1	0007-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9702-0006				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-				●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9809-0006					●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9809-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9809-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9809-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-9304	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9305-9504	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9505-9701	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9702-9808	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9809-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-9701	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9702-9808	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9809-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-162-0	01	1	9202-9504	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-9701	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9702-9808	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9809-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-9701	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9702-9808	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9809-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-9701	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9702-9808	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9809-	●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9202-9701	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9702-9808	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9809-	●	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-9701	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9702-9808	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9809-	●	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-9701	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9702-9808	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9809-	●	●	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-9701	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9702-9908	●			●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-	●			●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9305-9308		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-9908		●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-712-0	01	1	9909-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-9701	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9702-9808	●	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9809-	●	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-9701	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9702-9808	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9809-	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9202-9701	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9702-9808	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9809-	●	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-9701	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9702-9808	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9809-	●	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-9701	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9702-9808	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9809-	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-9701	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9702-9808	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9809-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-9304	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9305-9504	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9505-9701	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9702-9808	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9809-	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-9304	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9305-9504	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9505-9701	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9702-9808	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9809-	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-9701	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9702-9808	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9809-	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-9701	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9702-9808	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9809-	●	●	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-9701	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9702-9805	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9806-9809	●			●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9810-	●			●
30	GEAR; 4TH,MAINSHAFT Z=34	1-33253-523-1	01	1	9305-9308		●
30	GEAR; 4TH,MAINSHAFT Z=34	1-33253-504-0	01	1	9309-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-475-1	01	1	9305-9308			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9309-9808			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9809-1107			●		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-			●		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-9701	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9702-9808	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9809-0312	●	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-9701	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9702-	●			●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-336-2	01	1	9305-9308		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9309-9808		●	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9809-		●	●		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-9701	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9702-9808	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9809-	●	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-9701	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9702-9808	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9809-	●	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-9701	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9702-9808	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9809-0312	●	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-	●	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=37	1-33261-197-0	01	1	9202-9412	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-9701	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9702-9808	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9809-	●	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-9701	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9702-9808	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9809-	●	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-9701	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9702-9808	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9809-	●	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9210-9701	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9702-9808	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9809-	●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-9701	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9702-9808	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9809-	●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-9701	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9702-9808	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9809-	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-9701	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9702-9805	●	●	●
50	GEAR; 2ND,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) Z=48	1-33251-294-0	01	1	9702-9805				●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9806-9808	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9809-	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9202-9701	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9702-9808	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9809-	●	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9202-9701	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9702-9808	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9809-	●	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-9701	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9702-9808	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9809-	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-9701	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9702-9808	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9809-	●	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-9701	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9702-9808	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9809-0009	●	●	●	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-9701	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9702-9808	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9809-	●	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-9701	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9702-9808	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9809-	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9202-9701	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9702-9808	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9809-	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9505-9701	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9702-9808	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9809-	●	●	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=48	1-33253-448-0	01	1	9305-9308			●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	9309-			●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	9809-					●
80	GEAR; SPD DRIVE Z=5	1-33371-041-1	01	1	9202-9202	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T) Z=5	1-33371-041-1	01	1	9203-9504	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9505-9701	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9702-9808	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9809-	●	●	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K) Z=7	1-33371-040-1	01	1	9203-9504	●	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308	●	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-9808	●	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9809-	●	●	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9702-				●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-9701	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9702-9808	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9809-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-9701	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9702-9808	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9809-	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-9701	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9702-9808	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9809-	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-9701	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9702-9808	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9809-	●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9305-9308		●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-186-0	01	1	9305-9308			●
96	GEAR; COUNTER DRIVE Z=41	1-33331-216-1	01	1	9309-			●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9702-				●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9809-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-9701	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9702-	●			●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9305-9308		●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-9701	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9702-9805	●			●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302	●			●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-	●			●
104	GEAR; 4TH,COUNTER Z=35	1-33332-082-1	01	1	9305-9308		●
104	GEAR; 4TH,COUNTER Z=35	1-33332-099-0	01	1	9309-9805		●
104	GEAR; 4TH,COUNTER Z=35	1-33332-124-0	01	1	9806-1302		●
104	GEAR; 4TH,COUNTER Z=35	8-98240-189-0	01	1	1303-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-073-1	01	1	9305-9308			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-096-0	01	1	9309-9805			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9806-9808			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9809-1107			●		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311			●		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-			●		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-9701	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9702-9805	●			●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-9809	●			●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9810-1311	●			●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-	●			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-125-0	01	1	9305-9805		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9806-9808		●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9809-1311		●	●		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●	●		●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308	●	●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-9808	●	●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9809-	●	●	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9702-				●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-9701	●	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9702-9808	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9809-	●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-9701	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9702-9808	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9809-	●	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9202-9701	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9702-9808	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9809-	●	●	●	●	●
118	GEAR; 6TH,COUNTER Z=54	1-33332-083-0	01	1	9305-9308			●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	9309-			●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	9809-					●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-9701	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9702-9808	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9809-0212	●	●	●	●	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-	●	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9202-9701	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9702-9808	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9809-	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9202-9701	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9702-9808	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9809-	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9202-9701	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9702-9808	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9809-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9202-9701	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9702-9808	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9809-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-9701	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9702-9808	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9809-	●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-9701	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9702-9808	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9809-	●	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-9701	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9702-9808	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9809-	●	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9202-9701	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9702-9808	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9809-	●	●	●	●	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-9701	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9702-9808	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9809-	●	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-9701	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9702-9808	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9809-	●	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9203-9701	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9702-9805	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9806-9808	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9809-9809	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9809-9809					●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M36 FLANGE	1-09449-063-0	01	1	9810-0002	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> M36 FLANGE	1-09449-063-0	01	1	9810-0002					●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0003-0805	●	●	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9203-9701	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9702-9805	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9806-9808	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06). ID=47 T=5	1-09623-380-0	01	1	9809-9809	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9809-9809					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=47 T=5	1-09623-380-0	01	1	9810-0002	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) EXC. RETARDER BRK<RE2> ID=47 T=5	1-09623-380-0	01	1	9810-0002					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0003-	●	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-9701	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9702-9808	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9809-	●	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-223-0	01	1	9203-9504	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-223-0	01	1	9505-9605	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	9606-9701	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	9702-9805	●	●	●	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	9806-9808	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	9809-0002	●	●	●	●
342	FLANGE; OUTPUT	1-37243-307-0	01	1	9809-0002					●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2>	1-37243-307-0	01	1	0003-0203	●	●	●	●	●
342	FLANGE; OUTPUT EXC. RETARDER BRK<RE2>	1-37243-307-1	01	1	0204-	●	●	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X43 KNURL	1-09046-003-0	04	1	9203-9504	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9505-9701	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9702-9805	●	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9806-9808	●	●	●	●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	9809-0002	●	●	●	●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	1-09046-003-0	04	1	9809-0002					●
345	BOLT; FLANGE TO YOKE BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	0003-0203	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. RETARDER BRK<RE2> M14X43 KNURL	1-09046-003-0	04	1	0204-0707	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. RETARDER BRK<RE2> M14X43 KNURL	8-98014-003-0	04	1	0708-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
