◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42A - FUEL PUMP AND PIPE ▶
0-42A — FUEL PUMP AND PIPE (#442) — 22 parça

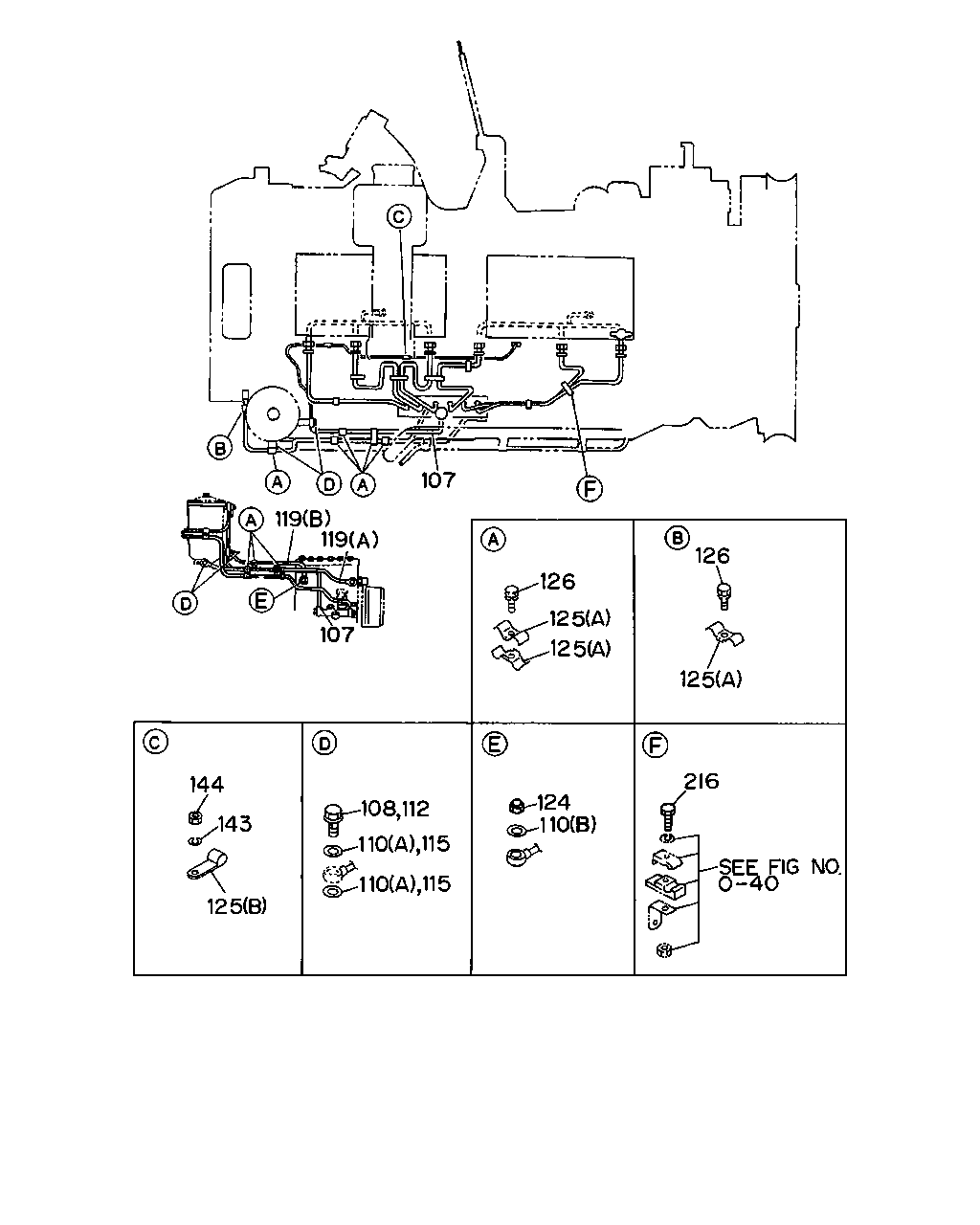

çizim 95044
107 119 107 119 126 126 125 125 125 216 124 110 108 112 115 115 110 110 144 143 125
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15413-048-0 01 1 8712- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 8712- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 8712- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 8712- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 8712- ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 8712- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15413-385-1 01 1 8712- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15413-433-0 01 1 8712- ● ● ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 8712-9306 ● ● ●
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 9307- ●
125 CLIP; FUEL PIPE
(C) ID=7 L=28 		9-09524-652-0 01 1 8712- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 07 1 8712- ● ● ●
125 CLIP; FUEL PIPE
(B) ID=10 & 10 L=25 W/NUT 		9-09716-124-0 05 1 8712- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 08 1 8712-9001 ●
125 CLIP; FUEL PIPE
(B) ID=10 & 10 L=25 W/NUT 		9-09716-124-0 06 1 8712-9001 ●
125 CLIP; FUEL PIPE
(A) ID=10 & 10 L=25 		9-09716-114-0 01 1 9002-9306 ●
125 CLIP; FUEL PIPE
(B) ID=10 & 10 L=25 W/NUT 		9-09716-124-0 01 1 9002-9306 ●
126 BOLT; CLIP,FUEL PIPE
M6X25 		9-01910-625-0 07 1 8712-9005 ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER 		0-50040-625-0 07 1 9006- ● ●
143 WASHER; LK,BRKT,FUEL & OIL
ID=6.1 		9-09150-506-0 01 1 8712- ● ● ●
144 NUT; CLIP
M6 		9-09110-406-0 01 1 8712- ● ● ●
216 BOLT; CLIP,FUEL PIPE
M5X25 		9-09602-082-0 01 1 8712- ● ● ●
