◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50801 - TFR/TFS-LHD ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#44195) — 259 parça

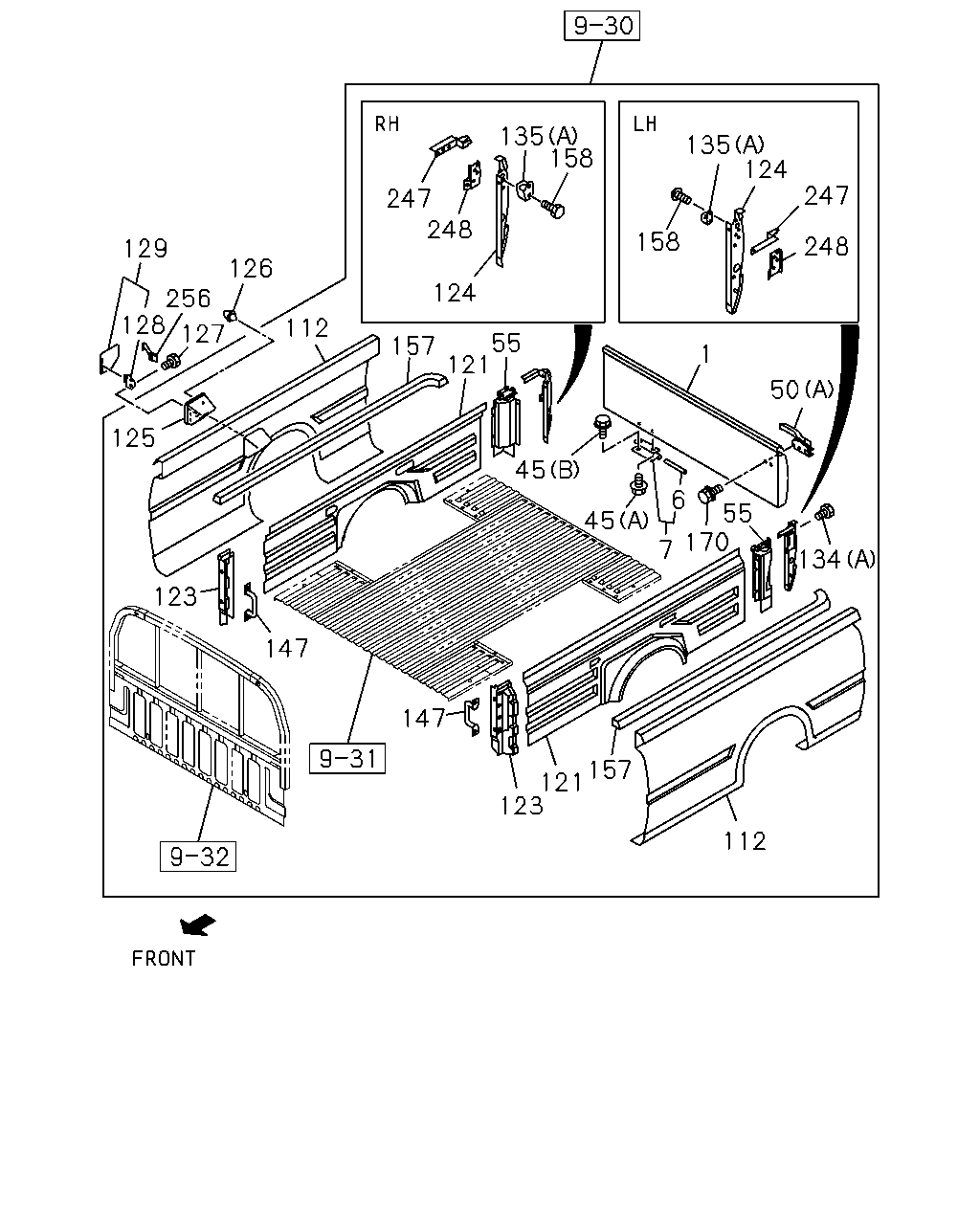

çizim 20644
135 158 135 124 247 247 248 158 248 129 126 124 256 128 127 112 157 55 121 1 50 125 55 45 170 7 45 6 134 123 147 147 157 121 123 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97133-062-4 01 1 9804-9804 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-402-1 01 1 9805-9910 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-402-1 01 1 9911-0009 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-402-1 01 1 0010- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-984-2 01 1 9804-9804 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97940-400-0 01 1 9805- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY FLAT BED<RS6> 		8-94198-013-0 01 1 9804- ●
6 17.208 PIN; TAIL GATE HINGE
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-434-0 03 1 9805-0009 ● ● ● ● ● ● ● ●
6 17.208 PIN; TAIL GATE HINGE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-434-0 03 1 0010- ● ● ● ● ● ● ● ●
6 17.208 PIN; TAIL GATE HINGE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97940-434-0 02 1 9805- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97115-472-2 02 1 9804-9804 ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-435-0 02 1 9805-0009 ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-435-0 02 1 0010- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY FLAT BED<RS6> 		8-94197-074-0 04 1 9804- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 17.198 (A),(B) M8X18 		8-94419-345-0 08 1 9804-0006 ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A),(B) M8X20 FLANGE 		8-97089-067-0 08 1 0007-0007 ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 10.463 (B) M8X23 FLANGE 		8-94174-559-2 04 1 0008-0009 ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 10.463 (B) M8X23 FLANGE 		8-94174-559-2 04 1 0010-0010 ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 17.198 (B) M8X18 		8-94419-345-0 04 1 0010- ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) M8X23 FLANGE 		8-97941-923-0 04 1 0008-0009 ● ● ● ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) M8X23 FLANGE 		8-97941-923-0 04 1 0010- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97037-420-0 02 1 9804-9810 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97210-589-2 02 1 9811- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY

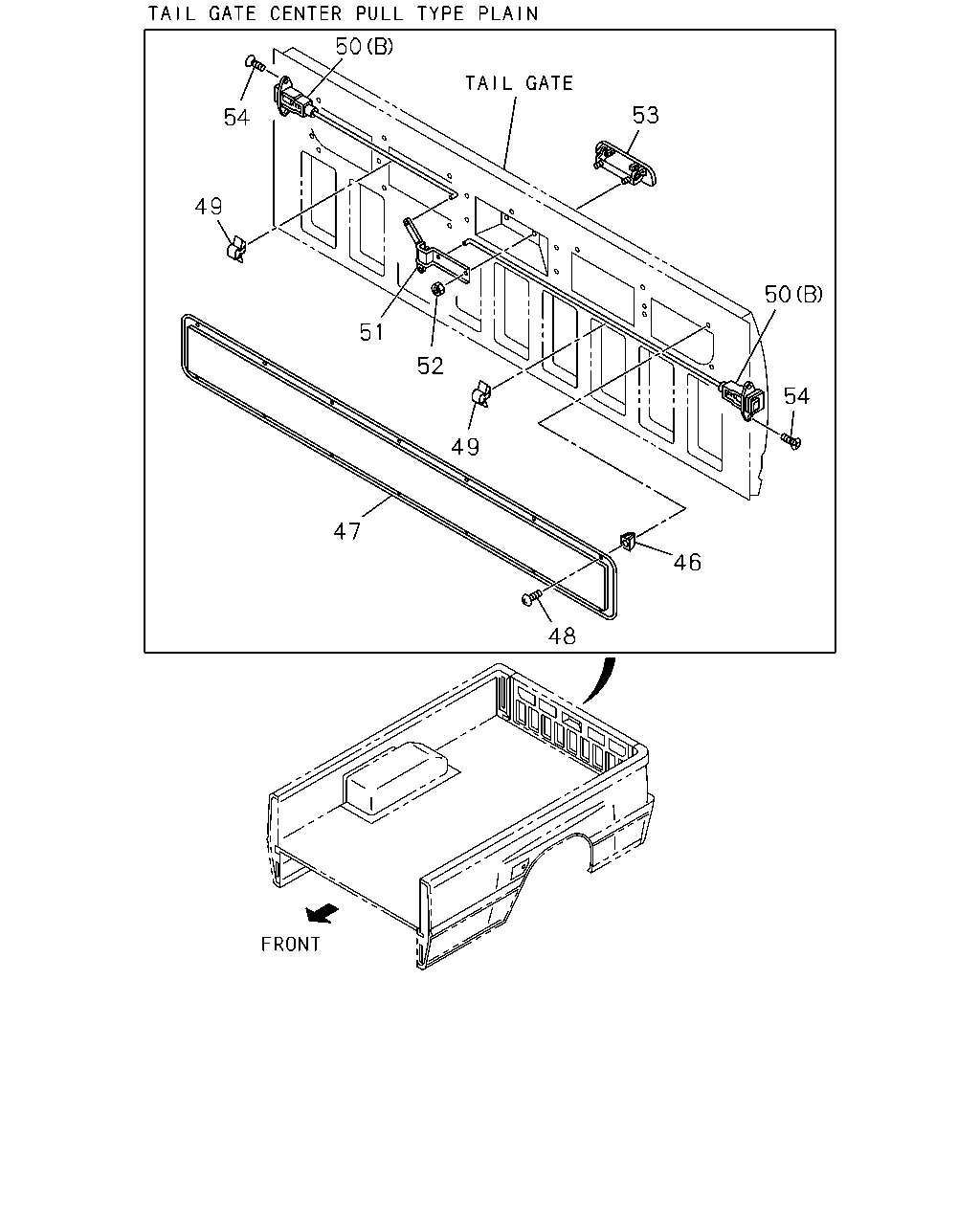

TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) 		8-97131-656-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97131-656-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97131-656-0 01 1 0010- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) 		8-97131-655-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97131-655-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97131-655-0 01 1 0010- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-970-6 01 1 9804-9804 ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-519-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-519-0 01 1 0010- ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-912-6 01 1 9804-9804 ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-518-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-518-0 01 1 0010- ● ● ● ● ● ● ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-925-5 01 1 9804- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-867-6 01 1 9804-0012 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97258-942-0 01 1 0101- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-926-5 01 1 9804- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-868-6 01 1 9804-0012 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97258-940-0 01 1 0101- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-924-5 01 1 9804- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-866-6 01 1 9804-0012 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97258-941-0 01 1 0101- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-927-5 01 1 9804-0009 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97114-927-5 01 1 0010- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-869-7 01 1 9804-9909 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97213-636-0 01 1 9910-0009 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97213-636-0 01 1 0010- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-962-3 01 1 9804-9804 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-506-0 01 1 9805- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-904-3 01 1 9804-9804 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-505-0 01 1 9805-0012 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97942-026-0 01 1 0101- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-963-3 01 1 9804-9804 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-508-0 01 1 9805- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-905-3 01 1 9804-9804 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-507-0 01 1 9805-0012 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97942-024-0 01 1 0101- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-961-3 01 1 9804-9804 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-504-0 01 1 9805- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-903-3 01 1 9804-9804 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-503-0 01 1 9805-0012 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97942-025-0 01 1 0101- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-964-1 01 1 9804-0009 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97114-964-1 01 1 0010- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-906-1 01 1 9804-9810 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97213-611-1 01 1 9811-0009 ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97213-611-2 01 1 0010- ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-965-3 01 1 9804-9804 ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-510-0 01 1 9805- ● ● ● ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97118-579-2 01 1 9804- ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-660-2 01 1 9804-9804 ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-464-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-464-0 01 1 0010- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-659-2 01 1 9804-9804 ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-463-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-463-0 01 1 0010- ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-942-5 01 1 9804-9804 ● ● ● ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-883-5 01 1 9804-9804 ● ● ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-885-2 01 1 9804-9909 ● ● ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-885-2 01 1 9910-0012 ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97942-092-1 01 1 0101- ● ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97212-711-2 01 1 9910-0009 ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97212-711-2 01 1 0010- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97166-112-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97166-112-0 01 1 0010- ● ● ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0010- ● ● ● ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97162-602-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97162-602-0 01 1 9910-0012 ● ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97212-879-0 01 1 9910-0009 ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97212-879-0 01 1 0010-0012 ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97212-879-0 01 1 0101-0109 ● ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97212-879-0 01 1 0101-0109 ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97212-879-0 01 1 0110- ● ● ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97163-109-0 01 1 9804-0012 ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97261-164-2 01 1 0101- ● ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97115-026-2 01 1 9804-9909 ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97212-882-0 01 1 9910-0009 ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97212-882-0 01 1 0010-0212 ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97360-470-0 01 1 0301- ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 04.197 (A) M6X10 		8-97020-236-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 04.197 (A) M6X10 		8-97020-236-0 02 1 0010- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) M8X22 		8-97104-889-0 04 1 9804-9909 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) (B) M8X22 		8-97104-889-0 04 1 9910-0009 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) M8X22 		8-97104-889-0 04 1 0010- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97018-747-3 01 1 9804-9810 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97018-746-3 01 1 9804-9810 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97210-601-1 01 1 9811-0009 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97210-601-1 01 1 0010- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97210-600-1 01 1 9811-0009 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97210-600-1 01 1 0010- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) 		8-97064-382-1 02 1 9804-9909 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97064-382-1 02 1 9910-0009 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97064-382-1 02 1 0010- ● ● ● ● ● ● ● ●
147 17.505 HOOK ASM; ROPE,FRT
PHILIPPINE EQUIPMENT(S2U) RR BODY DBL WALL CTR PULL INNER & O UTER HOOK(7TN) 		8-97940-534-0 02 1 0010- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-946-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-476-0 01 1 9805- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-887-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-475-0 01 1 9805- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-947-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-478-0 01 1 9805- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-888-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-477-0 01 1 9805- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-945-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-474-0 01 1 9805- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-886-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-473-0 01 1 9805- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-948-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-480-0 01 1 9805-0009 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-480-0 01 1 0010- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-889-4 01 1 9804-9804 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-479-0 01 1 9805-0009 ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-479-0 01 1 0010- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 17.198 		9-03065-816-0 04 1 9804-0009 ● ● ● ● ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 17.198 		9-03065-816-0 04 1 0010- ● ● ● ● ● ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 9804- ● ● ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-956-4 01 1 9804-9804 ● ● ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-466-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-466-0 01 1 0010- ● ● ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-898-4 01 1 9804-9804 ● ● ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-465-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-465-0 01 1 0010- ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97133-183-0 01 1 9804-9804 ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-471-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-471-0 01 1 0010- ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97133-182-0 01 1 9804-9804 ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-470-0 01 1 9805-0009 ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-470-0 01 1 0010- ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-943-0 01 1 9804-9804 ● ● ● ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-884-0 01 1 9804-9804 ● ● ● ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97217-091-1 01 1 9910-0009 ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97217-091-1 01 1 0010-0012 ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97217-091-1 01 1 0101- ● ● ● ● ● ● ● ●
çizim 71573
50 53 54 49 50 51 52 54 49 47 46 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 02.708 M4 		5-09470-002-0 14 1 9804-9909 ● ● ● ● ● ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
RR BODY DBL WALL CTR PULL(6MW) 02.708 M4 		5-09470-002-0 14 1 9910-0009 ● ● ● ● ● ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 02.708 M4 		5-09470-002-0 14 1 0010- ● ● ● ● ● ● ● ●
47 17.507 PLATE; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 		8-94433-506-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
47 17.507 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-94433-506-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
47 17.507 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94433-506-0 01 1 0010- ● ● ● ● ● ● ● ●
48 17.185 SCREW; HOLE COVER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M4X10 		8-97043-528-0 14 1 9804-9909 ● ● ● ● ● ● ● ●
48 17.185 SCREW; HOLE COVER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) M4X10 		8-97043-528-0 14 1 9910-0009 ● ● ● ● ● ● ● ●
48 17.185 SCREW; HOLE COVER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) M4X10 		8-97043-528-0 14 1 0010- ● ● ● ● ● ● ● ●
49 17.635 ANTIRATTLER; TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
49 17.635 ANTIRATTLER; TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 9910-0009 ● ● ● ● ● ● ● ●
49 17.635 ANTIRATTLER; TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 0010- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97037-420-0 02 1 9804-9810 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97210-589-2 02 1 9811- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) 		8-97131-656-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97131-656-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97131-656-0 01 1 0010- ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) 		8-97131-655-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97131-655-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97131-655-0 01 1 0010- ● ● ● ● ● ● ● ●
51 17.204 LEVER ASM; TAIL GATE LOCK CONT
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 		8-97131-635-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
51 17.204 LEVER ASM; TAIL GATE LOCK CONT
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-635-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
51 17.204 LEVER ASM; TAIL GATE LOCK CONT
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97131-635-0 01 1 0010- ● ● ● ● ● ● ● ●
52 17.204 NUT; OUTSIDE HANDLE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 07.829 M6 FLANGE 		5-09440-004-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
52 17.204 NUT; OUTSIDE HANDLE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9910-0009 ● ● ● ● ● ● ● ●
52 17.204 NUT; OUTSIDE HANDLE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0010- ● ● ● ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 		8-97131-642-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-642-1 01 1 9910-0009 ● ● ● ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97131-642-1 01 1 0010- ● ● ● ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 		8-94481-018-1 04 1 9804-9909 ● ● ● ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-94481-018-1 04 1 9910-0009 ● ● ● ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94481-018-1 04 1 0010-0112 ● ● ● ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) M8X20 		8-94446-355-1 04 1 0201- ● ● ● ● ● ● ● ●

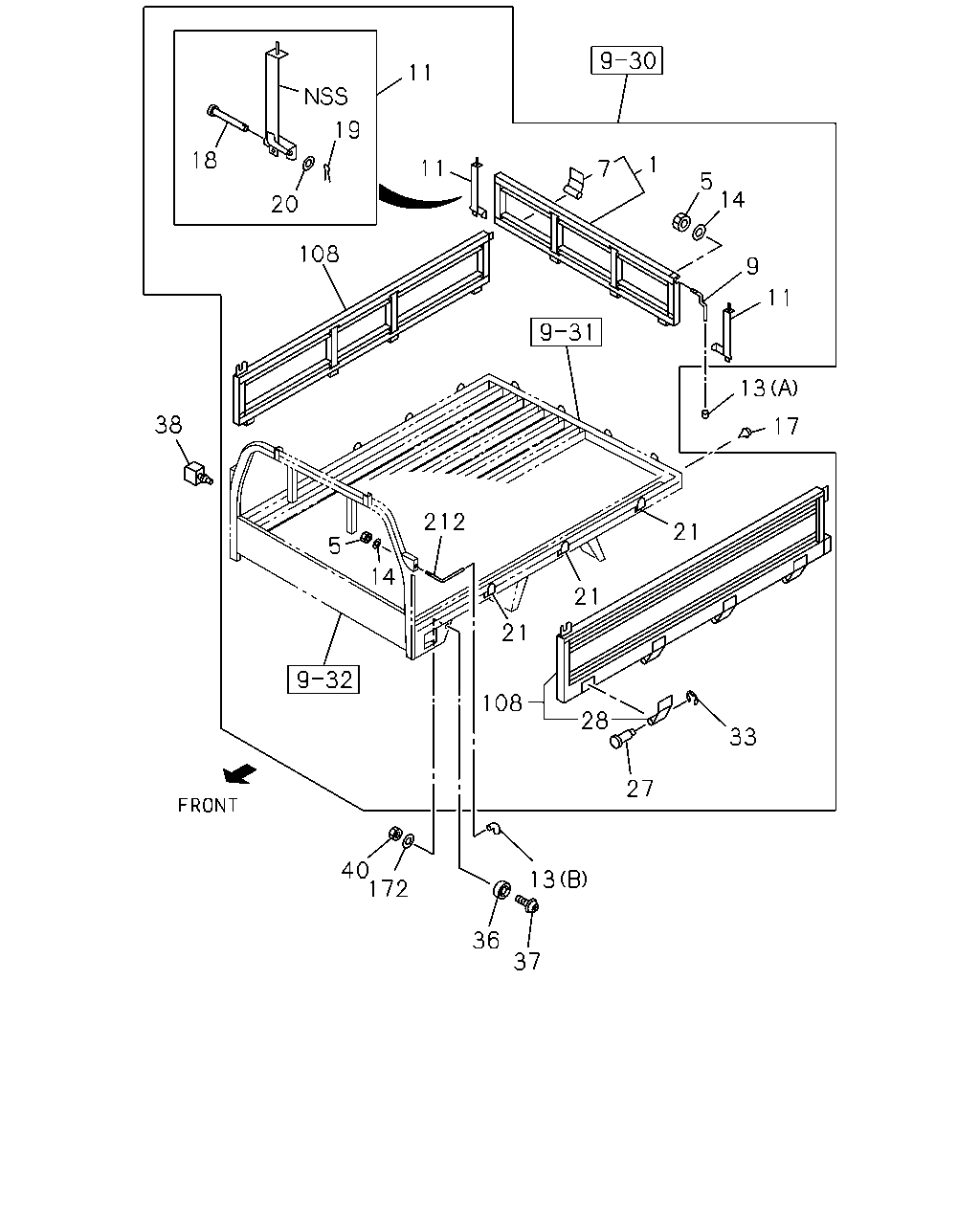

çizim 73839
11 19 18 1 11 7 5 14 20 108 9 1 13 38 17 212 21 14 5 21 21 108 28 33 27 40 172 13 36 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97133-062-4 01 1 9804-9804 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-402-1 01 1 9805-9910 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-402-1 01 1 9911-0009 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-402-1 01 1 0010- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97114-984-2 01 1 9804-9804 ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97940-400-0 01 1 9805- ● ● ● ● ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY FLAT BED<RS6> 		8-94198-013-0 01 1 9804- ●
5 17.204 NUT; LATCH HANDLE
RR BODY FLAT BED<RS6> 07.347 M12 		9-99111-412-0 08 1 9804- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97115-472-2 02 1 9804-9804 ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97940-435-0 02 1 9805-0009 ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97940-435-0 02 1 0010- ● ● ● ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY FLAT BED<RS6> 		8-94197-074-0 04 1 9804- ●
9 17.204 HANDLE; LATCH,RR GATE
RR BODY FLAT BED<RS6> 		8-94197-050-0 01 1 9804- ●
9 17.204 HANDLE; LATCH,RR GATE
RR BODY FLAT BED<RS6> 		8-94197-049-0 01 1 9804- ●
11 17.198 LOCK ASM; VERTICAL
RR BODY FLAT BED<RS6> 		8-94197-037-1 01 1 9804- ●
11 17.198 LOCK ASM; VERTICAL
RR BODY FLAT BED<RS6> 		8-94197-036-1 01 1 9804- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
RR BODY FLAT BED<RS6> (A) ID=12 		9-61203-650-0 02 1 9804- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
RR BODY FLAT BED<RS6> (B) 		9-61203-937-0 02 1 9804- ●
14 17.204 WASHER; PL,HANDLE
RR BODY FLAT BED<RS6> 02.334 ID=6.4 OD=22 		9-09164-806-0 04 1 9804- ●
17 17.202 RUBBER; BUMPER,VERTICAL LOCK,RR
RR BODY FLAT BED<RS6> 		9-61203-673-0 02 1 9804- ●
18 17.198 PIN; VERTICAL LOCK
RR BODY FLAT BED<RS6> 		8-94197-090-0 02 1 9804- ●
19 17.198 PIN; SPLIT,VERTICAL LOCK
RR BODY FLAT BED<RS6> 		9-08103-015-0 02 1 9804- ●
20 17.198 WASHER; PL,VERTICAL LOCK
RR BODY FLAT BED<RS6> 07.874 ID=10.5 OD=18 		9-09160-510-0 02 1 9804- ●
21 17.208 HINGE; LEAF,LWR
RR BODY FLAT BED<RS6> 		8-94197-073-0 12 1 9804- ●
27 17.208 PIN; HINGE,SIDE GATE
RR BODY FLAT BED<RS6> 		8-94197-062-0 12 1 9804- ●
28 17.208 HINGE; UPR,SIDE GATE
RR BODY FLAT BED<RS6> 		8-94197-074-0 08 1 9804- ●
33 17.208 RING; SNAP,HINGE PIN,RR BODY
RR BODY FLAT BED<RS6> ID=6 		9-09185-006-0 12 1 9804- ●
36 17.202 RUBBER; STOPPER,RR GATE
RR BODY FLAT BED<RS6> OD=45 H=30 		5-66900-013-0 06 1 9804- ●
37 17.202 SCREW
RR BODY FLAT BED<RS6> M6X30 W/PL WASHER 		9-03900-630-0 06 1 9804- ●
38 17.507 RUBBER; STOPPER,SIDE GATE
RR BODY FLAT BED<RS6> 		8-94238-211-0 02 1 9804- ●
40 17.202 NUT; STOPPER RUBBER
RR BODY FLAT BED<RS6> 16.176 M6 		9-09110-406-0 06 1 9804- ●
108 17.505 GATE ASM; SIDE
RR BODY FLAT BED<RS6> 		8-94198-012-0 01 1 9804- ●
108 17.505 GATE ASM; SIDE
RR BODY FLAT BED<RS6> 		8-94198-011-0 01 1 9804- ●
172 17.447 WASHER; PL,STOPPER,TAIL GATE
RR BODY FLAT BED<RS6> 02.183 ID=6.4 OD=14 		9-09160-606-0 06 1 9804- ●
212 17.455 HANDLE; FRT,RR BODY
RR BODY FLAT BED<RS6> 		8-94197-048-0 02 1 9910- ●

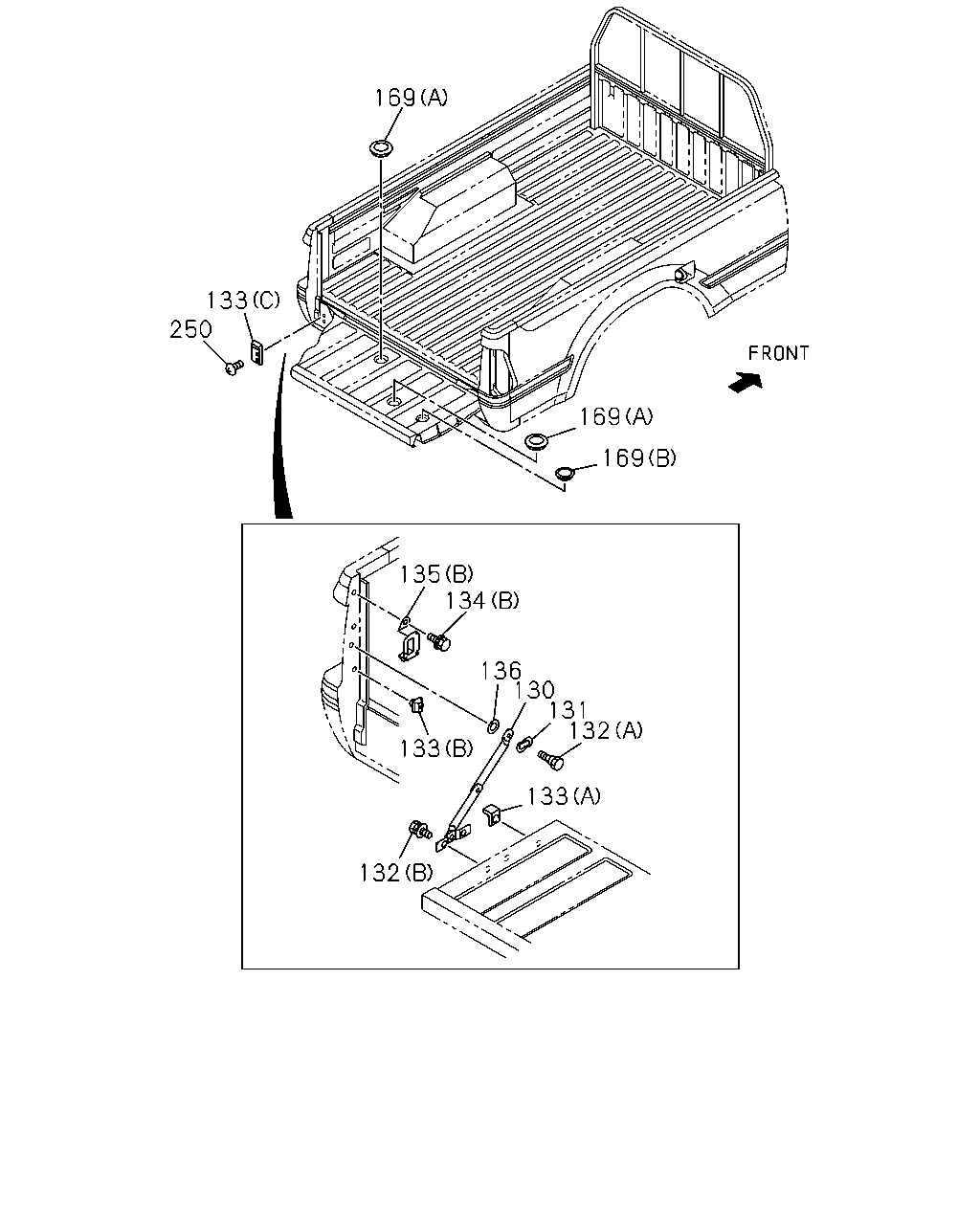

çizim 73925
169 133 250 169 169 135 134 136 130 131 132 133 133 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
130 17.225 LINK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97063-897-2 02 1 9804-0009 ● ● ● ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97063-897-2 02 1 0010- ● ● ● ● ● ● ● ●
131 17.635 WASHER; WAVE,TAIL GATE LINK,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94481-020-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
131 17.635 WASHER; WAVE,TAIL GATE LINK,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94481-020-0 02 1 0010- ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) M8X14 		8-94481-021-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) M8X14 		8-94481-021-0 02 1 0010- ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 17.507 (B) M8X22 		8-97104-889-0 04 1 9804-0009 ● ● ● ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 17.507 (B) M8X22 		8-97104-889-0 04 1 0010- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-94370-056-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-94370-056-0 02 1 0010- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (B) 		8-94433-529-1 02 1 9804-0009 ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-94433-529-1 02 1 0010- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (C) 		8-97131-679-4 01 1 9804-0009 ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (C) 		8-97131-679-4 01 1 0010- ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (C) 		8-97131-678-4 01 1 9804-0009 ● ● ● ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (C) 		8-97131-678-4 01 1 0010- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 04.197 (A) M6X10 		8-97020-236-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 04.197 (A) M6X10 		8-97020-236-0 02 1 0010- ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) M8X22 		8-97104-889-0 04 1 9804-9909 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) (B) M8X22 		8-97104-889-0 04 1 9910-0009 ● ● ● ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) M8X22 		8-97104-889-0 04 1 0010- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97018-747-3 01 1 9804-9810 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97018-746-3 01 1 9804-9810 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97210-601-1 01 1 9811-0009 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97210-601-1 01 1 0010- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) (A) 		8-97210-600-1 01 1 9811-0009 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (A) 		8-97210-600-1 01 1 0010- ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (B) 		8-97064-382-1 02 1 9804-9909 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97064-382-1 02 1 9910-0009 ● ● ● ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) (B) 		8-97064-382-1 02 1 0010- ● ● ● ● ● ● ● ●
136 17.635 WASHER; PL,TAIL GATE LINK,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 16.674 ID=8.4 		9-09160-508-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
136 17.635 WASHER; PL,TAIL GATE LINK,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 16.674 ID=8.4 		9-09160-508-0 02 1 0010- ● ● ● ● ● ● ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97166-110-0 04 1 9804- ● ● ● ● ● ● ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97166-111-0 02 1 9804- ● ● ● ● ● ● ● ●
250 17.505 BOLT; STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 08.077 M6X18 		8-97071-681-0 04 1 9804-0009 ● ● ● ● ● ● ● ●
250 17.505 BOLT; STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 08.077 M6X18 		8-97071-681-0 04 1 0010- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
