9-31 — REAR BODY; FLOOR AND FENDER (#44193) — 53 parça

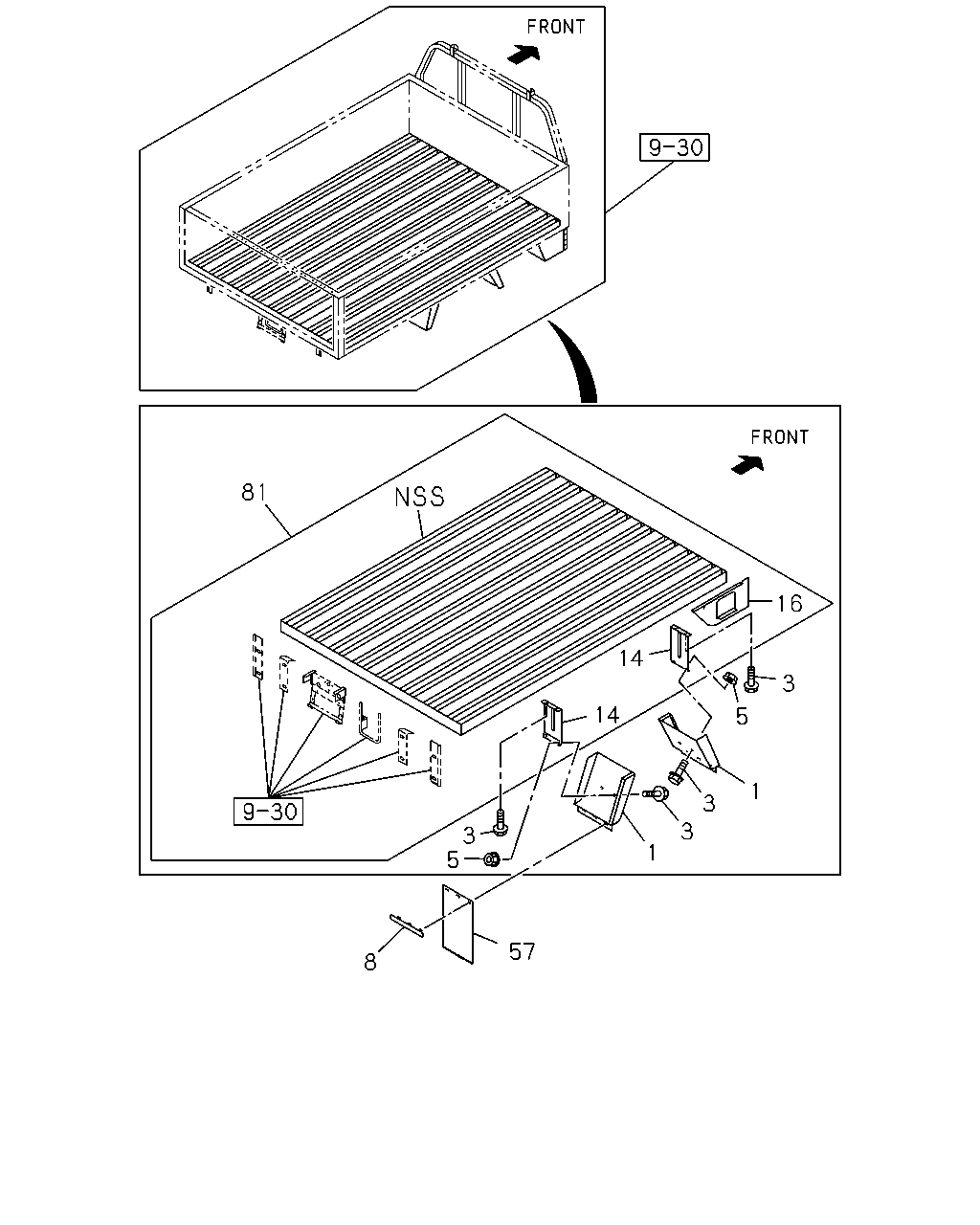

çizim 71882
81 16 14 3 14 5 1 3 3 3 5 1 57 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> FRONT 		8-94232-717-0 01 1 9804- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR 		8-94232-719-0 01 1 9804- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> REAR 		8-94232-718-0 01 1 9804- ●
1 08.203 FENDER; RR,RR BODY
RR BODY FLAT BED<RS6> FRONT 		8-94311-682-0 01 1 9804- ●
3 08.203 BOLT; FENDER TO RR BODY
RR BODY FLAT BED<RS6> 12.237 		8-94124-894-0 16 1 9804- ●
5 17.447 NUT; FENDER TO BRKT
RR BODY FLAT BED<RS6> 		8-94197-054-0 08 1 9804- ●
8 08.212 HOLDER; FLAP RUBBER
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 17.110 		9-61202-486-0 02 1 9804- ●
14 08.212 SUPPORT; RR FENDER
RR BODY FLAT BED<RS6> 		5-66956-001-0 04 1 9804- ●
16 17.455 CONNECTOR; GUARD FRAME
RR BODY FLAT BED<RS6> 		5-79990-040-0 01 1 9804- ●
16 17.455 CONNECTOR; GUARD FRAME
RR BODY FLAT BED<RS6> 		5-79990-039-0 01 1 9804- ●
57 08.214 RUBBER; FLAP RR
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 17.110 		9-61202-204-0 02 1 9804- ●
81 17.400 FLOOR ASM; RR BODY
RR BODY FLAT BED<RS6> 		8-94198-024-0 01 1 9804- ●

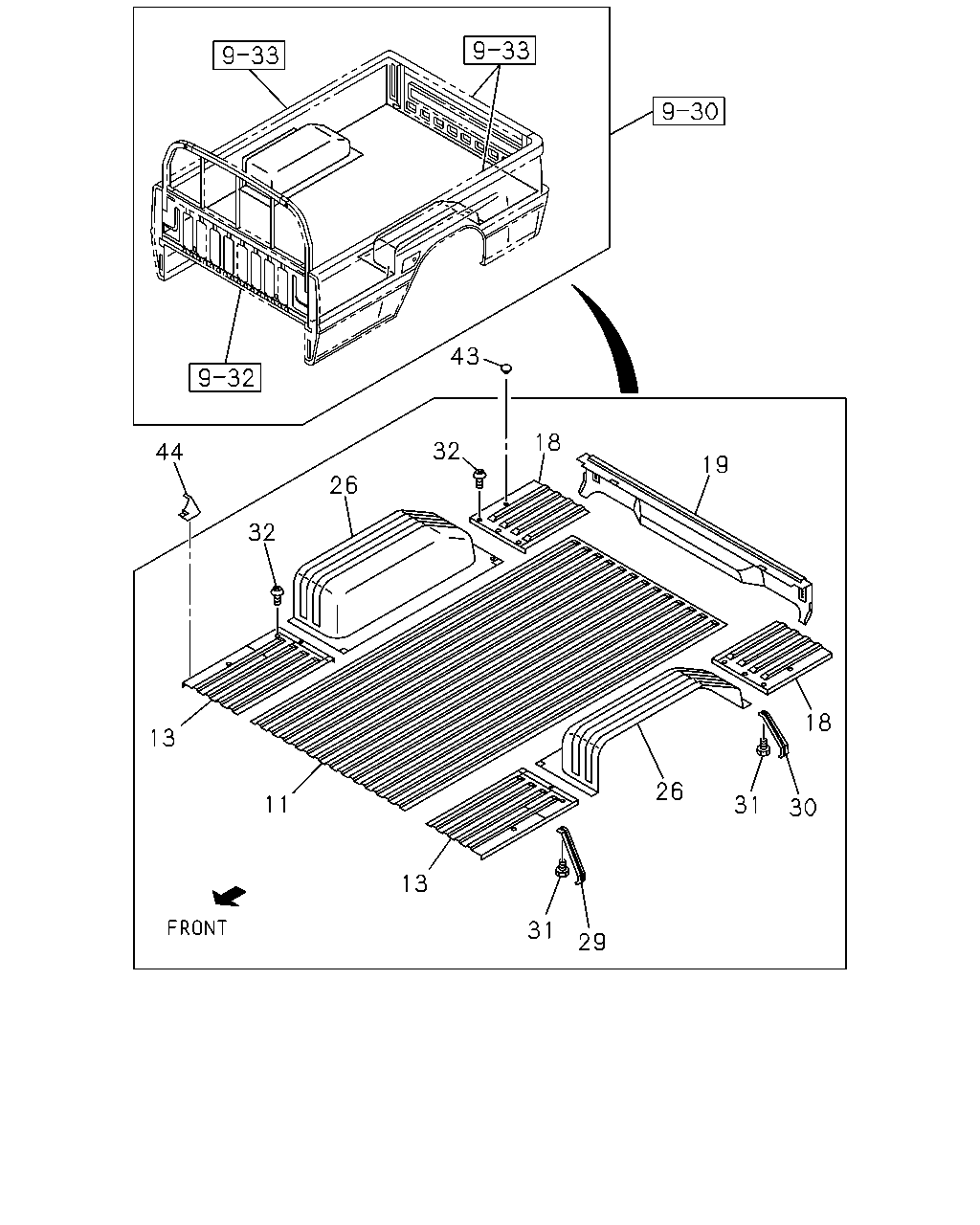

çizim 71894
43 18 32 44 19 26 32 18 13 26 11 31 30 13 31 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94454-490-3 01 1 9804- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97115-208-2 01 1 9804- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94435-722-3 01 1 9804- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94454-489-1 01 1 9804-0009 ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94454-489-2 01 1 0010- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94474-323-5 01 1 9804- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94474-322-5 01 1 9804- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94474-321-5 01 1 9804- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94474-320-5 01 1 9804- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94474-319-5 01 1 9804- ● ●
13 17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94474-318-5 01 1 9804- ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94463-164-2 01 1 9804-0009 ● ● ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94463-164-3 01 1 0010- ● ● ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94463-163-2 01 1 9804-0009 ● ● ● ● ● ● ● ●
18 17.406 PANEL; FLOOR BOARD,RR SIDE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94463-163-3 01 1 0010- ● ● ● ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97147-785-1 01 1 9804-0009 ● ● ● ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97147-785-1 01 1 0010- ● ● ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94435-839-7 01 1 9804- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94435-838-7 01 1 9804-0012 ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97258-972-0 01 1 0101- ● ● ● ● ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-966-1 01 1 9804-0009 ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97114-966-1 01 1 0010- ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-908-1 01 1 9804-9905 ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97213-637-0 01 1 9906-0009 ● ●
26 17.505 PANEL; WHEEL HOUSE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97213-637-0 01 1 0010- ● ●
29 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-974-1 02 1 9804- ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-976-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97114-976-1 01 1 0010- ● ● ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97114-975-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
30 17.510 STAY; SIDE PANEL TO FLOOR,RR BOD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97114-975-1 01 1 0010- ● ● ● ● ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 04 1 9804- ● ● ● ● ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 02 1 9804-0009 ● ●
31 17.510 BOLT; SIDE PANEL STAY,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 08.143 M6X16 W/PL WASHER 		8-94204-636-0 02 1 0010- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) M6X16 W/WASHER (+) 		8-97109-753-1 10 1 9804- ● ● ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) M6X16 W/WASHER (+) 		8-97109-753-1 12 1 9804- ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) M6X16 W/WASHER (+) 		8-97109-753-1 08 1 9804-0009 ● ●
32 17.208 SCREW; FLOOR BOLSTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) M6X16 W/WASHER (+) 		8-97109-753-1 08 1 0010- ● ●
43 17.447 GROMMET; DUMMY HOLE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-94478-200-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
43 17.447 GROMMET; DUMMY HOLE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-94478-200-0 02 1 0010- ● ● ● ● ● ● ● ●
44 17.505 SEAL; RR POST,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW) 		8-97133-851-1 02 1 9804-0009 ● ● ● ● ● ● ● ●
44 17.505 SEAL; RR POST,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL CTR PUL L(6MW),RR BODY DBL WALL CTR PULL INNER & OUTER HOOK(7TN) 		8-97133-851-1 02 1 0010- ● ● ● ● ● ● ● ●
