Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#4419) — 318 parça

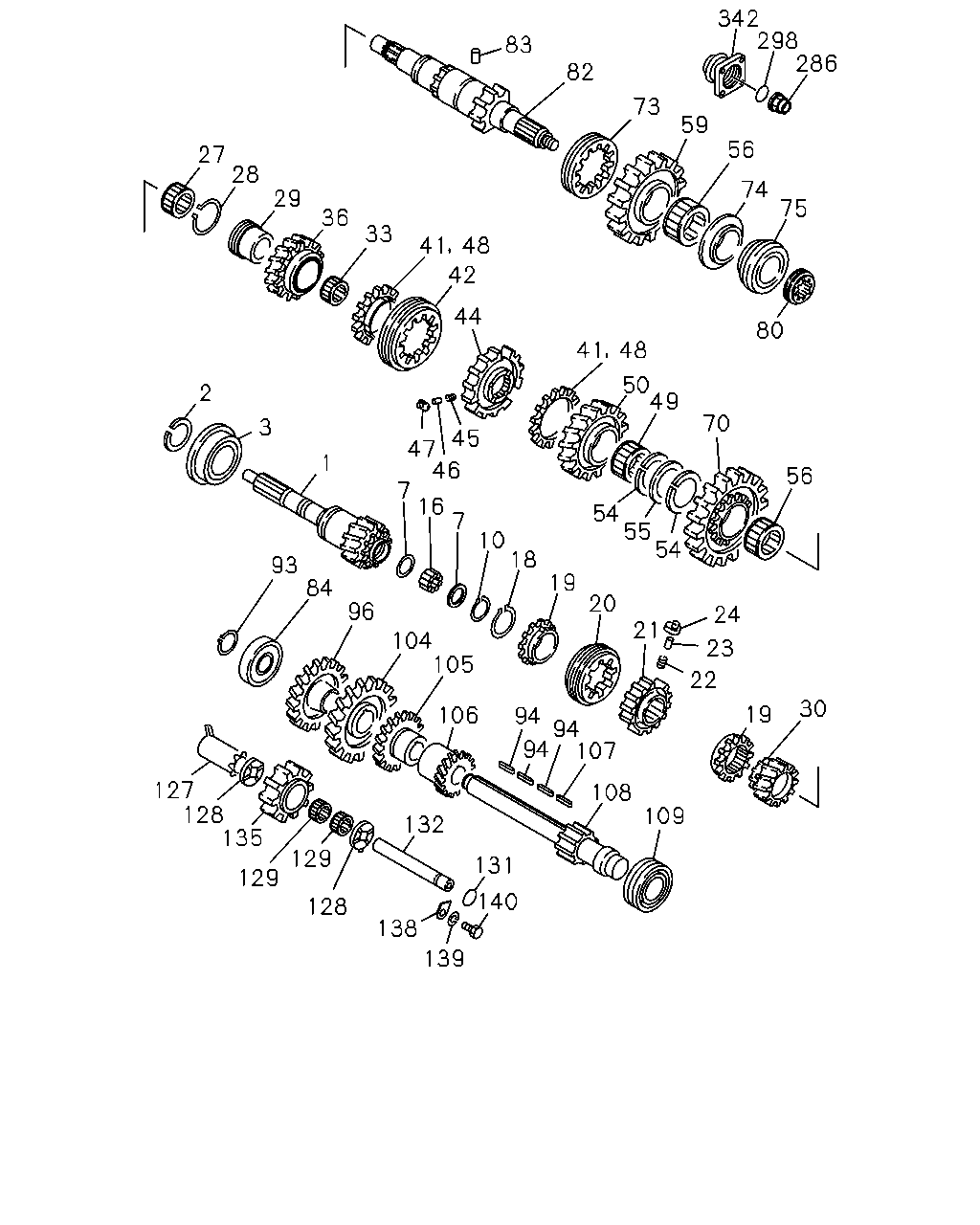

342 298 286 77 78 73 59 49 74 75 47 46 45 56 55 79 44 48 50 41 80 54 54 83 82 2 3 1 70 56 7 16 7 18 10 19 20 24 23 22 28 19 93 84 30 29 96 104 105 21 27 94 94 106 94 107 36 33 41 42 108 109 110 119 115 127 120 126 121 126 128 135 132 139 138 118 129 129 26 140 128 122 123 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9101-9309	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-9504	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-725-0	01	1	9101-9309				●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9310-9504				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9305-9504	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9305-9504	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9305-9504	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9305-9504	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9101-9501	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-9504	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9101-9504	●	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9101-9504	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9101-9504	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9101-9504	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9101-9504	●	●	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-121-1	01	1	9101-9504	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9101-9212	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-408-0	02	1	9301-9504	●	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9101-9504	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9101-9504	●	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9101-9504	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-9201	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-9304	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9305-9504	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-9201	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-9304	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9305-9504	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9101-9504		●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9101-9504	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9101-9504	●	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9101-9504	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9101-9504	●	●	●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9101-9504	●	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9101-9309	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-9504	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9101-9309				●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-9504				●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9101-9504	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-199-0	01	1	9101-9504	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-326-0	01	1	9101-9108	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9109-9301	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-9504	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-330-0	01	1	9107-9108			●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-321-1	01	1	9109-9301			●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-404-0	01	1	9302-9309			●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-360-1	01	1	9310-9504			●
41	RING; BLOCK,2ND & 3RD	1-33265-282-0	02	1	9101-9108	●	●	●	●
42	SLEEVE Z=42	1-33262-136-0	01	1	9101-9108	●	●	●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9109-9209	●	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-9504	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-146-3	01	1	9101-9108	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-172-1	01	1	9109-9112	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9201-9405	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-9504	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9109-9209	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9210-9504	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-9504	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-9504	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9109-9205	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-9504	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9101-9504	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-275-0	01	1	9101-9108	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9109-9301	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-9504	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-274-0	01	1	9107-9108			●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-258-1	01	1	9109-9301			●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-324-1	01	1	9302-9504			●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9101-9504	●	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9101-9504	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9101-9504	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-020-0	02	1	9101-9504	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-022-0	01	1	9101-9110	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9111-9309	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-9504	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9101-9309	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-9504	●	●	●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9101-9504	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9101-9504	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9101-9504	●	●	●	●
75	BEARING; MAINSHAFT JTEKT	1-09810-155-0	01	1	9101-9504	●	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-374-0	01	1	9101-9309			●	●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-516-0	01	1	9310-9504			●	●
77	GEAR; 6TH,MAINSHAFT Z=16	1-33253-372-0	01	1	9101-9309		●
77	GEAR; 6TH,MAINSHAFT Z=16	1-33253-515-0	01	1	9310-9504		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-020-0	01	1	9101-9305		●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-095-0	01	1	9306-9504		●	●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9101-9504		●	●	●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	9101-9504		●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-025-0	01	1	9101-9110	●	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-1	01	1	9111-9504	●	●	●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9101-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-9504	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9101-9309		●	●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-9504		●	●	●
83	PIN; THRUST WASHER OD=4 L=12	1-09740-032-0	01	1	9101-9504	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9101-9504	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9101-9504	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9101-9504	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9101-9504	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9101-9504	●	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-167-2	01	1	9101-9110	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-218-0	01	1	9111-9309	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-210-0	01	1	9310-9504	●	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-168-2	01	1	9101-9110				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9111-9309				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-9504				●
104	GEAR; 4TH,COUNTER Z=35	1-33332-069-4	01	1	9101-9110	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9111-9309	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-9504	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-070-4	01	1	9101-9110				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9111-9309				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-9504				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9101-9309	●	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-9504	●	●		●
105	GEAR; 3RD,COUNTER Z=30	1-33333-103-1	01	1	9107-9309			●
105	GEAR; 3RD,COUNTER Z=30	1-33333-149-0	01	1	9310-9504			●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9101-9306	●	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9307-9309	●	●		●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-9504	●	●		●
106	GEAR; 2ND,COUNTER Z=23	1-33334-016-1	01	1	9307-9504			●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9101-9504	●	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9101-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-9504	●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9101-9309		●	●	●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-9504		●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9101-9504	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9101-9504		●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9101-9504		●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9101-9504		●	●	●
115	BEARING; NEEDLE,6TH,COUNTER KOYO	1-09811-269-0	01	1	9101-9504		●	●	●
118	GEAR; 6TH,COUNTER Z=41	1-33338-212-1	01	1	9101-9110			●	●
118	GEAR; 6TH,COUNTER Z=41	1-33338-278-0	01	1	9111-9309			●	●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9310-9504			●	●
118	GEAR; 6TH,COUNTER Z=42	1-33338-210-2	01	1	9101-9110		●
118	GEAR; 6TH,COUNTER Z=42	1-33338-279-0	01	1	9111-9309		●
118	GEAR; 6TH,COUNTER Z=42	1-33338-272-0	01	1	9310-9504		●
119	RING; BLOCK,6TH SYN	1-33265-283-0	01	1	9101-9212		●	●	●
119	RING; BLOCK,6TH SYN	1-33265-408-0	01	1	9301-9504		●	●	●
120	SLEEVE	1-33262-095-0	01	1	9101-9504		●	●	●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9101-9504		●	●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-9504		●	●	●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-9504		●	●	●
126	RING; SNAP,CLU HUB OD=100 T=2	1-09587-032-0	01	1	9101-9504		●	●	●
126	RING; SNAP,CLU HUB OD=46.3 T=1.75	1-09588-121-1	01	1	9101-9504		●	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9101-9504	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9101-9504	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9101-9504	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9101-9504	●	●	●	●
132	SHAFT; REV	1-33351-013-0	01	1	9101-9504	●
132	SHAFT; REV	1-33351-018-1	01	1	9101-9504		●	●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9101-9309	●	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-9504	●	●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9101-9504	●	●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9101-9205	●	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9101-9205	●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-9504	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M30 FLANGE	1-09449-066-1	01	1	9101-9504	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=35.7 T=5	1-09623-379-0	01	1	9101-9504	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-097-1	01	1	9101-9111	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-242-0	01	1	9112-9504	●	●	●	●

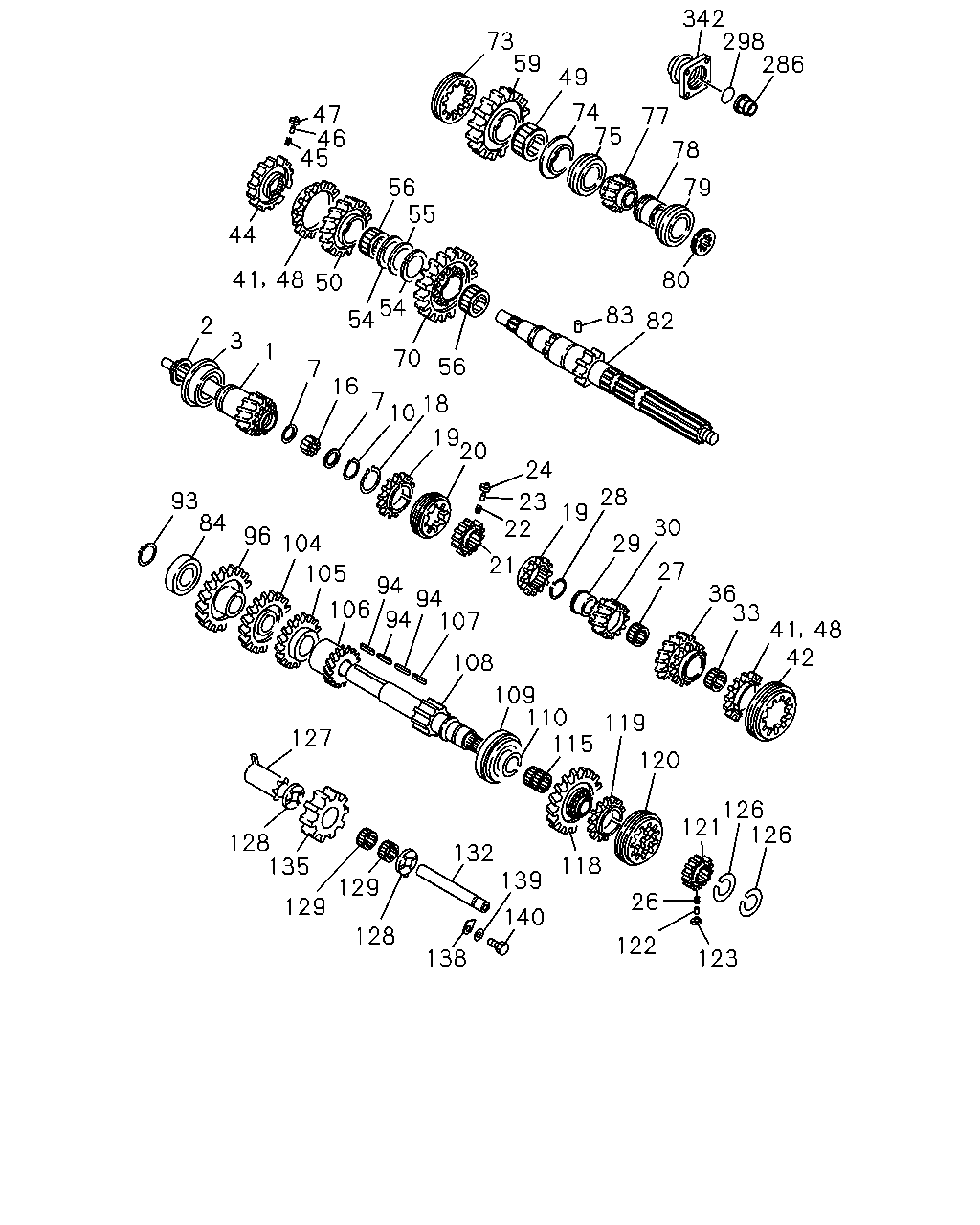

342 298 286 83 82 73 59 56 27 28 29 74 75 36 33 42 44 80 48 41 50 49 2 70 3 45 47 46 1 56 7 16 7 10 18 19 20 54 55 54 93 84 96 24 23 22 21 104 105 30 19 106 94 94 94 107 127 128 135 108 109 129 129 132 131 140 128 138 139 41 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9101-9309	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-9504	●	●	●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-725-0	01	1	9101-9309				●
1	SHAFT; TOP GEAR,TRANS Z=20	1-33211-776-0	01	1	9310-9504				●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9305-9504	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9305-9504	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9305-9504	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9101-9201	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-9304	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9305-9504	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9101-9501	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-9504	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9101-9504	●	●	●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9101-9504	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9101-9504	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9101-9504	●	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9101-9504	●	●	●	●
18	RING; SNAP,CLU HUB T=1.75	1-09588-121-1	01	1	9101-9504	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9101-9212	●	●	●	●
19	RING; BLOCK,4TH & 5TH	1-33265-408-0	02	1	9301-9504	●	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9101-9504	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9101-9504	●	●	●	●
22	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9101-9504	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-9201	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-9304	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9305-9504	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-9201	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-9304	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9305-9504	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9101-9504	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9101-9504	●	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9101-9504	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9101-9504	●	●	●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9101-9504	●	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-452-0	01	1	9101-9309	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=25	1-33253-496-0	01	1	9310-9504	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9101-9309				●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-9504				●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9101-9504	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR JTEKT	1-09811-199-0	01	1	9101-9504	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-326-0	01	1	9101-9108	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9109-9301	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-9504	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-330-0	01	1	9107-9108			●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-321-1	01	1	9109-9301			●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-404-0	01	1	9302-9309			●
36	GEAR; 3RD,MAINSHAFT Z=31	1-33252-360-1	01	1	9310-9504			●
41	RING; BLOCK,2ND & 3RD	1-33265-282-0	02	1	9101-9108	●	●	●	●
42	SLEEVE Z=42	1-33262-136-0	01	1	9101-9108	●	●	●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9109-9209	●	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-9504	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-146-3	01	1	9101-9108	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-172-1	01	1	9109-9112	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9201-9405	●	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-9504	●	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9109-9209	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9210-9504	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9101-9504	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9101-9504	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9109-9205	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-9504	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9101-9504	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-275-0	01	1	9101-9108	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9109-9301	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-9504	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-274-0	01	1	9107-9108			●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-258-1	01	1	9109-9301			●
50	GEAR; 2ND,MAINSHAFT Z=41	1-33251-324-1	01	1	9302-9504			●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9101-9504	●	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9101-9504	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9101-9504	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-020-0	02	1	9101-9504	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-022-0	01	1	9101-9110	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9111-9309	●	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-9504	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9101-9309	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-9504	●	●	●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9101-9504	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9101-9504	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9101-9504	●	●	●	●
75	BEARING; MAINSHAFT JTEKT	1-09810-155-0	01	1	9101-9504	●	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-025-0	01	1	9101-9110	●	●	●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-1	01	1	9111-9504	●	●	●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9101-9309	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-9504	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9101-9309		●	●	●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-9504		●	●	●
83	PIN; THRUST WASHER OD=4 L=12	1-09740-032-0	01	1	9101-9504	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9101-9504	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9101-9504	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9101-9504	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9101-9504	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	03	1	9101-9504	●	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-167-2	01	1	9101-9110	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-218-0	01	1	9111-9309	●	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-210-0	01	1	9310-9504	●	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-168-2	01	1	9101-9110				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9111-9309				●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-9504				●
104	GEAR; 4TH,COUNTER Z=35	1-33332-069-4	01	1	9101-9110	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-106-0	01	1	9111-9309	●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33332-094-0	01	1	9310-9504	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-070-4	01	1	9101-9110				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9111-9309				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-9504				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9101-9309	●	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-9504	●	●		●
105	GEAR; 3RD,COUNTER Z=30	1-33333-103-1	01	1	9107-9309			●
105	GEAR; 3RD,COUNTER Z=30	1-33333-149-0	01	1	9310-9504			●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9101-9306	●	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9307-9309	●	●		●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-9504	●	●		●
106	GEAR; 2ND,COUNTER Z=23	1-33334-016-1	01	1	9307-9504			●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9101-9504	●	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9101-9309	●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-9504	●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9101-9309		●	●	●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-9504		●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9101-9504	●	●	●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9101-9504	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9101-9504	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9101-9504	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9101-9504	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9101-9504	●
132	SHAFT; REV	1-33351-013-0	01	1	9101-9504	●
132	SHAFT; REV	1-33351-018-1	01	1	9101-9504		●	●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9101-9309	●	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-9504	●	●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9101-9504	●	●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9101-9205	●	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9101-9205	●	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-9504	●	●	●	●
286	NUT; LK,MAINSHAFT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M30 FLANGE	1-09449-066-1	01	1	9101-9504	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=35.7 T=5	1-09623-379-0	01	1	9101-9504	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-097-1	01	1	9101-9111	●	●	●	●
342	FLANGE; OUTPUT BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-37243-242-0	01	1	9112-9504	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
