8-74 — EVAPORATOR (#44187) — 33 parça

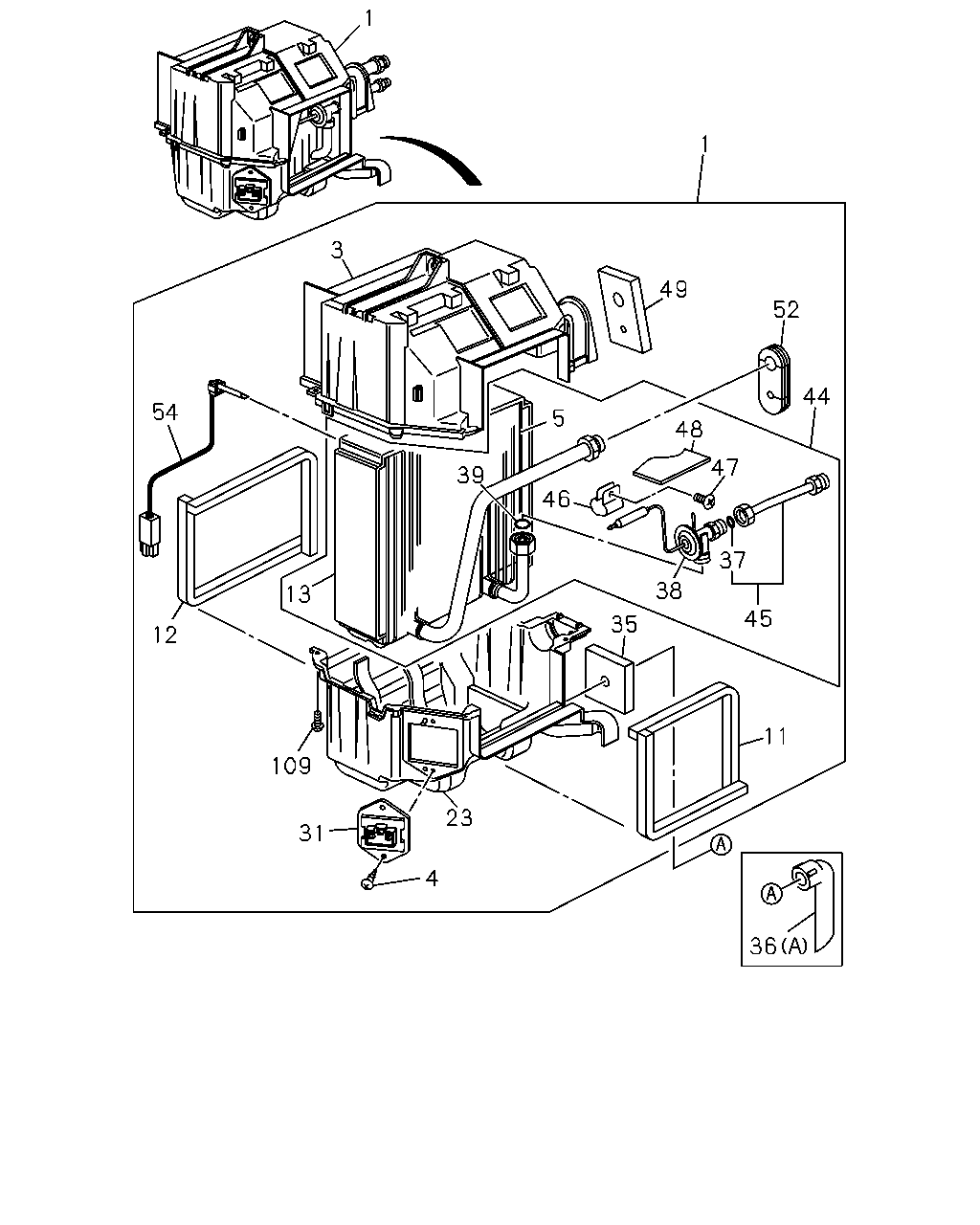

çizim 69422
1 1 3 49 52 44 54 5 48 47 39 46 37 38 13 45 35 12 11 109 23 31 4 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97164-585-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97223-664-0 01 1 9902-0101 ● ● ● ● ● ● ● ●
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97264-503-0 01 1 0102- ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97221-319-0 01 1 9804-0101 ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97165-289-1 01 1 0102- ● ● ● ● ● ● ● ●
4 09.211 SCREW; RESISTOR TO CASE
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 02 1 9804- ● ● ● ● ● ● ● ●
5 09.210 EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97165-291-0 01 1 9804- ● ● ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97103-724-0 01 1 9804- ● ● ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97103-723-0 01 1 9804- ● ● ● ● ● ● ● ●
13 09.211 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=4.0 		8-97165-293-0 01 1 9804- ● ● ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97221-320-0 01 1 9804-0101 ● ● ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97165-288-1 01 1 0102- ● ● ● ● ● ● ● ●
31 09.277 RESISTOR; POWER EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97083-136-1 01 1 9804- ● ● ● ● ● ● ● ●
35 09.211 GROMMET; EVAP,LOW
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97069-405-3 01 1 9804- ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) 		8-94446-972-1 01 1 9804-0011 ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-94446-972-1 01 1 0012- ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97254-481-0 01 1 0012- ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.195 ID=6.07 		8-94461-902-0 01 1 9804- ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97170-788-0 01 1 9804- ● ● ● ● ● ● ● ●
39 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94481-717-0 01 1 9804- ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97170-793-1 01 1 9804- ● ● ● ● ● ● ● ●
45 09.220 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97165-292-0 01 1 9804- ● ● ● ● ● ● ● ●
46 09.214 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 ID=8X2 		8-94344-881-1 01 1 9804- ● ● ● ● ● ● ● ●
47 09.214 SCREW; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97130-601-0 01 1 9804- ● ● ● ● ● ● ● ●
48 09.214 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		1-83579-784-0 01 1 9804- ● ● ● ● ● ● ● ●
49 09.211 GROMMET; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97069-404-1 01 1 9804- ● ● ● ● ● ● ● ●
52 09.242 GROMMET; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94324-801-0 01 1 9804- ● ● ● ● ● ● ● ●
54 09.172 THERMOSTAT; A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97223-415-0 01 1 9804-0101 ● ● ● ● ● ● ● ●
54 09.172 THERMOSTAT; A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97287-650-0 01 1 0102- ● ● ● ● ● ● ● ●
109 09.211 BOLT; EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 06 1 9804- ● ● ● ● ● ● ● ●

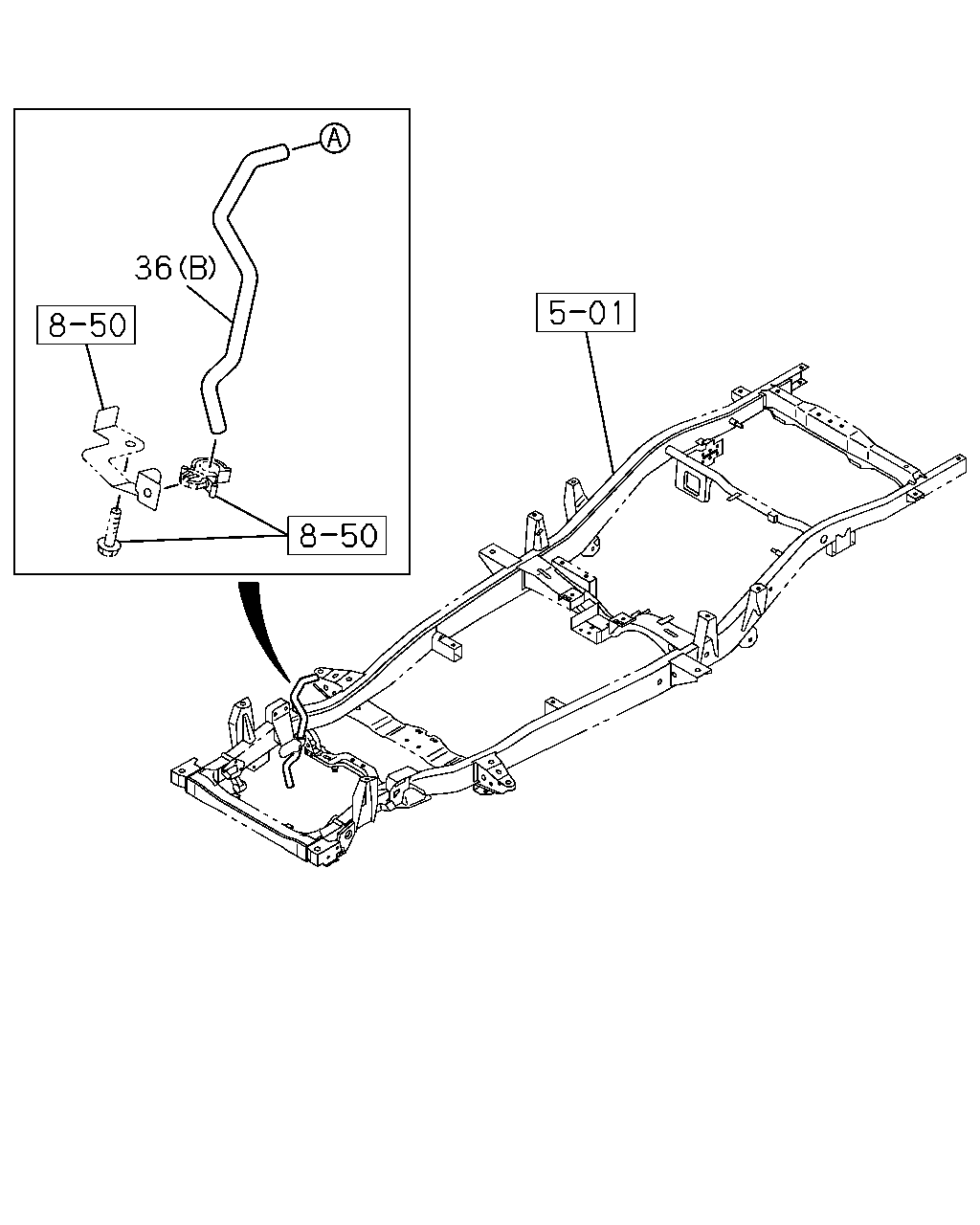

çizim 74001
36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) 		8-94446-972-1 01 1 9804-0011 ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-94446-972-1 01 1 0012- ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97254-481-0 01 1 0012- ● ● ● ●
