0-22 — ENGINE MOUNTING (#44180) — 63 parça

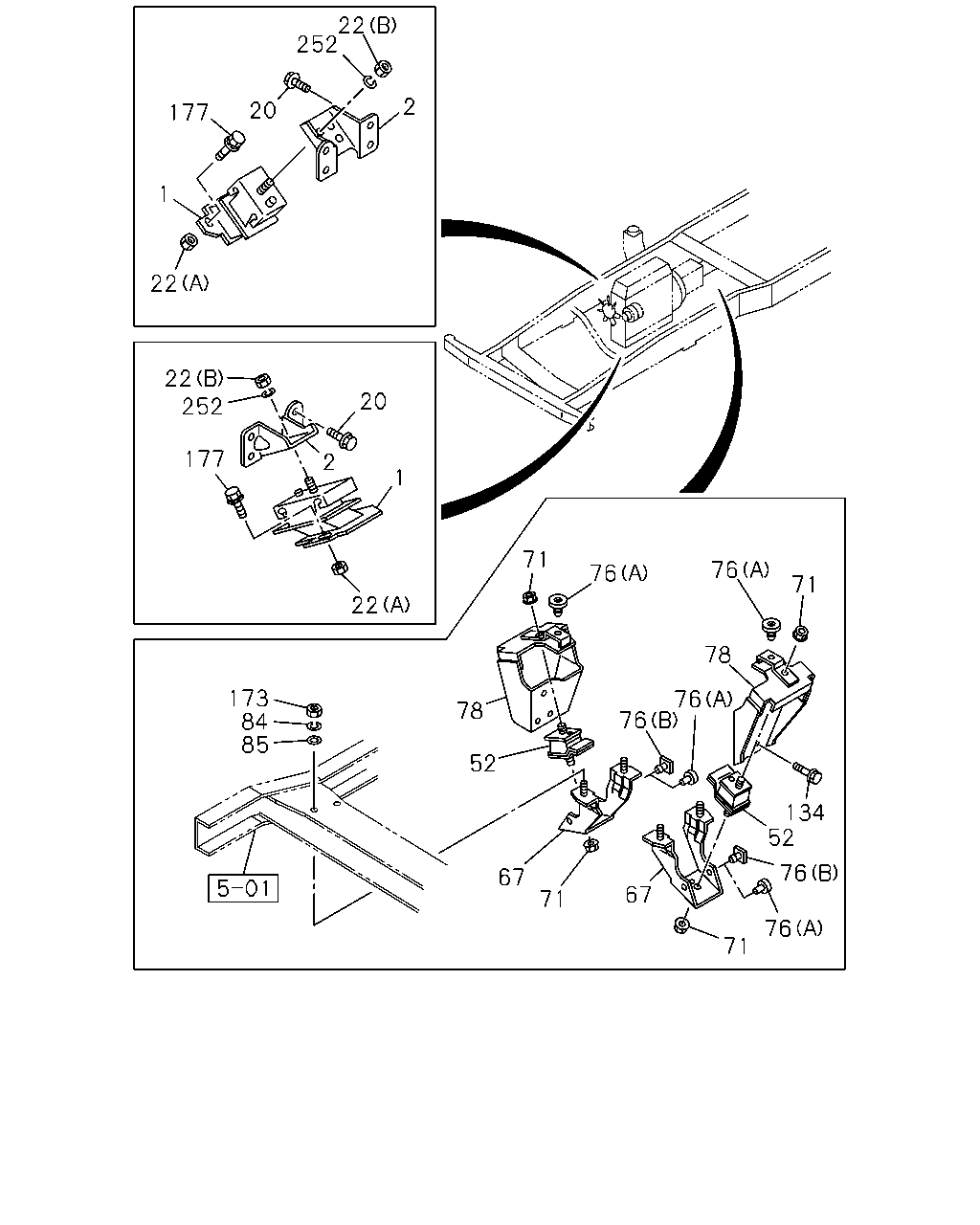

çizim 11362
22 252 2 20 177 1 22 22 252 20 177 2 1 71 76 76 71 22 78 173 84 85 76 76 78 2 134 52 76 67 67 71 76 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0512- ●
1 RUBBER; ENG FOOT,FRT 8-97201-669-0 01 1 0303- ●
1 RUBBER; ENG FOOT,FRT 8-97201-671-0 01 1 0303-0511 ● ●
1 RUBBER; ENG FOOT,FRT 8-97201-671-0 01 1 0512- ●
1 RUBBER; ENG FOOT,FRT 8-97187-418-0 01 1 0303-0511 ●
1 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0512- ●
2 FOOT; ENG 8-97228-669-2 02 1 0303-0511 ● ●
2 FOOT; ENG 8-97228-669-2 02 1 0512- ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0303-0511 ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0512-0512 ● ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28161-020-0 08 1 0601- ● ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 0603- ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0303-0511 ● ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 04 1 0603- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 0303-0511 ● ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 0512-0512 ● ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 SOU 		0-91110-512-0 02 1 0601-0612 ● ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-1 02 1 0303- ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0303-0511 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0512- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-566-0 01 1 0303-0306 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-0 01 1 0307- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-0 01 1 0303- ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0303-0511 ●
67 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-282-2 02 1 0512- ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE SOU 		0-91150-110-0 04 1 0303-0511 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) M10 FLANGE SOU 		0-91150-110-0 04 1 0303-0511 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ●
71 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ●
76 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) (A) 		8-94111-904-0 06 1 0303- ●
76 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (A) 		8-94111-904-0 02 1 0303-0511 ●
76 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (A) 		8-94111-904-0 02 1 0512- ●
76 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0303-0511 ●
76 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (B) 		8-97039-947-1 02 1 0512- ●
78 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-562-0 01 1 0303- ●
78 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-563-0 01 1 0303- ●
78 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97211-475-0 01 1 0303-0511 ●
78 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97172-399-1 01 1 0512- ●
78 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97234-719-0 01 1 0303-0511 ●
78 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97307-777-0 01 1 0512- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 0303-0511 ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 0512-0605 ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0303-0511 ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0512-0603 ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 SOU 		0-91510-610-0 04 1 0604-0610 ● ●
134 BOLT; SUPPORT BRKT
M12X25 		0-28781-225-0 06 1 0303-0511 ● ●
134 BOLT; SUPPORT BRKT
M12X25 		0-28781-225-0 06 1 0512-0512 ● ●
134 BOLT; SUPPORT BRKT
M12X25 FLANGE 		0-28751-225-0 06 1 0601- ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 0303-0511 ● ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 0512-0512 ● ●
173 NUT; ENG MTG RR TO FRAME
M10 SOU 		0-91110-510-0 04 1 0601-0610 ● ●
173 NUT; ENG MTG RR TO FRAME
M10 FLANGE SOU 		0-91180-110-0 04 1 0611- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0303-0511 ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0512- ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 0303-0511 ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 0512-0603 ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0612 ● ●
