0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#44179) — 95 parça

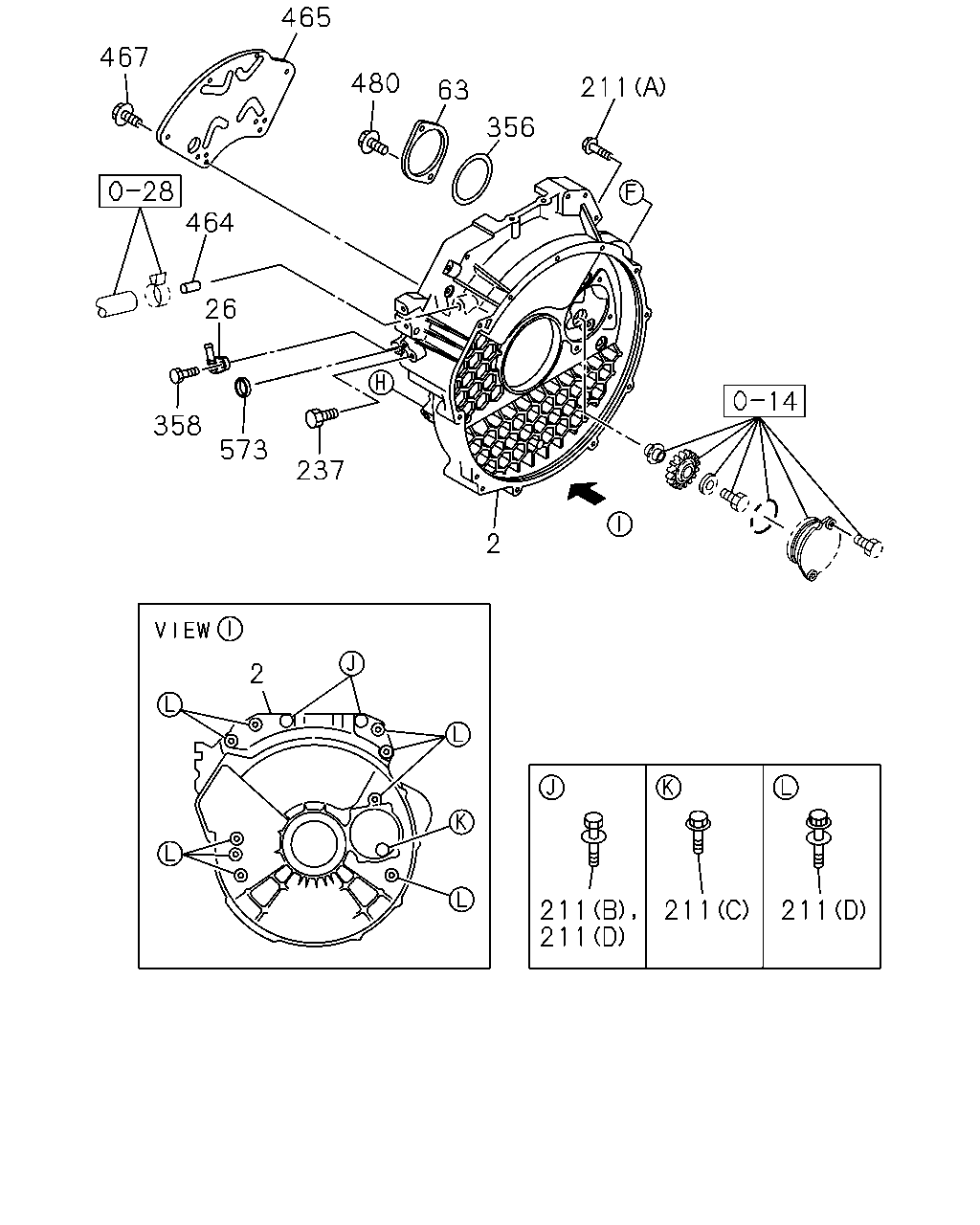

çizim 52897
465 467 480 211 63 356 464 26 358 573 237 2 2 211 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0303-0308 ●
2 HOUSING; FLYWHEEL 8-97364-899-4 01 1 0309- ●
2 HOUSING; FLYWHEEL 8-97209-886-3 01 1 0303-0308 ●
2 HOUSING; FLYWHEEL 8-97364-901-0 01 1 0309-0511 ●
2 HOUSING; FLYWHEEL 8-97364-901-3 01 1 0512- ●
26 ADAPTER 8-97354-819-0 01 1 0512- ●
63 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0303- ●
211 BOLT; HSG
(B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0303- ●
211 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0303- ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0303-0511 ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0512-0512 ● ●
211 BOLT; HSG
(A) M10X40 FLANGE 		0-28751-040-0 01 1 0601- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0303-0511 ● ●
211 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0512- ● ●
211 BOLT; HSG
EXC. POWER STEERING<N40> (D) M14X35 FLANGE 		0-28791-435-0 01 1 0303-0512 ●
211 BOLT; HSG
EXC. POWER STEERING<N40> (D) M14X35 FLANGE 		0-28761-435-0 01 1 0601- ●
211 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0303-0511 ●
211 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0512- ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE 		0-28081-012-0 01 1 0512-0512 ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE 		0-28051-012-0 01 1 0601- ●
356 GASKET; COVER
EXC. POWER STEERING<N40> 		8-97101-875-2 01 1 0303- ●
358 BOLT; ADAPTER
M6X16 FLANGE 		0-28080-616-0 01 1 0512-0512 ●
358 BOLT; ADAPTER
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0303-0511 ● ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0512- ● ●
465 PLATE; FLYWHEEL HSG 8-94370-384-3 01 1 0303-0308 ●
465 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0309- ●
465 PLATE; FLYWHEEL HSG 8-97212-490-0 01 1 0303-0308 ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0309-0511 ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0512- ●
467 BOLT; PLATE
M6X10 FLANGE 		0-28080-610-0 06 1 0303-0507 ● ●
467 BOLT; PLATE
M6X10 		0-20800-610-0 06 1 0508-0511 ● ●
467 BOLT; PLATE
M6X10 		0-20800-610-0 06 1 0512-0805 ● ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 0806- ● ●
480 BOLT; COVER
EXC. POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0303-0805 ●
480 BOLT; COVER
EXC. POWER STEERING<N40> M10X28 FLANGE 		8-98044-944-0 02 1 0806- ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 0303-0511 ● ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 0512- ●

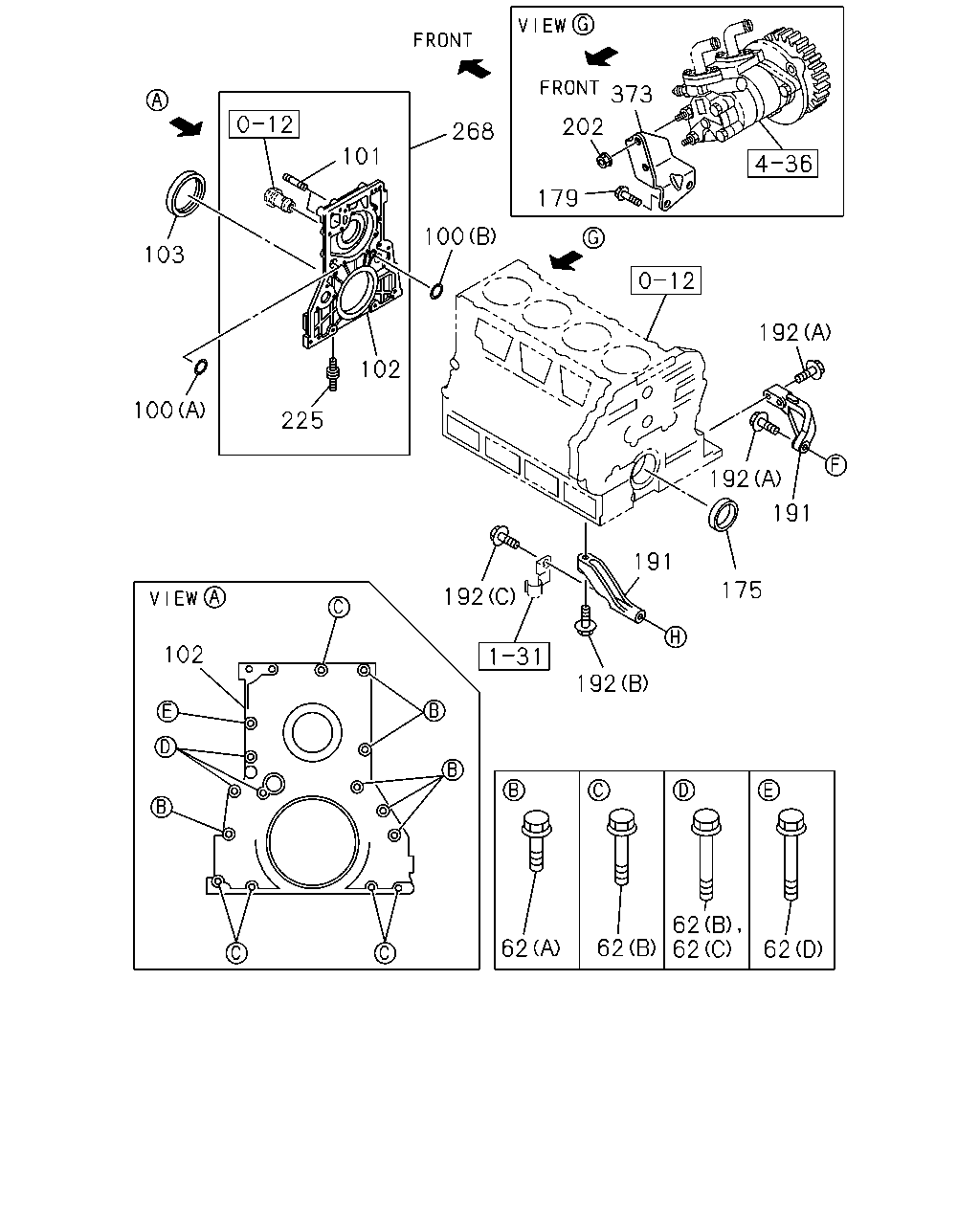

çizim 54183
373 202 268 101 179 100 103 192 102 100 225 192 191 191 175 192 102 192 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C
62 BOLT; COVER
EXC. POWER STEERING<N40> (D) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0404 ●
62 BOLT; COVER
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0405-0511 ●
62 BOLT; COVER
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ● ●
62 BOLT; COVER
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0303-0511 ● ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512 ● ●
62 BOLT; COVER
(A) M8X25 FLANGE SOU 		0-28650-825-0 06 1 0601- ● ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28680-835-0 05 1 0303-0511 ● ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28680-835-0 05 1 0512-0512 ● ●
62 BOLT; COVER
(B) M8X35 FLANGE SOU 		0-28650-835-0 05 1 0601-0706 ● ●
62 BOLT; COVER
(B) M8X35 FLANGE SOU 		0-28650-835-0 06 1 0707- ● ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 03 1 0303-0511 ● ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 03 1 0512-0706 ● ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 02 1 0707- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0303-0511 ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0512- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0303-0511 ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0512- ● ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 0303-0511 ● ●
101 STUD; WATER PUMP
M8X18 L=29 		8-97028-541-0 01 1 0512- ● ●
101 STUD; WATER PUMP
M8X18 L=30 		9-04110-818-0 01 1 0303-0511 ● ●
101 STUD; WATER PUMP
M8X18 L=30 		9-04110-818-0 01 1 0512-0604 ● ●
101 STUD; WATER PUMP
M8X18 L=30 		0-41010-818-0 01 1 0605- ● ●
102 RETAINER; FRT 8-97148-938-1 01 1 0512-0706 ●
102 RETAINER; FRT 8-98039-932-1 01 1 0707- ● ●
102 RETAINER; FRT 8-97094-943-3 01 1 0303-0511 ● ●
102 RETAINER; FRT 8-97094-943-3 01 1 0512-0706 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0303-0511 ● ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0512- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0303-0511 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0512- ● ●
179 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 02 1 0303-0511 ●
179 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 02 1 0512- ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0303-0511 ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0512- ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0303-0511 ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0512- ●
192 BOLT; STAY TO HSG
(A) M10X40 FLANGE 		0-28181-040-0 02 1 0303-0511 ●
192 BOLT; STAY TO HSG
(A) M10X40 FLANGE 		0-28181-040-0 02 1 0512-0512 ●
192 BOLT; STAY TO HSG
(A) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0303-0511 ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0512-0512 ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0601- ●
192 BOLT; STAY TO HSG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0303-0511 ●
192 BOLT; STAY TO HSG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0512-0512 ●
192 BOLT; STAY TO HSG
(C) M12X50 FLANGE 		0-28151-250-0 02 1 0601- ●
202 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0311 ●
202 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 01 1 0312-0511 ●
202 NUT; BRKT
M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ●
202 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ●
225 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0303- ●
268 COVER; FRT 8-97259-416-0 01 1 0303-0706 ●
268 COVER; FRT 8-98039-931-1 01 1 0707- ●
268 COVER; FRT 8-97113-768-1 01 1 0303-0511 ●
268 COVER; FRT 8-97148-937-2 01 1 0512- ●
373 BRACKET; PUMP 8-97149-333-0 01 1 0303-0511 ●
373 BRACKET; PUMP 8-97149-333-0 01 1 0512- ●
