Sayfa 0-15 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶

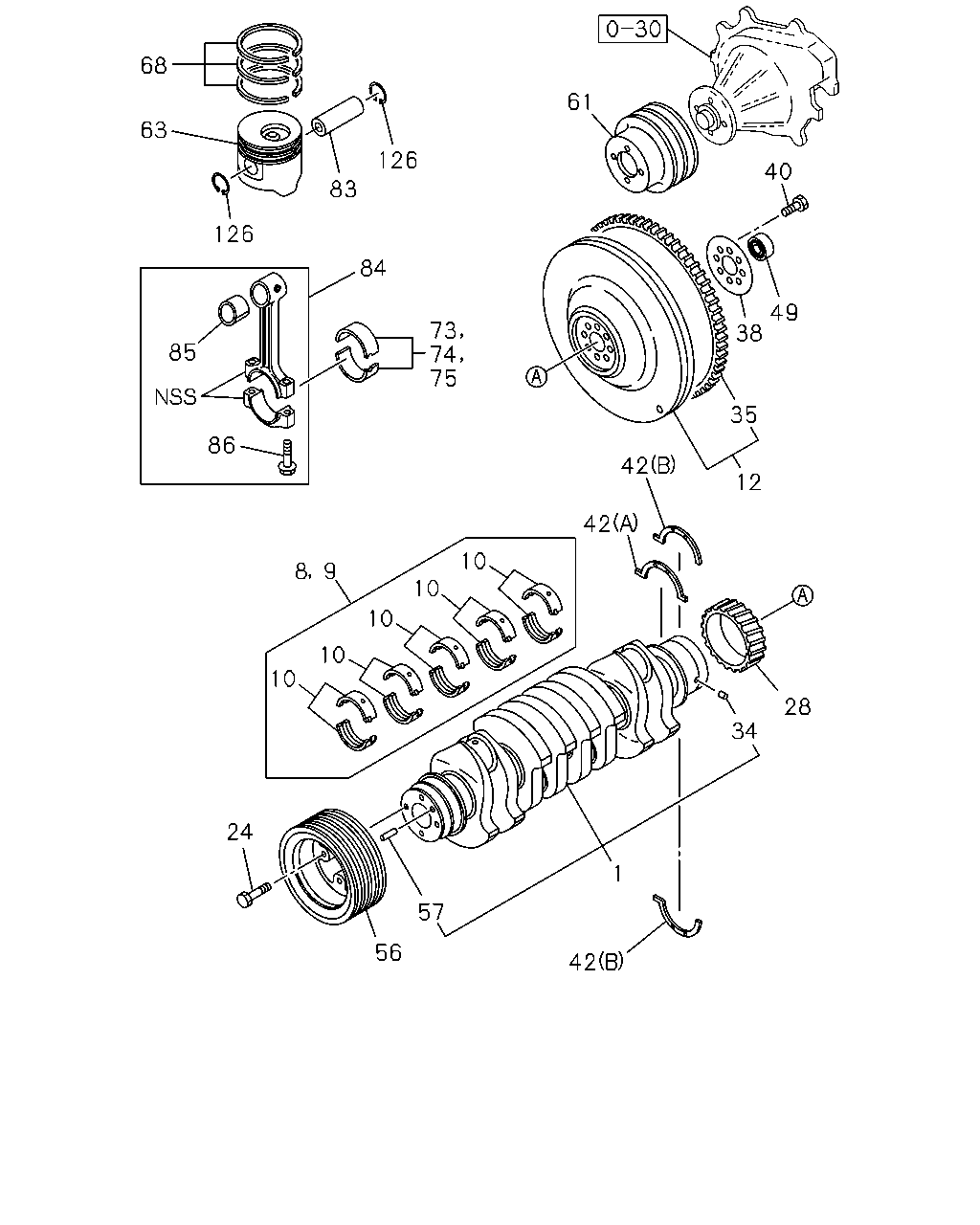

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#44178) — 83 parça

68 61 63 126 40 83 126 84 49 38 73 74 75 85 35 86 42 12 42 10 8 9 10 10 10 10 28 34 24 1 57 56 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-97112-981-3	01	1	0303-	●
1	CRANKSHAFT	8-97352-534-3	01	1	0303-0509		●
1	CRANKSHAFT	8-98029-270-0	01	1	0510-0511		●
1	CRANKSHAFT	8-98029-270-0	01	1	0512-			●
8	METAL KIT; CRANKSHAFT,U/S=0.25 HEATER & DEFROSTER(C41)	5-87310-546-0	01	1	0303-	●
9	METAL KIT; CRANKSHAFT,U/S=0.50 HEATER & DEFROSTER(C41)	5-87310-547-0	01	1	0303-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0308-0511	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0512-	●		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0308-0511	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0512-	●		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0308-0511	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0512-	●		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	0303-0307	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	0303-0307	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	0303-0307	●	●
12	FLYWHEEL	8-97330-892-1	01	1	0303-	●
12	FLYWHEEL	8-97166-516-0	01	1	0303-0511		●
12	FLYWHEEL	8-97326-227-2	01	1	0512-			●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0303-0511	●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0512-	●		●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0303-	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0303-0511		●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0512-			●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0303-0511	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0512-	●		●
35	GEAR; RING Z=138	8-97046-366-0	01	1	0303-0511	●	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	0512-	●		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0303-0511	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0512-	●		●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0303-0511	●	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0512-	●		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0303-0511	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0512-0703	●		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-	●		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0303-0511	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0512-0703	●		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-	●		●
49	BEARING; PILOT	8-97258-239-0	01	1	0303-0511	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	0512-	●		●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0303-0511	●	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0512-	●		●
57	PIN; PULLEY OD=8 L=20	9-08160-820-0	02	1	0303-0304	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0305-0511	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0512-	●		●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97364-396-1	01	1	0512-			●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0303-0511	●	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0512-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0303-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-652-1	04	1	0303-0511		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-800-0	04	1	0512-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-653-1	04	1	0303-0511		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0303-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97078-779-1	04	1	0303-0511		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97603-423-1	04	1	0512-			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0303-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0303-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0303-0511		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	04	1	0512-0701			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	04	1	0702-0706			●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0707-			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0303-0511		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	04	1	0512-0701			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	04	1	0702-0706			●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0707-			●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0303-	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0303-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0303-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0303-0511		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0512-			●
84	ROD ASM; CONN	8-97135-032-3	04	1	0303-	●
84	ROD ASM; CONN	8-94399-661-2	04	1	0303-0511		●
84	ROD ASM; CONN	8-94399-661-2	04	1	0512-0706			●
84	ROD ASM; CONN	8-98018-425-0	04	1	0707-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0303-0805	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	04	1	0806-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	0303-0511		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	04	1	0512-0706			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0707-			●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0303-0511	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0512-	●		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0303-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0303-0511		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0512-			●
