0-12 — CYLINDER BLOCK (#44175) — 145 parça

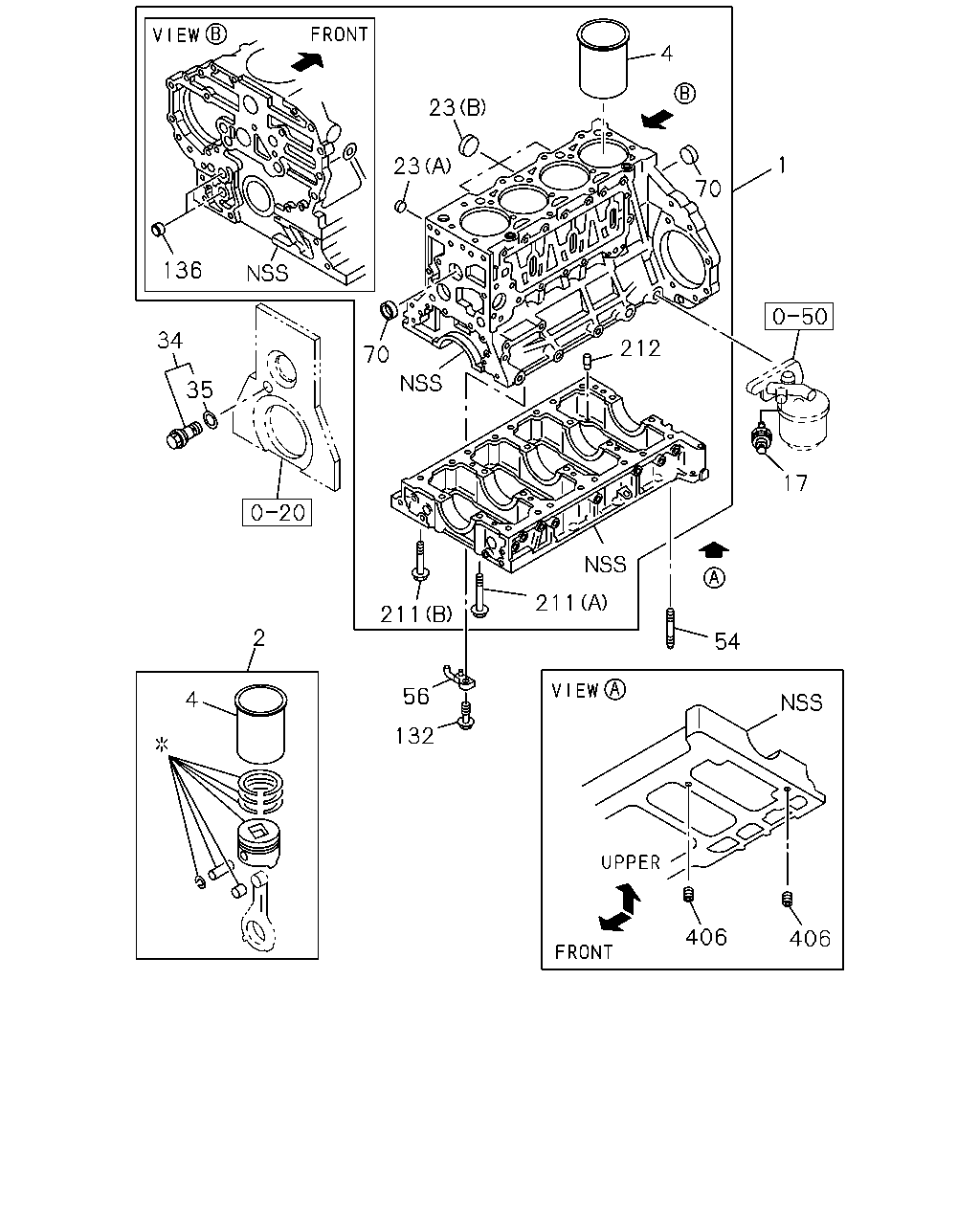

4 23 1 23 70 136 34 212 70 35 17 211 211 2 54 56 4 132 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97163-853-7	01	1	0303-	●
1	BLOCK ASM; CYL	8-97148-885-4	01	1	0303-0511		●
1	BLOCK ASM; CYL	8-98005-443-4	01	1	0512-			●
2	LINER SET; ENG CYL GRADE=1X	5-87813-390-4	04	1	0303-	●
2	LINER SET; ENG CYL GRADE=3X	5-87813-391-4	04	1	0303-	●
2	LINER SET; ENG CYL GRADE=1X	5-87813-328-0	04	1	0303-0511		●
2	LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87814-579-0	04	1	0512-0706			●
2	LINER SET; ENG CYL GRADE=1X	5-87815-151-1	04	1	0707-			●
2	LINER SET; ENG CYL GRADE=3X	5-87813-329-0	04	1	0303-0511		●
2	LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87814-580-0	04	1	0512-0706			●
2	LINER SET; ENG CYL GRADE=3X	5-87815-152-1	04	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-1	04	1	0303-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-1	04	1	0303-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	0303-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	0512-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	0303-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	0512-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	0303-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	0303-0511		●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0303-0511	●	●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0512-	●		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0303-0511	●	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0512-	●		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0303-0511	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0512-	●		●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	0303-0511	●	●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	0512-0706	●		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	0707-	●		●
35	GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0303-0511	●	●
35	GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0512-	●		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0303-0511		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0512-			●
56	JET; OIL,PISTON COOLING	8-94370-579-1	04	1	0303-	●
56	JET; OIL,PISTON COOLING	8-94399-166-0	04	1	0303-0511		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	04	1	0512-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0704-			●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0303-0511	●	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0512-	●		●
70	CUP; SEALING,FRT & RR OD=25	1-09600-016-0	01	1	0303-0511		●
70	CUP; SEALING,FRT & RR OD=25	1-09600-016-0	01	1	0512-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0303-0511	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0512-0704	●		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0705-	●		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0303-0511	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0512-	●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0303-0511	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0512-	●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0303-0511	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0512-	●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0303-0511	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0512-	●		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	0303-0511	●	●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	0512-	●		●

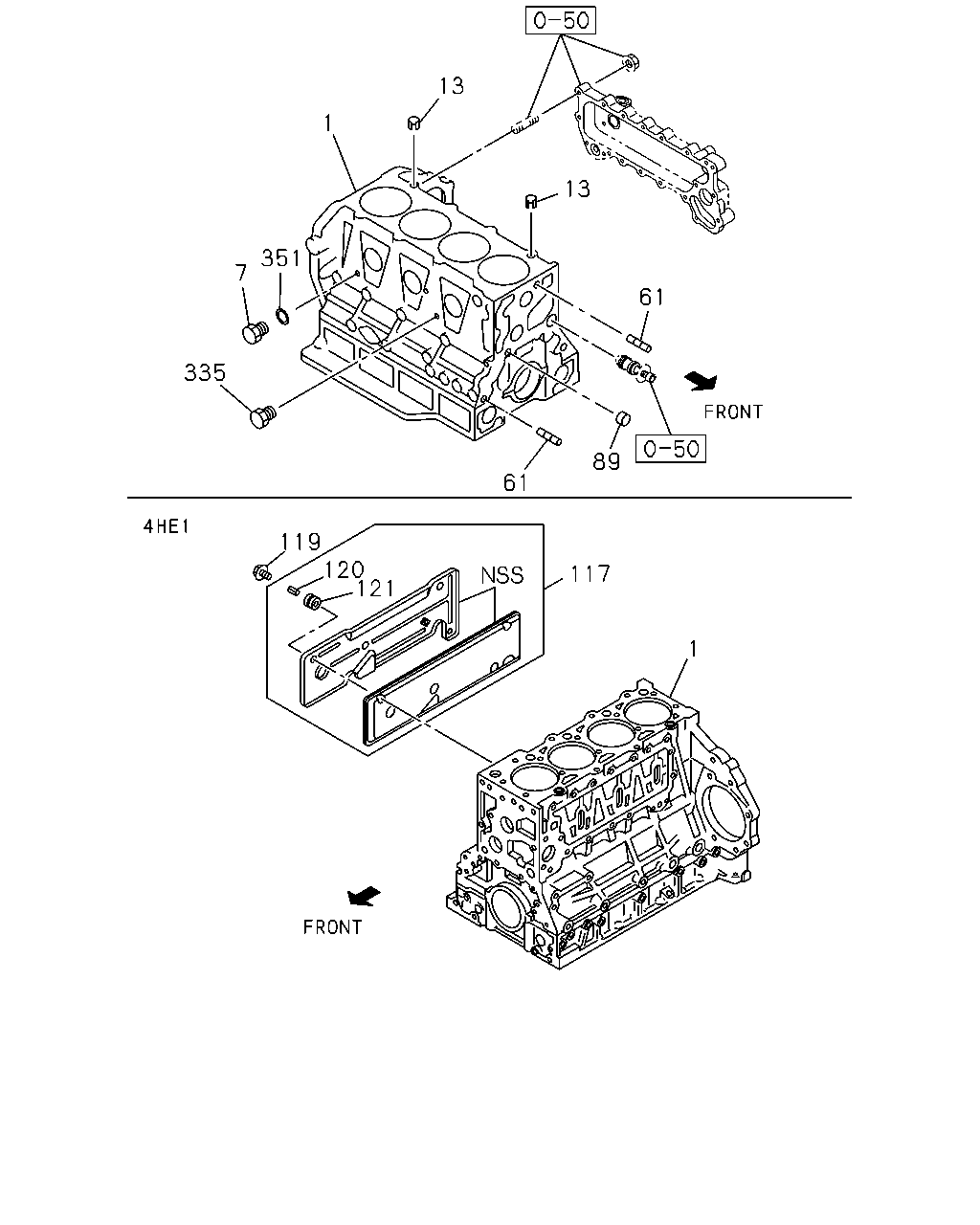

13 1 13 351 7 61 335 89 61 119 120 121 117 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97163-853-7	01	1	0303-	●
1	BLOCK ASM; CYL	8-97148-885-4	01	1	0303-0511		●
1	BLOCK ASM; CYL	8-98005-443-4	01	1	0512-			●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0303-0511	●	●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0512-	●		●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0303-0511	●	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0512-	●		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0303-0511	●	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0512-	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0303-0511	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0512-	●		●
117	COVER ASM; C/BL	8-97118-347-0	01	1	0303-0511		●
119	BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0303-0511		●
120	BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	0303-0511		●
121	RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	0303-0511		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0303-0712	●
335	PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	0801-	●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	0303-0511		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	0512-0712			●
335	PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	02	1	0801-			●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0303-0511	●	●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0512-	●		●

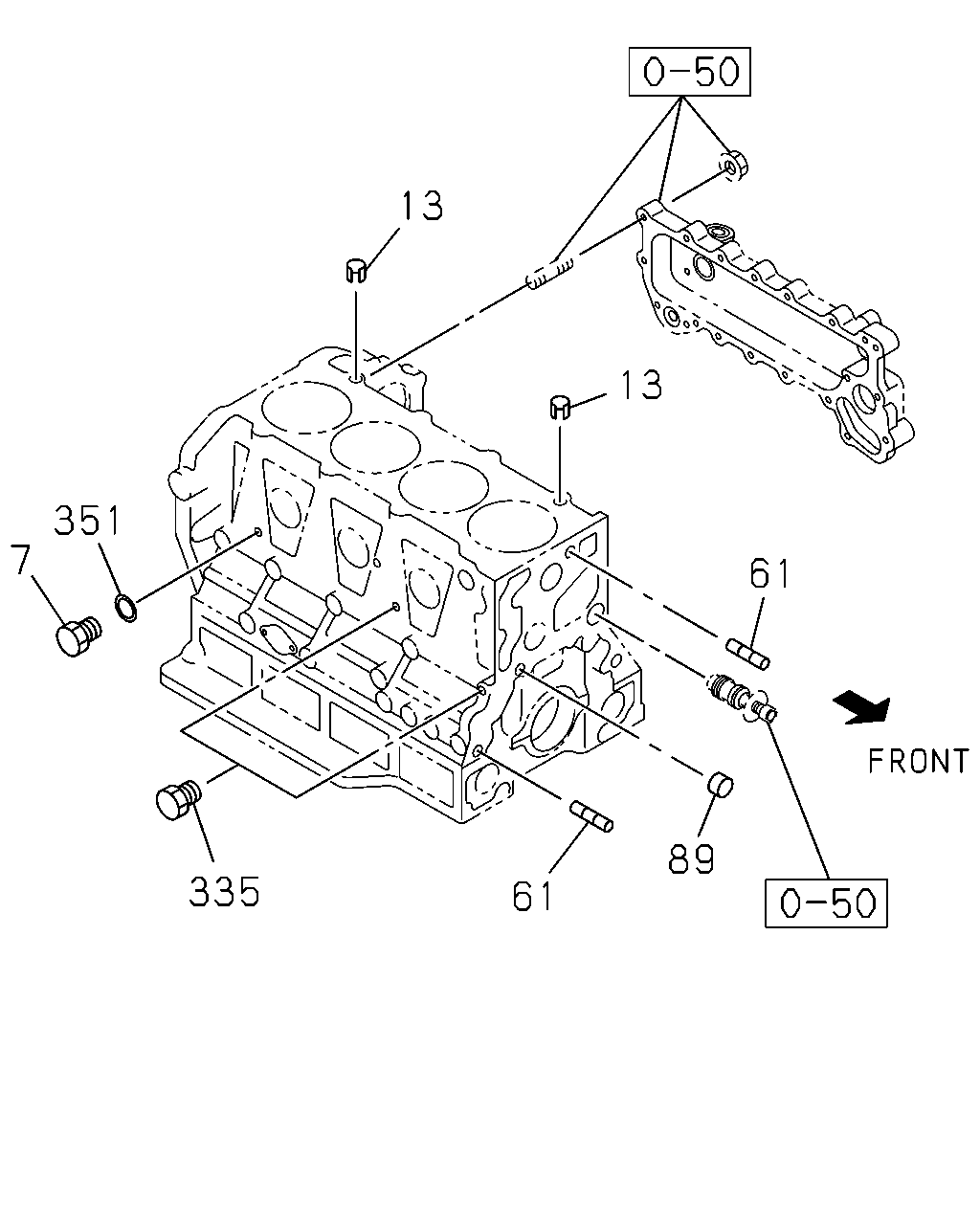

13 13 351 7 61 89 335 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0303-0511	●	●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0512-	●		●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0303-0511	●	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0512-	●		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0303-0511	●	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0512-	●		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0303-0511	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0512-	●		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0303-0712	●
335	PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	0801-	●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	0303-0511		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	0512-0712			●
335	PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	02	1	0801-			●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0303-0511	●	●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0512-	●		●

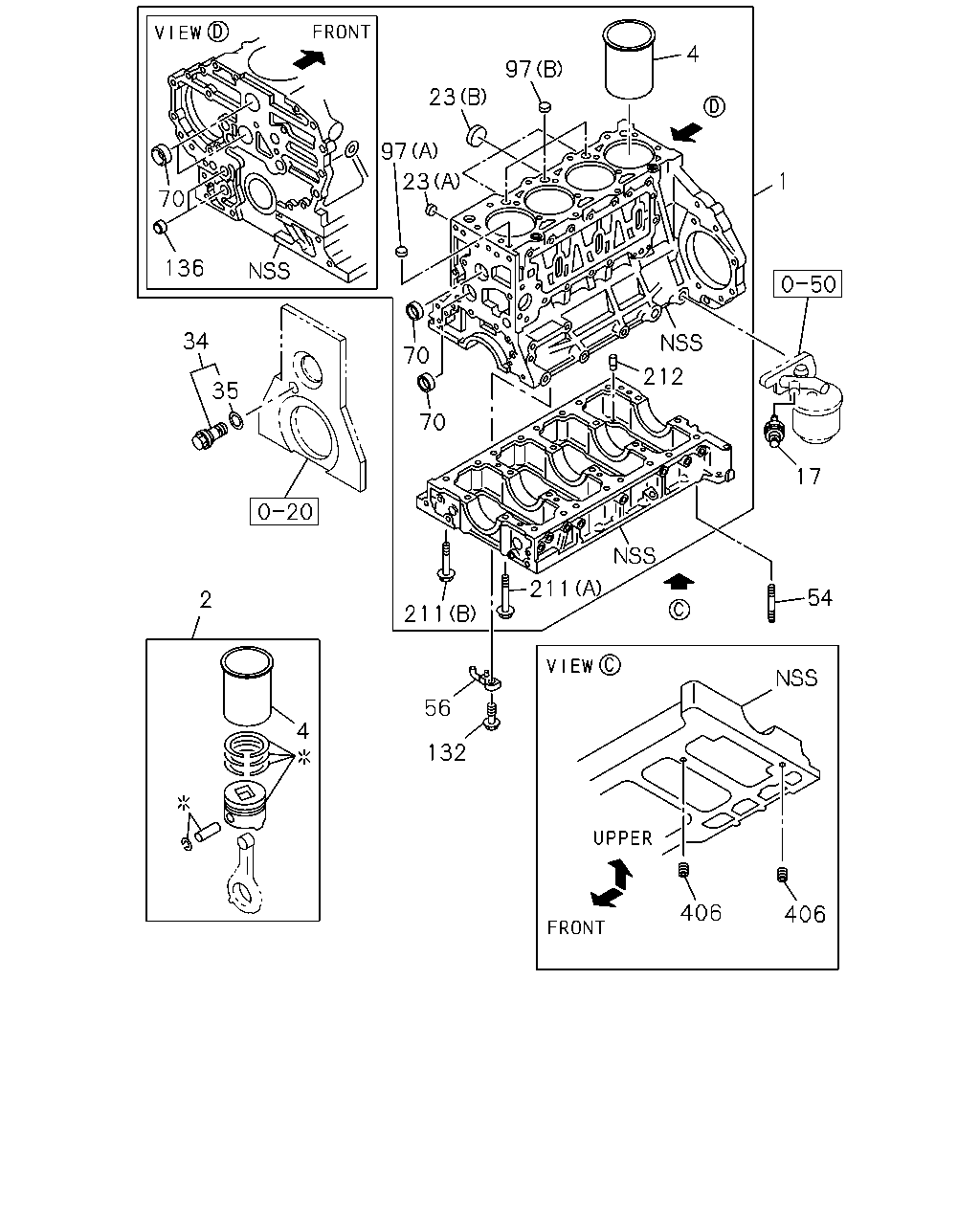

4 97 23 70 97 1 23 136 34 70 212 35 70 17 211 54 2 211 56 4 132 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-97163-853-7	01	1	0303-	●
1	BLOCK ASM; CYL	8-97148-885-4	01	1	0303-0511		●
1	BLOCK ASM; CYL	8-98005-443-4	01	1	0512-			●
2	LINER SET; ENG CYL GRADE=1X	5-87813-390-4	04	1	0303-	●
2	LINER SET; ENG CYL GRADE=3X	5-87813-391-4	04	1	0303-	●
2	LINER SET; ENG CYL GRADE=1X	5-87813-328-0	04	1	0303-0511		●
2	LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87814-579-0	04	1	0512-0706			●
2	LINER SET; ENG CYL GRADE=1X	5-87815-151-1	04	1	0707-			●
2	LINER SET; ENG CYL GRADE=3X	5-87813-329-0	04	1	0303-0511		●
2	LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87814-580-0	04	1	0512-0706			●
2	LINER SET; ENG CYL GRADE=3X	5-87815-152-1	04	1	0707-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-1	04	1	0303-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-1	04	1	0303-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	0303-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	0512-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	0303-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	0512-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	0303-0511		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	0303-0511		●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0303-0511	●	●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0512-	●		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0303-0511	●	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0512-	●		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0303-0511	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0512-	●		●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	0303-0511	●	●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	0512-0706	●		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	0707-	●		●
35	GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0303-0511	●	●
35	GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0512-	●		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0303-0511		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0512-			●
56	JET; OIL,PISTON COOLING	8-94370-579-1	04	1	0303-	●
56	JET; OIL,PISTON COOLING	8-94399-166-0	04	1	0303-0511		●
56	JET; OIL,PISTON COOLING	8-94395-194-0	04	1	0512-0703			●
56	JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0704-			●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0303-0511	●	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0512-	●		●
70	CUP; SEALING,FRT & RR OD=25	1-09600-016-0	01	1	0303-0511		●
70	CUP; SEALING,FRT & RR OD=25	1-09600-016-0	01	1	0512-			●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	0512-			●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	0512-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0303-0511	●	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0512-0704	●		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0705-	●		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0303-0511	●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0512-	●		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0303-0511	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0512-	●		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0303-0511	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0512-	●		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0303-0511	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0512-	●		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	0303-0511	●	●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	0512-	●		●
