Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
9 - Tools
▶
9-01 - TOOLS
▶

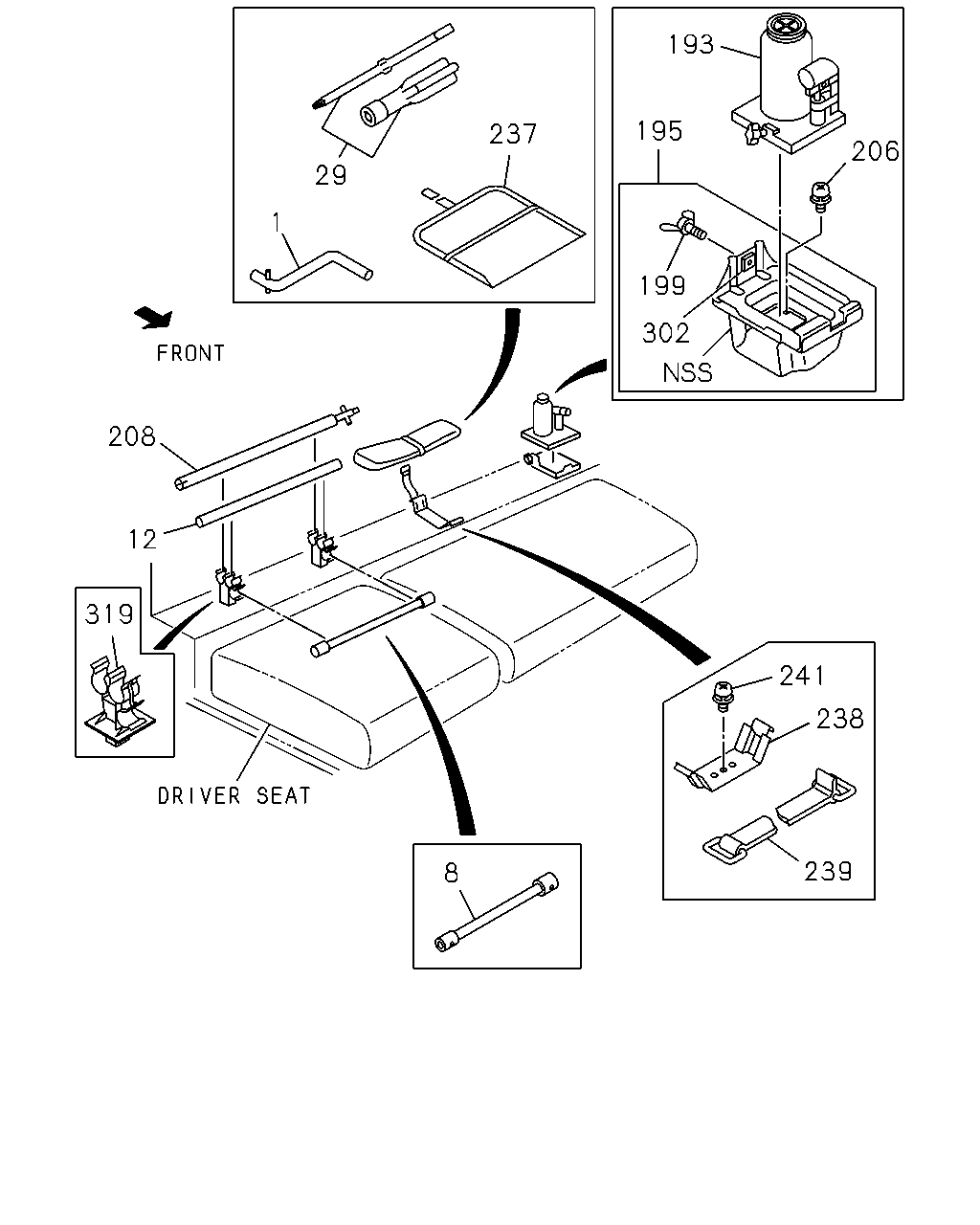

9-01 — TOOLS
(#44170) — 24 parça
◀
[901A] TOOL BOX (5 parça)
[901A] TOOLS (19 parça)
▶
285
280
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
280
BOX; TOOL
TOOL & STORAGE BOX<VK2>
8-97222-496-0
01
1
0303-
284
BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE
0-28680-825-0
04
1
0303-0512
284
BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE SOU
0-28650-825-0
04
1
0601-
285
NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE SOU
0-91150-108-0
03
1
0303-0602
285
NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8 FLANGE SOU
0-91180-108-0
03
1
0603-
193
195
237
206
29
1
199
302
208
12
319
241
238
239
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; SPARE TIRE CARRIER
8-97218-985-0
01
1
0303-
8
WRENCH; WHEEL
41X19 L=330 SOU
8-94386-490-1
01
1
0303-
12
HANDLE; WRENCH,WHEEL PIN
OD=25 L=590
8-97332-988-0
01
1
0303-
29
DRIVER; SCREW
<+>,<-> L=160 SOU
8-94242-798-1
01
1
0303-
193
JACK ASM
4TON
8-97131-075-2
01
1
0303-0305
193
JACK ASM
4TON
8-97371-123-0
01
1
0306-0504
193
JACK ASM
4TON
8-98012-285-0
01
1
0505-
195
BRACKET; JACK
8-94262-068-3
01
1
0303-
199
BOLT; JACK
M8X50 WING SOU
8-94279-136-0
01
1
0303-
206
SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER SOU
8-94279-403-0
01
1
0303-0612
206
SCREW; OIL JACK BRKT
M6X16
0-38050-616-0
01
1
0701-
208
HANDLE; JACK
L=642
8-97217-800-0
01
1
0303-
237
BAG; TOOL
SOU
8-97130-903-0
01
1
0303-
238
SUPPORT; TOOL BAG
SOU
8-97994-977-0
01
1
0303-
239
BAND; TOOL BAG
L=100 SOU
5-73997-026-1
01
1
0303-
241
SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER SOU
8-94279-403-0
01
1
0303-0612
241
SCREW; TOOL BAG SUPPORT
M6X16
0-38050-616-0
01
1
0701-
302
NUT; JACK BRKT
SOU
8-94279-522-0
01
1
0303-
319
CLIP; TOOL BAR
SOU
8-97853-077-2
02
1
0303-
