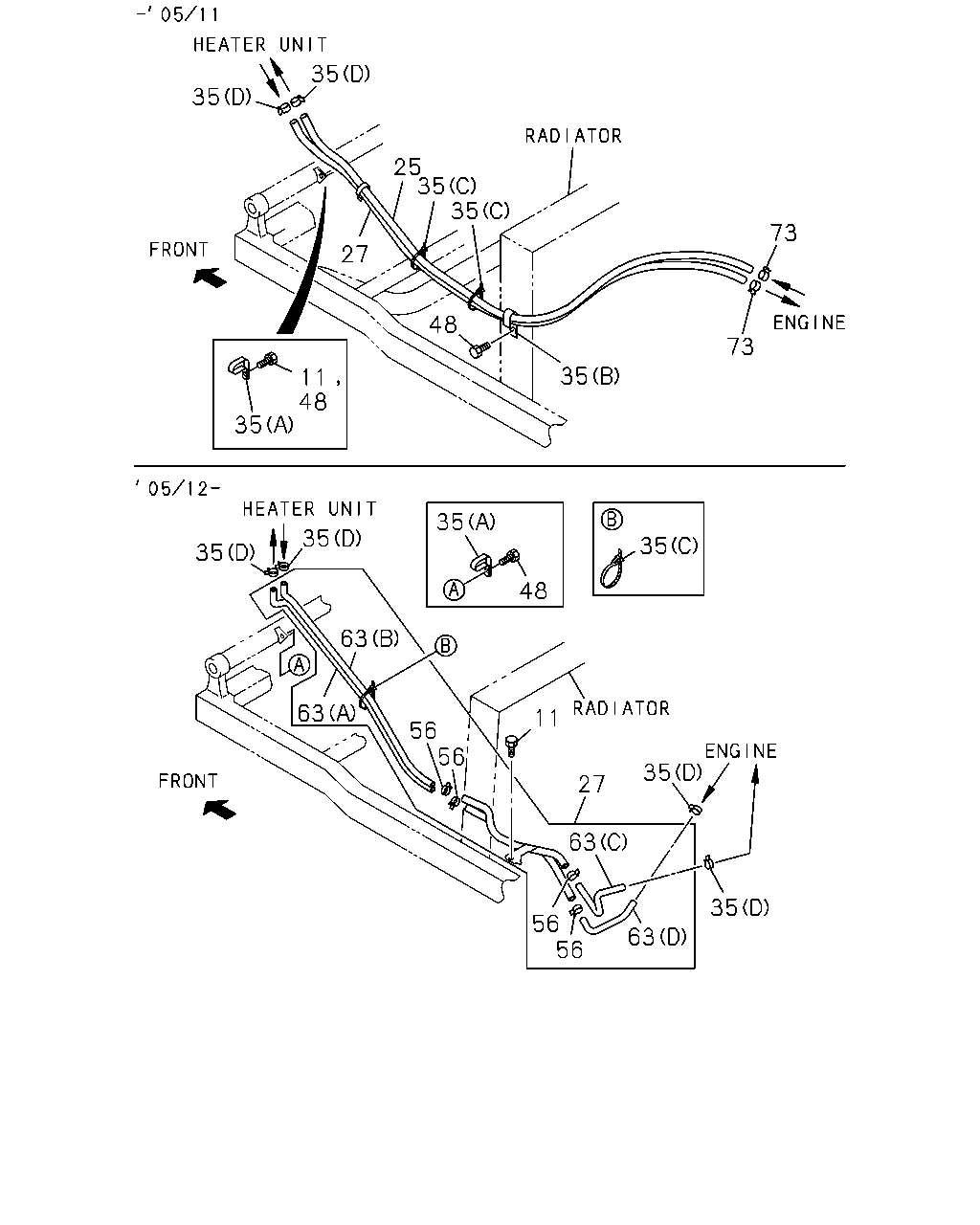

8-45 — HEATER PIPING
(#44163) — 25 parça
35
35
25
35
35
73
27
48
73
35
11
48
35
35
35
35
35
48
63
63
11
56
56
35
27
63
35
56
56
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; HTR PIPE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) M8X25 FLANGE
0-28680-825-0
02
1
0303-0511
11
BOLT; HTR PIPE
4HF1 ENG(RLS) M8X25 FLANGE
0-28680-825-0
01
1
0512-0512
11
BOLT; HTR PIPE
4HF1 ENG(RLS) M8X25 FLANGE SOU
0-28650-825-0
01
1
0601-
25
HOSE; WATER,ENG TO HTR UNIT
4JB1 ENG(RLF) HEATER & DEFROSTER(C41)
8-97187-049-0
01
1
0303-0511
27
HOSE; WATER,HTR UNIT TO WATER PIPE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41)
8-97187-050-0
01
1
0303-0511
27
HOSE; WATER,HTR UNIT TO WATER PIPE
4HF1 ENG(RLS)
8-97185-290-0
01
1
0512-
35
CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C) L=250 SOU
5-09707-030-1
02
1
0303-0511
35
CLIP; WATER HOSE
4HF1 ENG(RLS) (C) L=250 SOU
5-09707-030-1
02
1
0512-
35
CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B)
5-83574-003-0
01
1
0303-0511
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41) (A) SOU
5-83574-006-0
01
1
0303-0511
35
CLIP; WATER HOSE
(A) SOU
5-83574-006-0
01
1
0512-0610
35
CLIP; WATER HOSE
(A)
8-98029-677-0
01
1
0611-
35
CLIP; WATER HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (D) ID=22 SOU
8-94382-401-0
02
1
0303-0511
35
CLIP; WATER HOSE
4HF1 ENG(RLS) (D) ID=22 SOU
8-94382-401-0
04
1
0512-0610
35
CLIP; WATER HOSE
4HF1 ENG(RLS) (D) ID=21.7
8-97359-141-0
04
1
0611-
48
BOLT; CLIP FIX
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) M6X12 FLANGE
0-28080-612-0
01
1
0303-0511
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M6X12 FLANGE
0-28080-612-0
01
1
0303-0511
48
BOLT; CLIP FIX
M6X12 FLANGE
0-28080-612-0
01
1
0512-0512
48
BOLT; CLIP FIX
M6X12 FLANGE
0-28050-612-0
01
1
0601-
56
CLAMP; HTR HOSE
4HF1 ENG(RLS) ID=22 SOU
8-94382-401-0
04
1
0512-
63
HOSE; WATER
4HF1 ENG(RLS) (D)
8-97128-450-0
01
1
0512-
63
HOSE; WATER
4HF1 ENG(RLS) (C)
8-97128-451-0
01
1
0512-
63
HOSE; WATER
4HF1 ENG(RLS) (B)
8-97130-103-0
01
1
0512-
63
HOSE; WATER
4HF1 ENG(RLS) (A)
8-97130-104-0
01
1
0512-
73
CLIP; HTR HOSE
4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22 SOU
8-94382-401-0
02
1
0303-0511
