Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#44160) — 15 parça
◀

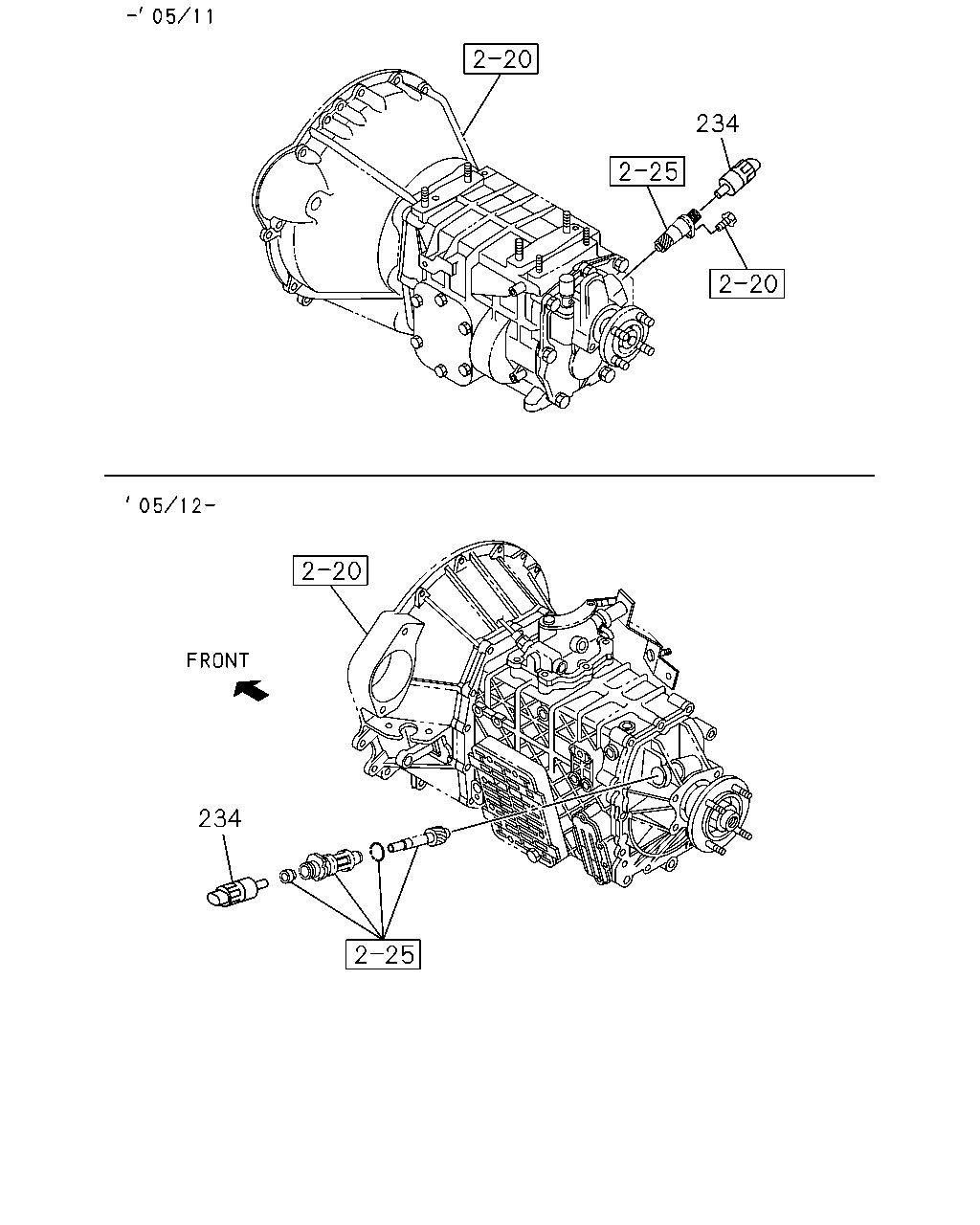

[826A] NO.2 (1 parça)
[826A] NO.1 (14 parça)
▶
234
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
0303-
21
21
2
3
1
549
635
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
SOU
8-97320-322-0
01
1
0303-0511
1
LIGHTER; CIGAR
SOU
8-97320-325-0
01
1
0512-
2
BEZEL; CIGAR LIGHTER
SOU
8-97853-159-1
01
1
0303-0706
2
BEZEL; CIGAR LIGHTER
8-98091-060-0
01
1
0707-
3
BULB; CIGAR LIGHTER
14V 1.4W SOU
8-97173-160-0
01
1
0303-0511
3
BULB; CIGAR LIGHTER
28V 1.8W SOU
8-97173-159-0
01
1
0512-
21
COVER; HOLE
4JB1 ENG(RLF) SOU
8-97136-694-0
01
1
0303-0511
21
COVER; HOLE
4HF1 ENG(RLS) SOU
8-97136-694-0
01
1
0512-
21
COVER; HOLE
SOU
8-97136-694-0
01
1
0512-
21
COVER; HOLE
SOU
8-97136-694-0
02
1
0303-0511
448
BOLT; SENSOR
4HF1 ENG(RLS) M6X16 FLANGE
0-28080-616-0
01
1
0512-0512
448
BOLT; SENSOR
4HF1 ENG(RLS) M6X16 FLANGE
0-28050-616-0
01
1
0601-
549
SHEET
4HF1 ENG(RLS)
8-97161-633-2
01
1
0512-
635
SENSOR; TACHOMETER
4HF1 ENG(RLS) KANSEI
8-97163-104-0
01
1
0512-
