2-25B — SPEEDOMETER DRIVEN GEAR (#4416) — 53 parça

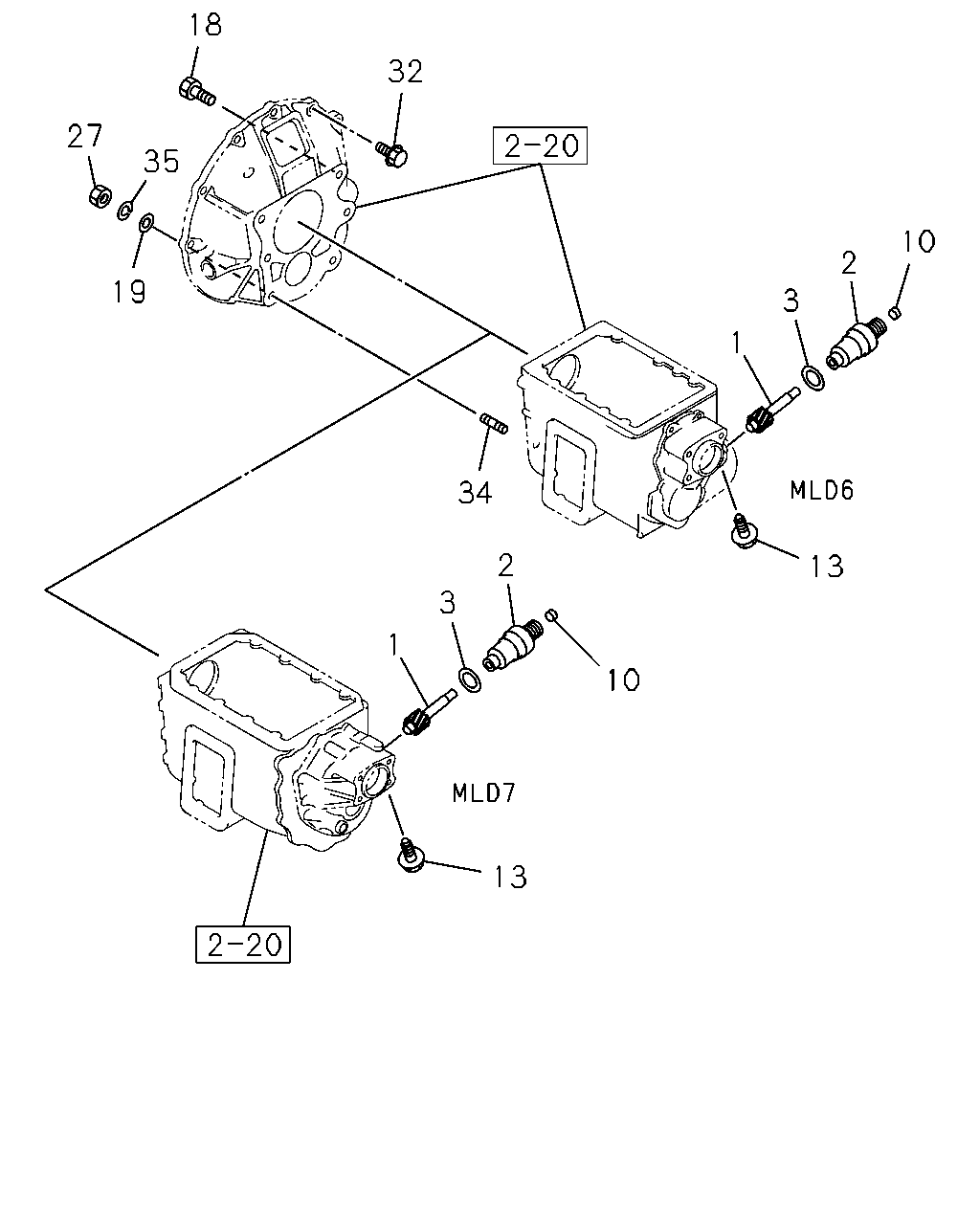

çizim 36922
18 32 35 27 10 2 19 3 1 34 2 13 3 1 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-3 01 1 9202-9202 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=15 		1-33372-133-3 01 1 9203-9304 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=15 		1-33372-133-3 01 1 9305-9504 ● ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-4 01 1 9505-9701 ● ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9702-9808 ● ● ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 9809- ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/6 15.5" HYPOID(W1T) Z=16 		1-33372-134-3 01 1 9203-9304 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/6 15.5" HYPOID(W1T) Z=16 		1-33372-134-3 01 1 9305-9504 ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5" HYPOID(W3K) Z=19 		1-33372-114-3 01 1 9203-9304 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 15.5" HYPOID(W3K) Z=19 		1-33372-114-3 01 1 9305-9504 ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9202-9701 ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9702-9808 ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 9809- ● ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9202-9701 ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9702-9808 ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9809- ● ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9202-9304 ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9305-9504 ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9505-9701 ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9702-9808 ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 9809- ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9202-9304 ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9305-9504 ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9505-9701 ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9702-9808 ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9809-0805 ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X35 		0-23801-635-0 06 1 9202-9203 ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9204-9701 ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9702-9808 ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50151-640-0 06 1 9809-0512 ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER 		0-50651-640-0 06 1 0601- ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9204-9701 ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9702-9808 ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9809-0605 ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0606- ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9202-9701 ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9702-9808 ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9809-0512 ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0601- ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK WASHER 		0-50051-030-0 12 1 9101-9504 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 W/LK WASHER 		0-50051-030-0 12 1 9505-9606 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28781-030-0 12 1 9607-9810 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28781-030-0 12 1 9811-0512 ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28751-030-0 12 1 0601- ● ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9202-9701 ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9702-9808 ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9809- ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 08 1 9202-9203 ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9204-9701 ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9702-9808 ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9809-0603 ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0604- ● ● ● ● ●
